EX78900X Series

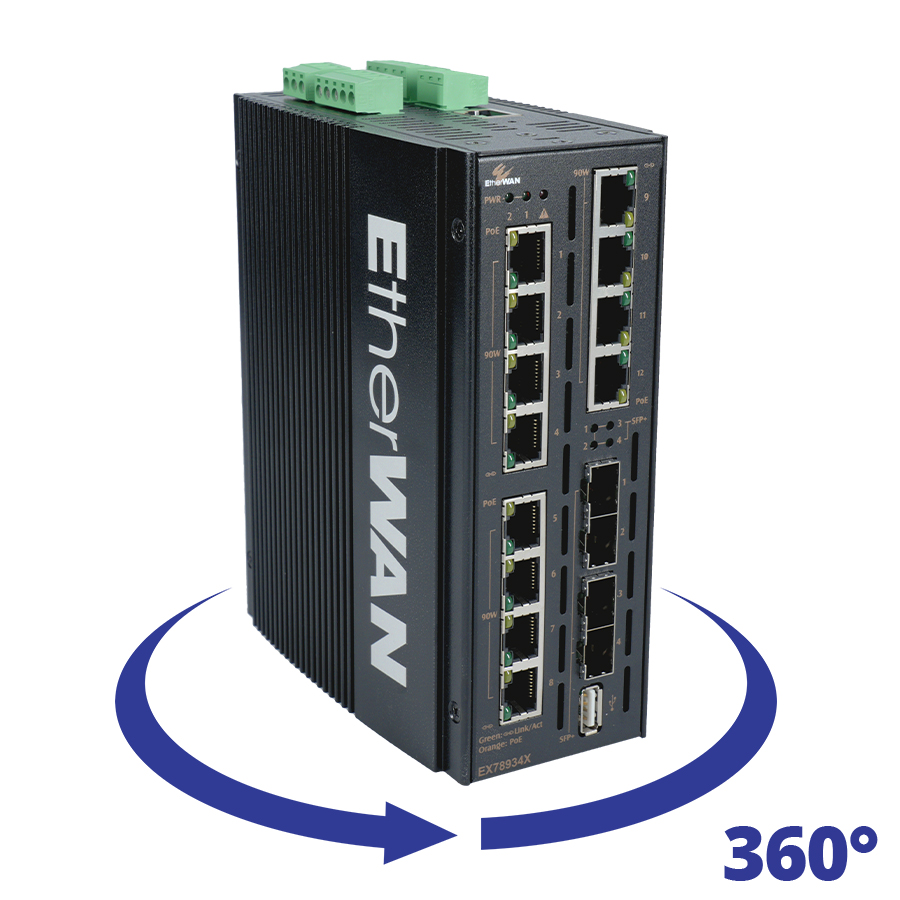

Hardened Managed 12-Port Gigabit PoE and 4-Port 10G SFP+ Ethernet Switch
PoE 15W
PoE 30W
PoE_60W
PoE_90W
Wide Temperature
10G
IEEE 1588
Fanless
DnA
EN 50121-4
PoE power of up to 90W per port, compliant with IEEE 802.3bt type 4
Total 360W PoE power budget
Dual Rate SFP+ uplink ports for 10-gigabit connections to nodes
Integrated with 2 DIs (Digital Input) and 2 Relay Outputs
Supports static routes, RIP v1/v2, and VRRP

High Bandwidth and Versatility

  • 12 10/100/1000BASE-T(X) ports for high bandwidth connections
  • 4 Dual-rate SFP+ uplink ports for 10-gigabit fiber connections to nodes
  • Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSPF
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

PoE Features

  • IEEE 802.3bt with up to 90W per port; 360W total power budget
  • PoE watchdog monitors status of connected PoE devices

Management/Security Features

  • Port control, SFTP
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Configure and monitor with eVue™ and eLite™ network management tools

Support

  • Complimentary technical support
  • Free firmware upgrades and notifications
  • Limited lifetime warranty

EtherWAN's EX78900X series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with 12 gigabit PoE ports providing up to 90W power per port with IEEE 802.3.bt protocol support and 4 dual-rate 10 gigabit SFP+ ports and the IEEE1588v2 Precision Time Protocol (PTP) that uses network packets and time stamps for network time synchronization. The EX78900X series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Interface

  • CLI, Telnet, Web GUI, SSH

Management

  • SFTP (Secure FTP) support
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • PoE Watchdog
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3
  • Modbus TCP

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm Control and Detection
  • System logging
  • IEEE 802.1x LAN Access control
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • TLS and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP

Software Properties and Performance

  • Switching Fabric
    • 104Gbps
  • Forwarding Rate
    • 75.29Mpps
  • Max VLANs
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 16K
  • Packet Buffer Memory
    • 12M bits


Interface

  • Ethernet
    • 12 x 10/100/1000BASE-T(X)
    • 4 x 1/10G SFP+
  • Console
    • 1 x RJ45
  • Config Backup
    • 1 x USB (Type A Connector)
  • Digital Input
    • 2 x Digital Input
    • Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
    • Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
  • Alarm Contact
    • 2 x Relay output, current capacity; 0.5A/48VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)
    • Per PoE Port: PoE Status (Orange)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
    • IEEE 802.3az EEE
    • IEEE 802.3af/at/bt Power over Ethernet
    • IEEE 1588v2 PTP
    •
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 2Gb DDR3 SDRAM
  • Flash Storage
    • 1Gb

Power

  • Input
    • 46-57VDC Redundant (Terminal block)**
      ** 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
          52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
          54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
  • Power Consumption
    • 20W Max (without PoE)
  • PoE Power Output
    • Ports 1-12: Up to 90W/port; Power Budget: 360W
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.5kg (3.3lbs)
  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 1,496,987 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • PoE Ports: line to earth 6kV Surge
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet switch
  • Cables
    • 1 Console cable
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide

Model

EX78934X-0VB12-port 10/100/1000BASE-T(X) PoE + 4-port 1/10G SFP+

Accessories

Hardened Gigabit & 10 Gigabit SFP Moduleswww.etherwan.com/us/products/sfp-fiber-transceiver
Power Supplieswww.etherwan.com/us/products/power-supplies
