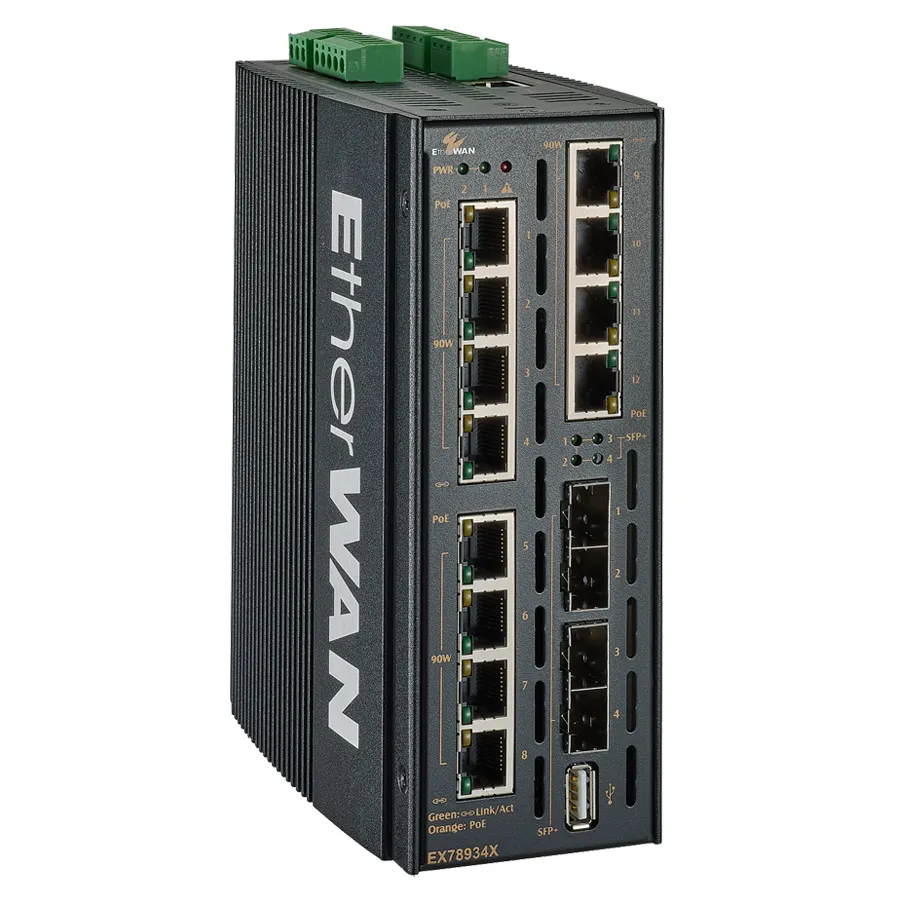

EX78900X Series
NEW
Hardened Managed 12-Port Gigabit PoE and 4-Port 10G SFP+ Ethernet Switch
Compliance to IEEE 802.3bt type 4 (90W)
360W PoE power budget
4 Dual rate 1G/10G SFP+ uplinks for fiber connections
Integrated with 2 DIs (Digital Input) and 2 Relay Output
Supports static routes, RIP v1/v2, and VRRP
High Bandwidth and Versatility
- 12 10/100/1000BASE-T(X) ports for high bandwidth connections
- Up to 4 Dual-rate 1/10G SFP+ uplink ports for fiber connections
- Full capacity switching running at full duplex
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Lite Layer 3 Functionality
- Static routing, RIP v1/v2, and OSPF
- Redundancy with VRRP
- Reduces amount of broadcast traffic
PoE Features
- IEEE 802.3bt with up to 90W per port; 360W total power budget
- PoE watchdog monitors status of connected PoE devices
Management/Security Features
- Port control, SFTP
- 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
- Configure and monitor with eVue™ and eLite™
Support
- Complimentary technical support
- Free firmware upgrades and notifications
- Limited lifetime warranty
EtherWAN's EX78900X series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with up to 12 gigabit PoE ports along with 90W power and IEEE 802.3.bt protocol support and 4 dual-rate 10 gigabit SFP+ ports, the EX78900X series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Interface
- CLI, Telnet, Web GUI, SSH
Management
- SFTP (Secured FTP) support
- Configuration backup
- DHCP Server/Client
- RMON (Remote Monitoring)
- Port Mirroring
- NTP (Network Time Protocol) synchronization
- PoE Watchdog
- LLDP (Link Layer Discovery Protocol)
- IPv4/IPv6
- SNMP v1/v2c/v3
Security
- MAC Address filtering
- Enable/Disable port
- Storm Control and Detection
- System logging
- IEEE 802.1x LAN Access control
- Remote authentication through RADIUS and TACACS+
- Complex password support
- Multi-user login and privileged access management
- SSH for CLI and Telnet security
- TLS and HTTPS for web security
- ACL (Access Control List, up to 4096 entries)
Quality of Service (QoS)
- Priority Queues: 8 queues per port
- Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
- Rate Limiting (Ingress/Egress)
Layer 2 Features
- Auto-negotiation for port speed and duplex
- Flow Control
- IEEE 802.3x full duplex mode
- Back-pressure half duplex mode
- Redundant Protocols
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- EtherWAN's Alpha-Ring network fault recovery
- VLANs
- IEEE 802.1Q Tag VLANs
- GVRP
- GMRP
- Link Aggregation
- Static Trunk (4 groups)
- IEEE 802.3ad LACP
- IGMP Snooping v1/v2/v3
Layer 3 Features
- IP Packet Routing
- Maximum number of routes in hardware: 64 entries
- Static Routing
- RIP v1/v2
- OSPF v2
- Routing Redundancy
- VRRP
Software Properties and Performance
- Switching Fabric
- 104Gbps
- Forwarding Rate
- 75.29Mpps
- Max VLANs
- 256 (4096 VID)
- Jumbo Frame Size
- 9KB
- MAC Table Size
- 16K
- Packet Buffer Memory
- 12M bits
Interface
- Ethernet
- 12 x 10/100/1000BASE-T(X)
- 4 x 1/10G SFP+
- Console
- 1 x RJ45
- Config Backup
- 1 x USB (Type A Connector)

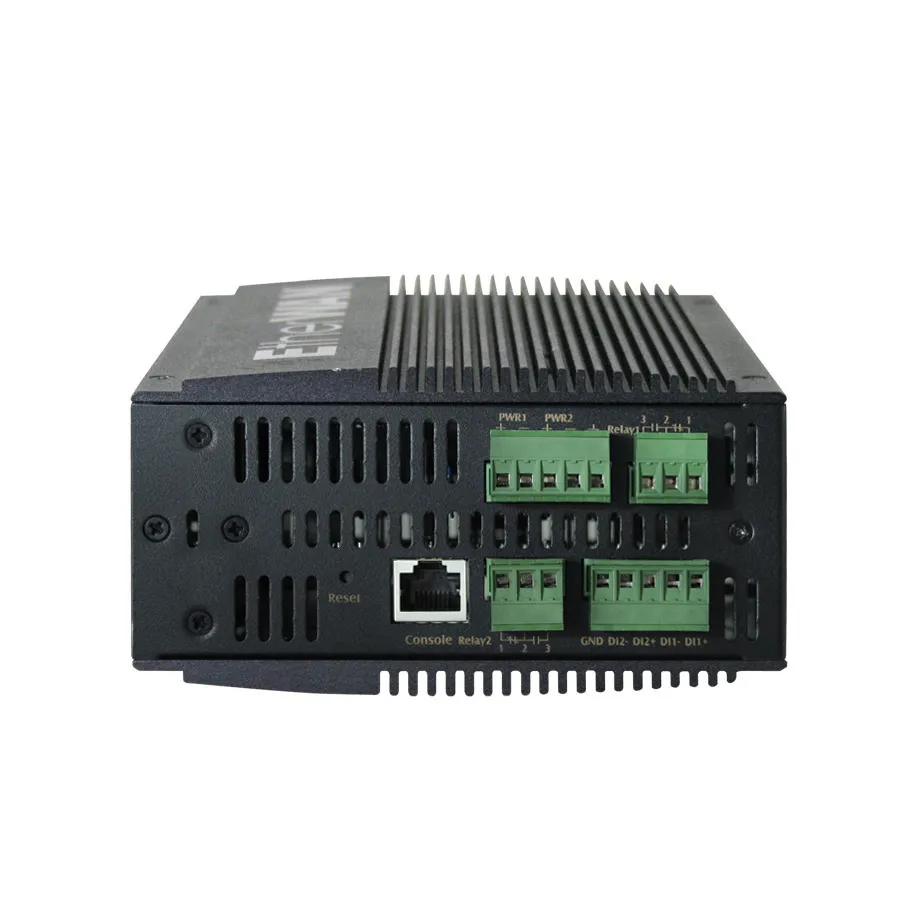

- Digital Input
- 2 x Digital Input
- Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
- Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
- Alarm Contact
- 2 x Relay output, current capacity; 0.5A/48VDC
- LED Indicators
- Per Unit: Power 1, Power 2
- Per Port: Link/Activity (Green)
- Per PoE Port: PoE Status (Orange)
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad link aggregation control
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.1x PNAC
- IEEE 802.1ab LLDP
- IEEE 802.3az EEE
- IEEE 802.3af/at/bt Power over Ethernet
- Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- 14,881,000pps for 10Gbps
- Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
- System Memory
- 2Gb DDR3 SDRAM
- Flash Storage
- 1Gb
Power
- Input
- 52-57VDC Redundant (Terminal block)
- Power Consumption
- 20W Max (without PoE)
- PoE Power Output
- Ports 1-12: Up to 90W/port; Power Budget: 360W
- Protection
- Reverse Polarity Protection
Physical
- Casing Material
- Aluminum
- IP Rating
- IP30
- Dimensions
- 72 x 140 x 170mm (W x D x H)
2.8" x 5.5" x 6.7"
- 72 x 140 x 170mm (W x D x H)
- Weight
- 1.5kg (3.3lbs)
- Installation Type
- DIN-rail mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
- MTBF
- 1,496,987 hours
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- PoE Ports: line to earth 6kV Surge
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
- Safety
- UL 61010
- Traffic
- NEMA TS2
- Rail
- EN 50121-4
- Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Free Fall
- FED STD 101C Method 5007.1
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Ethernet switch
- Cables
- 1 Console cable
- Installation
- Mounting brackets, screws
- Documentation
- Quick install guide
| Network Management | eVue™ Network Configuration and Monitoring Tool |
| Network Discovery | eLite™ Network Discovery and IP Configuration Tool |
Model
| EX78934X-0VB | 12-port 10/100/1000BASE-T(X) PoE + 4-port 1/10G SFP+ |
Accessories
| Hardened Gigabit & 10 Gigabit SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| DIN-Rail Power Supplies | www.etherwan.com/products/din-rail-power-supply (*) |
| *Recommended Power Supply | NDR-480-48 480W 48VDC DIN-Rail Power Supply |

High Bandwidth and Versatility
- 12 10/100/1000BASE-T(X) ports for high bandwidth connections
- Up to 4 Dual-rate 1/10G SFP+ uplink ports for fiber connections
- Full capacity switching running at full duplex
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Lite Layer 3 Functionality
- Static routing, RIP v1/v2, and OSPF
- Redundancy with VRRP
- Reduces amount of broadcast traffic
PoE Features
- IEEE 802.3bt with up to 90W per port; 360W total power budget
- PoE watchdog monitors status of connected PoE devices
Management/Security Features
- Port control, SFTP
- 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
- Configure and monitor with eVue™ and eLite™
Support
- Complimentary technical support
- Free firmware upgrades and notifications
- Limited lifetime warranty
EtherWAN's EX78900X series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with up to 12 gigabit PoE ports along with 90W power and IEEE 802.3.bt protocol support and 4 dual-rate 10 gigabit SFP+ ports, the EX78900X series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Interface
- CLI, Telnet, Web GUI, SSH
Management
- SFTP (Secured FTP) support
- Configuration backup
- DHCP Server/Client
- RMON (Remote Monitoring)
- Port Mirroring
- NTP (Network Time Protocol) synchronization
- PoE Watchdog
- LLDP (Link Layer Discovery Protocol)
- IPv4/IPv6
- SNMP v1/v2c/v3
Security
- MAC Address filtering
- Enable/Disable port
- Storm Control and Detection
- System logging
- IEEE 802.1x LAN Access control
- Remote authentication through RADIUS and TACACS+
- Complex password support
- Multi-user login and privileged access management
- SSH for CLI and Telnet security
- TLS and HTTPS for web security
- ACL (Access Control List, up to 4096 entries)
Quality of Service (QoS)
- Priority Queues: 8 queues per port
- Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
- Rate Limiting (Ingress/Egress)
Layer 2 Features
- Auto-negotiation for port speed and duplex
- Flow Control
- IEEE 802.3x full duplex mode
- Back-pressure half duplex mode
- Redundant Protocols
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- EtherWAN's Alpha-Ring network fault recovery
- VLANs
- IEEE 802.1Q Tag VLANs
- GVRP
- GMRP
- Link Aggregation
- Static Trunk (4 groups)
- IEEE 802.3ad LACP
- IGMP Snooping v1/v2/v3
Layer 3 Features
- IP Packet Routing
- Maximum number of routes in hardware: 64 entries
- Static Routing
- RIP v1/v2
- OSPF v2
- Routing Redundancy
- VRRP
Software Properties and Performance
- Switching Fabric
- 104Gbps
- Forwarding Rate
- 75.29Mpps
- Max VLANs
- 256 (4096 VID)
- Jumbo Frame Size
- 9KB
- MAC Table Size
- 16K
- Packet Buffer Memory
- 12M bits
Interface
- Ethernet
- 12 x 10/100/1000BASE-T(X)
- 4 x 1/10G SFP+
- Console
- 1 x RJ45
- Config Backup
- 1 x USB (Type A Connector)
- Digital Input
- 2 x Digital Input
- Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
- Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
- Alarm Contact
- 2 x Relay output, current capacity; 0.5A/48VDC
- LED Indicators
- Per Unit: Power 1, Power 2
- Per Port: Link/Activity (Green)
- Per PoE Port: PoE Status (Orange)
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad link aggregation control
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.1x PNAC
- IEEE 802.1ab LLDP
- IEEE 802.3az EEE
- IEEE 802.3af/at/bt Power over Ethernet
- Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- 14,881,000pps for 10Gbps
- Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
- System Memory
- 2Gb DDR3 SDRAM
- Flash Storage
- 1Gb
Power
- Input
- 52-57VDC Redundant (Terminal block)
- Power Consumption
- 20W Max (without PoE)
- PoE Power Output
- Ports 1-12: Up to 90W/port; Power Budget: 360W
- Protection
- Reverse Polarity Protection
Physical
- Casing Material
- Aluminum
- IP Rating
- IP30
- Dimensions
- 72 x 140 x 170mm (W x D x H)
2.8" x 5.5" x 6.7"
- 72 x 140 x 170mm (W x D x H)
- Weight
- 1.5kg (3.3lbs)
- Installation Type
- DIN-rail mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
- MTBF
- 1,496,987 hours
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- PoE Ports: line to earth 6kV Surge
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
- Safety
- UL 61010
- Traffic
- NEMA TS2
- Rail
- EN 50121-4
- Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Free Fall
- FED STD 101C Method 5007.1
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Ethernet switch
- Cables
- 1 Console cable
- Installation
- Mounting brackets, screws
- Documentation
- Quick install guide
| Network Management | eVue™ Network Configuration and Monitoring Tool |
| Network Discovery | eLite™ Network Discovery and IP Configuration Tool |
Model
| EX78934X-0VB | 12-port 10/100/1000BASE-T(X) PoE + 4-port 1/10G SFP+ |
Accessories
| Hardened Gigabit & 10 Gigabit SFP Modules | www.etherwan.com/products/sfp-fiber-transceiver |
| DIN-Rail Power Supplies | www.etherwan.com/products/din-rail-power-supply (*) |
| *Recommended Power Supply | NDR-480-48 480W 48VDC DIN-Rail Power Supply |
