EPOW-54-600
NEW

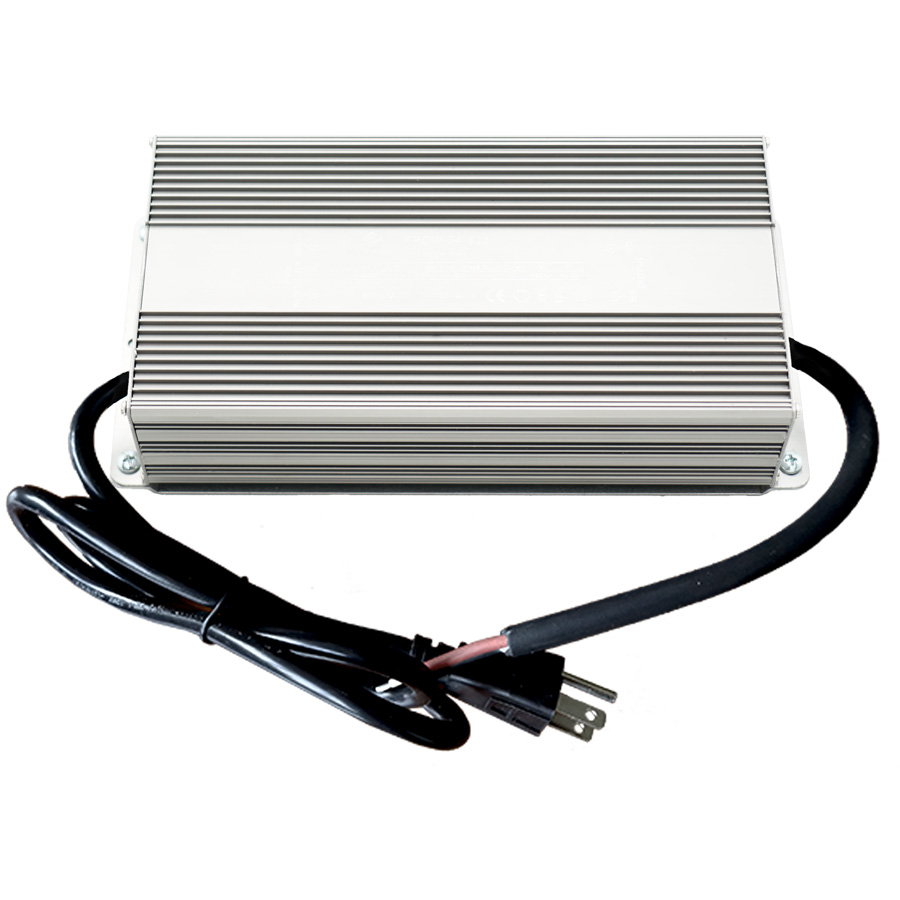

Hardened Power Supply 54V 600W
Available in North America only
Active built-in PFC for max power distribution efficiency
NEMA TS1 & TS2 compliant for electrical and temperature requirements
Easy installation with pre-attached cables and mounting holes
Downloads
Highlights
Overview
Hardware Specifications
Dimensions
Ordering Info
Reliable Power Delivery
- Active built-in PFC for max power distribution efficiency
- Constant voltage across output terminal
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- IP67 total dust protection and water resistance
NEMA TS2
- Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
- High impact, thermal shock, and electrical noise resistance
Easy Install
- AC and DC cables pre-attached
- Mounting holes to install outdoors and or in cabinets
With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-54-600 is a 54V 600W hardened power supply designed to operate in the most extreme environments. The EPOW-54-600 has a 600W power budget and built in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.
EtherWAN — "When Connectivity is Crucial."
Power
- Input
- 100-277 VAC
- Output
- 54 VDC
- Protection
- OVP (Over Voltage Protection)
<305 VAC
SCP (Short Circuit Protection)
- OVP (Over Voltage Protection)
Physical
- Casing Material
- Aluminum
- IP Rating
- IP67 (Dust Tight and Waterproof)
- Dimensions
- 260 x 120 x 55mm (W x D x H)
10.24" x 4.73” x 2.17"
- 260 x 120 x 55mm (W x D x H)
- Weight
- 6.62lbs (3kg)
- Installation Type
- Wall mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 10% to 95% (non-condensing)
- Operation Humidity
- 20-90%
- Vibration Resistance
- 10~500HZ, 2G 10min/period
X, Y, Z line per hour
- 10~500HZ, 2G 10min/period
Regulatory
- Standard
- EN 61347-1
EN 61347-2-13
EN 62493
- EN 61347-1
- EMC Emission
- EN 55015
EN 61000-3-2
- EN 55015
- EMC Immunity
- EN 55015
EX 61000-4-2,3,4,5,6,8,11
- EN 55015
Warranty
- Length
- Limited Lifetime
- Details
Model
| EPOW-54-600 | Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 600W, 54VDC, 0-11.1A with Open Wire (US Plug) |
Highlights
Reliable Power Delivery
- Active built-in PFC for max power distribution efficiency
- Constant voltage across output terminal
Hardened-Grade for Non-Ventilated & Harsh Environments
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- IP67 total dust protection and water resistance
NEMA TS2
- Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
- High impact, thermal shock, and electrical noise resistance
Easy Install
- AC and DC cables pre-attached
- Mounting holes to install outdoors and or in cabinets
Overview
With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-54-600 is a 54V 600W hardened power supply designed to operate in the most extreme environments. The EPOW-54-600 has a 600W power budget and built in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.
EtherWAN — "When Connectivity is Crucial."
Hardware Specifications
Power
- Input
- 100-277 VAC
- Output
- 54 VDC
- Protection
- OVP (Over Voltage Protection)
<305 VAC
SCP (Short Circuit Protection)
- OVP (Over Voltage Protection)
Physical
- Casing Material
- Aluminum
- IP Rating
- IP67 (Dust Tight and Waterproof)
- Dimensions
- 260 x 120 x 55mm (W x D x H)
10.24" x 4.73” x 2.17"
- 260 x 120 x 55mm (W x D x H)
- Weight
- 6.62lbs (3kg)
- Installation Type
- Wall mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 10% to 95% (non-condensing)
- Operation Humidity
- 20-90%
- Vibration Resistance
- 10~500HZ, 2G 10min/period
X, Y, Z line per hour
- 10~500HZ, 2G 10min/period
Regulatory
- Standard
- EN 61347-1
EN 61347-2-13
EN 62493
- EN 61347-1
- EMC Emission
- EN 55015
EN 61000-3-2
- EN 55015
- EMC Immunity
- EN 55015
EX 61000-4-2,3,4,5,6,8,11
- EN 55015
Warranty
- Length
- Limited Lifetime
- Details

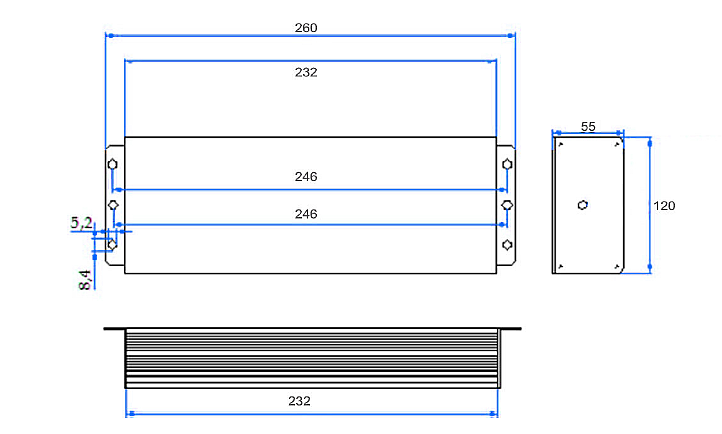

Dimensions
