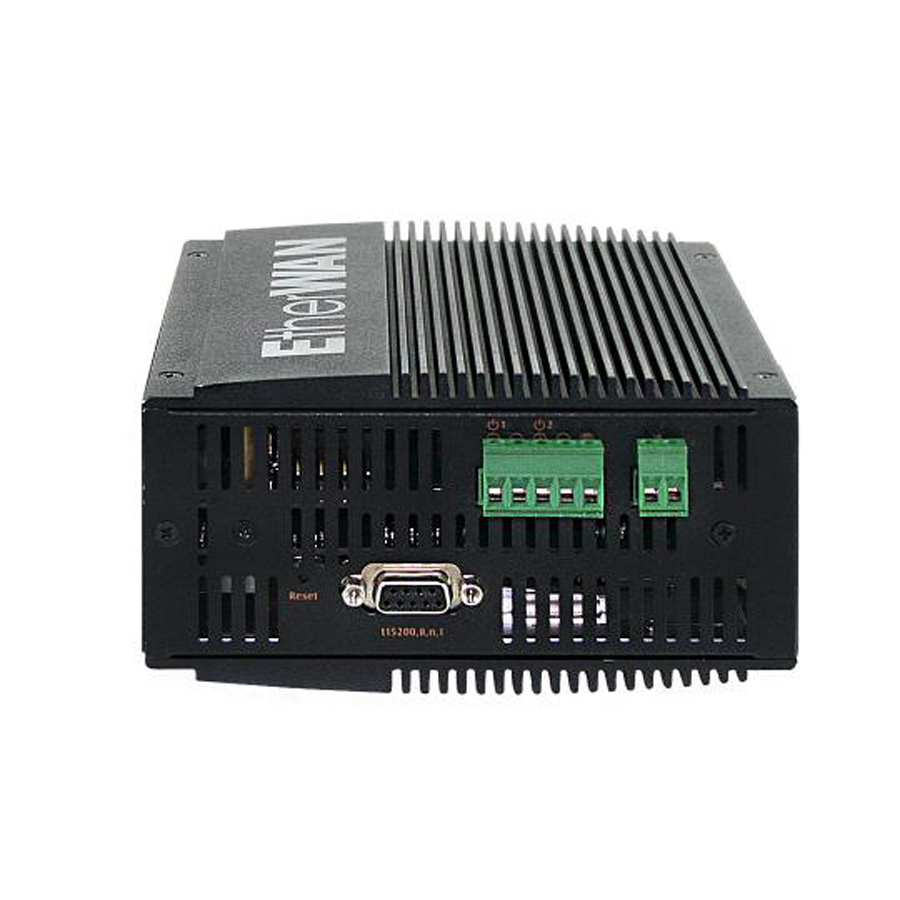

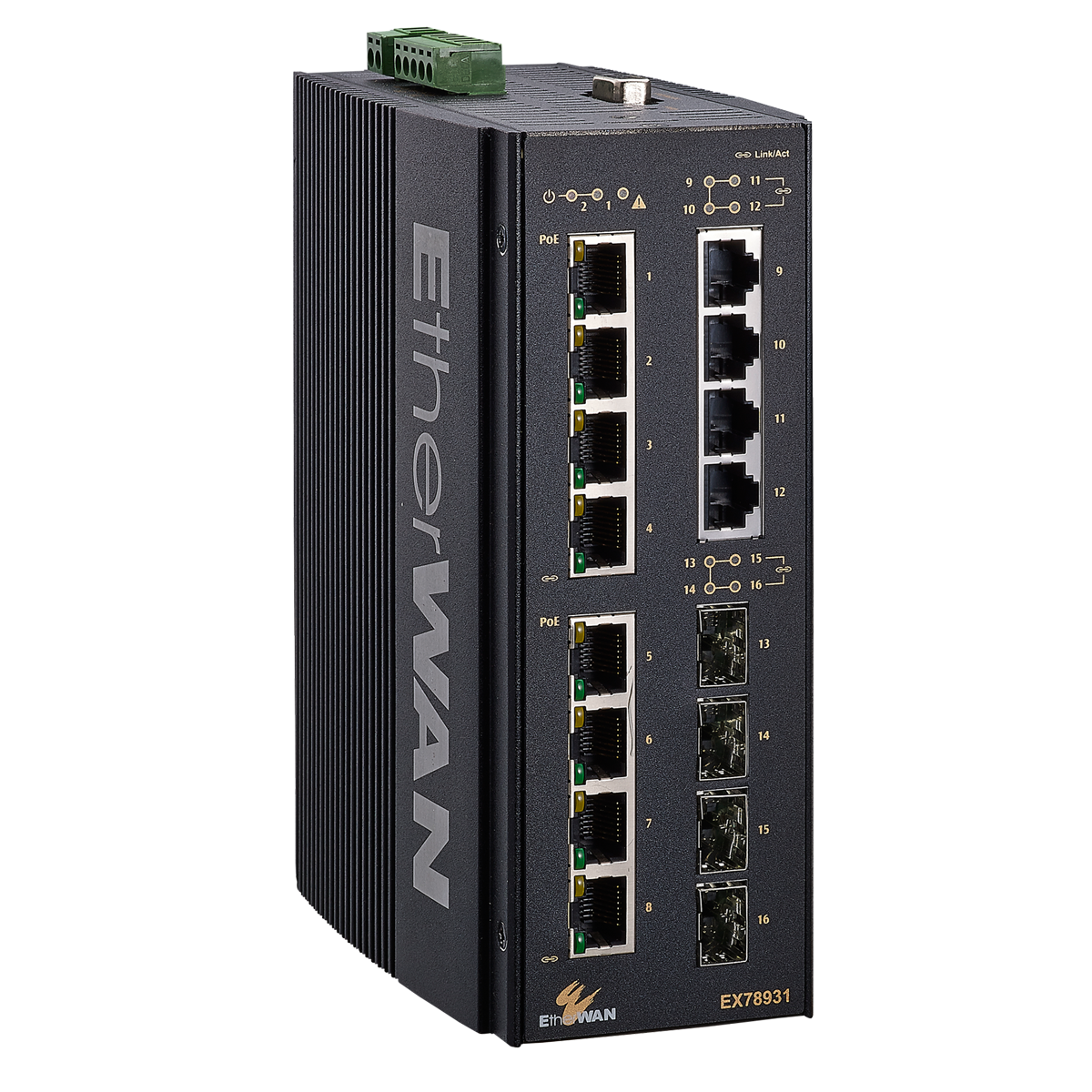

EX78900 Series

Hardened Managed 16-port (8 x PoE) Gigabit Ethernet Switch
PoE 15W
PoE 30W
PoE_60W
IPv6
SFP
Fanless
alpha-ring
Wide Temperature
UL 61010
UL
PoE power budget up to 60W/port (Ultra PoE), total 240W
PoE can be extended to 250m with 10Mbps
Available with either copper, SC, ST, WDM or SFP interface
This product has been discontinued as of 05/31/22. Please see the following for an alternative product: EX78900E Series



High Bandwidth and Versatility

  • 8 or 12 10/100/1000BASE-T(X) ports for high bandwidth connections
  • Up to 4 gigabit fiber connections
  • Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSFP
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

PoE Features

  • Up to 60W/port with 240W total power budget
  • Long distance PoE up to 250m (820ft)
  • PoE watchdog monitors status of connected PoE devices

Management/Security Features

  • Port control
  • 802.1x port-based network access control and remote authentication through RADIUS
  • Configure and monitor with eVue™ and eLite™

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

When should you use an Industrial Layer 3 switch?

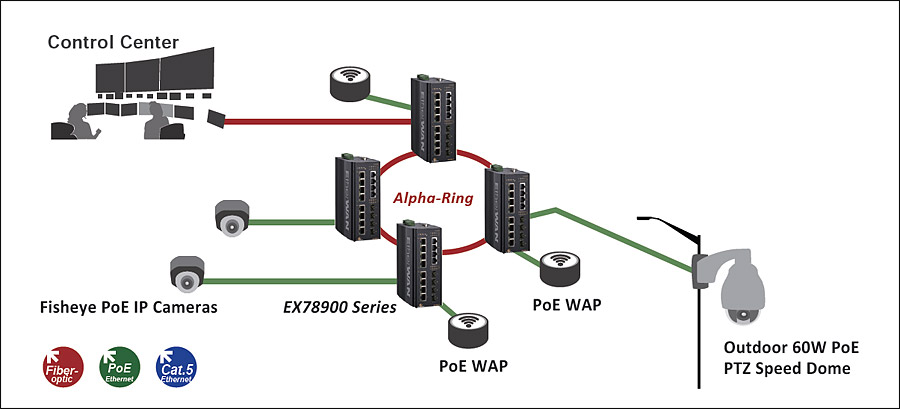

EtherWAN's EX78900 Series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with up to 12 gigabit ports with 8-port PoE that provides up to 60W/port and 4 fiber ports, the EX78900 Series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Interface

  • CLI, Telnet, Web GUI
  • SNMP v1/v2c/v3

Management

  • Firmware and configuration upgrade and backup via TFTP
  • DHCP Server/Client
  • RMON (Remote Monitoring): group 1, 2, 3, 9
  • Port Mirroring: TX/RX and both
  • NTP (Network Time Protocol) synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6

Security

  • MAC Address Filtering
  • Enable/Disable port
  • Storm control (Broadcast and multicast types)
  • IEEE 802.1x LAN Access Control
  • Remote authentication through RADIUS and TACACS+
  • SSH for CLI and Telnet security
  • SSL for web security
  • System log (Remote/Local)
  • ACL

Quality of Service (QoS)

  • Priority Queues: 4 queues per port
  • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x Full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery (<15ms)
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups, support MAC base)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP


Interface

  • Ethernet
    • 8 or 12 (8 PoE) x 10/100/1000BASE-T(X)
    • 4 x 1000BASE SX/LX/SFP
  • Console
    • 1 x DB9 RS-232
  • Alarm Contact
    • 1 x Relay output, current capacity 0.5A/48VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)
    • Per PoE Port: PoE Status (Orange)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.3af/at Power over Ethernet
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 12M bits
  • Processing Type
    • Store-and-Forward
    • Auto-negotiation
    • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
    • Auto MDI/MDIX
  • Jumbo Frame
    • 9216 bytes
  • Address Table Size
    • 16K MAC Addresses

Power

  • Input
    • 52-57VDC Redundant (Terminal block)
  • Power Consumption
    • 20W Max (without PoE)
  • PoE Technology
    • Alternative A & B
    • Pins 1/2(+), 3/6(-), Pins 7/8(-), 4/5(+)
  • PoE Power Output
    • PoE can be configured as:
      1. 6-port 15.4W PoE and 2-port 60W PoE
      2. 8-port 30W PoE
      3. 4-port 10/100/1000-TX and 4-port 60W PoE
      4. Other PoE power level configuration can be done through firmware
    • Power Budget: 240W
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30

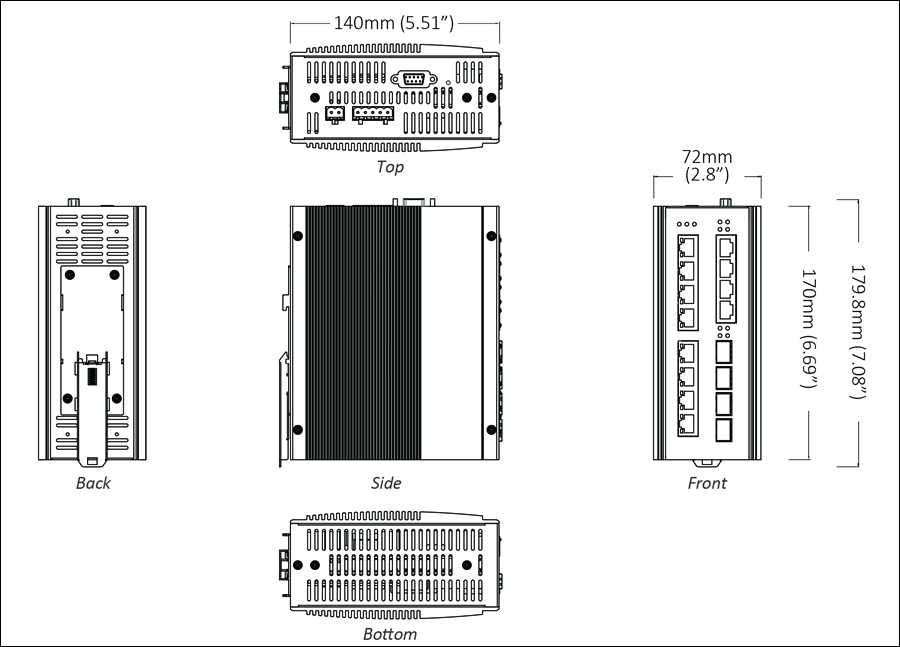

  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.5kg (3.3lbs)
  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic Field)
  • Vibration
    • IEC 60068-2-6 Fc
  • Shock
    • IEC 60068-2-27 Ea
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Documentation
    • Quick Install Guide

Model - Buy Now

EX78931-0VB12-Port 10/100/1000BASE-TX with 8-port PoE + 4-port Gigabit SFP
EX78921-0VB8-Port 10/100/1000BASE-TX PoE + 4-Port Gigabit SFP
EX78921-0XB8-Port 10/100/1000BASE-TX PoE + 4-Port Gigabit Fiber

* DIN-Rail mounting kit included.

Gigabit Port Options (X)

31000BASE-SX (SC) - 550m
41000BASE-SX (SC) - 2Km
51000BASE-SX (ST) - 550m
A1000BASE-LX (SC) - 10Km
B1000BASE-LX (SC) - 20Km
R1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

* More Gigabit options also available upon request.

Accessories

Hardened Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power SuppliesEPOW-54-600
*Recommended Power SupplyEPOW-54-600
EB-232Configuration Backup and Restoration Tool
