OAM Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter

SFP
EL2326 Series OAM Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter
Link Fault Pass Through (LFPT)
Easy-to-use web GUI, plus SNMP
Built-in fiber tray
EL2326 Series OAM Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter
Overview
Spotlight
Features
Specifications
Dimensions
Ordering Info
This product is discontinued as of 1st October 2020. click here for alternative product.

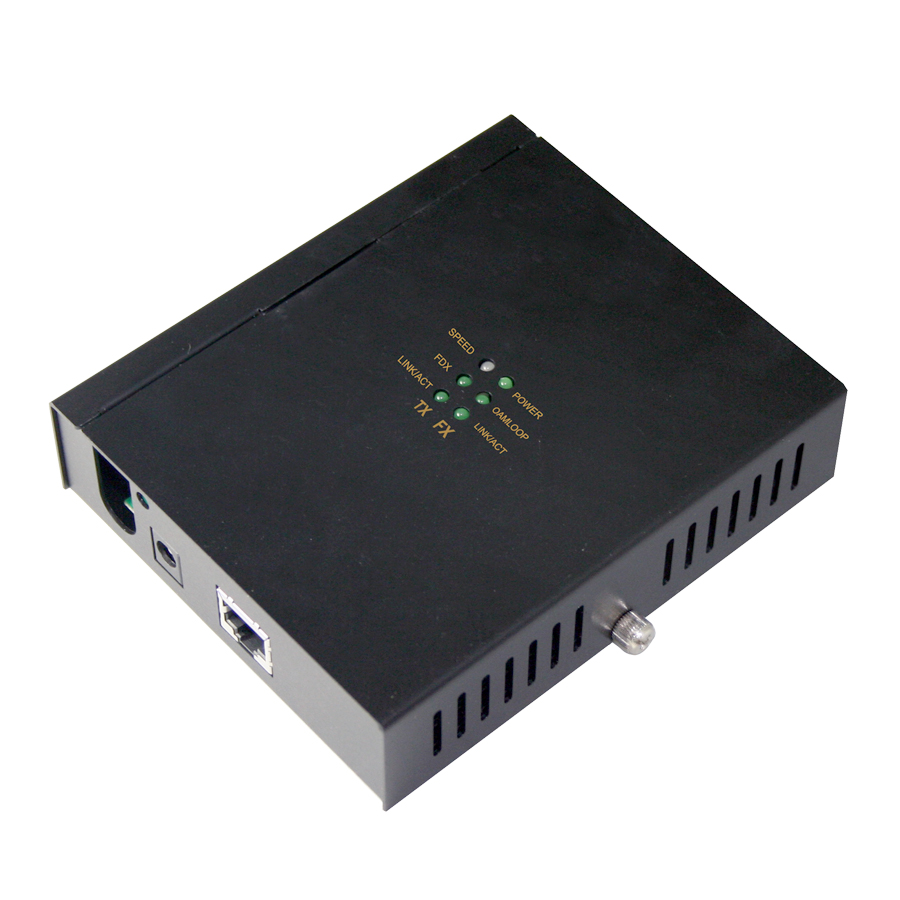

The EL2326 Series provides media conversion between 10/100/1000BASE-T(X) and 100-FX Fiber or 1000BASE-SX/LX Fiber. EL2326's fiber design is compatible to 100BASE fiber or 1000BASE fiber transceiver.

The EL2326 managed media converter supports Telnet, SNMP v1/v2, and web browser management, enabling valueadded connectivity and bandwidth control. Key features include; IEEE802.3ah OAM compliance, VLAN tagging, broadcast storm protection, Far-End-Fault, and Link-Fault-Pass-Through resulting in reliable communications between networks.

With link down alarming and a wide range of fiber connectivity options, the EL2326 is the ideal managed media converter for industrial environments where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Gigabit Connectivity

» Auto 10/100/1000BASE-T X and 1000BASE-SX/LX/BX Ethernet transmission conversion
» 1000Mbps Full duplex, 10/100MBps Full/Half duplex
» Fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission

Managed Functions

» Supports IEEE 802.3ah OAM standards
» Supports SNMPv1, SNMPv2
» Supports bandwidth control and VLAN base priority tag

Built-in Fiber Tray

Management



  • » Interface
    •    • Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9




Security



  • » MAC Address by port security
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSL for web security




Quality of Service (QoS)



  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE802.1p CoS, DSCP, WRR (Weighted round robin)
  • » Rate Limiting (Ingress/Egress)




Layer 2 Features



  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE802.1Q Tag VLANs (4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3
  • » Jumbo Frame
    •    • Gigabit transmission supports 9K bytes jumbo frame




Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3x full duplex and flow control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto-MDI/MDIX




Power

Input Voltage

  • • 12VDC

Power Consumption
  • • 3W Max. 0.25A @ 12VDC




Mechanical

Casing

  • • Metal case
  • • IP30

Dimensions

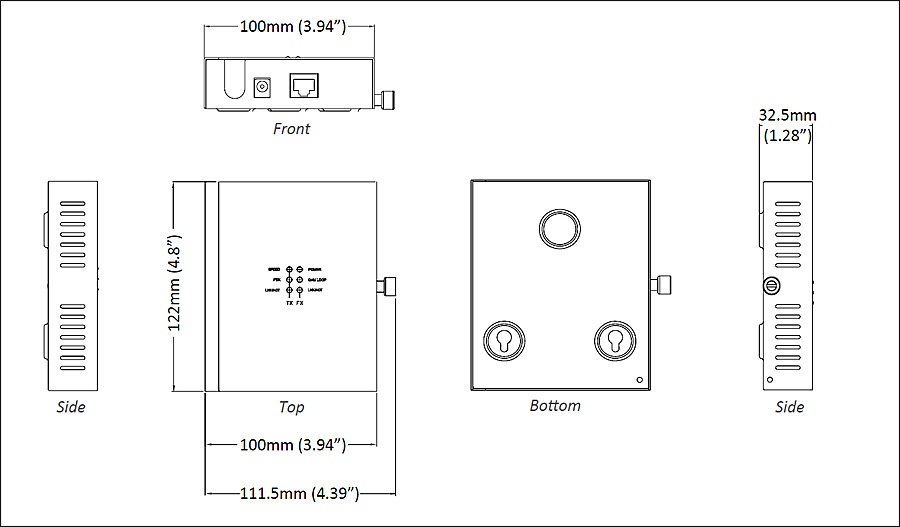

  • • 100 mm (W) x 122mm (D) x 32.5mm (H)
      (3.94"(W) x 4.8" (D) x 1.28" (H))

Weight
  • • 350g (0.77lbs.)

Installation
  • • Wall mounting




Interface

Ethernet Port

  • • 10/100/1000BASE-TX: 1 port
  • • 100/1000BASE SFP slot: 1 port

LED Indicators
  • • Per Unit: Power Status, OAM loop
  • • Per Port: FX/TX Speed, Link/Activity, Full-duplex




Environment

Operating Temperature

  • • -5°C to 55°C (-23°F to 131°C)

Storage Temperature
  • • -20°C to 70°C (-4°F to 158°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

Emission Compliance
  • CE Mark Class A
  • FCC Part 15B Class A
  • VCCI Class A




Model

EL2326-X1Z 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate OAM Managed Media Converter

Gigabit Port Options (X)

3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
5 1000BASE-SX (ST) - 550Km
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
E 1000BASE-LX (SC) - 40Km (1310nm)
R 1000BASE-BX (SC) WDM – TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM – TX: 1550nm/RX: 1310nm-20Km

Power Adapter Options (Z)

A with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
3C with external power adapter for China
