EG97023 Series

12-port 10 Gigabit and 8-port Gigabit Hardened Managed Layer 3 Switch
UL
10G
SFP
Wide Temperature
Fanless
EN 50121-4
NEMA-TS2
UL 62368
High Density, High Bandwidth Fiber Solution
Multiple 10-Gigabit Ports for Hub/Core Connections
Compliant for Government Projects
Full Layer 3 Functionality
Hardened-Grade for Non-Ventilated & Harsh Environments
Inquiry

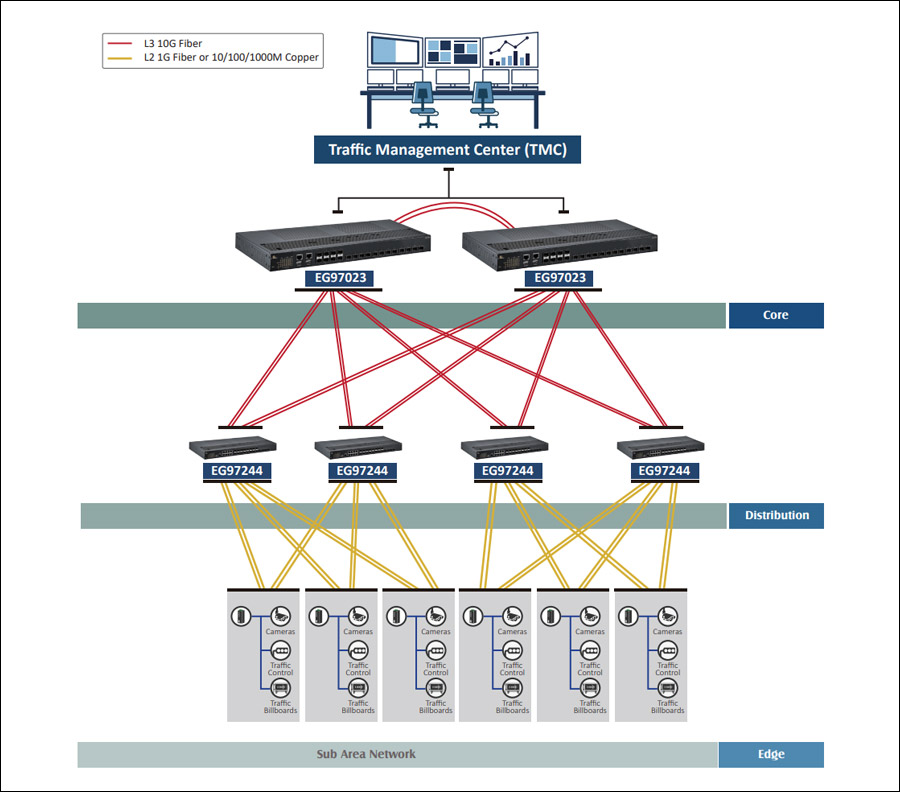

When should you use an Industrial Layer 3 switch?

EtherWAN’s EG97023 is a hardened layer 3 core/distribution switch, designed to support high bandwidth routing in harsh environments. Equipped with 12 ports capable of up to 10-gigabit speed each and 8 additional gigabit ports, along with a full capacity switching bandwidth, the EG97023 provides the optimal solution for connecting multiple networks. In addition to layer 3 benefits such as improved fault isolation, simplified security management, network traffic segregation, lower network latency, and simplified troubleshooting, the EG97023 is hardened and fan-less, designed to last and operate through the harshest environments. Backed by a limited lifetime warranty, the EG97023 provides flexibility, ultra-fast speeds, and reliability to support networks in urban infrastructure, transportation, security and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

High Density, High Bandwidth Fiber Solution

  • Multiple ports with ultra-fast 10-gigabit speeds running at full capacity
  • 12 dual-rate 10-gigabit SFP+ ports for fiber connections into the core/hub
  • 8 dual-rate gigabit SFP ports for fiber connections to the nodes/edge

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fan-less operation
  • Thermal shock and electrical noise resistance

Full Layer 3 Functionality

  • Optimized routing at hardware level
  • Improved fault isolation
  • Layer 3 capability connects networks together

Compliant Products

  • NEMA TS2 rated
  • UL certified for safety
  • TAA/NDAA compliant for government projects

Management/Security Features

  • Port Security, Authentication, and Access Control
  • Storm Detection, IP ACL, and System Logging
  • Configure and monitor with eVue™ Network Management Software

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited lifetime warranty

Interface

  • CLI, Telnet, Web GUI

Management

  • Firmware upgrade
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm control
  • System logging
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • SSL and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • ITU-T G.8032 Ethernet Ring
      Protection Switch (ERPS)
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features IPv4

  • Unicast Routing
    • Static Routing (1K)
    • RIP v1/v2
    • OSPF v2
  • Multicast Routing
    • PIM-DM
    • PIM-SM
  • Routing Redundancy
    • VRRP

Layer 3 Features IPv6

  • IPv6 Unicast Routing
    • RIPng
    • OSPF v3
  • IPv6 Multicast Routing
    • PIM6-DM
    • PIM6-SM
  • IPv6 Routing Redundancy
    • VRRP v3

Software Properties and Performance

  • Switching Fabric
    • 256Gbps
  • Forwarding Rate
    • 190.4Mpps
  • Total VLAN Entries
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 12KB
  • MAC Table Size
    • 24K
  • Packet Buffer Memory
    • 32M bits
  • L2 Routes
    • Up to 24,000 unicast and 1,000 multicast routes
  • L3 IPv4 Routes
    • Up to 8,000 unicast and 8,000 multicast routes
  • L3 IPv6 routes
    • Up to 2,000 unicast routes


Interface

  • Ethernet
    • 8 x 100/1000BASE SFP
    • 12 x 1G/10G SFP+
  • Console
    • 1 x RJ45, 1 x USB
  • Config Backup
    • 1 x USB (Type A Connector)
  • Alarm Contact
    • Relay output, current capacity
      0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2, Alarm
    • Per Port: Link/Activity

Technology

  • Standards
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3ae 10Gbit/s Ethernet over fiber for LAN
    • IEEE 802.3an 10GBASE-T Ethernet over copper twisted pair cable
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
  • Forward/Filtering Rate
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
      Half-duplex back-pressure and fullduplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 4Gb DDR3 SDRAM
  • Flash Storage
    • 2GB

Power

  • Input
    • VWR: 100-240VAC Redundant (Terminal block)
    • VCR: 100-240VAC Redundant (AC Inlet)
  • Power Consumption
    • 75W Max

Physical

  • Casing Material
    • Metal

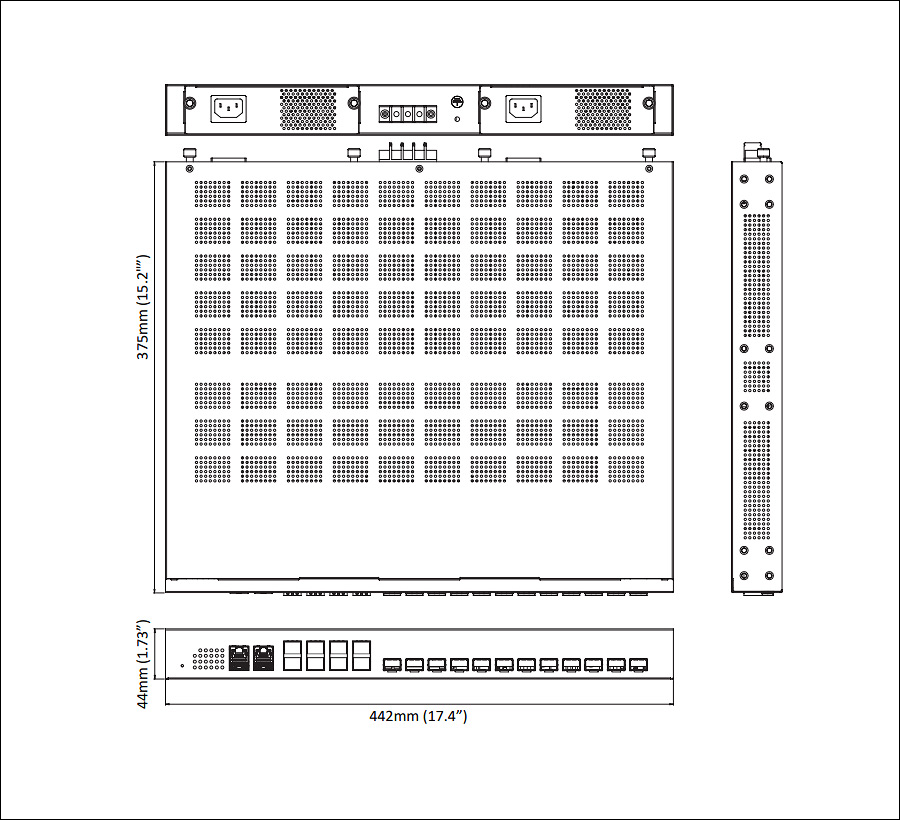

  • Dimensions
    • 442 x 325 x 44mm (W x D x H)
      17.4" x 12.8" x 1.73"
  • Weight
    • 6.2kg (13.7lbs)
  • Installation Type
    • Rack mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 585224 Hours at 25°C

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMC
    • EN 55032
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 62368-1
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Power
    • 2 AC Power Cords
  • Installation
    • Mounting Brackets, Screws
  • Documentation
    • Quick Install Guide

EG97023 Series: 20-Port Hardened Managed 10-Gigabit Layer 3 Switch

Model

EG97023-2VZ8-port 100/1000BASE SFP + 12-port 1/10G SFP+ Hardened Managed Layer 3 Ethernet Switch

Power Input Interface (Z)

WR100-240VAC Redundant (Terminal Block)
CR100-240VAC Redundant (AC Inlet)

Accessories

Hardened Gigabit & 10-Gigabit SFP Moduleswww.etherwan.com/us/products/sfp-fiber-transceiver
EX41-2750A240Spare Power Module for EG97023 series, 100-240VAC PSU (85W), AC Inlet
