EG97023 系列

NEW
強固級網管型 12 埠 10G SFP+ + 8 埠 1000BASE SFP 第 3 層乙太網路交換器
UL
10G
SFP
Wide Temperature
Fanless
EN 50121-4
NEMA-TS2
具高頻寬且多點網路連結的靈活性與傳輸能力
多點 10G 光纖連接適用於網路核心層中
美國政府專案項目合規產品
完備的第 3 層網路功能等級
適⽤於不通風和惡劣環境的強固設計
穩定且安全的網路管理機制


具高頻寬且多點網路連結的靈活性與傳輸能力

    • 多個網路連接埠端口以超高速的 10 千兆 (10G SFP+) 頻寬做滿載負荷運行
    • 12 個雙速 SFP+ 埠⽀援 1G/10G 光纖連接到核心與集線核心層
    • 8 個雙速 SFP 埠⽀援 1G 埠光纖用於支援到節點/邊緣運算的網路連接

適⽤於不通風和惡劣環境的強固設計

    • -40 ⾄ 75°C(-40 ⾄ 167°F)寬⼯作溫度範圍
    • 無風扇設計
    • ⾼耐溫衝擊和⾼雜訊抗噪

完備的第 3 層網路功能等級

    • 硬件等級的路由優化
    • 故障隔離的再加強
    • 運用第 3 層網路功能將整個網絡連接在一起

專案合規等級的網路產品

    • 符合 NEMA TS2 等級
    • 符合 UL 安全認證
    • 符合美國政府 TAA/NDAA 專案標準

穩定且安全的網路管理機制

    • 透過連接埠端口的檢查、身份驗證和訪問控制來控管安全
    • 透過風暴 (Storm Control) 偵測、IP ACL 控管和系統日誌記錄來監督

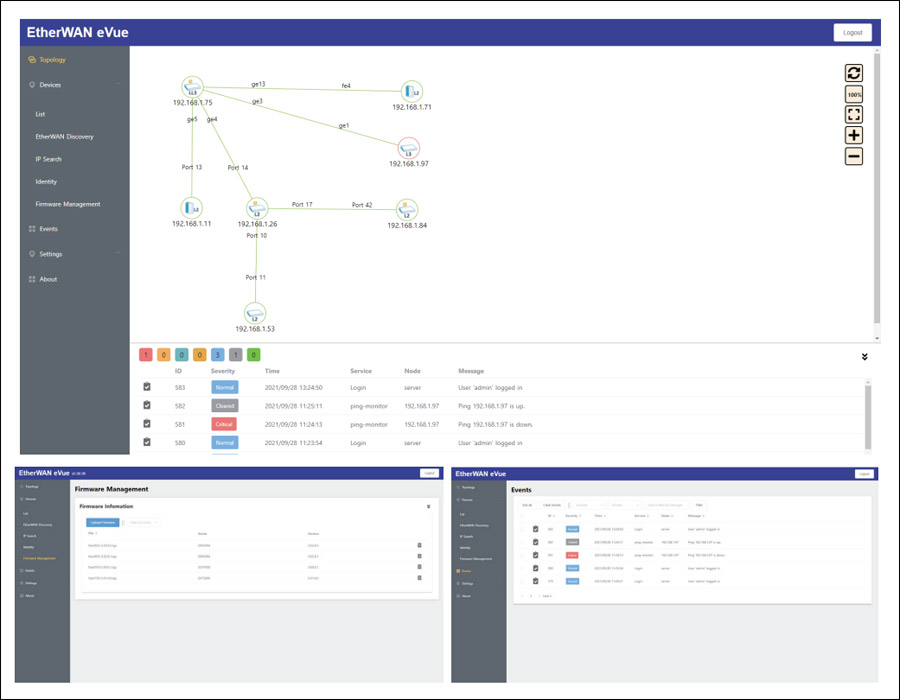

    • 可搭配 eVue™ 軟體來做網路監管

終⾝保固服務

    • 提供免費技術支援
    • 提供免費韌體升級服務

When should you use an Industrial Layer 3 switch?

EtherWAN的 EG97023 是一款高效能強固型的第三層乙太網路交換器。主要除了能在惡劣環境下穩定運作外, 它還提供了極高頻寬的網路連結效能。 EG97023 配備了 12 個 10G SFP+ 的連接埠,每個連接埠能夠達到 10 千兆 (10G SFP+) 的連線速度,另外還有8個千兆連接埠 (1G SFP) 可供網路連結,其超高頻寬的傳輸能力,可有效的達成連接到多個網路節點的網路場域中,為您的網路規畫提供了最佳解決方案。產品本身具有高度的使用彈性、快速和穩定可靠的優勢,可廣泛應用於城市基礎設施、交通、安全和以及其它與網路串聯相關的網路工程領域中。

除了具備完整的第 3 層網路功能的優勢之外,EG97023 獨有的故障隔離設計、簡化的安全管理機制、網絡流量適量隔離措施、較低的網絡延遲性以及簡易的故障排除等特點外,EG97023 的硬體設計上,更具備了獨特的無風扇散熱以及風流導向設計,讓其強固的機身更可順利的在惡劣的環境下持久運行。 除此之外,EG97023 也提供終身維修保固服務,提供您後續使用上有優質的服務與保障。

EtherWAN — "When Connectivity is Crucial."

Interface

  • CLI, Telnet, Web GUI

Management

  • Firmware upgrade
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm control
  • System logging
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • SSL and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features IPv4

  • Unicast Routing
    • Static Routing (1K)
    • RIP v1/v2
    • OSPF v2
  • Multicast Routing
    • PIM-DM
    • PIM-SM
  • Routing Redundancy
    • VRRP

Layer 3 Features IPv6

  • IPv6 Unicast Routing
    • RIPng
    • OSPF v3
  • IPv6 Multicast Routing
    • PIM6-DM
    • PIM6-SM
  • IPv6 Routing Redundancy
    • VRRP v3

Software Properties and Performance

  • Switching Fabric
    • 256Gbps
  • Forwarding Rate
    • 190.4Mpps
  • Total VLAN Entries
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 12KB
  • MAC Table Size
    • 24K
  • Packet Buffer Memory
    • 32M bits
  • L2 Routes
    • Up to 24,000 unicast and 1,000 multicast routes
  • L3 IPv4 Routes
    • Up to 8,000 unicast and 8,000 multicast routes
  • L3 IPv6 routes
    • Up to 2,000 unicast routes


Interface

  • Ethernet
    • 8 x 100/1000 BASE-SFP
    • 12 x 1G/10G SFP+
  • Console
    • 1 x RJ45, 1 x USB
  • Config Backup
    • 1 x USB (Type A Connector)
  • Alarm Contact
    • Relay output, current capacity
      0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2, Alarm
    • Per Port: Link/Activity

Technology

  • Standards
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3ae 10Gbit/s Ethernet over fiber for LAN
    • IEEE 802.3an 10GBASE-T Ethernet over copper twisted pair cable
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
  • Forward/Filtering Rate
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
      Half-duplex back-pressure and fullduplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 4Gb DDR3 SDRAM
  • Flash Storage
    • 2GB

Power

  • Input
    • VWR: 100-240VAC Redundant (Terminal block)
    • VCR: 100-240VAC Redundant (AC Inlet)
  • Power Consumption
    • 75W Max

Physical

  • Casing Material
    • Metal
  • Dimensions
    • 442 x 325 x 44mm (W x D x H)
      17.4" x 12.8" x 1.73"
  • Weight
    • 6.2kg (13.7lbs)
  • Installation Type
    • Rack mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 585224 Hours at 25°C

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMC
    • EN 55032
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 62368-1
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Power
    • 2 AC Power Cord
  • Installation
    • Mounting Brackets, Screws
  • Documentation
    • Quick Install Guide

EG97023 Series: 20-Port Hardened Managed 10-Gigabit Layer 3 Switch

Model

EG97023-2VZ8-port 100/1000BASE SFP + 12-port 1/10G SFP+ Hardened Managed Layer 3 Ethernet Switch

Power Input Interface (Z)

WR100-240VAC Redundant (Terminal Block)
CR100-240VAC Redundant (AC Inlet)

Accessories

Hardened SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Power ModulesSpare Power Module for EG97023 series, 100-240VAC PSU (85W), AC Inlet
