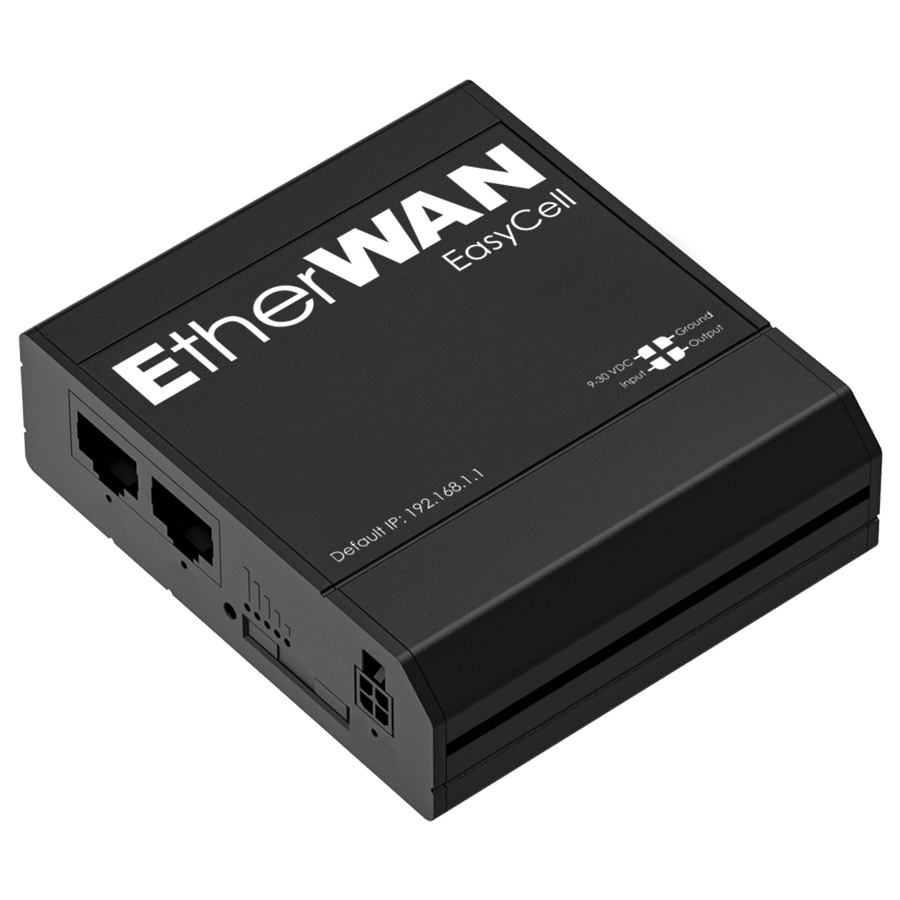

EasyCell

Mobile

• Module
  • 4G (LTE) – Cat. 4 up to 150 Mbps DL / 50 Mbps UL
• Supported Bands
  • 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71
  • 3G: B2, B4, B5
• 3GPP Release
  • Release 11
• Status
  • Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, bytes sent/received, connected band, IMSI, ICCID
• SMS
  • SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to e-MAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD
  • Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list
  • Operator black/whitelist
• Multiple PDN
  • Possibility to use different PDNs for multiple network access and services
• Band management
  • Band lock, used band status display
• APN
  • Auto APN
• Bridge
  • Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough
  • Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode
  • IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Wi-Fi security
  • WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
• SSID/ESSID
  • SSID stealth mode and access control based on MAC address
• Wi-Fi users
  • Up to 50 simultaneous connections
• Wireless Hotspot
  • Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
• Wireless Features
  • Fast roaming (802.11r), Relayed
• Wireless MAC filter
  • Whitelist, blacklist

Ethernet

• WAN
  • 1 x WAN port, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• LAN
  • 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing
  • Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols
  • TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support
  • H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring
  • Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall
  • Port forward, traffic rules, custom rules
• DHCP
  • Static and dynamic IP allocation, DHCP Relay
• QoS / Smart Queue Management (SQM)
  • Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
• DDNS
  • Supported >25 service providers, others can be configured manually
• Network backup
  • Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover
• Load balancing
  • Balance Internet traffic over multiple WAN connections
• SSHFS
  • Possibility to mount remote file system via SSH protocol

Security

• Authentication
  • Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall
  • Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention
  • DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN
  • Port and tag-based VLAN separation
• Mobile quota control
  • Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter
  • Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control
  • Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN
  • Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption
  • DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec
  • IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

MODBUS TCP Slave

• ID range
  • Respond to one ID in range [1;255] or any
• Allow Remote Access
  • Allow access through WAN
• Custom registers
  • MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP Master

• Supported functions
  • 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats
  • 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

Data to Server

• Protocol
  • HTTP(S), MQTT, Azure MQTT, Kinesis

MQTT Gateway

• MQTT Gateway
  • Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

• Supported modes
  • TCP Master, DNP3 Outstation

Monitoring & Management

• WEB UI
  • HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA
  • Firmware update from server, automatic notification

System Characteristics

• CPU
  • MediaTek, 580 MHz, MIPS 24KEc
• RAM
  • 128 MB, DDR2
• FLASH storage
  • 16 MB, SPI Flash

Firmware/Configuration

• WEB UI
  • Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA
  • Update FW
• Remote Mgmt. Sys.
  • Update FW/configuration for multiple devices at once
• Keep settings
  • Update FW without losing current configuration

Input / Output

• Input
  • 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output
  • 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events
  • Email, Remote Management System, SMS
• I/O juggler
  • Allows to set certain I/O conditions to initiate event

Power

• Connector
  • 4-pin industrial DC power socket
• Input voltage range
  • 9~30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive)
  • Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
• Power consumption
  • < 6.5 W Max

Physical Characteristics

• Ethernet
  • 2 x RJ45 ports, 10/100 Mbps
• I/O’s
  • 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs
  • 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• SIM
  • 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
• Power
  • 1 x 4-pin power connector
• Antennas
  • 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
• Reset
  • Reboot/User default reset/Factory reset button

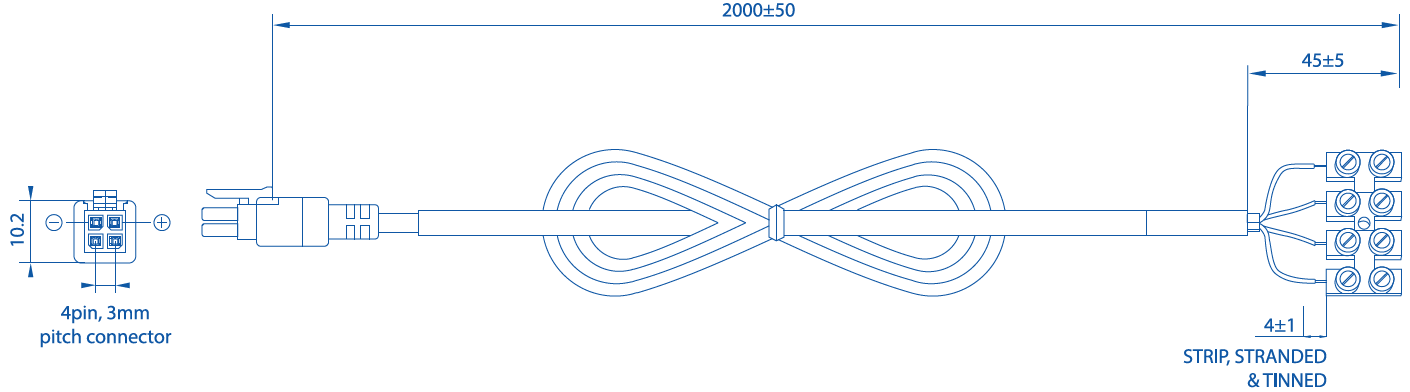

EASYCELL-PWR Parameter & Rated Value

• Input Connector
  • 4-way screw terminal
• Output Connector
  • 4-pin, 3mm pitch
• Cable
  • 4x0.129 mm2 (26 AWG), 2000 mm
• RoHS Compliant
  • V

EASYCELL-PWR Color Coding

• 1 Red
  • Power +
• 2 Black
  • Ground -
• 3 Green
  • Input/Output/NC
• 4 White
  • Input/Output/NC

Physical Specifications

• Casing material
  • Aluminum housing, plastic panels

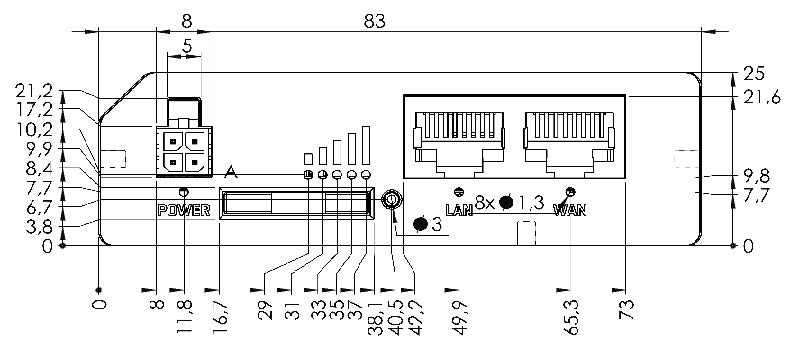

• Dimensions (WxHxD)
  • 83 x 25 x 74 mm
• Weight
  • 125 g
• Mounting options
  • Bottom and sideways DIN rail mounting slots

Operating Environment

• Operating temperature
  • -40 °C to 75 °C
• Operating humidity
  • 10% to 90% non-condensing
• Ingress Protection
  • IP30 Rating

Regulatory and Type Approval

• Regulatory
  • FCC, CE/RED, UKCA, CB

Package Contents

• Router
• Compact Cellular Antennas
• Compact Wi-Fi Antenna
• Power Cable (4-Pin Terminal)
• SIM Needle Kit
• Compact DIN Rail Kit
• Quick Start Guide (QSG)

RF

• Standards
  • EN 300 328

Safety

• Standards
  • EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018

Dimensions

• (W x H x D) / Weight
  • 83 x 25 x 74 mm / 125 g
