EASYCELL-ACP

AC Wall Adapter (indoor / desktop use only)
Only Available in North America
Downloads
Inquiry

EtherWAN Systems, Inc. provides a wide range of excellent quality accessories including antennas, power supply adapters and mounting solutions designed to be fully compatible with EasyCell series products.

Our goal is to ensure the long-term success of customers by providing accessories that are tested, validated, and functions as intended by continuously evaluate and enhance the quality control procedures, to guarantee the integrity and performance.

In case you need a solution that is not on our list, please contact us and we will be glad to help.  If you need to speak to someone directly, please call the following numbers:

Sales Support (7am-4pm PST):
(714) 779-3800, Select Option 1

Technical Support (6am-6pm PST):
(714) 779-3800, Select Option 2



Power

  • Input Voltage
    • 100 - 240 VAC
  • Input frequency
    • 50/60 Hz
  • Input current
    • 0.6 A
  • Input connector
    • US (Type A)
  • Output voltage
    • 12 VDC
  • Output current
    • 1.5A
  • Output connector
    • 4 - PIN, 3 mm pitch
  • Input voltage absolute maximum
    • 90 - 264 VAC
  • Input frequency absolute maximum
    • 47 - 63 Hz
  • Inrush currect
    • 60 A
  • Output voltage absolute maximum
    • 11.4 - 12.6 VDC
  • Short circuit protection
    • Yes
  • HIPOT (dielectric withstand test)
    • Primary to Secondary: 4000 VDC
  • MTBF
    • 30000 h

Physical Specifications

  • Weight
    • 82.6 g
  • Dimensions
    • 55.7mm x 27.0mm x 35.7mm (W x D x H)
  • Cable
    • 2000mm

Standards

  • Safety
    • UL 62368-1:2014 Ed.2
      CSA C22.2 NO. 62368-1:2014 Ed.2
  • EMC
    • FCC Part 15, Subpart B: 2017
      ANSI C63.4:2014
  • Energy efficiency
    • Level VI

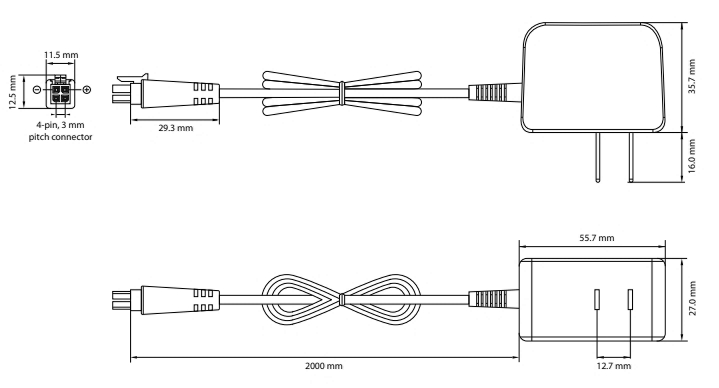

EasyCell ACP Dimensions

Part Number

EASYCELL-ACPAC Wall Adapter (indoor / desktop use only)
