EASYCELL-ANT-RFT

NEW

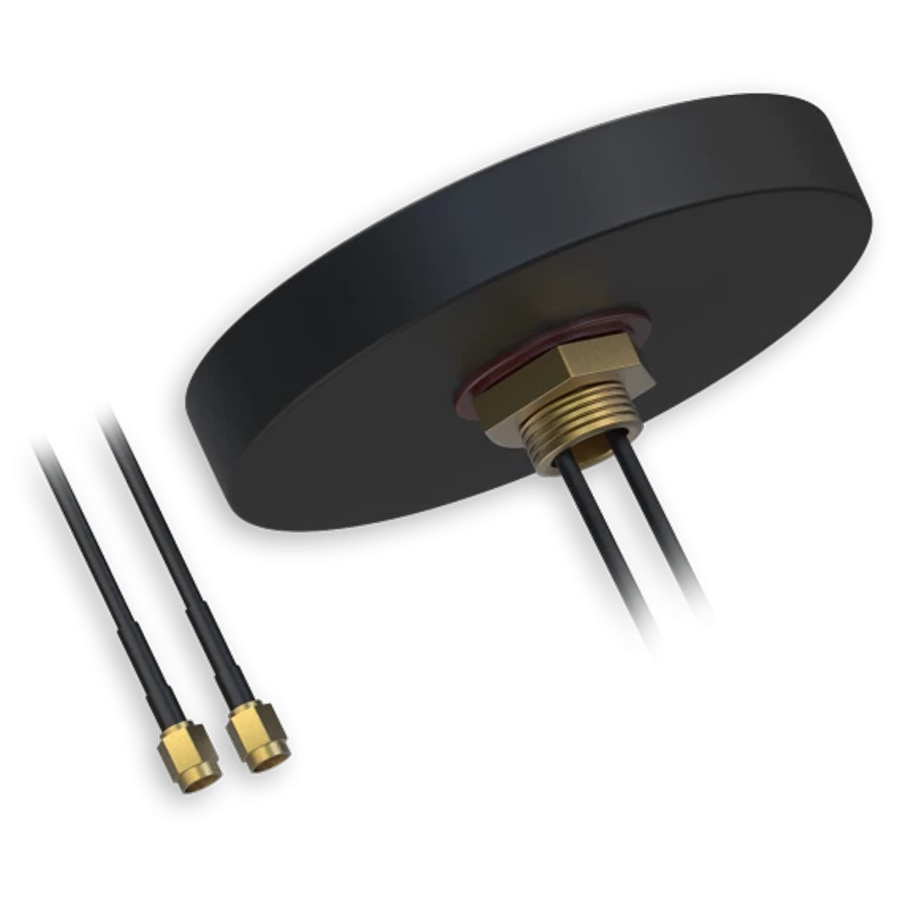

MOBILE MIMO External Antenna for EASYCELL
Only Available in North America
Downloads
Inquiry

Power

  • Frequency range
    • 698 - 960, 1710 - 2690 MHz
  • Polarization
    • Linear
  • Main antenna gain
    • 2.5 dBi
  • Aux antenna gain
    • 2.0 dBi
  • V.S.W.R
    • <3.0
  • Impedance
    • 50 Ω

Environment

  • Operating temperature
    • -40 ~ +85 °C
  • UV resistance
    • Yes

Mechanical

  • Mounting method
    • Screw
  • Radome ingress protection rating
    • IP65 (exclude cable outlet)
  • Radome material
    • UV resistant plastic and cable
  • RoHS Compliant
    • Yes

Physical Specifications

  • Weight
    • 157 ± 10 g
  • Housing Dimensions
    • Ø 81.3 x 15.2 mm
  • Cable
    • 2x RG174, 3000 mm
  • Connector type and count
    • 2x SMA Male

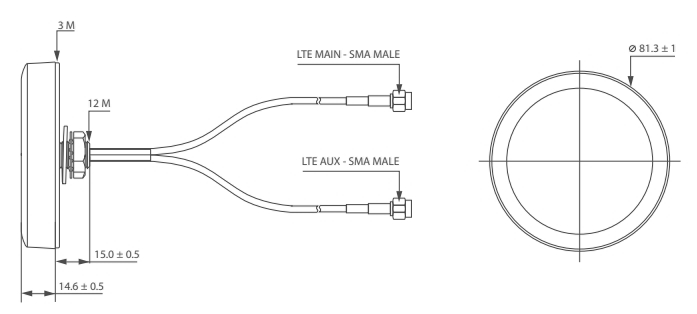

EASYCELL-ANT-RFT Dimensions

Part Number

EASYCELL-ANT-RFTMOBILE MIMO External Antenna for EASYCELL

Other EasyCell Accessories

EASYCELL-ACPAC Wall Adapter (indoor / desktop use only)
EASYCELL-ANT-OUTOutdoor LTE/Wi-Fi Antenna for EASYCELL
