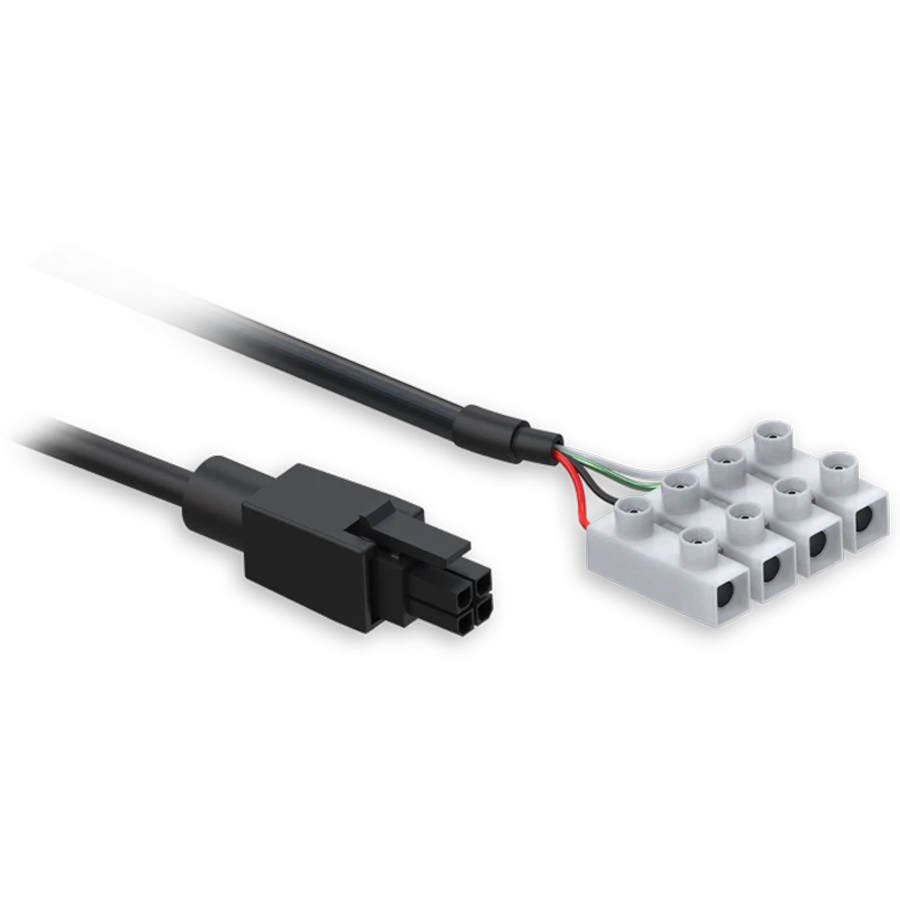

EASYCELL-PWR

Power Cable with 4-Way Screw Terminal for EasyCell
Only Available in North America
Downloads
Inquiry

EtherWAN Systems, Inc. provides a wide range of excellent quality accessories including antennas, power supply adapters and mounting solutions designed to be fully compatible with EasyCell series products.

Our goal is to ensure the long-term success of customers by providing accessories that are tested, validated, and functions as intended by continuously evaluate and enhance the quality control procedures, to guarantee the integrity and performance.

In case you need a solution that is not on our list, please contact us and we will be glad to help.  If you need to speak to someone directly, please call the following numbers:

Sales Support (7am-4pm PST):
(714) 779-3800, Select Option 1

Technical Support (6am-6pm PST):
(714) 779-3800, Select Option 2



Parameter & Rated Value

  • Input Connector
    • 4-way screw terminal
  • Output Connector
    • 4-pin, 3mm pitch
  • Cable
    • 4x0.129 mm2 (26 AWG), 2000 mm
  • RoHS Compliant
    • V

Color Coding

  • 1 Red
    • Power +
  • 2 Black
    • Ground -
  • 3 Green
    • Input/Output/NC
  • 4 White
    • Input/Output/NC

MPN

  • EasyCell-PWR
    • 1771016

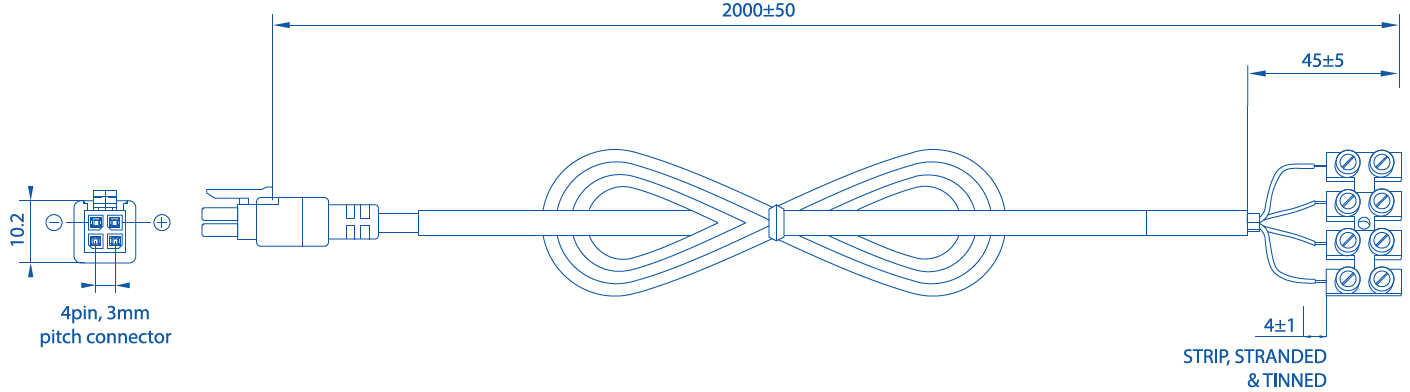

EASYCELL-PWR_Wiring



Part Number

EASYCELL-PWRPower Cable with 4-Way Screw Terminal
