easy poe box outdoor PoE Camera networking solution

All-In-One Indoor/Outdoor

Networking Solution

Connections for PoE Cameras & Outdoor Devices Made Easy

  • Easy Setup

    No drilling or additional equipment needed - simply plug-and-play. Our enclosure includes a managed PoE switch, splice tray, power supply, & DIN-rail for mounting accessories.

  • PoE Watchdog

    Automatically monitors and restarts unresponsive devices, eliminating the need for onsite, manual rebooting - Effectively saving you time and labor costs.

  • Weather-Proof

    Our NEMA 4x rated enclosure is designed to operate in non-ventilated & harsh environments. This waterproof cabinet will stand to the test of rain, extreme heat, and cold.

APPLICATIONS

This hardened enclosure offers up to 90W of PoE per device through its 15W/30W/60W backwards compatible switch, making it the perfect solution to a wide range of networking applications.

Our wireless bridge or 4g/5g cellular router can be optimized with our camera box to bolster your security network.

EasyLink Series - Preconfigured IP67 Wireless Bridge Kit

C4G Series - 4G or 5G Cellular Router

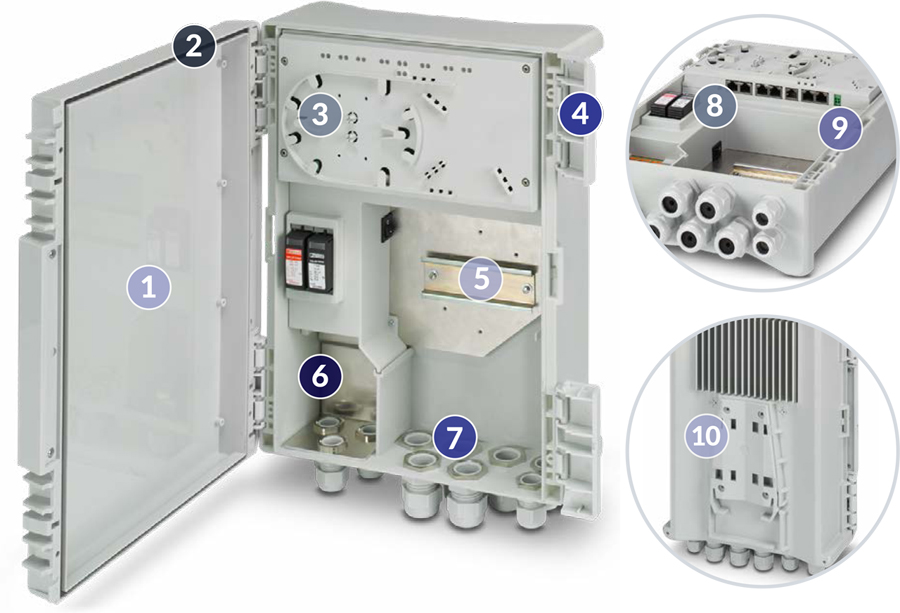

FEATURES

1

NEMA 4/4X-Rated Enclosure

Vandal (IK10)/Weather/UV resistant and anti-corrosion stainless and olycarbonate material.

2

Hardened-Grade

-40°F to 158°F (-40°C to 70°C) operating temperature.

3

Fiber Splice Tray

Integrated tray for easy fiber cable splicing and storage.

4

Removable Dual-Hinged Door

Door opens in either direction, allowing for easy installation. It can be completely removed for splicing fiber without

5

Space for Extras

Built-in DIN-rail and extra room for adding external devices or accessories.

6

Power Supply

Integrated power supply with 100-240VAC input and circuit breakers.

7

Easy Cable Management

10 pre-drilled holes and pre-installed weather-proof bulkhead connectors for secure and easy cable connections and management.

8

Power over Ethernet Switch

Up to 90W/port, backward compatible with all 15W/30W/60W devices, 165W total budget. 2 SFP or RJ45 uplink ports for sending data to server or distribution point.

9

Auxiliary Power Output

24VDC output for powering auxiliary devices such as call boxes or access controllers.

10

Included Mounting Accessory

Compatible for wall or pole mounting, it can take the heat with external metal heat sink.
