EasyLink Series

NEW

Preconfigured IP67 Wireless Bridge Kit

IP67
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
Available in North America only
Highly Secure
Hardened-Grade for Outdoor & Harsh Environments
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit
EasyLink Series Preconfigured IP67 Wireless Bridge Kit

Downloads

Highlights
Overview
Specifications
Dimensions

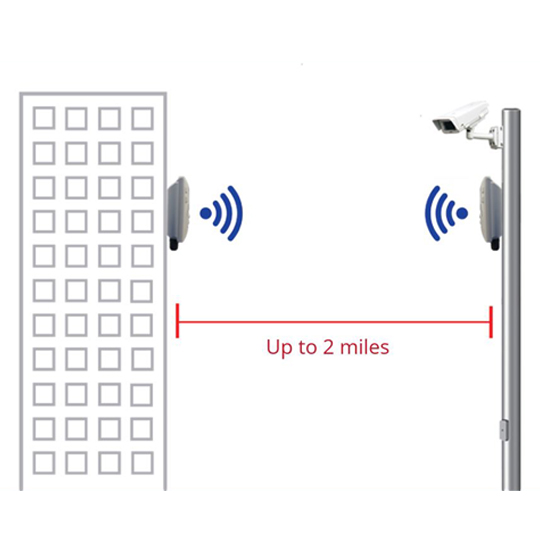

Application
Antenna
Ordering Info
Video

Easy

  • Mount units to a pole or wall using included mount kit
  • Signal strength LED's for easy alignment
  • Just power and align using supplied PoE injectors and power supplies
  • No technical expertise needed

Highly Secure

  • Encrypted & Authenticated Wireless Connection (WPA2)
  • Every kit has unique SSID and security settings

Hardened-Grade for Outdoor & Harsh Environments

  • Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
  • Wide operating temperature range (-40 to 167°F)
  • Connections up to 2 miles away

What's Included

  • 2 x units preconfigured to connect with optimal performance up to 300Mbps
  • Includes all Mounting Hardware
  • Includes 2 x power supplies and 2 x PoE injectors

EtherWAN's EasyLink is a pre-configured point to point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.

EtherWAN — "When Connectivity is Crucial."

Wireless

  • Frequency 5 GHz
  • Max data rate 300 Mbit/s
  • Number of chains: 2
  • Standards 802.11a/n
  • WPA2 Passphrase
  • 256-bit AES-CCM Encryption
  • Dynamic Frequency selection

Layer 2 Features

  • Auto-negotiation for port speed and duplex
  • Redundant Protocols (always enabled)
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP

Interface

  • Ethernet
    • 10/100/1000BASE-T Passive PoE
  • Wireless
    • 802.11a/n
  • LED Indicators

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.11w Management Frame Protection (MFP)
  • Power
    • PoE in (Passive PoE)
    • PoE in input Voltage 6-30V
    • Max power consumption 10W

Physical

  • Casing Material
    • UV Protected Polystyrene case
  • Dimensions
    • 185 x 185 x 63.5mm (W x D x H)
      7.28" x 7.28" x 2.5"
  • Weight (shipping)
    • 5.3lbs (2.4kg)
  • Installation Type
    • Pole/Wall

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • Wind Survivability
    • 200km/h
      *Power supply rated 5 to 158°F

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • PCC Part 15C

Environmental Test Compliance

  • IEC 60068-2-6 Fc (Vibration Resistance)
  • EN 61000-4-3 (Radiated RFI)

Warranty

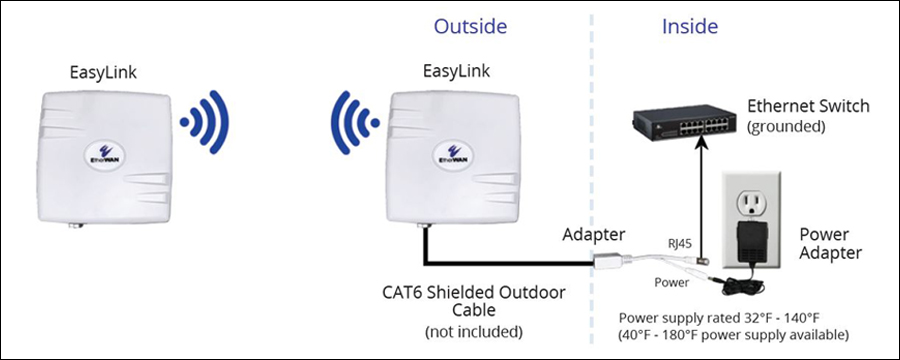

Unit Connected

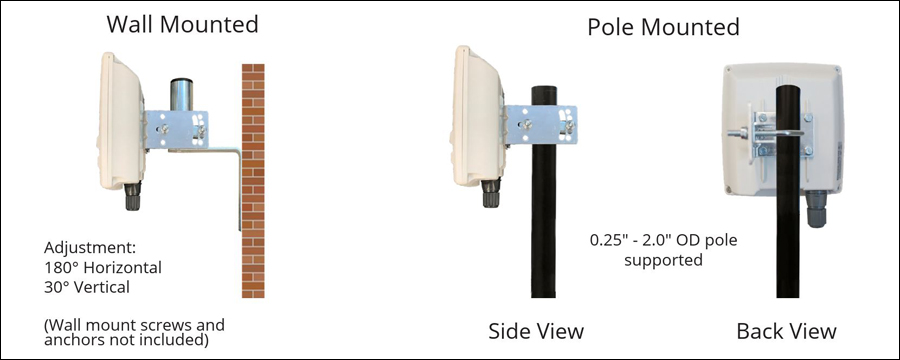

Unit Mounted



Performance

  • VSWR
  • Dual polarized
    • Horizontal & Vertical
  • High gain
    • Up to 13dBi
  • Front to Back Ratio
    • >20dB
  • Port isolation
    • >30dB

Electrical Specification

  • Frequency Range
    • 5-5.9 GHz
  • Gain
    • 13dBi typ.
  • Polarization
    • Dual linear-V & H
  • Beamwidth Horizontal
  • Beamwidth Vertical
    • 37 deg @ -3dB
  • VSWR
    • <2.0 typ.
  • Impedance
    • 50 Ohm
  • RF Interface
    • 2 x SMA Female
  • Front-to-Back Ratio
    • >20dB
  • Port-to-Port Isolation
    • >30dB

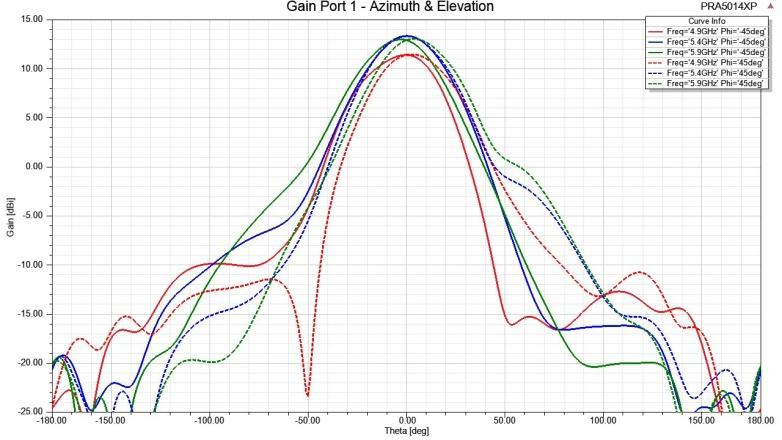

Gain - Azimuth & Elevation - Port 1

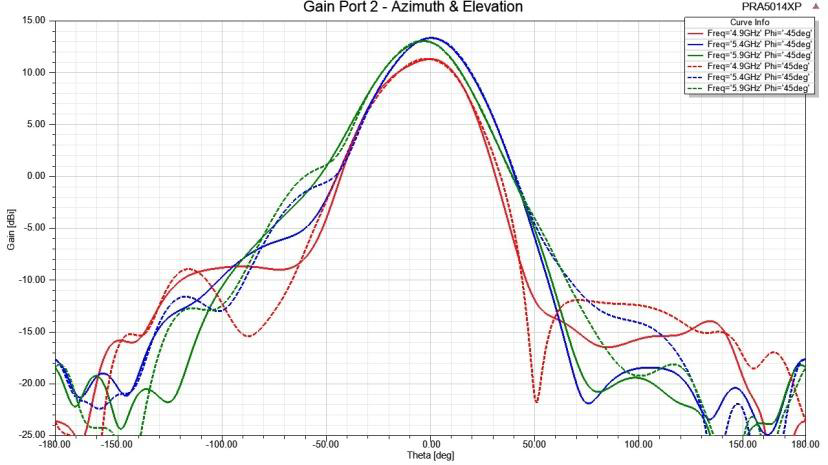

Gain - Azimuth & Elevation - Port 2

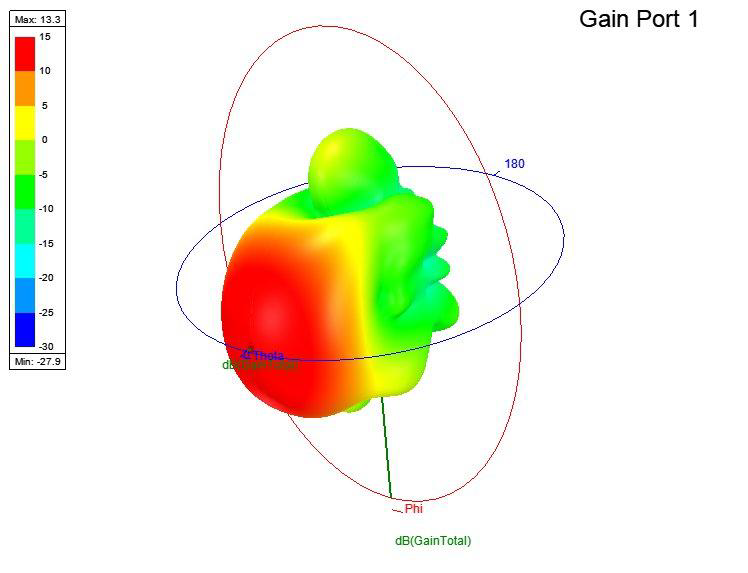

3D Gain - Port 1

3D Gain - Port 2

Model

EasyLink-300-US Wireless Bridge Kit - Two paired Wireless Bridge Units, 2 x 24VDC, 1.5A Power Supplies, 2 x Passive PoE Injectors and 2 x Mounting Kits.
EW-JPole18 18" Wall Mount J-Pole
EasyLink-PSU-INJ Replacement Power Supply and Gigabit Passive PoE Injector for EasyLink Wireless Bridge Series
Cable 25 25' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 50 50' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 150 150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 300 330' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
PWR-H Hardened Power Supply rated for use in temperatures -40 to 165°F
PoEPowerEZ PoE Switch to EasyLink Adapter Hardened -40 to 165°F (Eliminates the need for a power supply)

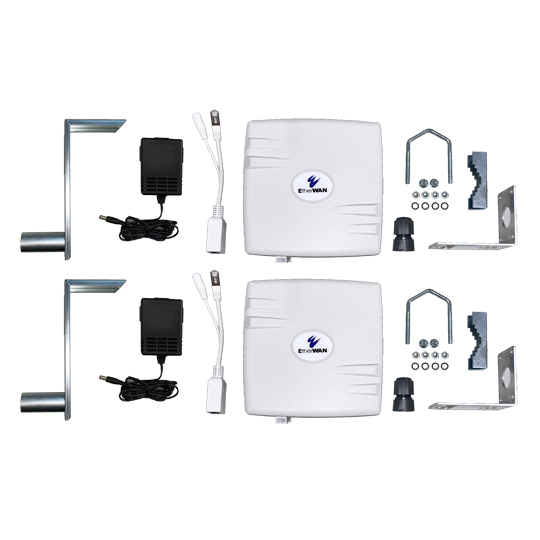

What's in the Box

2 x Paired Easylink Units, 2 x Wall Power Supplies, 2 x PoE Injectors, 2 x Pole Mounting kit, 2 x Wall Mounting Poles, Quick Install Guide (see picture at top)
Highlights

Easy

  • Mount units to a pole or wall using included mount kit
  • Signal strength LED's for easy alignment
  • Just power and align using supplied PoE injectors and power supplies
  • No technical expertise needed

Highly Secure

  • Encrypted & Authenticated Wireless Connection (WPA2)
  • Every kit has unique SSID and security settings

Hardened-Grade for Outdoor & Harsh Environments

  • Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
  • Wide operating temperature range (-40 to 167°F)
  • Connections up to 2 miles away

What's Included

  • 2 x units preconfigured to connect with optimal performance up to 300Mbps
  • Includes all Mounting Hardware
  • Includes 2 x power supplies and 2 x PoE injectors
Overview

EtherWAN's EasyLink is a pre-configured point to point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.

EtherWAN — "When Connectivity is Crucial."

Specifications

Wireless

  • Frequency 5 GHz
  • Max data rate 300 Mbit/s
  • Number of chains: 2
  • Standards 802.11a/n
  • WPA2 Passphrase
  • 256-bit AES-CCM Encryption
  • Dynamic Frequency selection

Layer 2 Features

  • Auto-negotiation for port speed and duplex
  • Redundant Protocols (always enabled)
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP

Interface

  • Ethernet
    • 10/100/1000BASE-T Passive PoE
  • Wireless
    • 802.11a/n
  • LED Indicators

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.11w Management Frame Protection (MFP)
  • Power
    • PoE in (Passive PoE)
    • PoE in input Voltage 6-30V
    • Max power consumption 10W

Physical

  • Casing Material
    • UV Protected Polystyrene case
  • Dimensions
    • 185 x 185 x 63.5mm (W x D x H)
      7.28" x 7.28" x 2.5"
  • Weight (shipping)
    • 5.3lbs (2.4kg)
  • Installation Type
    • Pole/Wall

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • Wind Survivability
    • 200km/h
      *Power supply rated 5 to 158°F

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • PCC Part 15C

Environmental Test Compliance

  • IEC 60068-2-6 Fc (Vibration Resistance)
  • EN 61000-4-3 (Radiated RFI)

Warranty

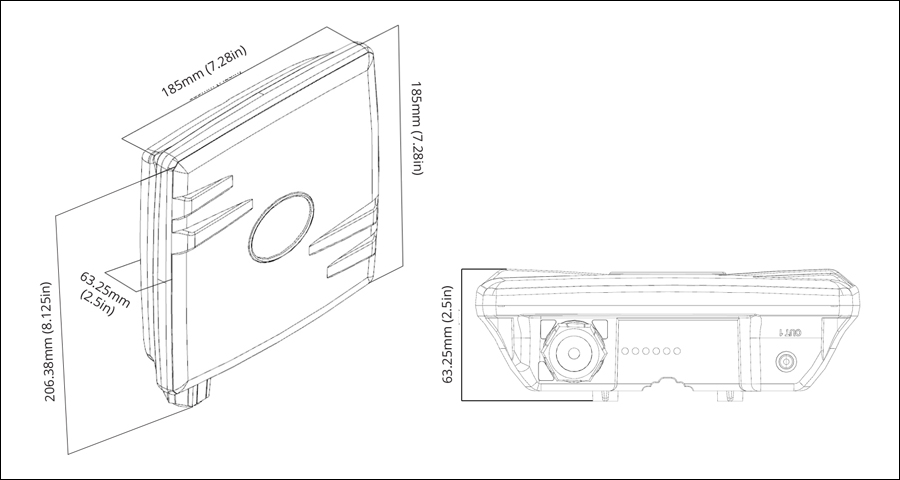

Dimensions
Application

Unit Connected

Unit Mounted

Antenna


Performance

  • VSWR
  • Dual polarized
    • Horizontal & Vertical
  • High gain
    • Up to 13dBi
  • Front to Back Ratio
    • >20dB
  • Port isolation
    • >30dB

Electrical Specification

  • Frequency Range
    • 5-5.9 GHz
  • Gain
    • 13dBi typ.
  • Polarization
    • Dual linear-V & H
  • Beamwidth Horizontal
  • Beamwidth Vertical
    • 37 deg @ -3dB

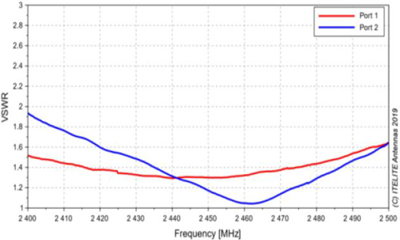

  • VSWR
    • <2.0 typ.
  • Impedance
    • 50 Ohm
  • RF Interface
    • 2 x SMA Female
  • Front-to-Back Ratio
    • >20dB
  • Port-to-Port Isolation
    • >30dB

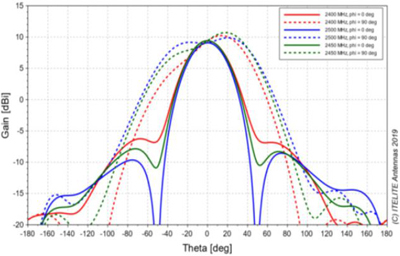

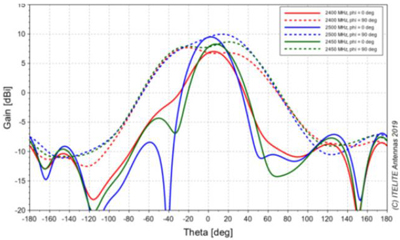

Gain - Azimuth & Elevation - Port 1

Gain - Azimuth & Elevation - Port 2

3D Gain - Port 1

3D Gain - Port 2

Ordering Info

Model

EasyLink-300-US Wireless Bridge Kit - Two paired Wireless Bridge Units, 2 x 24VDC, 1.5A Power Supplies, 2 x Passive PoE Injectors and 2 x Mounting Kits.
EW-JPole18 18" Wall Mount J-Pole
EasyLink-PSU-INJ Replacement Power Supply and Gigabit Passive PoE Injector for EasyLink Wireless Bridge Series
Cable 25 25' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 50 50' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 150 150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 300 330' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
PWR-H Hardened Power Supply rated for use in temperatures -40 to 165°F
PoEPowerEZ PoE Switch to EasyLink Adapter Hardened -40 to 165°F (Eliminates the need for a power supply)

What's in the Box

2 x Paired Easylink Units, 2 x Wall Power Supplies, 2 x PoE Injectors, 2 x Pole Mounting kit, 2 x Wall Mounting Poles, Quick Install Guide (see picture at top)
Video
