EasyPoE Box Series

NEW

NEMA-Rated Indoor/Outdoor Enclosure with Integrated PoE Switch

SFP
Wide Temperature
Fanless
PoE_90W
PoE_60W
PoE 30W
PoE 15W
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
Available in North America only
NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
Integrated splicing tray for safe fiber connection storage
Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
EasyPoE Box Series NEMA-Rated Indoor/Outdoor Cabinet with Integrated PoE Switch
Overview
Highlights
Software Features
Hardware Specifications

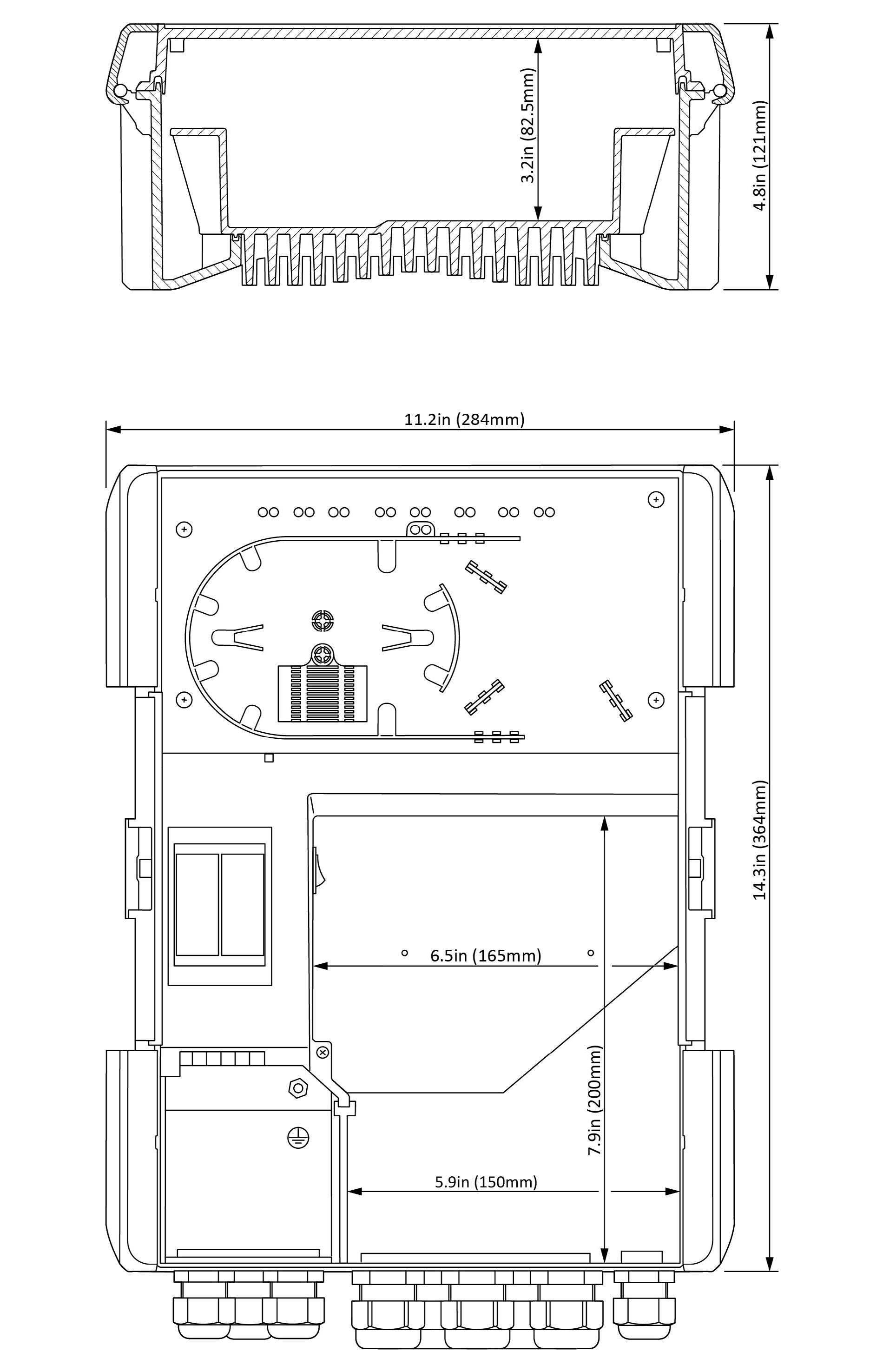

Dimensions

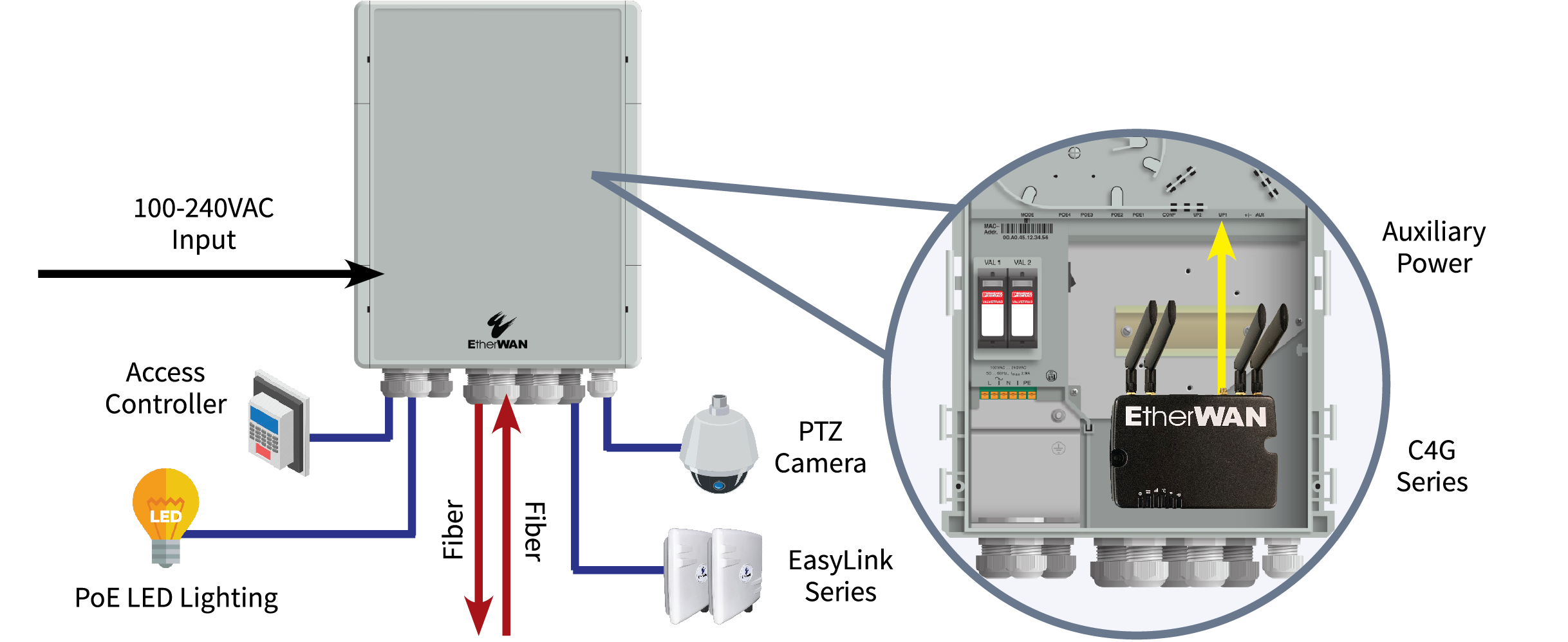

Application
Ordering Info

EtherWAN's EasyPoE Box Series is an integrated solution that combines a managed PoE switch, splice tray, power supply, and a DIN-rail for accessories, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 4 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and 2 uplink ports, the smart camera box series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

EtherWAN — "When Connectivity is Crucial."

NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments

  • Wide operating temperature -40 to 70°C (-40 to 158°F)
  • Fanless design
  • Weather-resistant, anti-corrosion, and vandal-resistant design

Time/Cost Saving Features

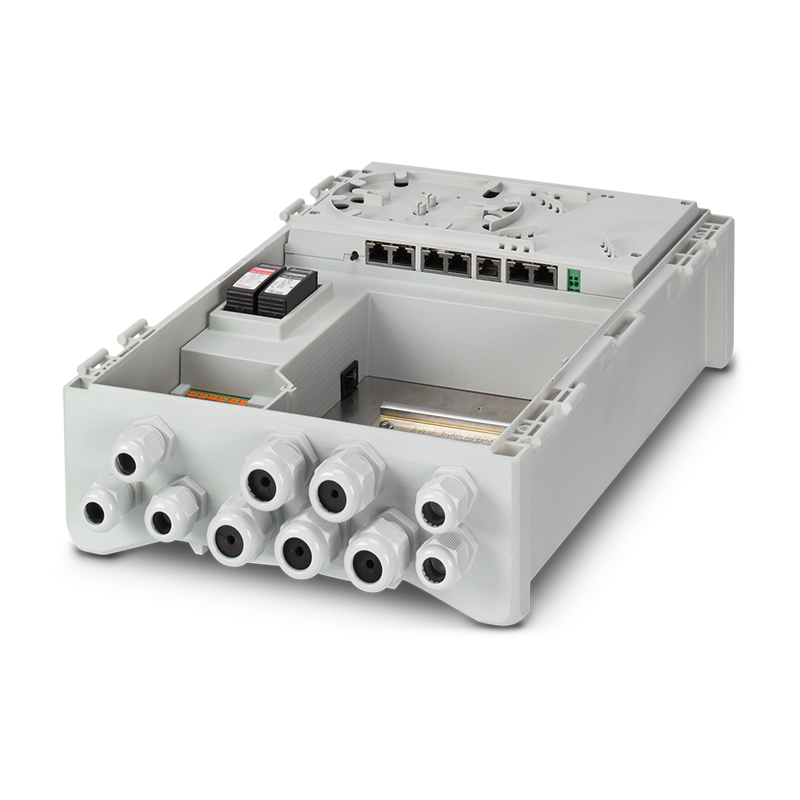

  • Integrated splicing tray for safe fiber connection storage

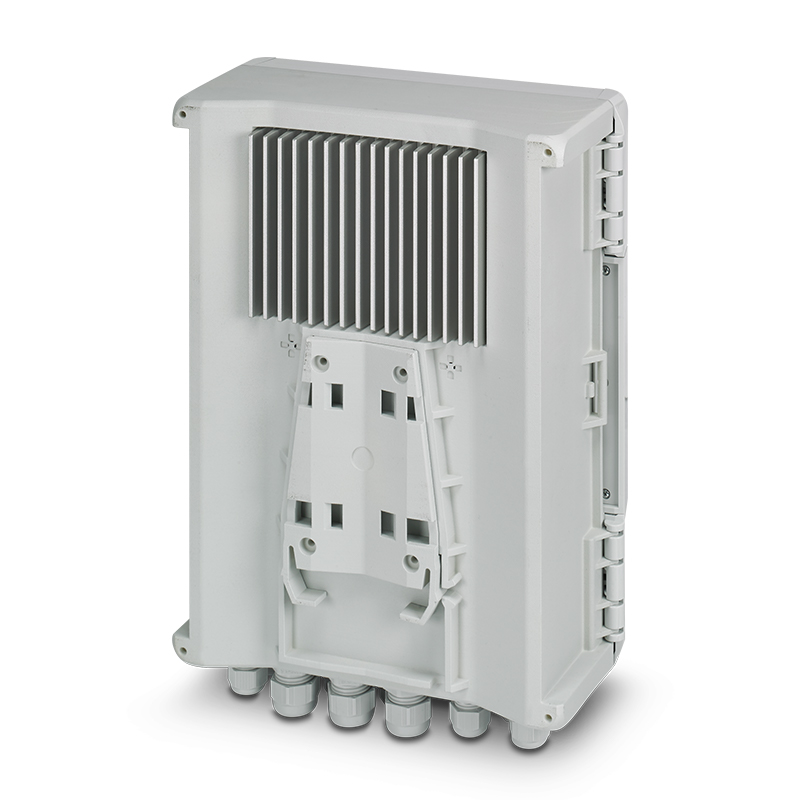

  • Adapter for wall and pole mounting
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories

Smart PoE and Power

  • Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • PoE watchdog monitors status of connected PoE devices
  • Built-in power supply and surge protection with auxiliary DC power output

Support

  • Complimentary technical support
  • Free firmware upgrades and notifications
  • Limited lifetime warranty

Interface

  • CLI and Web Browser
  • SNMP v2/v3

Management

  • Firmware upgrade
  • Configuration backup
  • DHCP Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • SNTP (Simple Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6

Security

  • MAC address filtering
  • Enable/Disable port
  • System logging
  • IEEE 802.1x LAN Access Control
  • Remote authentication through RADIUS
  • SSH for CLI and Telnet security
  • SSL and HTTPS for Web security
  • Multi-user login and privileged access management
  • Port security

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocol
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • VLANs
    • IEEE 802.1Q Tag VLANs (Up to 32 VLANs)


Interface

  • Ethernet Port
    • 10/100/1000BASE-T PoE: 2 or 4 ports
    • 10/100/1000BASE-T: 0 or 2 ports
    • 100/1000BASE SFP: 0 or 2 ports
  • LED Indicators
    • Per Unit: Power (Green), Aux Power (Green)
    • Per Port: Link/Activity (Green: 10/100M, Orange: 1000M; On: connection established, Flashing: data transmission in progress)
    • Per Port: PoE (Green: Auto Mode, Orange: Force Mode)
  • Mode Button
    • Exiting without changes
    • Resetting to the factory settings
    • Operating with a static IP address
    • Setting DHCP mode
    • Setting BootP
    • Setting unmanaged mode

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANS
    • IEEE 802.1w RSTP
    • IEEE 802.1ab LLDP
    • IEEE 802.3af/at/bt Power over Ethernet
    • IEEE 802.1x Port-based Network Access Control
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,880pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • Processing Type
    • Store-and-Forward
    • Auto-Negotiation
    • Half-duplex back-pressure full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 8K

Power

  • Input
    • 100-240VAC, -15% - +10% (single-phase)
  • Output
    • 24VDC, 300mA (typical)
  • PoE Power Output
    • Ports 1-3: Up to 90W/port
    • Port 4: Up to 30W
  • PoE Power Budget
    • 165W (155W if power output used)

Physical

  • Casing Material
    • Polycarbonate (PC)
  • IP Rating
    • IP65
  • NEMA Rating
    • NEMA 4/4X
  • Impact Protection
    • IK10
  • Dimensions
    • 11.2 x 4.8 x 14.3in (W x D x H)
      284 x 121 x 364mm (W x D x H)
  • Weight
    • 9.5lbs (4.3Kg)
  • Installation Type
    • Wall or Pole Mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 805,920 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • ICES-003
    • EN 61000-6-4
  • EMS
    • EN 61000-6-2
    • EN 61000-6-3
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
  • Safety
    • UL 61010
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27

Warranty

What's Included

  • Device
    • Smart Camera Box
  • Installation
    • Mounting Adapter
  • Documentation
    • Quick install guide

Model

EASYPOEBOX4F 4-Port 10/100/1000BASE-T PoE + 2-Port 100/1000BASE SFP Managed Ethernet Switch
EASYPOEBOX4C 4-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch
EASYPOEBOX2F 2-Port 10/100/1000BASE-T PoE + 2-Port 100/1000BASE SFP Managed Ethernet Switch
EASYPOEBOX2C 2-Port 10/100/1000BASE-T PoE + 2-Port 10/100/1000BASE-T Managed Ethernet Switch

Accessories

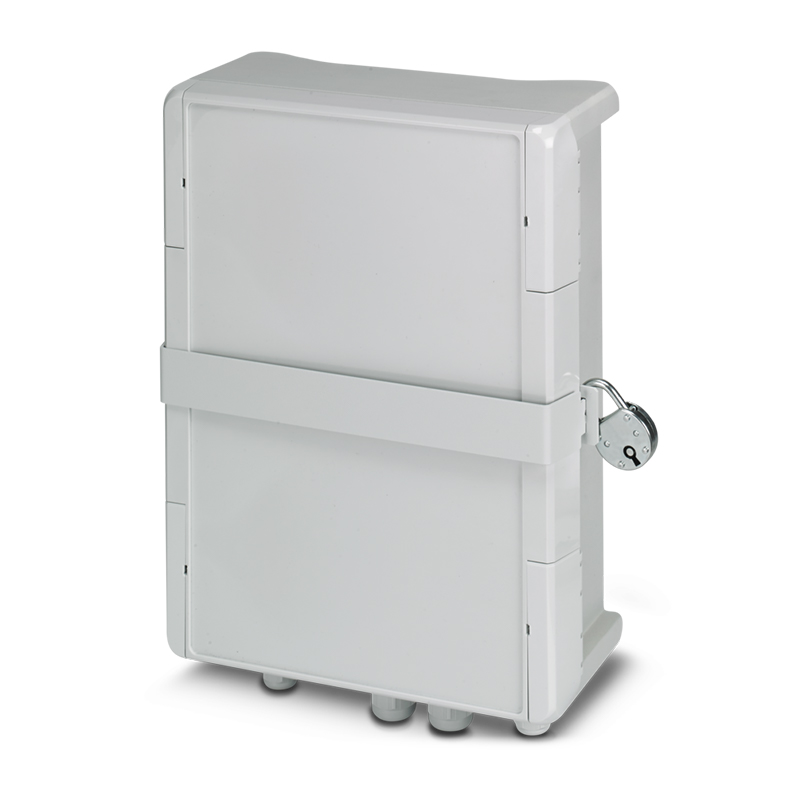

EASYPOEBOXLOCK Door lock with locking tab
EASYPOEBOXMCS Mast clamps for masts (51-127mm)
EASYPOEBOXMCL Mast clamps for masts (102-254mm)
