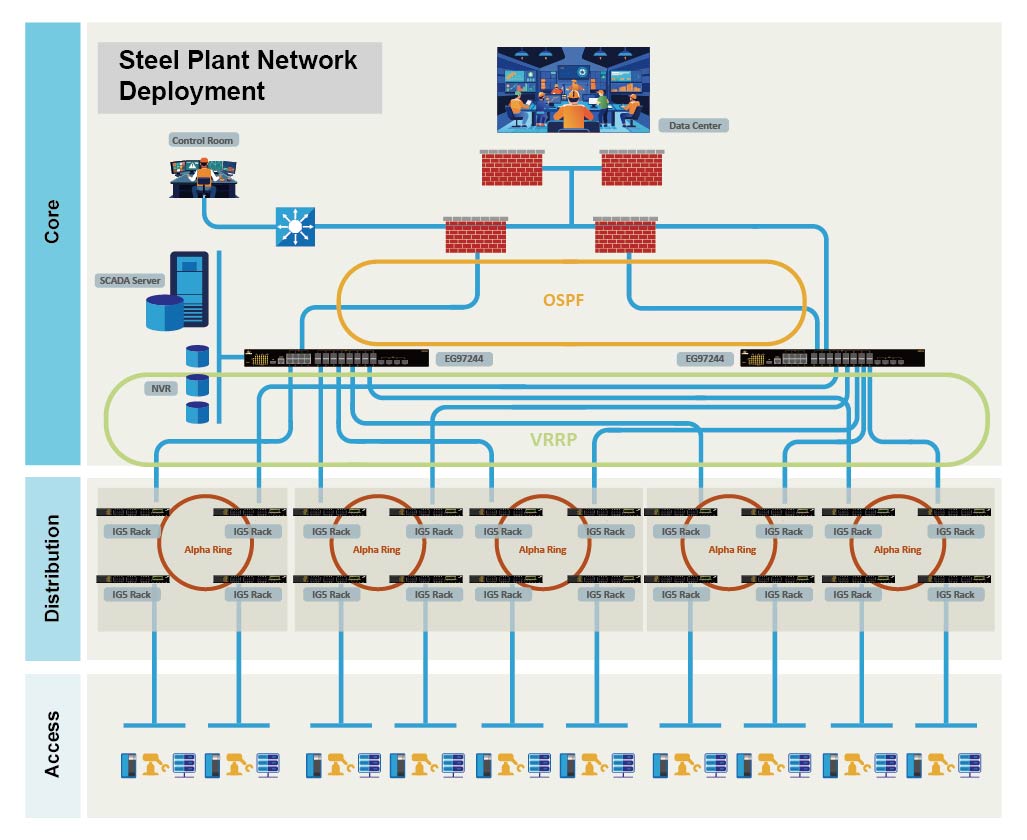

Core Layer

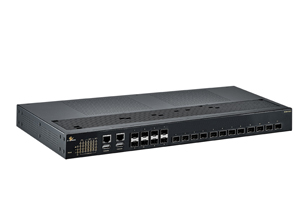

The EG97244 Series is designed for industrial backbone networks that require 10G fiber uplinks, Layer 3 routing, and high-density device aggregation across plants, floors, and production areas. With multiple 1G TX ports, four 10G fiber uplinks, OSPF, VRRP, and built-in Layer 3 management, EG97244 supports high-speed core-layer data aggregation and high-availability network designs.

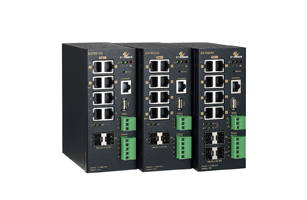

The fanless, dust-resistant design and -40°C to +75°C operating temperature range help maintain stable performance in high-temperature, dusty, and long-running industrial environments. For smaller sites, IG5 Layer 3 switches provide management features with flexible deployment.

Distribution Layer

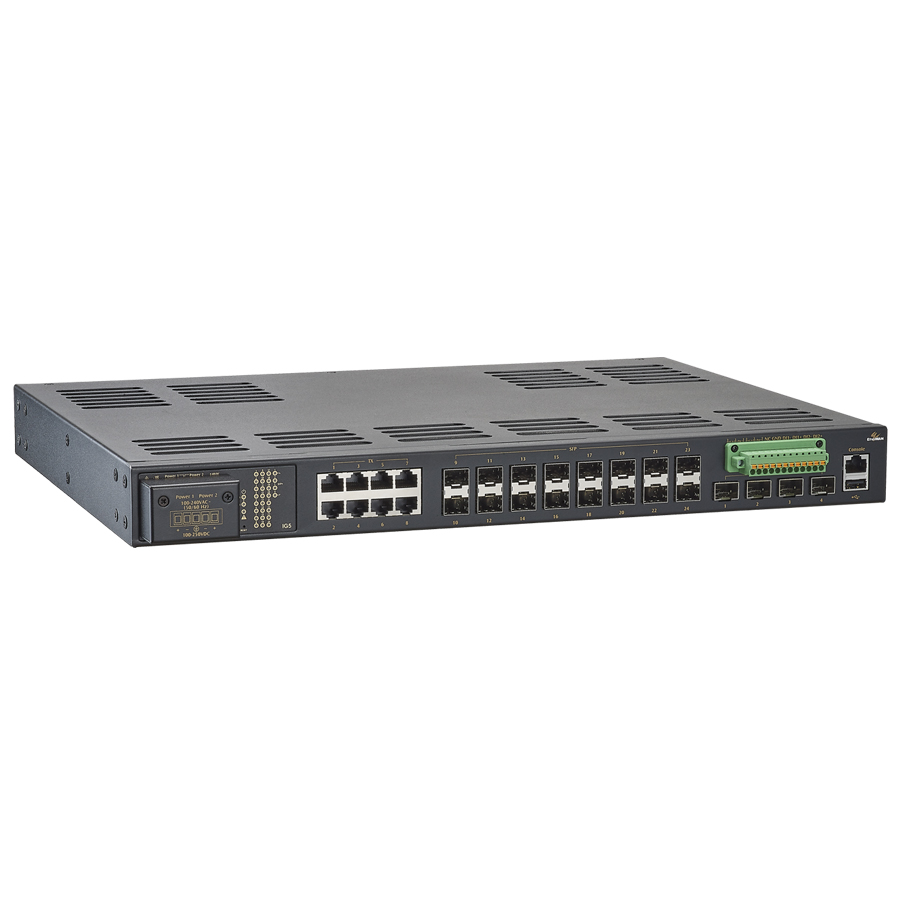

The IG5 Rack Series is an industrial rackmount switch designed for high-EMI, wide-temperature, and 24/7 harsh environments.

Flexible Ethernet and fiber port combinations support different distance, bandwidth, and redundancy requirements. With Redundant Pair coupling and Alpha-Ring redundancy, the series helps restore connectivity quickly during network events and reduce communication interruption risks in power, transportation, and industrial control applications.

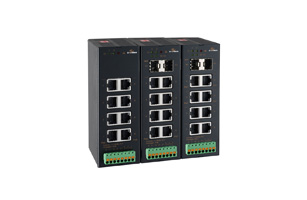

For power and time-synchronization applications, IG5 Rack Series supports IEEE 1588v2 precision timing and complies with IEC 61850-3/IEEE 1613 standards for synchronization accuracy, EMI immunity, and environmental reliability. Smaller sites can also use compact vertical models or PoE Ethernet switches with PoE PD cascading for flexible network deployment.
