EX78900XR Series

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
  • IEEE 802.3az EEE
  • IEEE 802.3af/at/bt Power over Ethernet*
  • IEEE 1588v2 PTP
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 2Gb DDR3 SDRAM
• Flash Storage
  • 1Gb

Power

• Input
  • 46-57VDC (Terminal block)
• Power Consumption
  • 20W Max (without PoE)
• PoE Power Output
  • Ports 1-12: Up to 90W/port
  • Power Budget: 360W
• Protection
  • Reverse Polarity Protection

Interface

• Ethernet
  • 12 x 10/100/1000BASE-T(X)
  • 4 x 1/10G SFP+
• Console
  • 1 x RS232
• Config Backup
  • 1 x USB (Type A Connector)
• LED Indicators
  • Per Unit: Power, Alarm
  • Per Port: Link/Activity (Green)
  • Per PoE Port: PoE Status (Orange)

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • IEC 60068-2-31

Physical

• Casing Material
  • Aluminum
• IP Rating
  • IP30

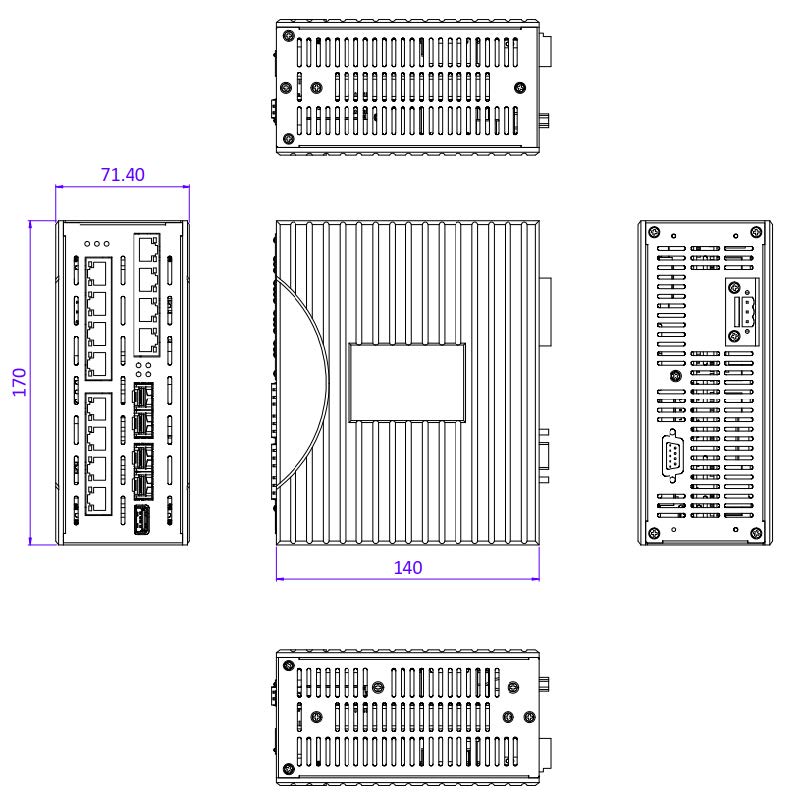

• Dimensions
  • 72 x 140 x 170mm (W x D x H)
    2.8" x 5.5" x 6.7"
• Weight
  • 1.5kg (3.3lbs)

Warranty

• Length
  • Limited Lifetime
• Details
  • www.m/support/warranty-policy

Environmental

• Operating Temp.
  • -40 to 70°C (-40 to 158°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)

What's Included

• Device
  • Ethernet switch
• Cables
  • 1 Console cable

MPN

• EX78934XR-0VB
  • 1718534
