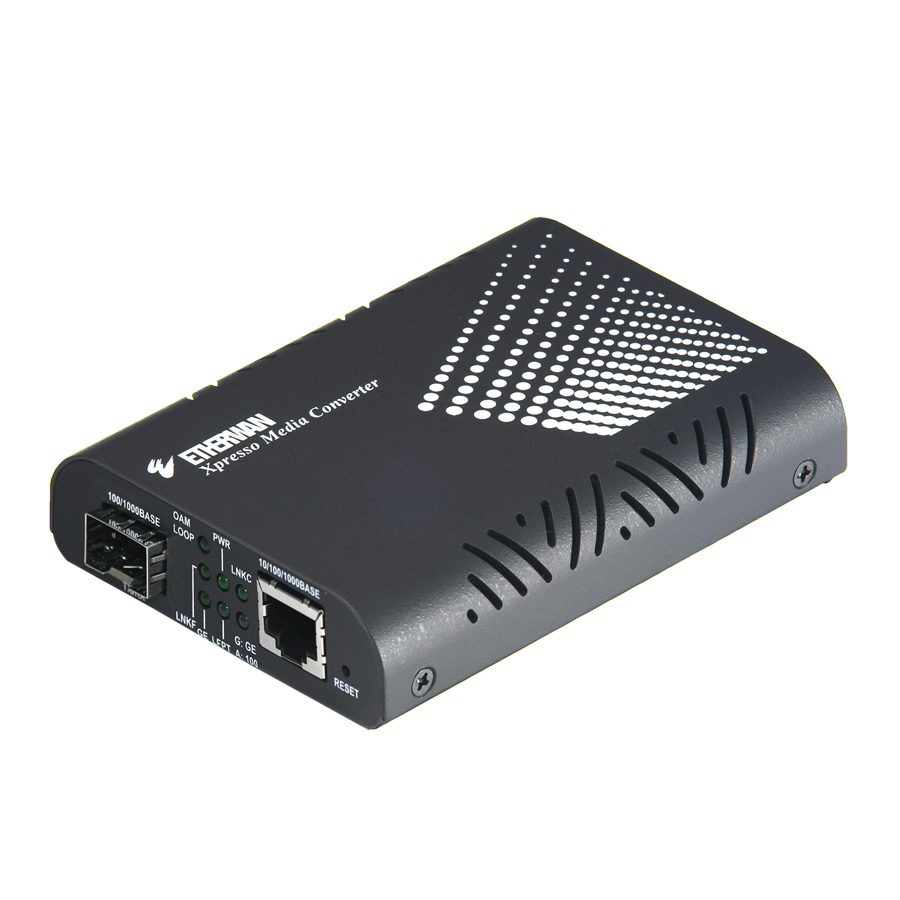

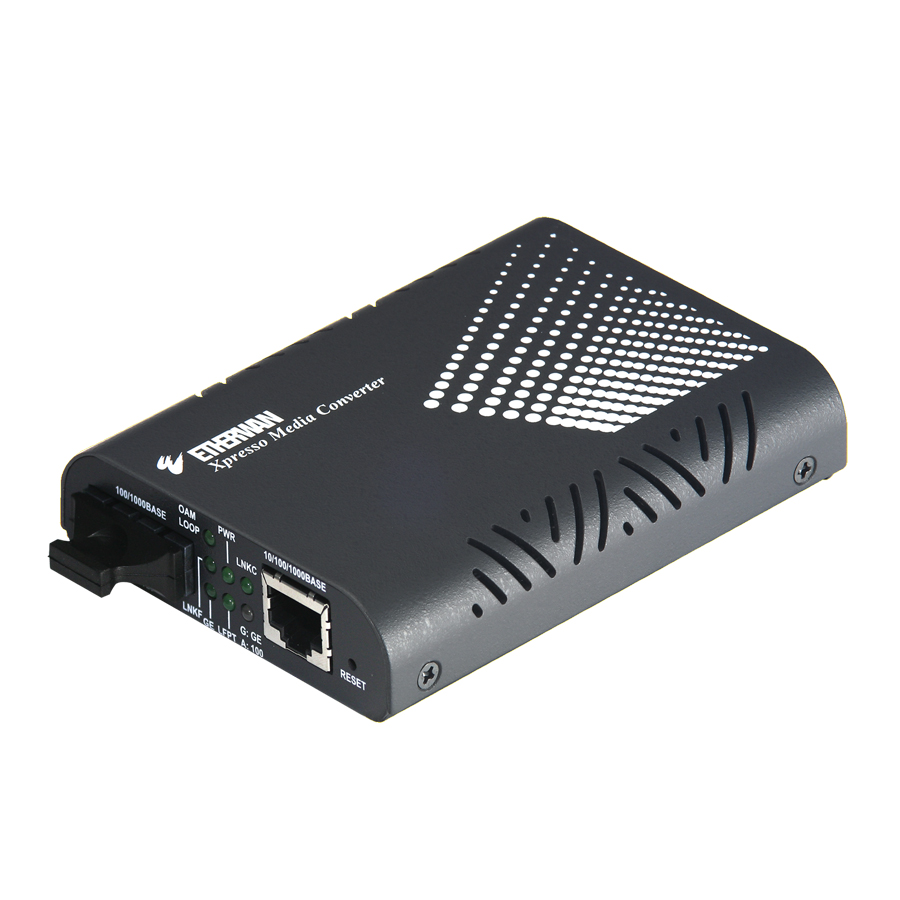

EL2321 Series

Managed 10/100/1000BASE-TX to 100/1000BASE-X Dual Rate Media Converter
Link Fault Pass Through (LFPT)
Easy-to-use web GUI, plus SNMP
Dual rate SFP slot
This product is discontinued as of 28th August here for alternative product.

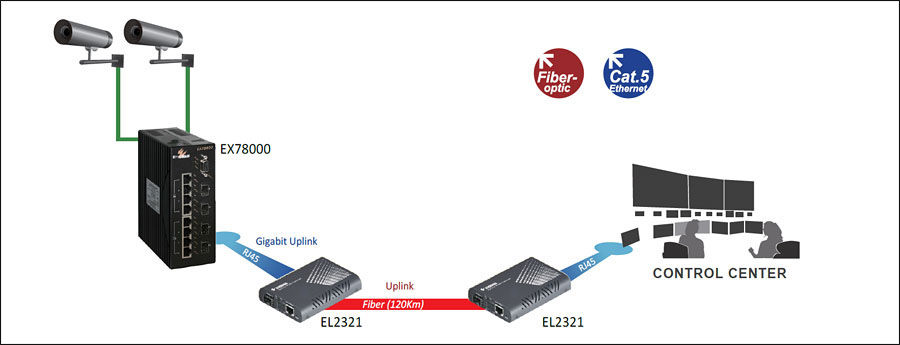

The EL2321 Series provides media conversion between "10/100/1000BASE-TX" and "100BASE/1000BASE-SX-LX Fiber or 100/1000BASE-SFP Fiber." The EL2321’s fiber design is compatible to 100BASE fiber or 1000BASE fiber transceiver.

The EL2321 managed media converter supports Telnet, SNMP v1/v2, and web browser management enabling value-added connectivity and bandwidth control. Key features include; 802.3ah OAM compliance, VLAN tagging, broadcast storm protection, Far-End-Fault, and Link-Fault-Pass-Through resulting in reliable communications between networks. With link down alarming and a wide range of fiber connectivity options the EL2321 is the ideal media converter for environments where connectivity is variable.

EtherWAN — "When Connectivity is Crucial."

Gigabit Connectivity

» Auto 10/100/1000BASE-TX and 1000BASE-SX/LX/BX Ethernet transmission conversion
» 1000Mbps Full duplex, 10/100MBps Full/Half duplex
» Fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission

Managed Functions

» Supports IEEE802.3ah OAM standards
» Supports SNMPv1, SNMPv2
» Supports bandwidth control and VLAN base priority tag



  • » Interface
    •    • Web Browser
    •    • SNMP v1/v2c
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client




  • » MAC Address by port security
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE802.1x LAN access control


Quality of Service (QoS)


  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE802.1p CoS, DSCP, WRR (Weighted Round Robin)
  • » Rate Limiting (Ingress/Egress)


Layer 2 Features


  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE802.1Q Tag VLANs (4096 VID)




  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3x Full duplex and flow control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto-MDI/MDIX



Power Input

  • • Input Voltage: 12VDC

Power Consumption




  • • Metal Case
  • • IP30

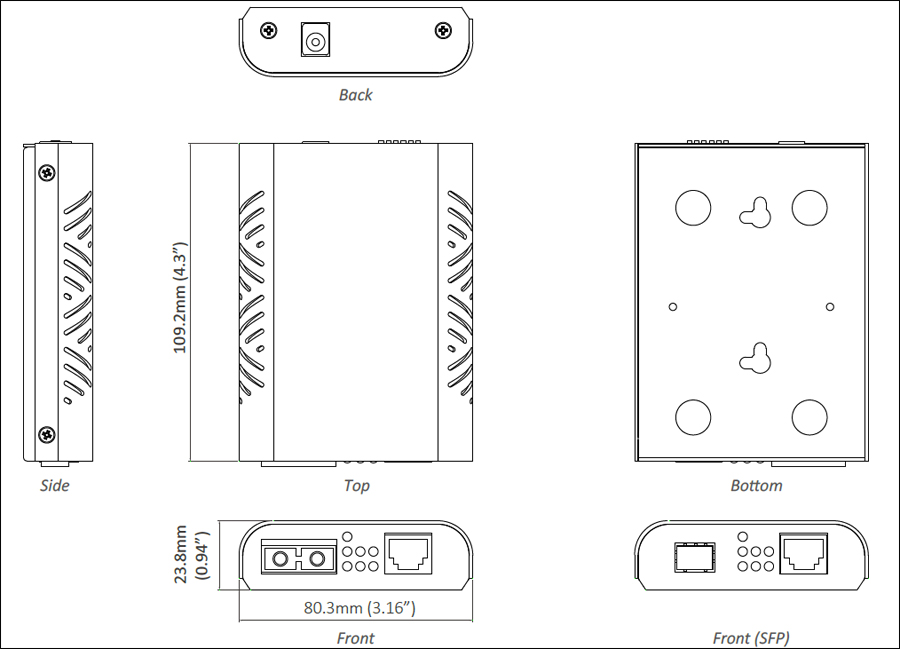

  • • 80.3 x 109.2 x 23.8mm (W x D x H))
      (3.16" x 4.3" x 0.94")

  • • 150g (0.336lbs.)

  • • Wall mounting



Ethernet Port

  • • 10/100/1000BASE-TX: 1 port
  • • 100BASE/1000BASE-SX-LX or 100/1000BASE SFP slot: 1 port

LED Indicators
  • • Per Unit: Power Status, OAM loop
  • • Per Port: TX Speed, Link/Activity, Full-duplex



Operating Temperature

  • • 0 to 50°C (32 to 121°F)

Storage Temperature
  • • -20 to 70°C (-4 to 158°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)


Regulatory Approvals


  • • Manufactured in an ISO 9001 facility

Emission Compliances
  • CE Mark Class A
  • FCC Part 15B Class A
  • VCCI Class A



EL2321-X1ZManaged 10/100/1000BASE-TX to 100BASE/1000BASE-X Dual Rate Media Converter

Gigabit Port Options (X)

31000BASE-SX (SC) - 550m (850nm)
41000BASE-SX (SC) - 2Km (1310nm)
51000BASE-SX (ST) - 550m (850nm)
A1000BASE-LX (SC) - 10Km (1310nm)
B1000BASE-LX (SC) - 20Km (1310nm)
E1000BASE-LX (SC) - 40Km (1310nm)
R1000BASE-BX (SC) WDM-TX:1310nm/RX:1550nm - 20Km
S1000BASE-BX (SC) WDM –TX:1550nm/RX:1310nm - 20Km
V100/1000BASE SFP

Power Adapter Options (Z)

Awith external power adapter for AU
Ewith external power adapter for EU
Jwith external power adapter for JP
Kwith external power adapter for UK
Uwith external power adapter for USA
3Cwith external power adapter for China
