EasyLink Pro MP Series

Click Here for Pricing!

NEW

2400 Mbps Preconfigured Multipoint IP67 Wireless Bridge Kit

Only Available in North America

Up to 2400Mbps data rate for multiple video connections

Plug & Play design – simply power up and align units w/ built in alignment LEDs

Connect up to 6 remote locations

Kit includes all accessories needed for powering up and mounting

Highly secure with encrypted and authenticated wireless connection (WPA2)

Hardened-grade and NEMA-TS2 compliant for outdoor and harsh environments

Downloads

QIG

Inquiry

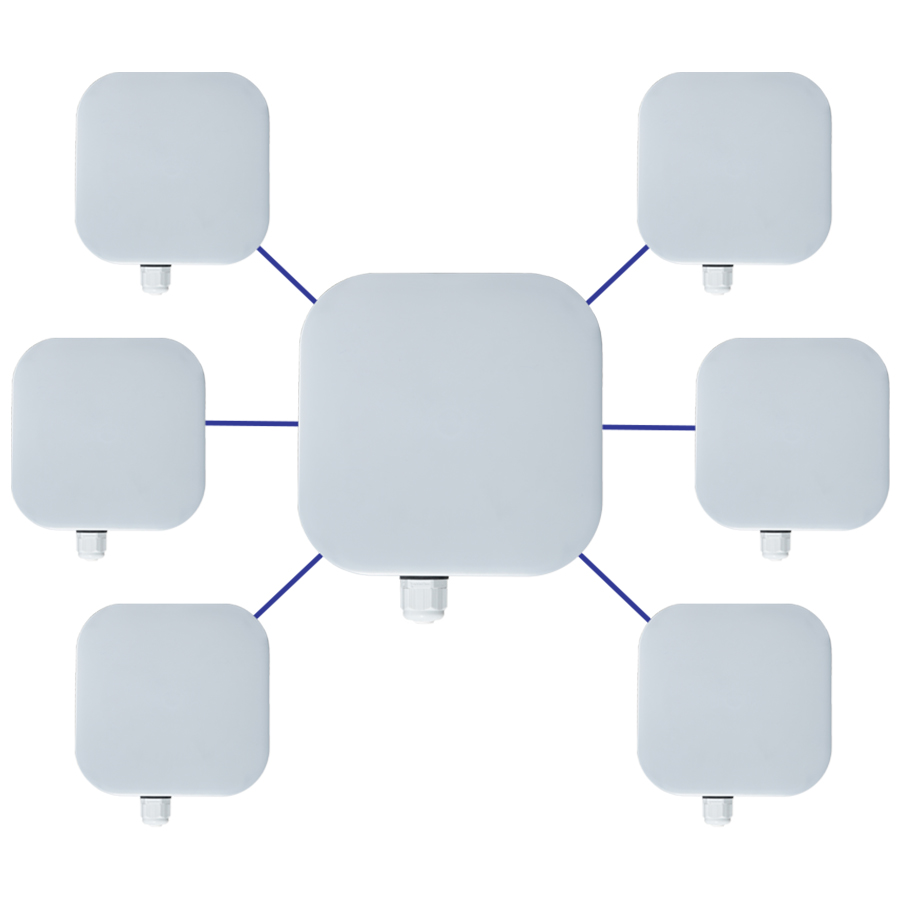

The EasyLink Pro MP series is a high-speed pre-configured Point to Multipoint Bridge kit that allows for connecting up to 6 sets of remote locations wirelessly up to 1.5 mile away. EasyLink Pro MP’s simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs. Each kit contains one central bridge unit plus two/four/six auxiliary units that connect automatically using a highly secure, unique, and hidden SSID and randomly generated passphrase to keep your the equipment secure right out of the box. There is no need for any setup software, just mount, power, and align using the built in alignment LEDs, and you are connected.

Easy

Mount units to a pole or wall using included mount kit
Signal strength LED's for easy alignment
Just power and align using supplied PoE injectors and power supplies
No technical expertise or configuration needed. Simply mount, power, and align units for instant connectivity.

Highly Secure

Encrypted & Authenticated Wireless Connection (WPA3)
Every kit has unique SSID and security settings
Management Frame Protection (MFP) enabled

Hardened-Grade for Outdoor & Harsh Environments

Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
Wide operating temperature range (-40 to 167°F)
Connections up to 2 miles away

What's Included

Base unit and 2, 4, or 6 auxiliary units preconfigured to connect upon power-up
Wall and pole mounting kits
PoEPowerEZ Active PoE to Passive PoE Converters for Base and Auxiliary Units

Wireless

Frequency 5 GHz
Max data rate 2400 Mbit/s
Number of chains: 2 per unit
Standards 802.11a/n/ac/ax
WPA3 Passphrase
256-bit AES-CCM Encryption
Dynamic Frequency selection

Layer 2 Features

Auto-negotiation for port speed and duplex
Redundant Protocols (always enabled)
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP

Interface

Ethernet
- Primary Node: 10/100/1000BASE-T Passive PoE
- Auxiliary Node: 10/100/1000BASE-T
Wireless
- 802.11a/n/ac/ax
LED Indicators - Remote Unit
LED Indicators - Remote Unit

Technology

Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.11w Management Frame Protection (MFP)
Power
- PoE in (Passive PoE)
  PoE in input Voltage 18-28V
  Max power consumption 15W

Physical

Primary Node
- Dimensions
  - 270 x 565 x 76mm (W x H x D)
    10.63” x 22.25” x 3”
- Weight (shipping)
  - 6.2lbs (2.81kg)
- Installation Type
  - Pole/Wall
- Casing Material
  - UV Protected Polystyrene case
- Auxiliary Node
  - Dimensions
    - 185 x 185 x 63.5mm (W x H x D)
      7.28” x 7.28” x 2.5”
  - Weight (shipping)
    - 2 units per box: 7.15lbs (3.25kg)
  - Installation Type
    - Pole/Wall
  - Casing Material
    - UV Protected Polystyrene case

Environmental

Operating Temp.
- -40 to 75°C (-40 to 167°F)
Storage Temp.
- -45 to 85°C (-49 to 185°F)
Relative Humidity
- 5% to 95% (non-condensing)
Wind Survivability
- 200km/h

Regulatory

ISO
- Manufactured in ISO-9001 facility
EMI
- FCC Part 15B Class A
- PCC Part 15C

Environmental Test Compliance

IEC 60068-2-6 Fc (Vibration Resistance)
EN 61000-4-3 (Radiated RFI)

Warranty

Length
- 3 years
Details
- https://etherwan.com/support/warranty-policy

Auxiliary Node Performance

VSWR
- < 2.0@ 5-5.9GHz
Dual polarized
- Horizontal & Vertical
High gain
- Up to 13dBi
Front to Back Ratio
- >20dB
Port isolation
- >30dB

Auxiliary Node Electrical Specification

Frequency Range
- 5-5.9 GHz
Gain
- 13dBi typ.
Polarization
- Dual linear-V & H
Beamwidth Horizontal
- 37 deg@ -3dB
Beamwidth Vertical
- 37 deg @ -3dB
VSWR
- <2.0 typ.
Impedance
- 50 Ohm
RF Interface
- 2 x SMA Female
Front-to-Back Ratio
- >20dB
Port-to-Port Isolation
- >30dB

Primary Node Specifications

VSWR
- 2.5: 1 Max. <2
Polarization
- Linear & Vertical
- Vertical & Horizontal
Gain
- 8 dBi Vertical
- 7 dBi Horizontal
Frequency range
- 5150 - 5875 MHz
- 4.9 - 5.9 GHz Vertical
- 5 - 5.9 GHz Horizontal
Beam width
- Horizontal 360°
- Vertical 18°
Impedance
- 50 Ω

Primary Node Environmental & Mechanical Characteristics

Temperature
- -40°C to +85°C
Humidity
- 90% @ 25°C

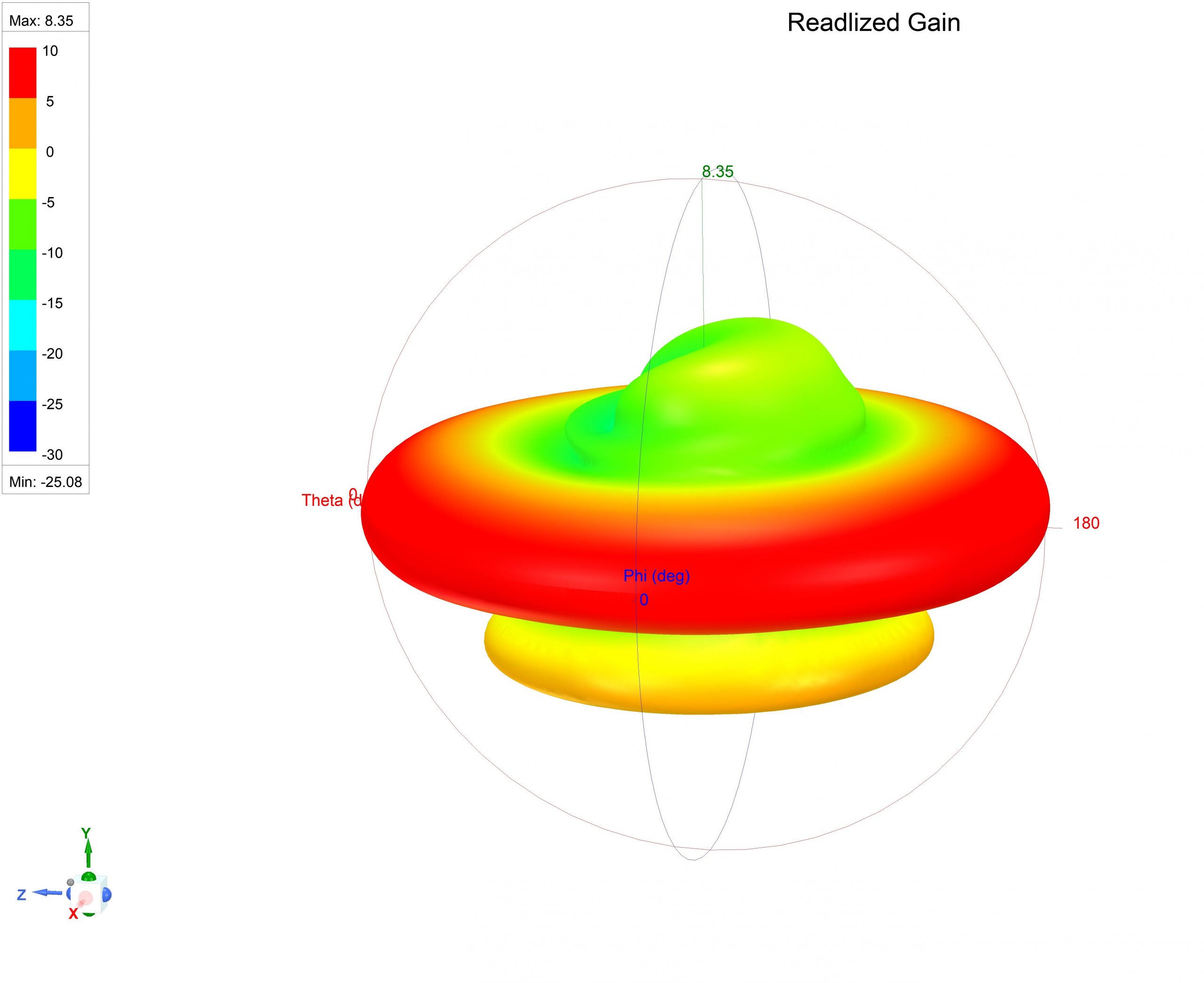

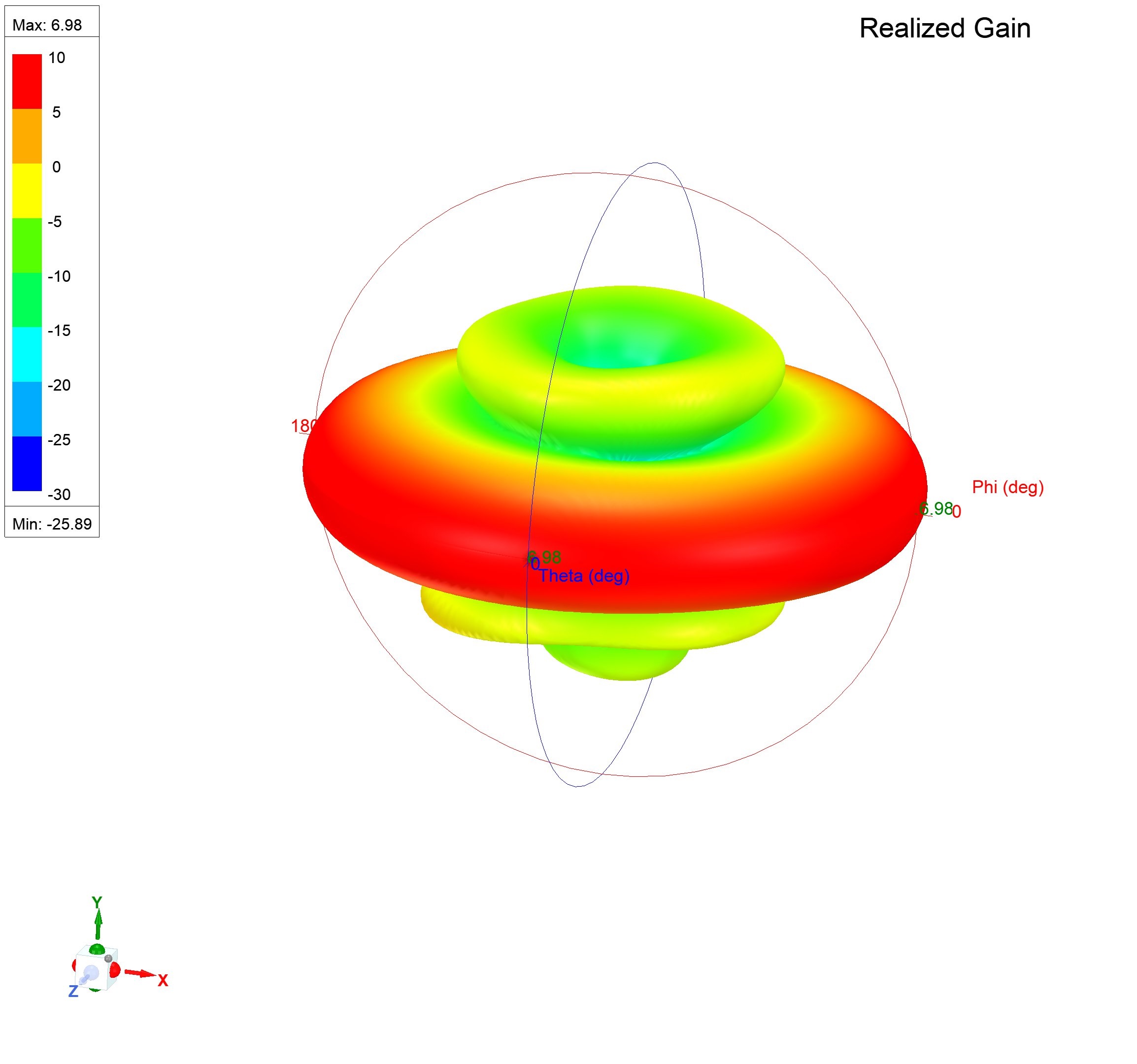

Primary Node Omni-directional Antenna

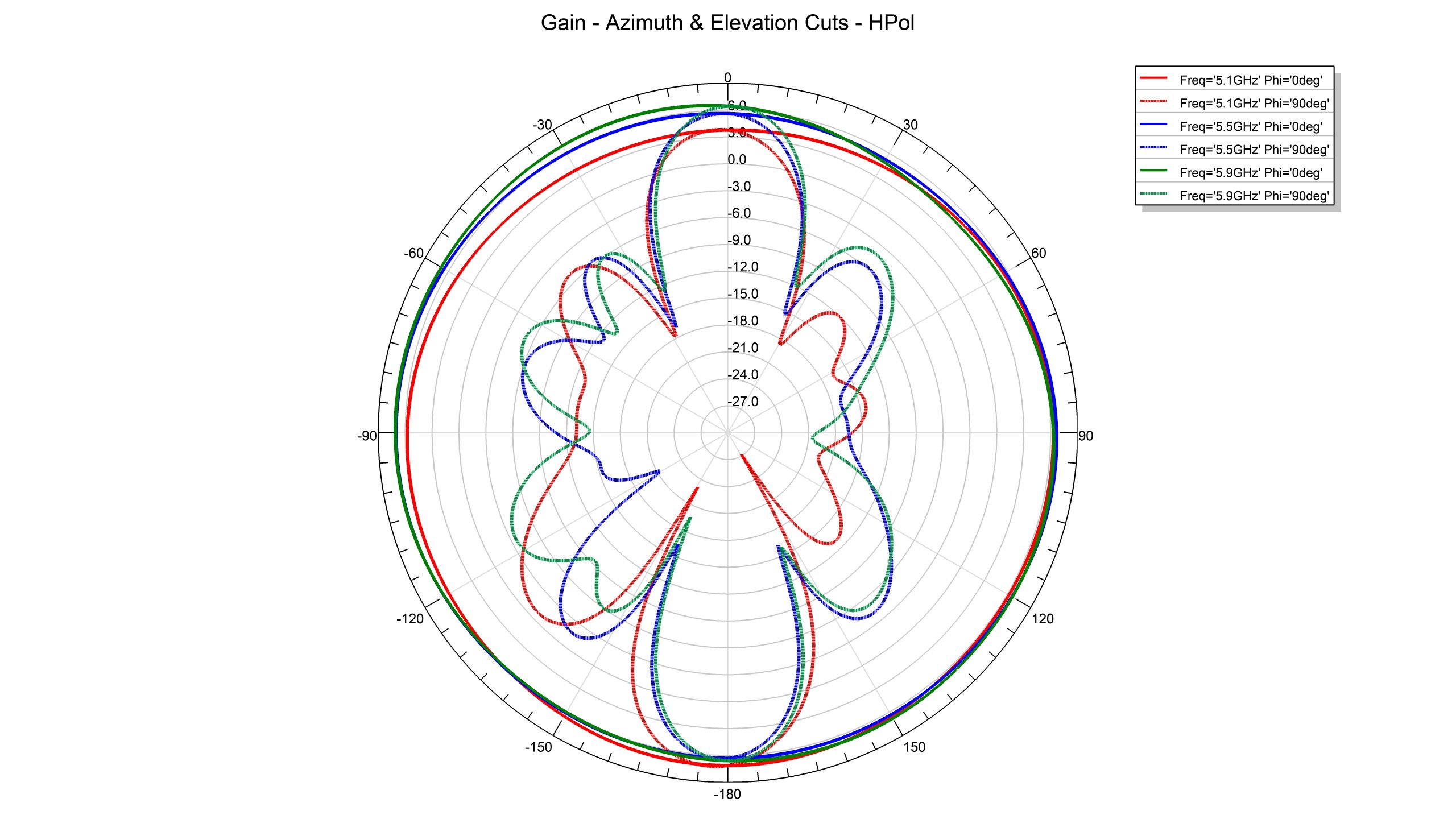

Azimuth & Elevation - Horizontal

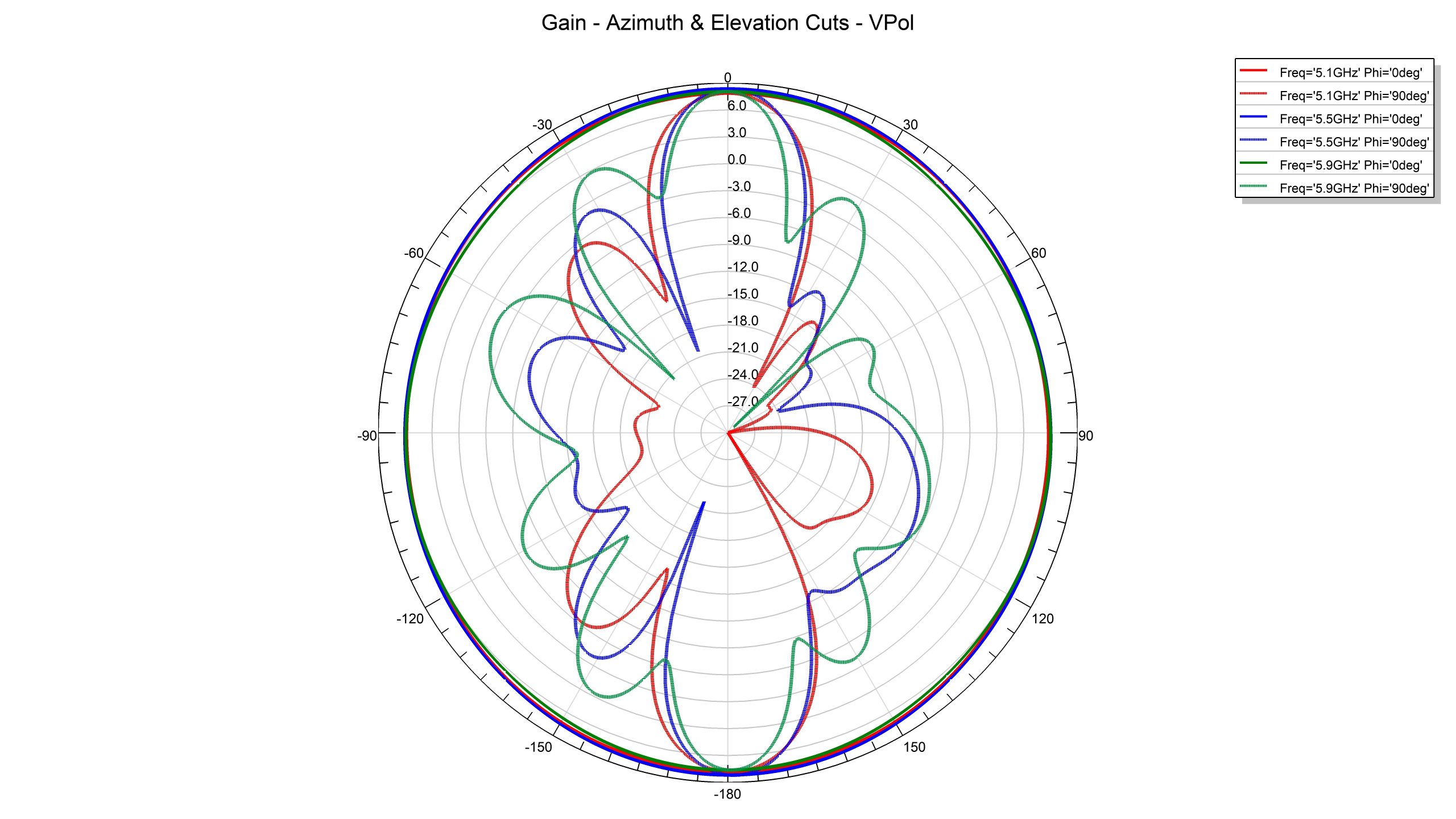

Azimuth & Elevation - Vertical

Auxiliary Node Panel Antenna

3D Gain - Port 1

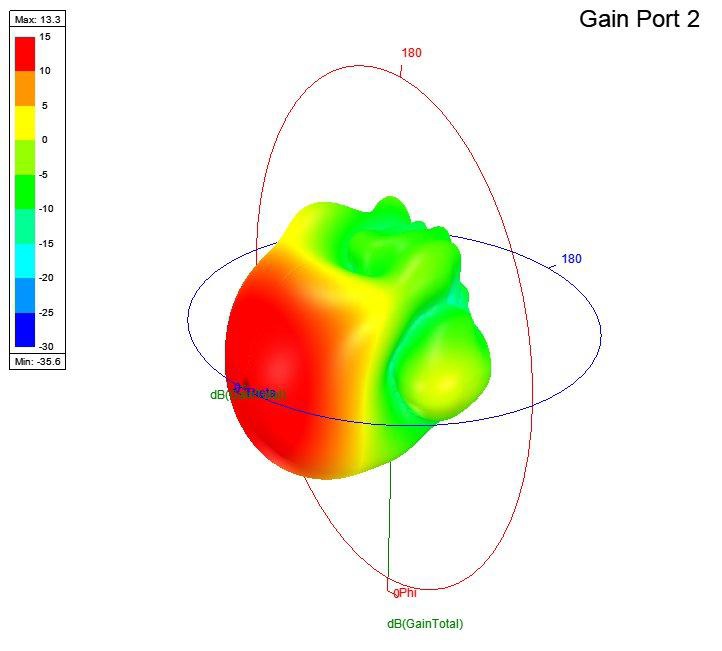

3D Gain - Port 2

Model

EasyLink-PRO-US-MP-02	2 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 3 x 24VDC, 1.5A Power Supplies, 3 x Passive PoE Injectors, 3 x PoEPowerEZ and 3 x Mounting kits.
EasyLink-PRO-US-MP-04	4 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 5 x 24VDC, 1.5A Power Supplies, 5 x Passive PoE Injectors, 5 x PoEPowerEZ and 5 x Mounting kits.
EasyLink-PRO-US-MP-06	6 paired Wireless Bridge Clients and 1 Wireless Bridge Base unit, 7 x 24VDC, 1.5A Power Supplies, 7 x Passive PoE Injectors, 7 x PoEPowerEZ and 7 x Mounting kits.

Accessories

JPole18	18" Wall Mount J-Pole
Cable 3	3’ Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 25	25' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 50	50' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 150	150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 300	330' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
EPOW-24-60-A	Hardened Power Supply rated for use in temperatures -40 to 167°F
