SPL90BT

NEW

Hardened Gigabit PoE Splitter

Fanless
Wide Temperature
PoE_90W
SPL90BT Hardened Gigabit PoE Splitter
Various DC voltage outputs to power non-PoE devices
Hardened-grade for non-ventilated and harsh environments
Latest PoE IEEE 802.3bt protocol compliant
Available in North America only
SPL90BT Hardened Gigabit PoE Splitter

Downloads

Highlights
Overview
Specifications
Dimensions
Ordering Info

Flexible Power Output

  • Provides power to remote non-PoE devices
  • Various DC voltage outputs to power wide range of devices
  • Accepts PoE power from IEEE 802.3af/at/bt compliant devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty

EtherWAN's SPL90BT is a compact hardened DIN-rail mounted PoE splitter. Using the latest IEEE 802.3bt PoE technology, the SPL90BT can accept up to 90W power from a PoE power source and provide power to remote non-PoE devices in environments where power is not available. Hardened-grade allows for reliable operation even in harsh environments.

EtherWAN — "When Connectivity is Crucial."



Interface

  • Ethernet
    • 1 x 10/100/1000BASE-T(X), data out
    • 1 x 10/100/1000BASE-T(X), PoE in
  • LED Indicators
    • Power detected: On/Off
    • BT: On (802.3bt detected), Off (802.3bt not detected)
  • DIP Switch (1/2)
    • Up/Up: 48VDC
    • Down/Up: 24VDC
    • Up/Down: 16VDC
    • Down/Down: 12VDC

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt 4PPoE

Power

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 32 x 81.5 x 103.5mm (W x D x H)
      1.26" x 3.21" x 4.07"
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type
    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Splitter
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

Model

SPL90BT 10/100/1000BASE-T PoE Splitter
Highlights

Flexible Power Output

  • Provides power to remote non-PoE devices
  • Various DC voltage outputs to power wide range of devices
  • Accepts PoE power from IEEE 802.3af/at/bt compliant devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty
Overview

EtherWAN's SPL90BT is a compact hardened DIN-rail mounted PoE splitter. Using the latest IEEE 802.3bt PoE technology, the SPL90BT can accept up to 90W power from a PoE power source and provide power to remote non-PoE devices in environments where power is not available. Hardened-grade allows for reliable operation even in harsh environments.

EtherWAN — "When Connectivity is Crucial."

Specifications


Interface

  • Ethernet
    • 1 x 10/100/1000BASE-T(X), data out
    • 1 x 10/100/1000BASE-T(X), PoE in
  • LED Indicators
    • Power detected: On/Off
    • BT: On (802.3bt detected), Off (802.3bt not detected)
  • DIP Switch (1/2)
    • Up/Up: 48VDC
    • Down/Up: 24VDC
    • Up/Down: 16VDC
    • Down/Down: 12VDC

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt 4PPoE

Power

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 32 x 81.5 x 103.5mm (W x D x H)
      1.26" x 3.21" x 4.07"
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type
    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Splitter
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

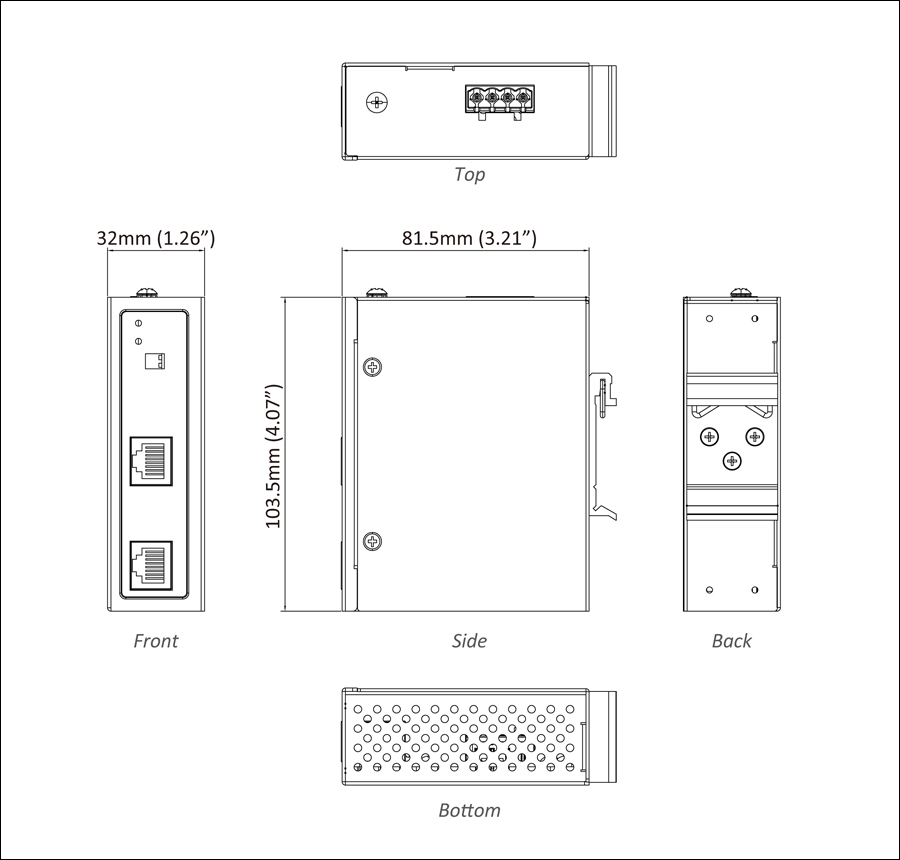

Dimensions
Ordering Info

Model

SPL90BT 10/100/1000BASE-T PoE Splitter
