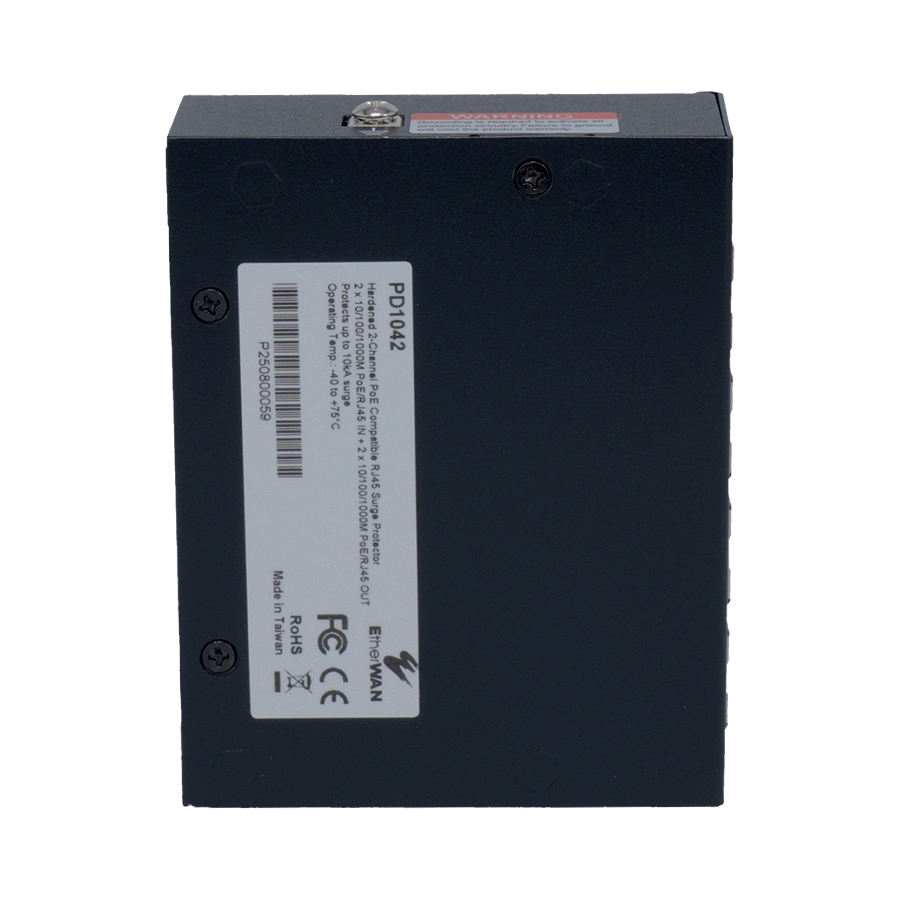

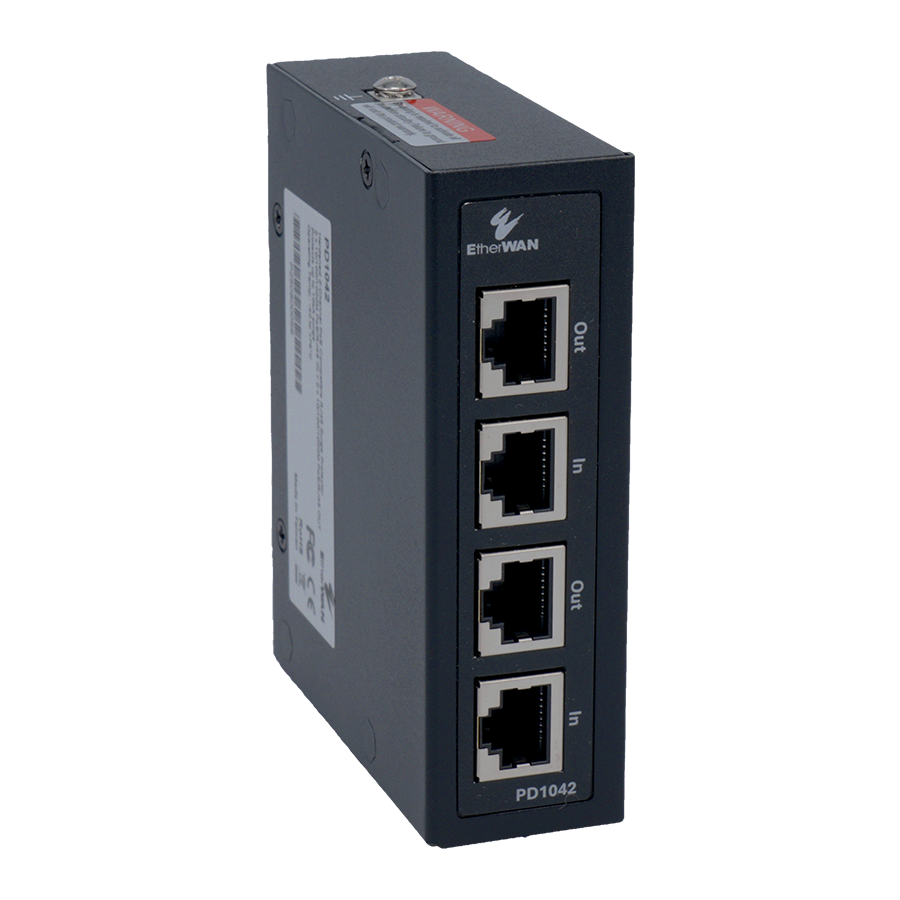

PD1042

Protection Solution Against Voltage Surge

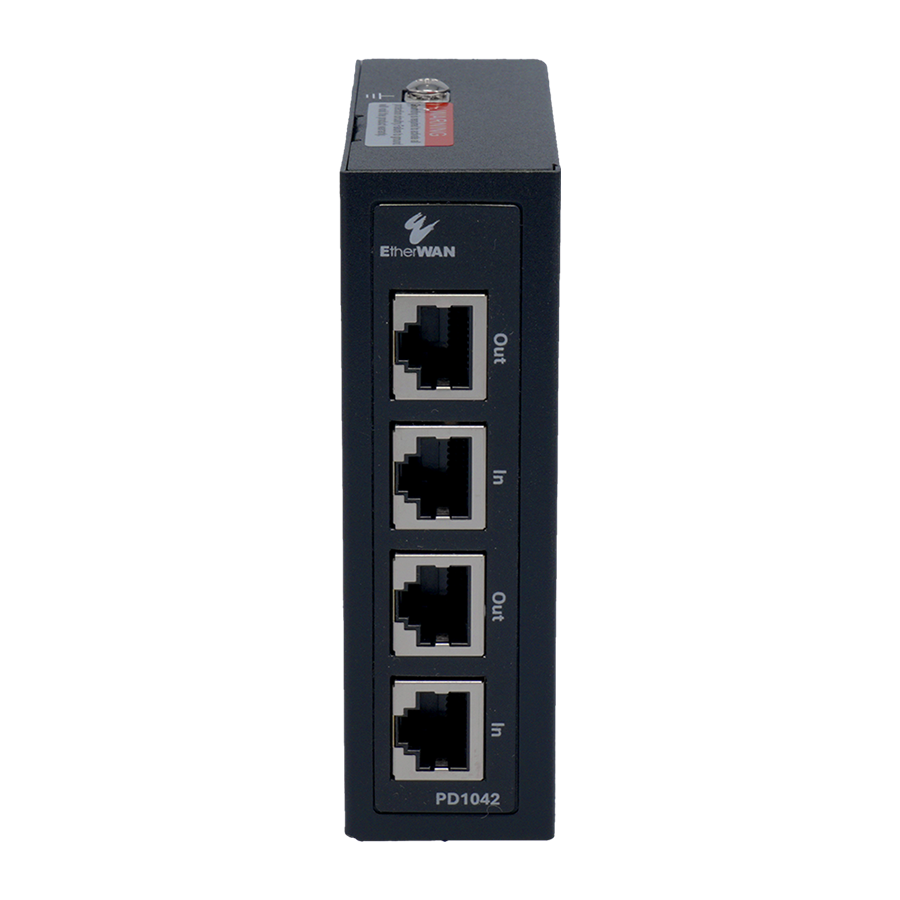

• • Provides pair-to-pair protection through RJ45 connector for Ethernet connections

Flexible Installation

• • Supports DIN-rail or desktop installation

Hardened Grade

• • Provides -40 to 75°C operating temperature range for extreme environments

Gigabit Ethernet and PoE Compatible

• • Pass-through Data and compatible with high power PoE (Power over Ethernet) up to 90W (802.3bt)

Electrical

• Nominal discharge current Line-Ground (8/20) μs
  • 10KA
• Nominal discharge current Line-Ground (10/1000) μs
  • 200A
• Nominal discharge current Line-Line(8/20) μs
  • 30A
• Clamping Voltage Line-Ground
  • 600V
• Clamping Voltage Line-Line
  • 20V
• Insertion Loss @ 10MHZ/100MHZ
  • 1db
• Return Loss @ 10MHz/100MHz )
  • -20db
• Response Time
  • 5ns
• Capacitance Line-Line
  • ≤1PF
• Capacitance Line-Ground
  • ≤1PF

Mechanical

• Casing
  • Rugged Aluminum
  • IP30

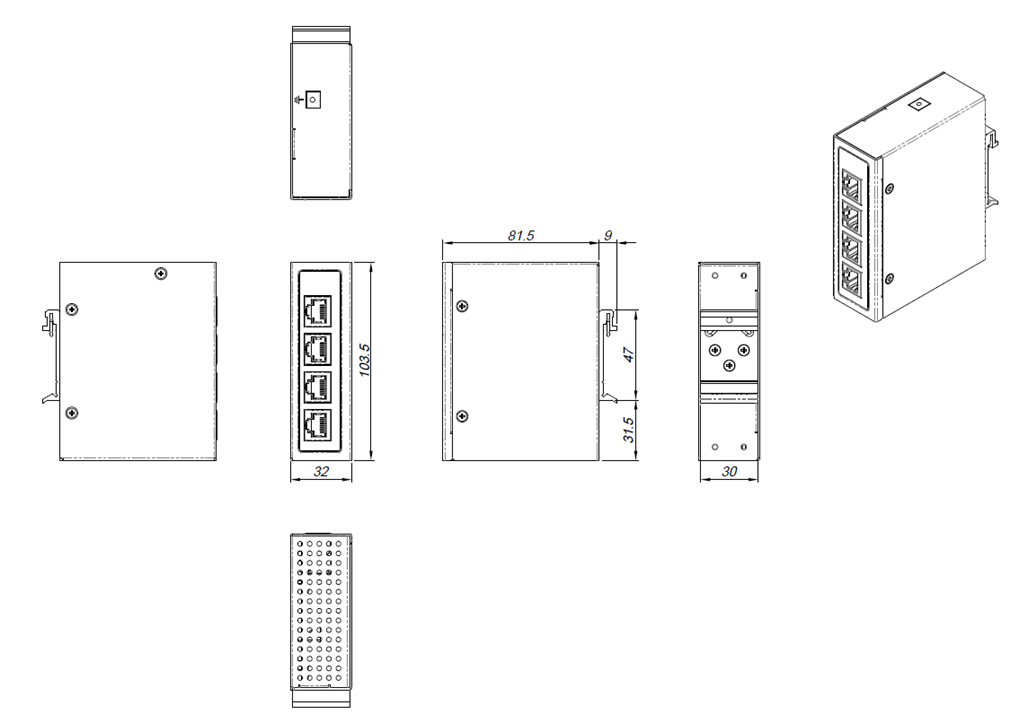

• Dimensions
  • 32 x 103.5 x 81.55mm (W x H x D)
  • (1.26" x 4.07" x 3.21")
• Weight
  • 140g (0.31lb)

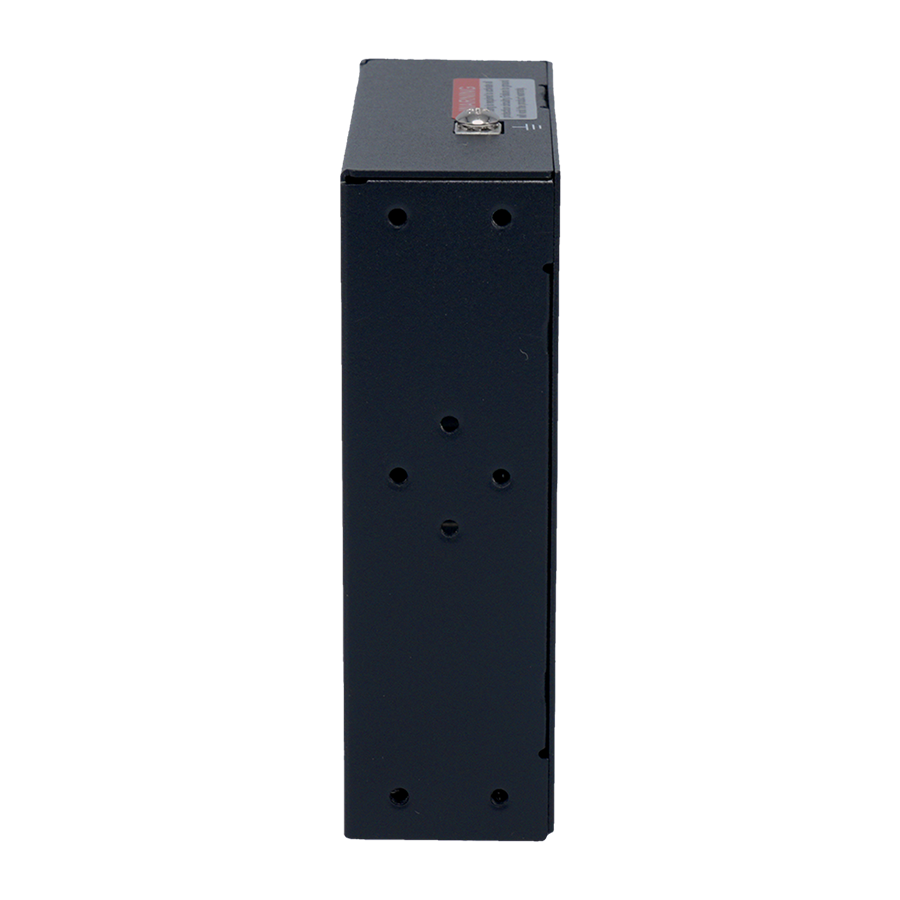

• Installation
  • DIN-Rail or Wall/Panel

Standards

• Ethernet Standarad
  • IEEE 802.3 10Base-T
  • IEEE 802.3 100Base-TX Fast Ethernet
  • IEEE 802.3 1000Base-T Gigabit Ethernet
• PoE Standard
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3bt PoE++

Regulatory Approvals

• ISO
  • Manufactured in an ISO 9001 facility
• EMI
  • CE (EN55032/35
  • FCC Part 15 Class B

Environmental

• Operating Temperature
  • -40 to 75°C (-40 to 167°F)
• Storage Temperature
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
  • 5% to 95% (non-condensation)

MPN

• PD1042
  • 1864389
