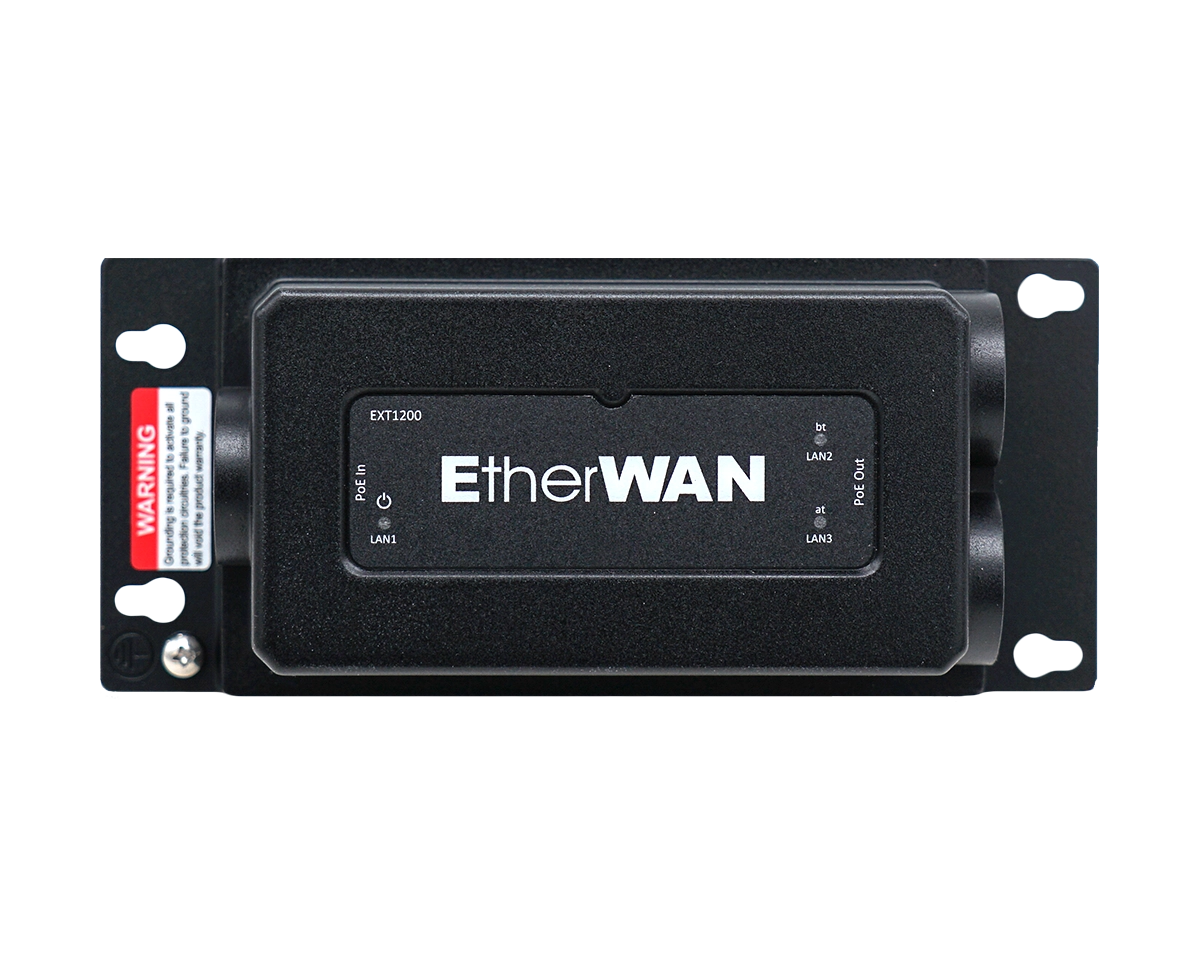

Hardened Gigabit IP67 PoE Extender
PoE 15W
PoE 30W
PoE_60W
IP67
Wide Temperature
Fanless
Available in North America Only
Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
Up to 60W output for various security applications such as PTZ cameras
Can be daisy-chained up to 4 units
Downloads
QIG
Inquiry

EtherWAN’s EXT1200 is a compact hardened IP67-rated PoE Extender. Requiring no external DC power, the EXT1200 provides a simple and cost-effective method of extending a PoE connection beyond the standard 100 meter limit for copper Ethernet cabling while maintaining the data speeds.


EtherWAN — "When Connectivity is Crucial."

PoE (Power over Ethernet)

  • Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
  • Up to 60W output for various security applications such as PTZ cameras
  • Can be daisy-chained up to 4 units

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • IP67 water resistance and fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary technical support
  • In-person training and free online training courses available
  • Limited lifetime warranty

Interface

  • Ethernet
    • 3x10/100/1000BASE-T(X) RJ45 (1 PD, 2 PSE)
  • LED Indicators
    • PoE In: PoE (Amber), TX Port (Green), TX Transmission (Green flash)
    • PoE Out: PoE (Amber), TX Port (Green), TX Transmission (Green flash)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt PoE++
  • Forward Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX

Switch Properties and Performance

  • Switching Fabric
    • 6Gbps
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 2K
  • Packet Buffer Memory
    • 1Mb

Power

  • PoE Power Input
    • PoE Power Input 90W Max
  • PoE Power Output
    • Total PoE Output 60W Max

Environment

  • Operating Temperature
    • -40 to 75°C (-40 to 167°F)
    • Storage Temperature
      • -40 to 85°C (-40 to 185°F)
      • Ambient Relative Humidity
      • 5% to 95% (non-condensing)
      • MTBF
      • >522,000 hours @ 50°C

Regulatory

  • ISO
    • Manufactured in an ISO 9001 facility
  • Safety
    • UL 62368-1
  • EMI
    • FCC Part 15B Class A
  • EMS
    • EN61000-4-2 (ESD Standards)
    • EN61000-4-4 (Burst Standards)
    • EN61000-4-5 (Surge Standards)
  • Environmental Test Compliance
    • EN 60068-2-6 (Vibration)
    • >>EN 60068-2-27 (Shock)
    • EN 60068-2-32 (Free fall w/package)

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP67
  • Dimensions
    • 6.56" x 2.89" x 1.74" (W x D x H)
    • 166.5 x 73.45 x 44.3mm
  • Weight
    • 1.0Ibs (0.45kg)
  • Installation
    • Wall/Panel mounting

MPN

  • EXT1200
    • 1694645

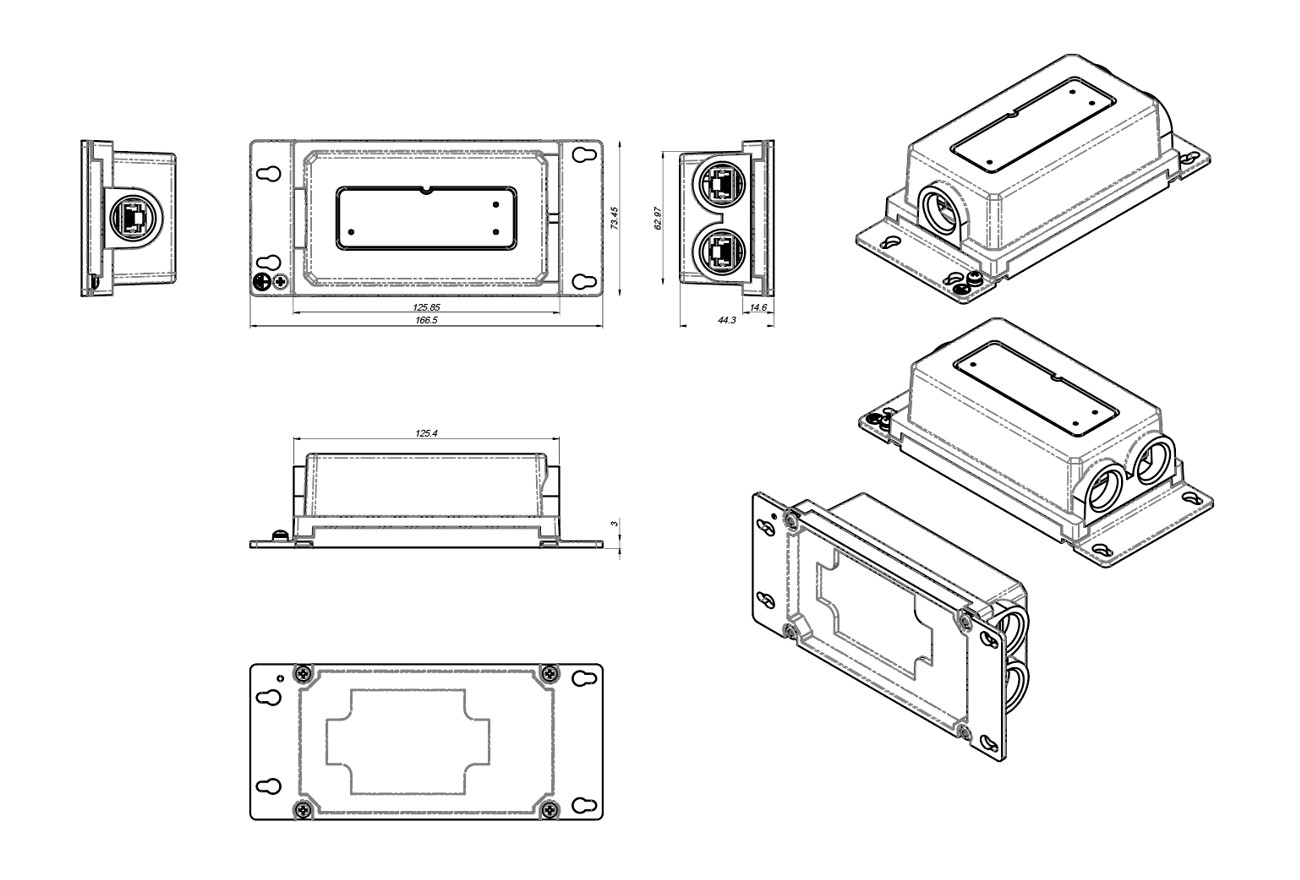

EXT1200 Dimensions

Model


EXT1200Hardened Gigabit IP67 PoE Extender
