Hardened Unmanaged 8-Port Gigabit PoE and 2-Port Gigabit RJ45/SFP Combo Ethernet Switch
PoE 30W
PoE 15W
Fanless
Wide Temperature
SFP
UL 60950
Only Available in North America
Hardened-grade for non-ventilated and harsh environments
Up to 30W power output for PTZ cameras and other security applications
Combo RJ45/SFP uplink ports provide flexibility for data transmission
Related Products
Gigabit Switches
(18)
PoE Switches (Hardened Grade)
(12)
Downloads
QIG
Inquiry

EtherWAN’s EX46910 is a compact hardened unmanaged DIN-rail mounted PoE switch. 8 gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. 2 combo uplink ports provide flexibility for data transmission and cascading. The EX46910 provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

High-Power PoE (Power over Ethernet)

  • Up to 30W output for various security applications such as PTZ cameras
  • Total PoE power budget of 240W available
  • Backward compatible with 802.3af devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty

Interface

  • Ethernet
    • 8 x 10/100/1000BASE-T(X)
    • 2 x 1000BASE SFP/RJ45 Combo
  • Alarm Contact
    • 1 x Relay Output
  • Current Capacity
    • 1A@24VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2, Power 3, Relay
    • Per Port: Link/Activity

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-X
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
  • Forward/Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX

Power

  • Input
    • 48-56VDC redundant (terminal block) + 48-56VDC power DIN connector; 12-56VDC range for switch-only operation (no PoE)
  • Power Consumption
    • 5.76W max@48VDC, without PoE
  • PoE Power Output
    • Per Port: Up to 30W/port
    • Power Budget: 240W
  • Protection
    • Reverse Polarity Protection
    • Current Overload Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 1.89” x 4.72” x 6.1” (W x D x H)
      48 x 120 x 155mm
  • Weight
    • 1lbs (0.45kg)
  • Installation Type
    • DIN-rail or wall/panel mounting

Switch Properties and Performance

  • Switching Fabric
    • 20Gbps
  • Jumbo Frame Size
    • 10KB
  • MAC Table Size
    • 11K
  • Packet Buffer Memory
    • 2Mb

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -40 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • >500,000 hours@50°C

Warranty

What's Included

  • Device
    • Switch
  • Installation
    • Mounting brackets, screws, 6-pin terminal block
  • Documentation
    • Quick install guide

MPN

  • EX46910
    • 1683910

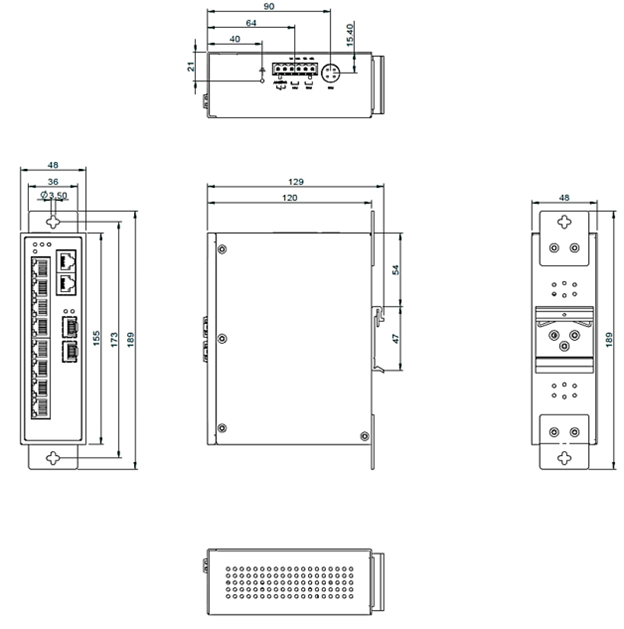

EX46910 Dimensions



Model

EX469108-port 10/100/1000BASE-T PoE + 2-port Combo Gigabit TX/SFP Ethernet Switch

Accessories

SFP Modules

Hardened SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver

Non-PoE Power Supplies

EPOW-24-60Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 60W, 24VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPHX-24-6060W/2.5A DIN-Rail 24VDC Industrial Power Supply - No Deration at High Temps
EPHX-48-240240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps
EPHX-48-480480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps

PoE Power Supplies

EPOW-54-240Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 240W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-400Hardened Power Supply, 100-277 VAC Input; NEMA-TS2 Rated; 54VDC, 400W/7.4A, with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-600Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 600W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPHX-48-240240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps
EPHX-48-480480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps
