Hardened Unmanaged 6-Port Gigabit PoE Switch
SFP
Fanless
Wide Temperature
PoE_90W
UL 60950
Only Available in North America
High power PoE using the latest IEEE 802.3bt technology
Hardened-grade for non-ventilated and harsh environments
Up to 90W output per port for various security, LED lighting, and other applications
Dual-speed SFP slots provide fiber connectivity
Downloads
QIG
Inquiry

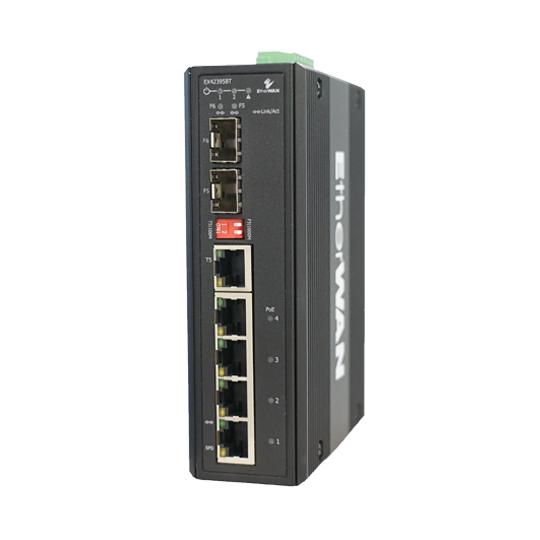

EtherWAN's EX42395BT is a compact hardened unmanaged DIN-rail mounted PoE switch. Equipped with 4 gigabit PoE ports using that provides up to 90W output per port using the latest IEEE 802.3bt PoE technology and 2 dual-rate gigabit SFP ports, the EX42395BT provides the power required to support various security, LED lighting, and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

High-Power PoE (Power over Ethernet)

  • High power output using the latest IEEE 802.3bt technology
  • Up to 90W output per port for various security, LED lighting, and other applications
  • Backward compatible with 802.3af and 802.3at devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Versatility

  • Dual-speed SFP slots provide fiber connectivity
  • Combo TX/SFP port provides extra copper or fiber connectivity
  • Convenient DIP switches control SFP speed and combo port

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty

Interface

  • Ethernet
    • 4 x 10/100/1000BASE-T(X)
    • 1 x 100/1000BASE SFP
    • 1 x 10/100/1000BASE-T(X) or 100/1000BASE SFP
  • Alarm Contact
    • 1 x Relay Output
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt 4PPoE
  • Forward/Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX

Switch Properties and Performance

  • Switching Fabric
    • 12Gbps
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 1K
  • Packet Buffer Memory
    • 1Mb

Power

  • Input
    • 48-56VDC Redundant (Terminal block)
  • Power Consumption
    • 5.76W max@48VDC, without PoE
  • PoE Power Output
    • Per Port: Up to 90W/port
    • Power Budget: 240W
  • Protection
    • Reverse Polarity Protection
    • Current Overload Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30

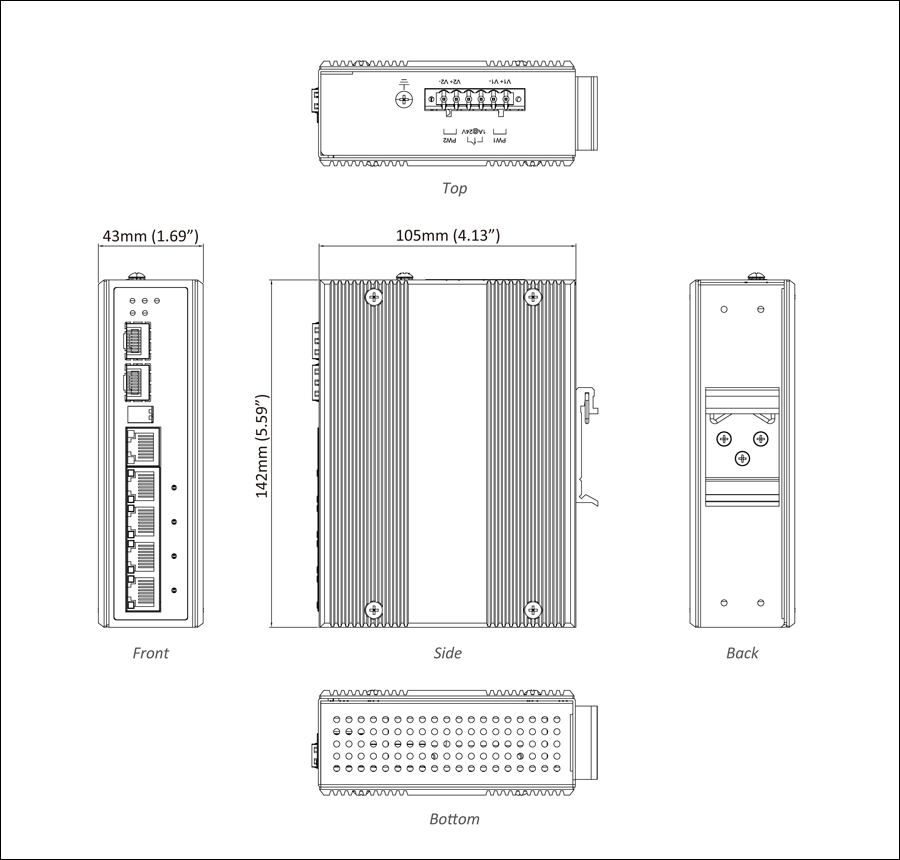

  • Dimensions
    • 43 x 105 x 142mm (W x D x H)
      1.69" x 4.13" x 5.59"
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type
    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • >500,000 hours@50°C

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Switch
  • Installation
    • Mounting brackets, screws, 6-pin terminal block
  • Documentation
    • Quick install guide

MPN

  • EX42395BT
    • 1683911

Model

EX42395BT4-port 10/100/1000BASE-T PoE + 1-port Combo Gigabit TX/SFP + 1-port 100/1000BASE SFP

Accessories

SFP Modules

Hardened SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver

Power Supplies

EPOW-54-240Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 240W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-400Hardened Power Supply, 100-277 VAC Input; NEMA-TS2 Rated; 54VDC, 400W/7.4A, with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-600Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 600W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPHX-48-240240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps
EPHX-48-480480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps
