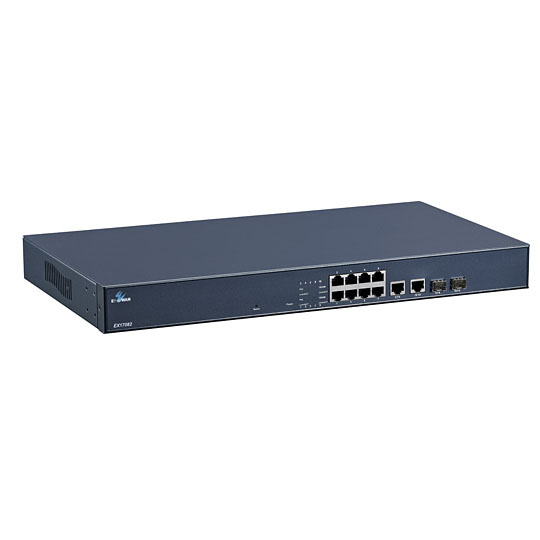

Web-Smart 8-port 10/100BASE-TX PoE (IEEE 802.3at) and 2-port combo Gigabit SFP Ethernet Switch
PoE 30W
UL 60950
Available in North America only
PoE power budget up to 30W/port, total 240W
User friendly web GUI
Gigabit copper/SFP combo ports for uplink

EtherWAN's EX17082 provides a 10-port switching platform supporting IEEE802.3at Power over Ethernet, high performance switching with features required for small-business or enterprise environments where sustained connectivity is crucial.

The EX17082 is equipped with 8 10/100BASE-TX PoE ports, in combination with two Gigabit SFP ports. The EX17082 is feature rich with full wire speed throughput, QoS support, making the EX17082 Series a powerful network switch.

The IEEE802.3at PoE ports provide up to 30W/port with a PoE power budget of 240W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as; outdoor PTZ dome cameras, wireless access points, and way-side communication devices.

Users are able to access management features such as; IP configuration, QoS, VLANs, trunking and via web browser interfaces.

EtherWAN — "When Connectivity is Crucial."

Power over Ethernet

» Supports 8-port IEEE802.3at Power over Ethernet (PoE) and Power Sourcing Equipment (PSE)

SFP Connectivity

» Built-in 2-port combo Gigabit SFP for either Gigabit copper or SFP connectivity

Web-Managed Interface

» Comprehensive IP configuration, QoS, VLANs and trunking



  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3x Full duplex and flow control
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/LX
  • • IEEE802.1p QoS
  • • IEEE802.3af/at Power over Ethernet

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Packet Buffer Memory
  • • 2.75M bits

Processing Type
  • • Store-and-Forward
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control

Address Table Size
  • • 4096 MAC addresses




  • • 100 to 240VAC, 50/60Hz

Power Consumption
  • • Device: Max. 11W (without PoE)
  • • PoE power budget: 240W Max.

PoE Technology
  • • Alternative A, Pins 1/2(+), 3/6(-)

PoE Power Output
  • • IEEE 802.3at: up to 30W/port, 50 - 57VDC, 600mA Max.




  • • Metal Case

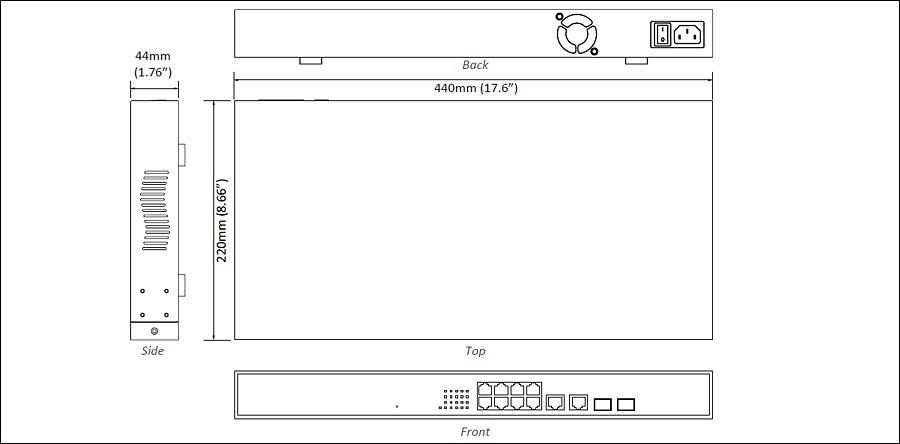

  • • 440 x 220 x 44mm (W x D x H)
      (17.32" x 8.66" x 1.73")
  • • Standard 19" rack-mount size, one-unit-height

  • • 3.1Kg (6.83lbs.)

  • • Rack mounting



Ethernet Port

  • • 10/100BASE-TX: 8 PoE ports
  • • Gigabit: 2ports

LED Indicators
  • • Per Unit: Power Status
  • • Per Port 10/100TX: Link Activity
  • • Per port PoE: Act/status
  • • Per port Gigabit: Link/Activity, 1000M



Operating Temperature

  • • 0 to 45°C (32 to 113°F)

Storage Temperature
  • • -10 to 70°C (14 to 158°F)

Ambient Relative Humidity
  • • 10% to 95% (non-condensing)


Regulatory Approvals


  • • Manufactured in an ISO 9001 facility

  • UL 60950

Emission Compliance
  • CE Mark Class A, FCC Part 15 Class A



EX170828-port 10/100BASE-TX PoE (IEEE802.3at) and 2-port combo Gigabit SFP Web-smart Ethernet Switch

* Rack mounting kit included
