Mini-sized media converter
Link Fault Pass Through (LFPT)

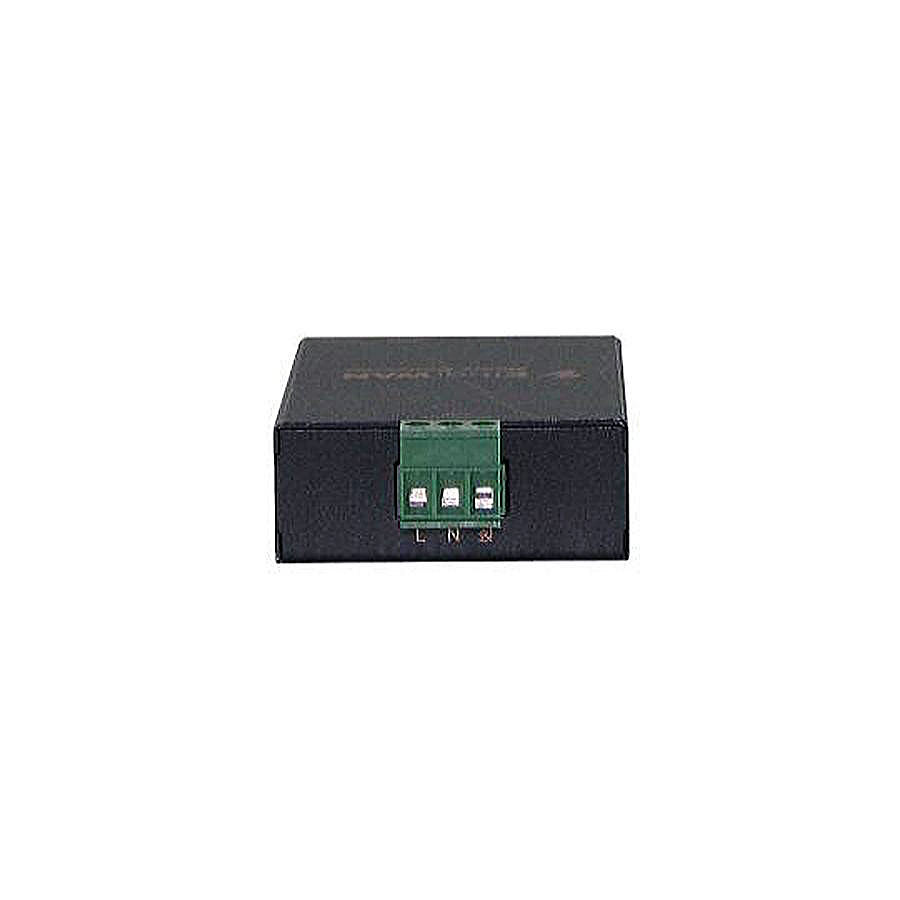

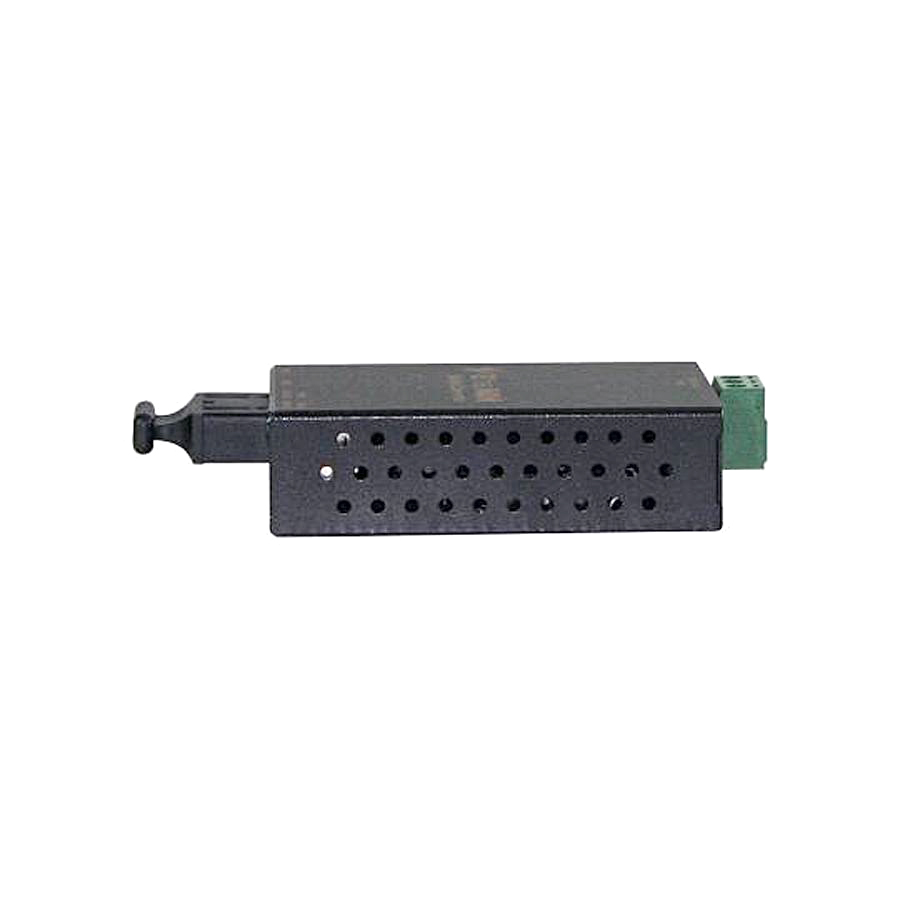

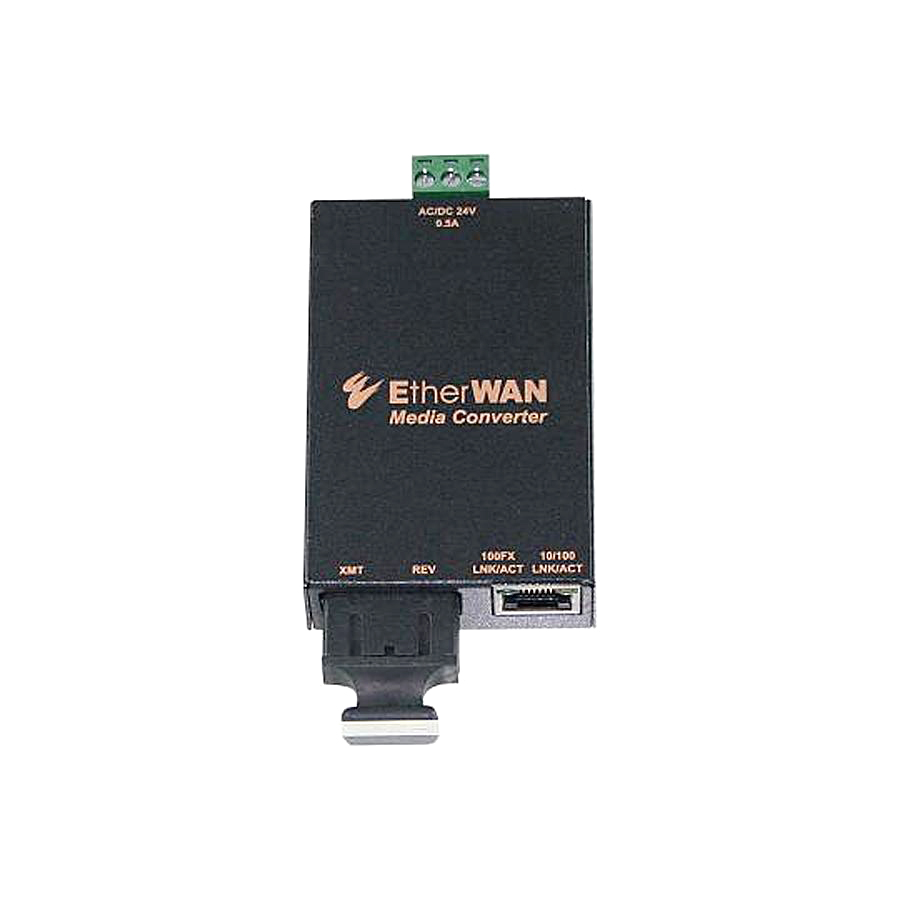

24VAC power input by terminal block

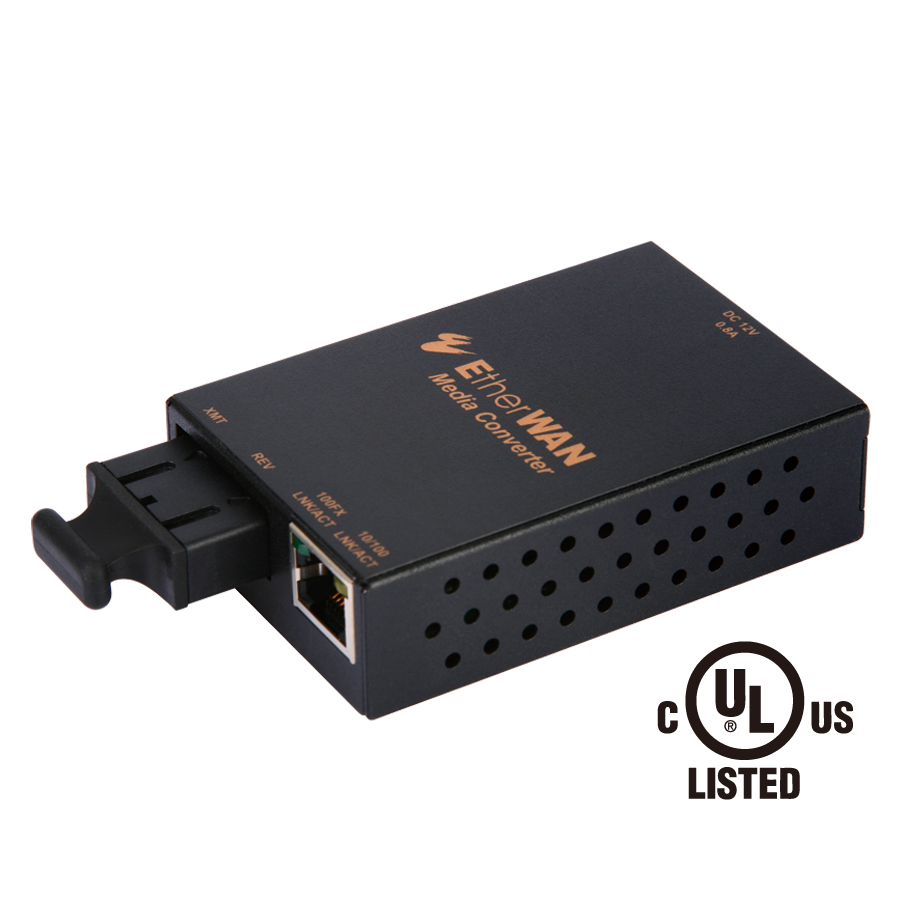

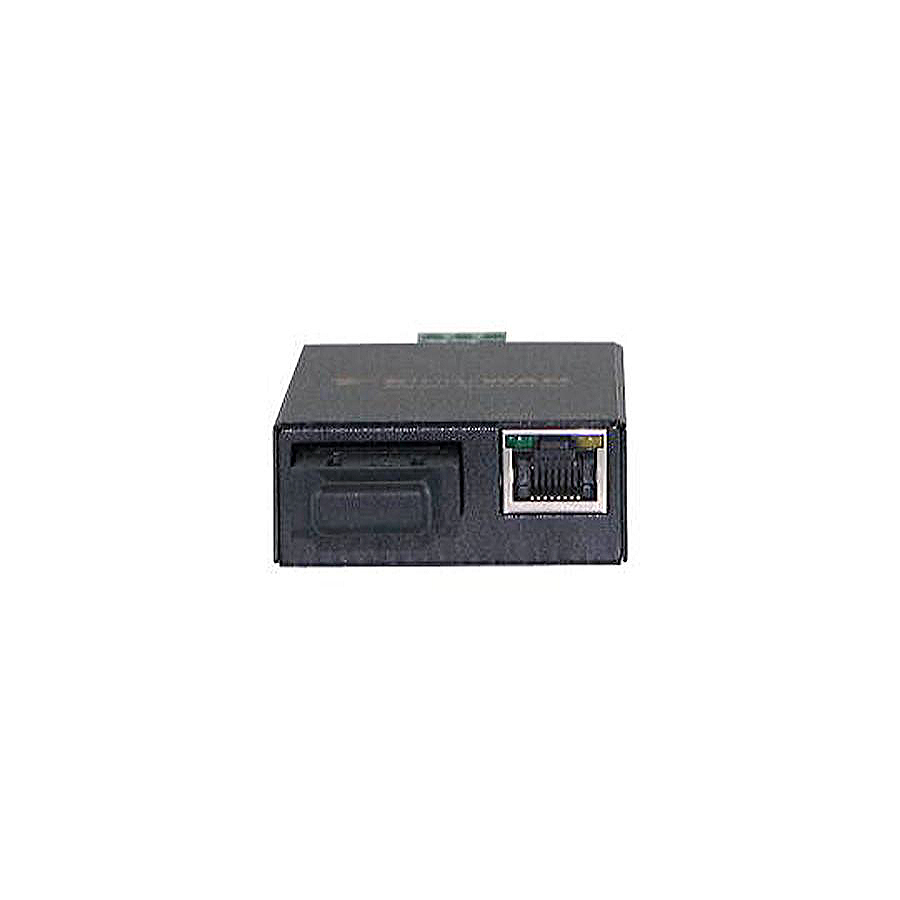

EL50 Series Mini 10/100BASE-TX to 100BASE-FX Media Converter
EL50 Series Mini 10/100BASE-TX to 100BASE-FX Media Converter
EL50 Series Mini 10/100BASE-TX to 100BASE-FX Media Converter
EL50 Series Mini 10/100BASE-TX to 100BASE-FX Media Converter
EL50 Series Mini 10/100BASE-TX to 100BASE-FX Media Converter
Highlights
Overview
Specifications
Application
Dimensions
Ordering Info

Mini-Sized Media Converter

  • Supports SC/ST/WDM and both single mode and multi-mode fiber connectors

Plug-and-Play Media Converter

  • Easy installation, plug-and-play without additional configuration, providing store-and-forward data transmission

UL 60950-1 Certification

  • Certified by UL60950-1 standard and providing protections to installers from risk of injury or damage

The EL50 Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. The EL50 series is designed for SC or ST fiber connection applications. The compact size of EL50 is suitable for space limit installation and EL50 is the ideal media converter for enterprise environments.

EtherWAN — "When Connectivity is Crucial."



Interface

  • Ethernet Port
    • 10/100BASE-TX: 1 port
    • 100BASE-FX: 1 port
  • LED Indicators
    • Per Port: 10/100TX: Link/Activity
    • Per Port 100FX: Link/Activity

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/FX
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
  • Packet Buffer Memory
    • 128K bits
  • Processing Type
    • Store-and-forward

Power

  • Input
    • DC Jack: 12VDC, 1.92W MAX. 0.08A
    • Terminal Block: 24VAC, 0.17A
  • Power Consumption

Physical

  • Casing Material
    • Metal
  • Dimensions
    • 54.2 x 80.3 x 21.9mm (W x D x H)
      2.13" x 3.16" x 0.86"
  • Weight
    • 0.14kg (0.31lbs)
  • Installation Type
    • Desktop

Environmental

  • Operating Temp.
    • 0 to 45°C (32 to 113°F)
  • Storage Temp.
    • -10 to 70°C (-14 to 158°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • Safety
    • UL 60950-1
  • Emission Compliance
    • CE Mark Class A
    • FCC Part 15B Class A
    • VCCI Class A

Warranty

What's Included

  • Device
    • Media Converter
  • Power
    • 12VDC Power Adapter
  • Documentation
    • Quick Install Guide

Model

EL50XX-YY-ZZ 10/100BASE-TX to 100BASE-FX Media Converter

100FX Fiber Type-Distance Options (XX-YY)

T Multi Mode (ST) - 2Km (1310nm)
C Multi Mode (SC) - 2Km (1310nm)
T-20 Single Mode (ST) - 20Km (1310nm)
C-20 Single Mode (SC) - 20Km (1310nm)
C-40 Single Mode (SC) - 40Km (1310nm)
CA-2 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
CB-2 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
CA-5 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
CB-5 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
CA-20 Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
CB-20 Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
CA-40 Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
CB-40 Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km

Power Adapter Options (ZZ)

A with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
AC with 24VAC Terminal Block Power Interface

* More 100FX fiber options are also available upon request.

Highlights

Mini-Sized Media Converter

  • Supports SC/ST/WDM and both single mode and multi-mode fiber connectors

Plug-and-Play Media Converter

  • Easy installation, plug-and-play without additional configuration, providing store-and-forward data transmission

UL 60950-1 Certification

  • Certified by UL60950-1 standard and providing protections to installers from risk of injury or damage
Overview

The EL50 Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. The EL50 series is designed for SC or ST fiber connection applications. The compact size of EL50 is suitable for space limit installation and EL50 is the ideal media converter for enterprise environments.

EtherWAN — "When Connectivity is Crucial."

Specifications


Interface

  • Ethernet Port
    • 10/100BASE-TX: 1 port
    • 100BASE-FX: 1 port
  • LED Indicators
    • Per Port: 10/100TX: Link/Activity
    • Per Port 100FX: Link/Activity

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/FX
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
  • Packet Buffer Memory
    • 128K bits
  • Processing Type
    • Store-and-forward

Power

  • Input
    • DC Jack: 12VDC, 1.92W MAX. 0.08A
    • Terminal Block: 24VAC, 0.17A
  • Power Consumption

Physical

  • Casing Material
    • Metal
  • Dimensions
    • 54.2 x 80.3 x 21.9mm (W x D x H)
      2.13" x 3.16" x 0.86"
  • Weight
    • 0.14kg (0.31lbs)
  • Installation Type
    • Desktop

Environmental

  • Operating Temp.
    • 0 to 45°C (32 to 113°F)
  • Storage Temp.
    • -10 to 70°C (-14 to 158°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • Safety
    • UL 60950-1
  • Emission Compliance
    • CE Mark Class A
    • FCC Part 15B Class A
    • VCCI Class A

Warranty

What's Included

  • Device
    • Media Converter
  • Power
    • 12VDC Power Adapter
  • Documentation
    • Quick Install Guide

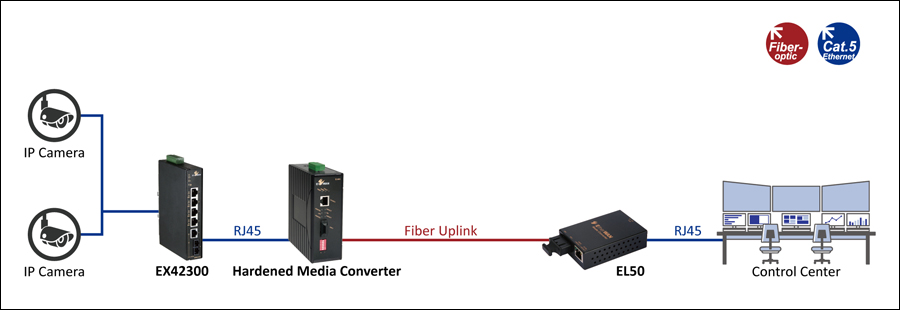

Application
