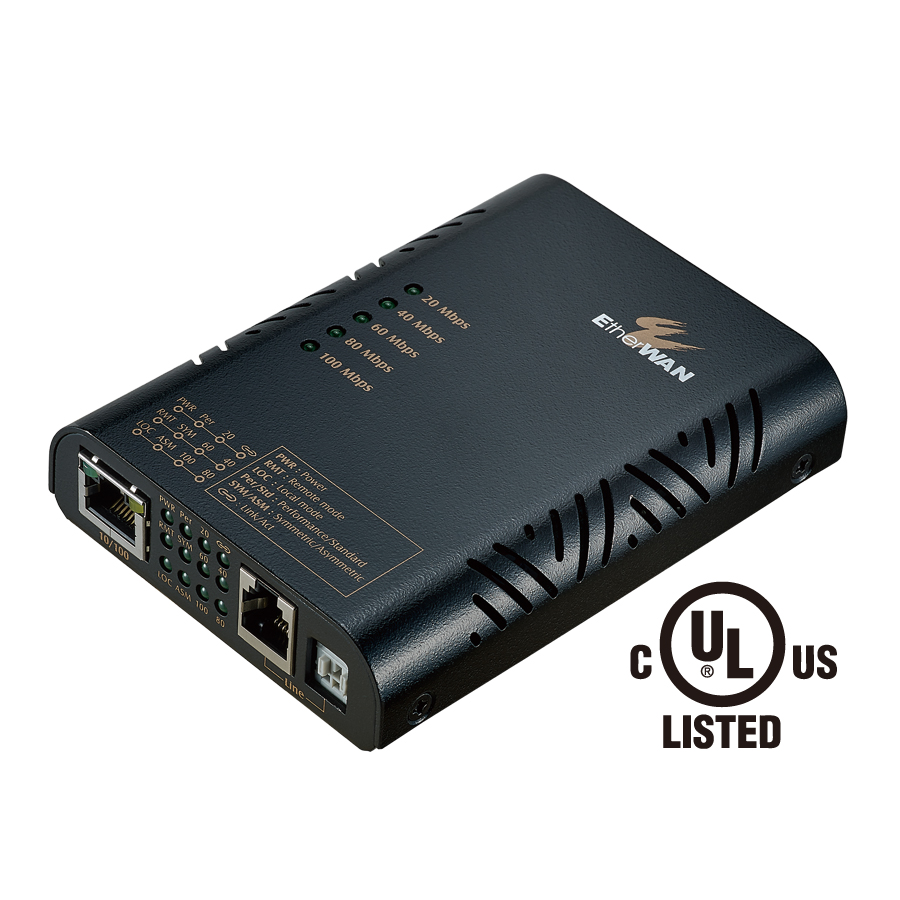

ED3501 Series : Industrial 10/100BASE-TX Ethernet Extender
Long distance transmission of 100Mbps rate at 300 meters, or 1Mbps at 2600 meters
LEDs display transmission rate on front panel
DIN-Rail or wall mounting
ED3501 Series : Industrial 10/100BASE-TX Ethernet Extender
Overview
Spotlight
Specifications

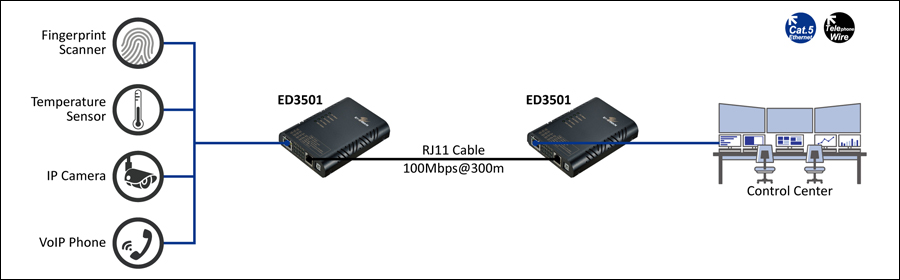

Application

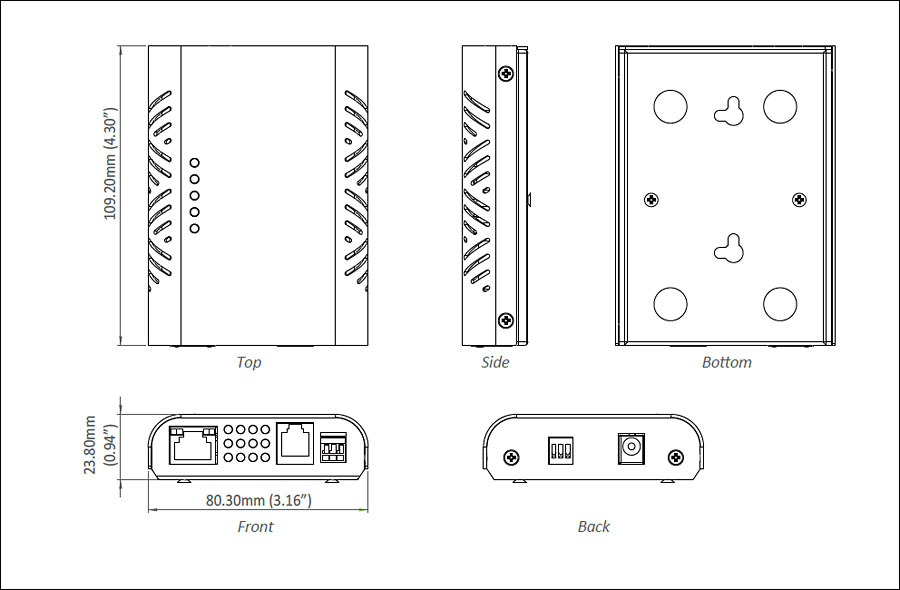

Dimensions
Ordering Info

The ED3501 Ethernet extender allows the extension of IP services beyond normal Ethernet distance limitations without changing cables, breaking the 100-meter Ethernet barrier.

The ED3501’s design features high shock, vibration, electrical noise immunity, an operating temperature range from -10°C to 60°C, and ruggedized aluminum housing. The ED3501 is the ideal Ethernet extender for environments where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

UL 60950 Certification

» Certified by UL 60950-1 standard, providing protections to installers from risk of injury or damage

High Speed Performance

» Up to 100Mbps at 300 meters distance
» Up to 1Mbps at 2600 meters distance

Industrial Operating Temperature

» -10°C to 60°C wide operating temperature range design is suitable for installation in outdoor cabinets

Technology

Standards

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3x full duplex and flow control

Processing Type
  • • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
  • • Auto Negotiation
  • • Auto MDI/MDIX


Power

Input Voltage

  • • 12VDC (DC Jack)

Power Consumption
  • • 4.56W max. 0.38A@12VDC

Protection
  • • Over current protection
  • • Reverse polarity protection


Mechanical

Casing

  • • Aluminum case
  • • IP30

Dimensions
  • • 80.3 x 109.2 x 23.8mm (W x D x H)
      (3.16" x 4.30" x 0.94")

Weight
  • • 150g (0.33 lbs.)

Installation
  • • DIN-Rail (Top hat type 35mm) or wall mounting


Interface

Ethernet Port

  • • Port: One RJ-45 port
  • • Speed: 10/100Mbps
  • • Distance: 100 meters (328ft.)
  • • Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire)
      100BASE-TX: UTP CAT. 5 (4-pair wire)

Ethernet Extender Port
  • • Port: One RJ-11/Terminal Block port
  • • Speed: Up to 100Mbps
  • • Distance: 2200 meters (7,216 ft.)
  • • Cable: Telephone wire 24 AWG
      (0.5mm diameter, 1-pair wire) or larger

DIP-Switch
  • • DIP 1: AUTO/LOC
  • • DIP 2: SYM/ASM
  • • DIP 3: Perf./Std.

LED Indicators
  • • Per Unit: Power 1
  • • Per 10/100TX Port: Link/Activity, full-duplex
  • • Line Speed: 100/80/60/40/20Mbps and link below
  • • SYM: Symmetric mode (distance ≤ 1000m)
  • • ASM: Asymmetric mode
  • • RMT: Remote mode
  • • LOC: Local mode
  • • Per: On/Performance mode; Off/Standard mode

Distance (m) Data rate (Mbps)
300 100
400 80
600 60
800 40
... ...
2600 1

Note:

  • • All speed selections are Symmetrical on the DSL and Fullduplex on the Ethernet
  • • The data rate will vary according to the line quality


Environment

Operating Temperature

  • • -10 to 60°C (14 to 140°F)
      Tested @ -20 to 70°C (-4 to 158°F)

Storage Temperature
  • • -20 to 70°C (-4 to 158°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)


Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-3

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)


Model

ED3501 10/100BASE-TX Industrial Ethernet Extender
ED3501-D 10/100BASE-TX Industrial Ethernet Extender with DIN-Rail Mounting Kit
