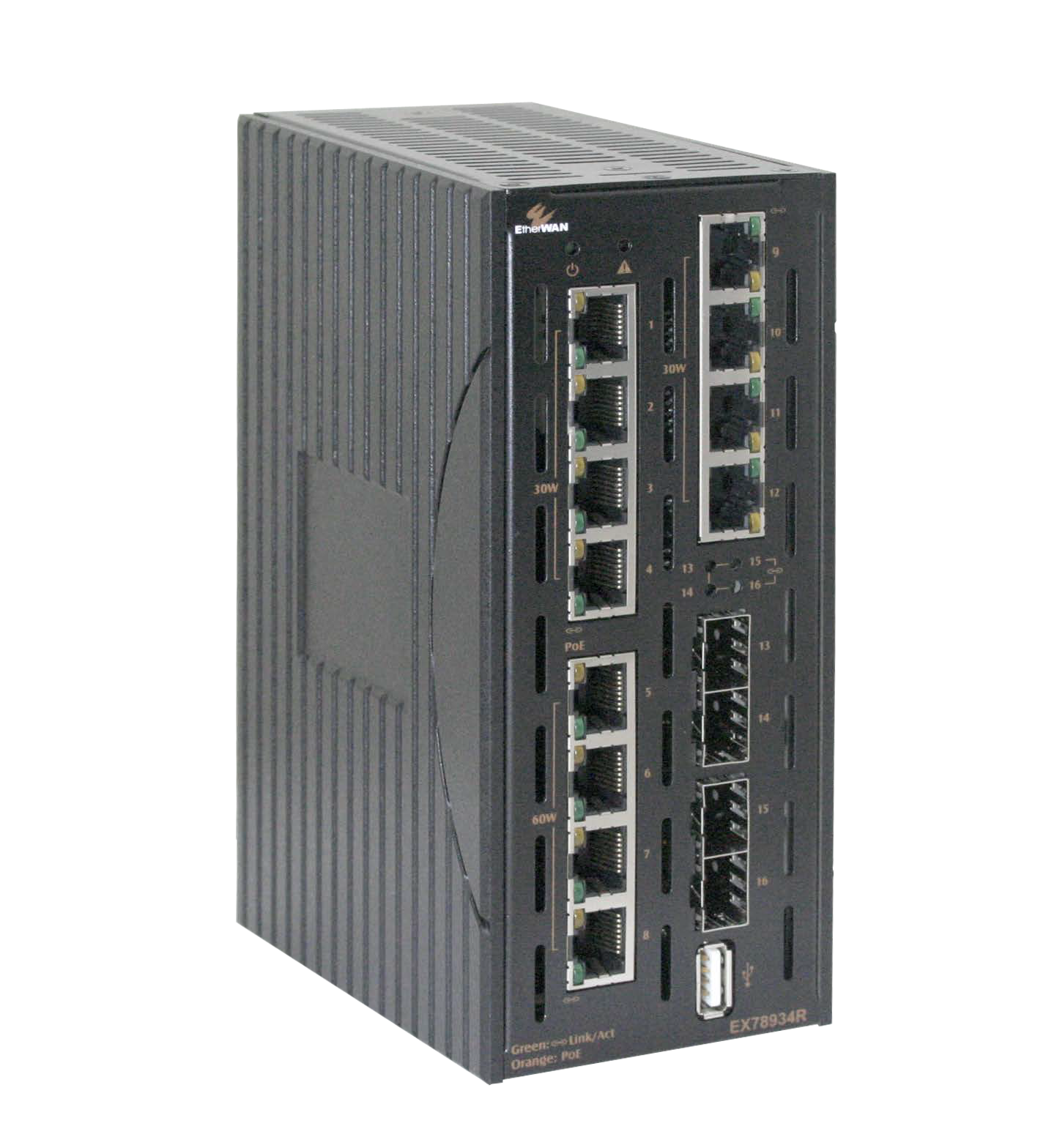

Hardened Managed 16-Port Gigabit PoE Ethernet Switch
IEC62443
SFP
PoE 15W
PoE 30W
PoE_60W
Fanless
Wide Temperature
12 gigabit PoE ports, total 240W PoE power budget
Hardened-grade for non-ventilated and harsh environments
Supports static routes, RIP v1/v2, and VRRP
PoE watchdog monitors status of connected PoE devices
Related Products
60W PoE Switches
(7)
Gigabit Switches
(18)
PoE Switches (Hardened Grade)
(12)
Downloads
ManualsFirmware
Inquiry

EtherWAN's EX78900R series is a hardened managed PoE Ethernet switch platform. Equipped with 12 gigabit PoE ports along with 60W power and IEEE 802.3.bt protocol support and 4 dual-rate gigabit SFP ports, the EX78900R series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

High Bandwidth and Versatility

  • 12 10/100/1000BASE-T(X) ports for high bandwidth connections
  • 4 Dual-rate 100/1000BASE SFP uplink ports for fiber connections
  • Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSPF
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

PoE Features

  • IEEE 802.3bt with 60W; 240W Power budget
  • Long distance PoE up to 250m (820ft)
  • PoE watchdog monitors status of connected PoE devices

Management/Security Features

  • Port control
  • 802.1x port-based network access control and remote authentication through RADIUS
  • Configure and monitor with eVue™ and eLite™

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades and notifications
  • Limited Lifetime Warranty

Interface

  • CLI, Telnet, Web GUI

Management

  • Firmware upgrade
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm control
  • System logging
  • IEEE 802.1x LAN Access control
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • SSL and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP

Software Properties and Performance

  • Switching Fabric
    • 32Gbps
  • Forwarding Rate
    • 23.5Mpps
  • Max VLANs
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 16K
  • Packet Buffer Memory
    • 12M bits

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
    • IEEE 802.3af/at/bt Power over Ethernet*
  • Forward/Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 2Gb DDR3 SDRAM
  • Flash Storage
    • 1Gb

Power

  • Input
    • 52-57VDC Redundant (Terminal block)
  • Power Consumption
    • 20W Max (without PoE)
  • PoE Modes
    • 802.3af/at Mode A: Pins 1/2(+), 3/6(-)
    • 802.3af/at Mode B: Pins 4/5(+), 7/8(-)
    • 802.3bt (60W): Mode A & B, Pins 1/2(+), 3/6(-), 4/5(+), 7/8(-)
  • PoE Power Output
    • Ports 1-4, 9-12: Up to 30W/port
    • Ports 5-8: Up to 60W/port
    • Power Budget: 240W
  • Protection
    • Reverse Polarity Protection

Interface

  • Ethernet
    • 12 x 10/100/1000BASE-T(X)
    • 4 x 100/1000BASE SFP
  • Console
    • 1 x RS232
  • Config Backup
    • 1 x USB (Type A Connector)
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)
    • Per PoE Port: PoE Status (Orange)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.5kg (3.3lbs)

Warranty

Environmental

  • Operating Temp.
    • -40 to 70°C (-40 to 158°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Documentation
    • Quick install guide

MPN

  • EX78934R-0VB
    • 1718534

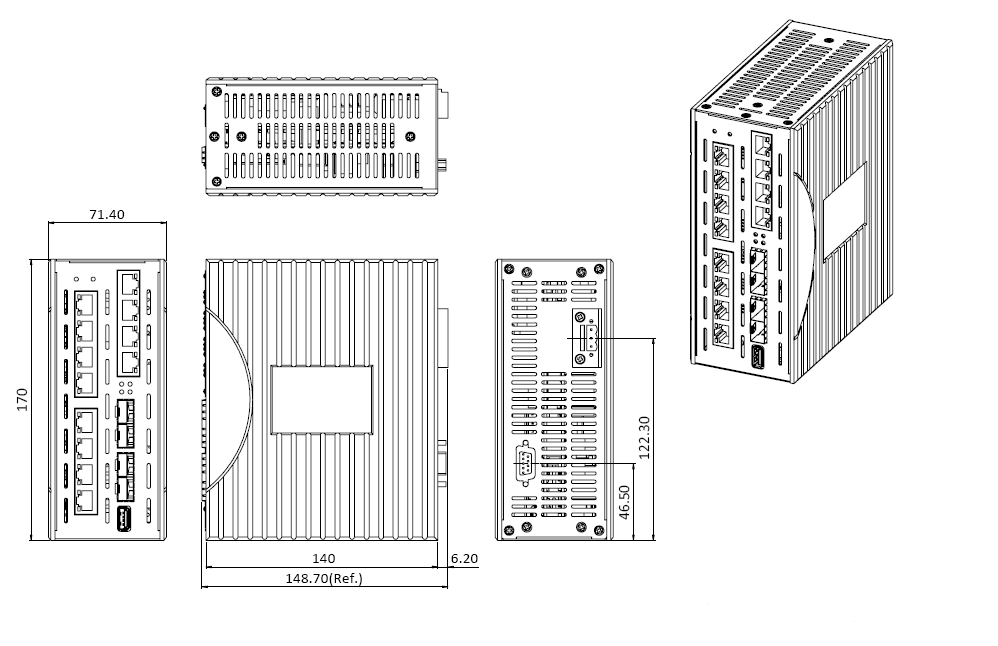

EX78900R Series dimensions

Model

EX78934R-0VB12-port 10/100/1000BASE-T(X) PoE + 4-port 100/1000BASE SFP

Accessories

SFP Modules

Hardened SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver

Power Supplies

EPOW-54-240Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 240W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-400Hardened Power Supply, 100-277 VAC Input; NEMA-TS2 Rated; 54VDC, 400W/7.4A, with Open Wire (US Plug) - No Deration at High Temps
EPOW-54-600Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 600W, 54VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPHX-48-240240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps
EPHX-48-480480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps

Mounting Brackets

KR-BKZDINZ-Shaped Vertical Bracket
KR-BKZDIN-DDin Rail configuration for Z-Shaped Vertical Bracket
KR-BKZDIN2Z-Shaped Horizontal Bracket
KR-BKZDIN2-DDin Rail configuration for Z-Shaped Horizontal Bracket
KR-DINRAILBTransRack 19 rack mount adjustable DIN rail bracket
KR-BK780004019" Rack mounting kit for EX78900/78000/73900 series, black
