EL1216 Series

10/100BASE-TX to 100BASE-FX Media Converter

Link Fault Pass Through (LFPT)
Built-in fiber tray
Overview
Spotlight
Specifications
Dimensions
Ordering Info

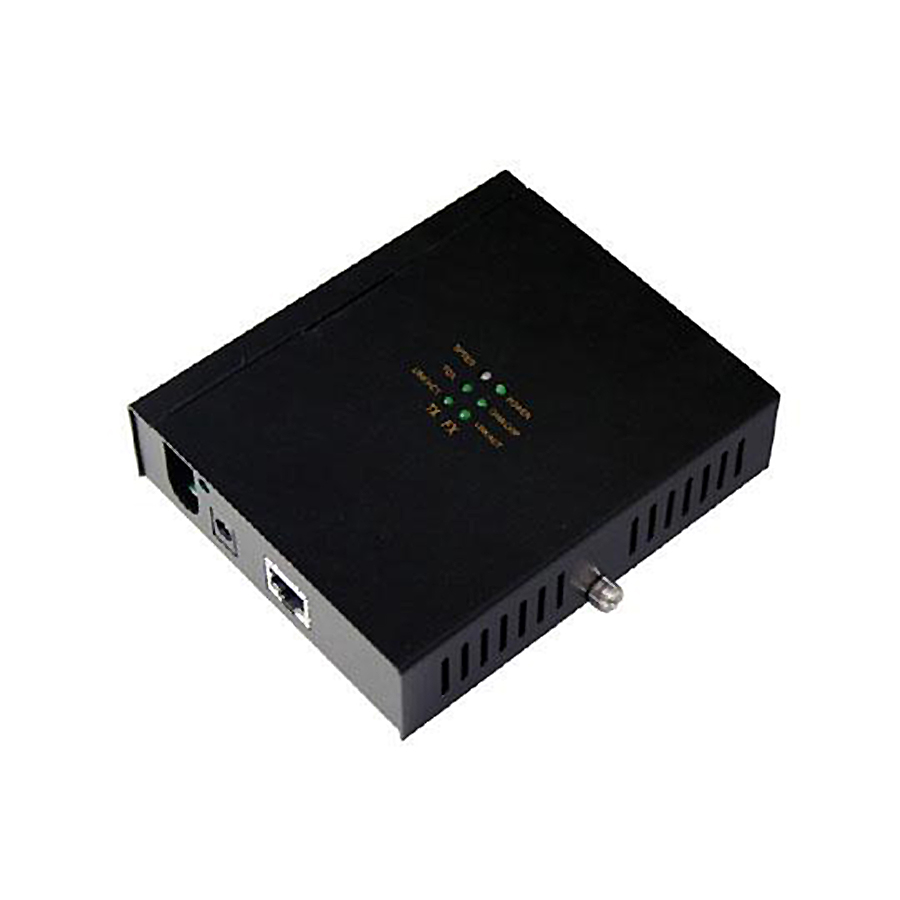

The EL1216 Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design facilitates network infrastructure construction. The EL1216 series is designed for SC or ST fiber connection applications. The EL1216's mechanical design prevents physical contact with fiber transceiver while the case is sealed; The EL1216's compact size is suitable for space limit installation and it is the ideal media converter for enterprise environments.

EtherWAN — "When Connectivity is Crucial."

Plug-and-Play Media Converter

» CompliantEasy installation, plug-and-play without additional configuration, providing store-and-forward data transmission

Hidden Fiber Transceiver

» CompliantMechanical design prevents physical contact with fiber transceiver while the case is sealed

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3x full duplex and flow control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto-MDI/MDIX




Power

Input Voltage

  • • 12VDC

Power Consumption
  • • 3W Max. 0.25A @ 12VDC




Mechanical

Casing

  • • Metal case
  • • IP30

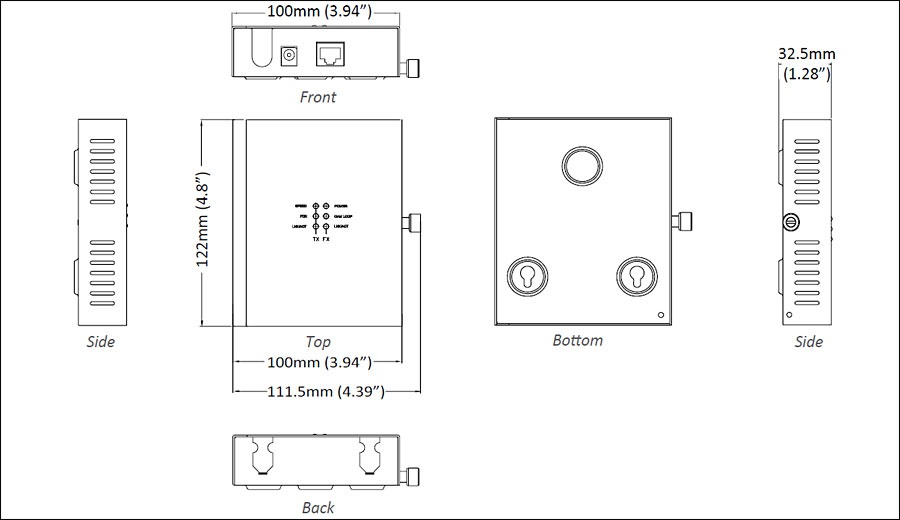

Dimensions
  • • 100 mm (W) x 122mm (D) x 32.5mm (H)
      (3.94"(W) x 4.8" (D) x 1.28" (H))

Weight
  • • 350g (0.77lbs.)

Installation
  • • Wall mounting




Interface

Ethernet Port

  • • 10/100BASE-TX: 1 port
  • • 100BASE-FX: 1 port

LED Indicators
  • • Per Unit: Power Status
  • • Per Port: TX Speed, Link/Activity, Duplex Mode/Collision




Environment

Operating Temperature

  • • 0°C to 50°C (32°F to 122°F)

Storage Temperature
  • • -20°C to 70°C (-4°F to 158°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

Emission Compliance
  • CE Mark Class A
  • FCC Part 15B Class A
  • VCCI Class A




Model

EL1216-X1Z 10/100ASE-TX to 100BASE-FX Media Converter

100FX Fiber Options (Y)

1 Multi Mode (SC) - 2Km (1310nm)
2 Multi Mode (ST) - 2Km (1310nm)
A Single Mode (SC) - 20Km (1310nm)
B Single Mode (SC) - 40Km (1310nm)
H Single Mode (ST) - 20Km (1310nm)
6 Multi Mode (SC) WDM -TX:1310nm/RX:1550nm - 2Km
7 Multi Mode (SC) WDM -TX:1550nm/RX:1310nm - 2Km
8 Multi Mode (SC) WDM -TX:1310nm/RX:1550nm - 5Km
9 Multi Mode (SC) WDM -TX:1550nm/RX:1310nm - 5Km
P Single Mode (SC) WDM -TX:1310nm/RX:1550nm - 20Km
Q Single Mode (SC) WDM -TX:1550nm/RX:1310nm - 20Km
R Single Mode (SC) WDM -TX:1310nm/RX:1550nm - 40Km
S Single Mode (SC) WDM -TX:1550nm/RX:1310nm - 40Km

* More 100FX Fiber options also available upon request


Power Connector Options (Z)

A with external power adapter for AU
E with external power adapter for EU
J with external power adapter for JP
K with external power adapter for UK
U with external power adapter for USA
3C with external power adapter for China

Overview
