Improved Energy Management for Internet Data Centers

If you can't see the content, please view the online version here. Nov. 24, 2017


Case Study

Improved Energy Management for Internet Data Centers

Internet Data Centers



Overview

The modern internet is powered and supported by data centers of various sizes. The largest data centers, called Tier 4, are warehouse-sized and contain thousands of machines. The power requirements of these data centers are immense, and attempts to achieve optimal Power Usage Effectiveness (PUE) must take into account the absolute need for consistent and reliable power, as well as the huge potential cost of downtime due to outages. In recent years Power Management Systems (PMS) have brought the ability to access real-time temperature and power status information, and to make adjustments as necessary across the entire facility. read more



The Challenge

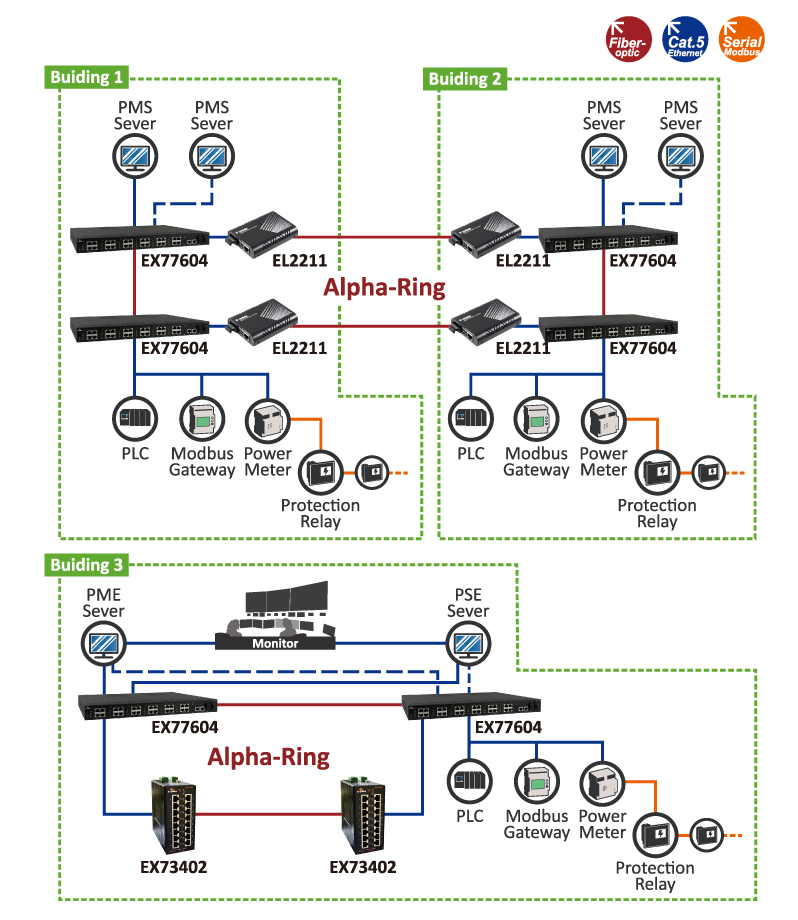

In the PMS application lower level, the Supervisory Control and Data Acquisition (SCADA) system provides real-time monitoring of a vast array of serial power meters and PLCs, and automatically takes action when a warning message is received. At the upper level, PSM servers and Open Platform Communication (OPC) servers use Modbus TCP and SNMP to monitor both the power meters and the status of all Ethernet switches. Reliable communication for this system is paramount, so a hardened solution with dependable network redundancy is required. read more



Application Requirements

  • Robust network redundancy with minimized failover time
  • Support for SNMP protocol
  • Link Fault Pass Through on fiber connections

Internet Data Centers



Related products





EX77000 Series

Hardened Managed 8 to 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options



EX73000 Series

Hardened Managed 8 to16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch



EL2211 Series

10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter


Field-proven Reliability

Hardened Ethernet equipment with superior reliability, long MBTF, redundant power support, wide operating temperature range, EDI, EMI, RFI and surge protection.

Full Product Testing

Our hardened products are required to pass stringent real-time data transfer testing at the temperature from -40° to +85°C for up to 72 hours without compromise.

Customer-centered Services

EtherWAN has a professional support crew, with domain know-how and hands-on experience working with system integrators and solution providers.
