INJ90BT-24

NEW

Hardened Gigabit PoE Injector

Fanless
Wide Temperature
PoE_90W

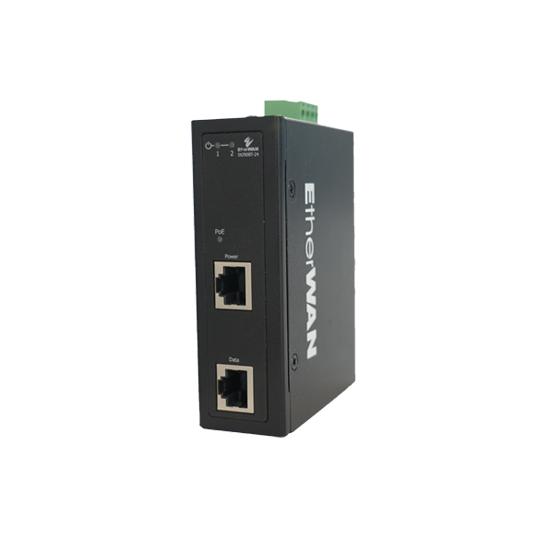

INJ90BT-24 Hardened Gigabit PoE Injector
High power PoE using the latest IEEE 802.3bt technology
Hardened-grade for non-ventilated and harsh environments
Up to 90W output for various security, LED lighting, and other applications
Available in North America only
INJ90BT-24 Hardened Gigabit PoE Injector

Downloads

Highlights
Overview
Specifications
Dimensions
Ordering Info

High-Power PoE (Power over Ethernet)

  • High power output using the latest IEEE 802.3bt technology
  • Up to 90W output for various security, LED lighting, and other applications
  • Backward compatible with 802.3af and 802.3at devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty

EtherWAN's INJ90BT-24 is a compact hardened DIN-rail mounted PoE injector. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output, the INJ90BT-24 provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.

EtherWAN — "When Connectivity is Crucial."



Interface

  • Ethernet
    • 1 x 10/100/1000BASE-T(X), connection to network
    • 1 x 10/100/1000BASE-T(X), PoE connection to device
  • LED Indicators
    • Power detected: Power 1, Power 2
    • PoE: On (Active), Off (Idle)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt 4PPoE
    • Compatible with 95W PoH (Power over HDBaseT) standard

Power

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 32 x 81.5 x 103.5mm (W x D x H)
      1.26" x 3.21" x 4.07"
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type
    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Injector
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

Model

INJ90BT-24 10/100/1000BASE-T PoE Injector, 90W 802.3bt

Accessories

DIN-Rail Power Supplies www.etherwan.com/products/din-rail-power-supply
Highlights

High-Power PoE (Power over Ethernet)

  • High power output using the latest IEEE 802.3bt technology
  • Up to 90W output for various security, LED lighting, and other applications
  • Backward compatible with 802.3af and 802.3at devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty
Overview

EtherWAN's INJ90BT-24 is a compact hardened DIN-rail mounted PoE injector. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output, the INJ90BT-24 provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.

EtherWAN — "When Connectivity is Crucial."

Specifications


Interface

  • Ethernet
    • 1 x 10/100/1000BASE-T(X), connection to network
    • 1 x 10/100/1000BASE-T(X), PoE connection to device
  • LED Indicators
    • Power detected: Power 1, Power 2
    • PoE: On (Active), Off (Idle)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3bt 4PPoE
    • Compatible with 95W PoH (Power over HDBaseT) standard

Power

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 32 x 81.5 x 103.5mm (W x D x H)
      1.26" x 3.21" x 4.07"
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type
    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Injector
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

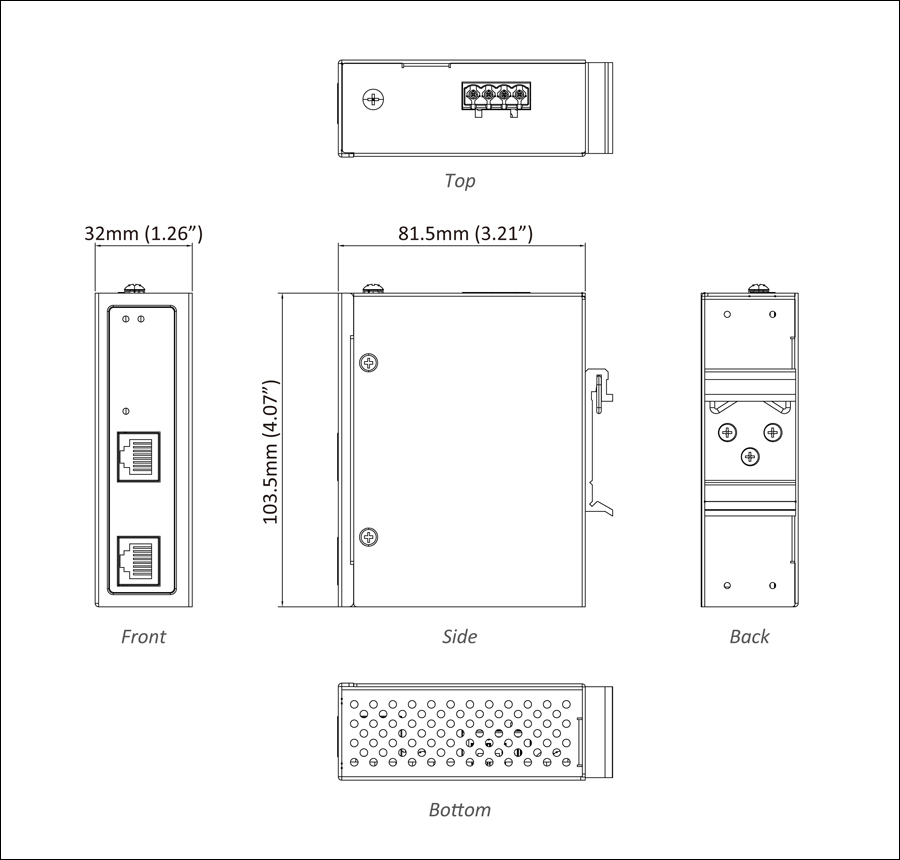

Dimensions
Ordering Info

Model

INJ90BT-24 10/100/1000BASE-T PoE Injector, 90W 802.3bt

Accessories

DIN-Rail Power Supplies www.etherwan.com/products/din-rail-power-supply
