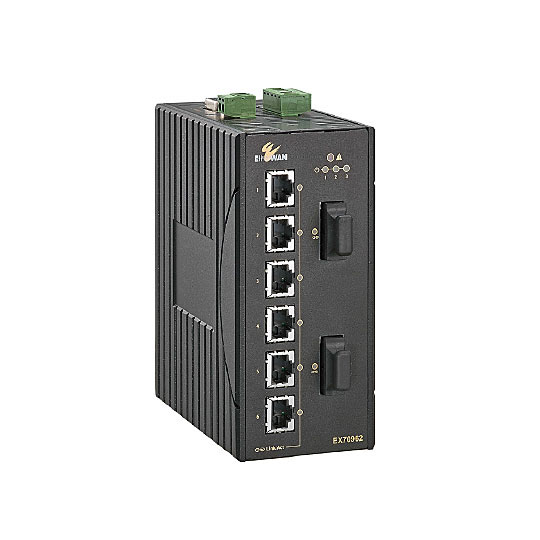

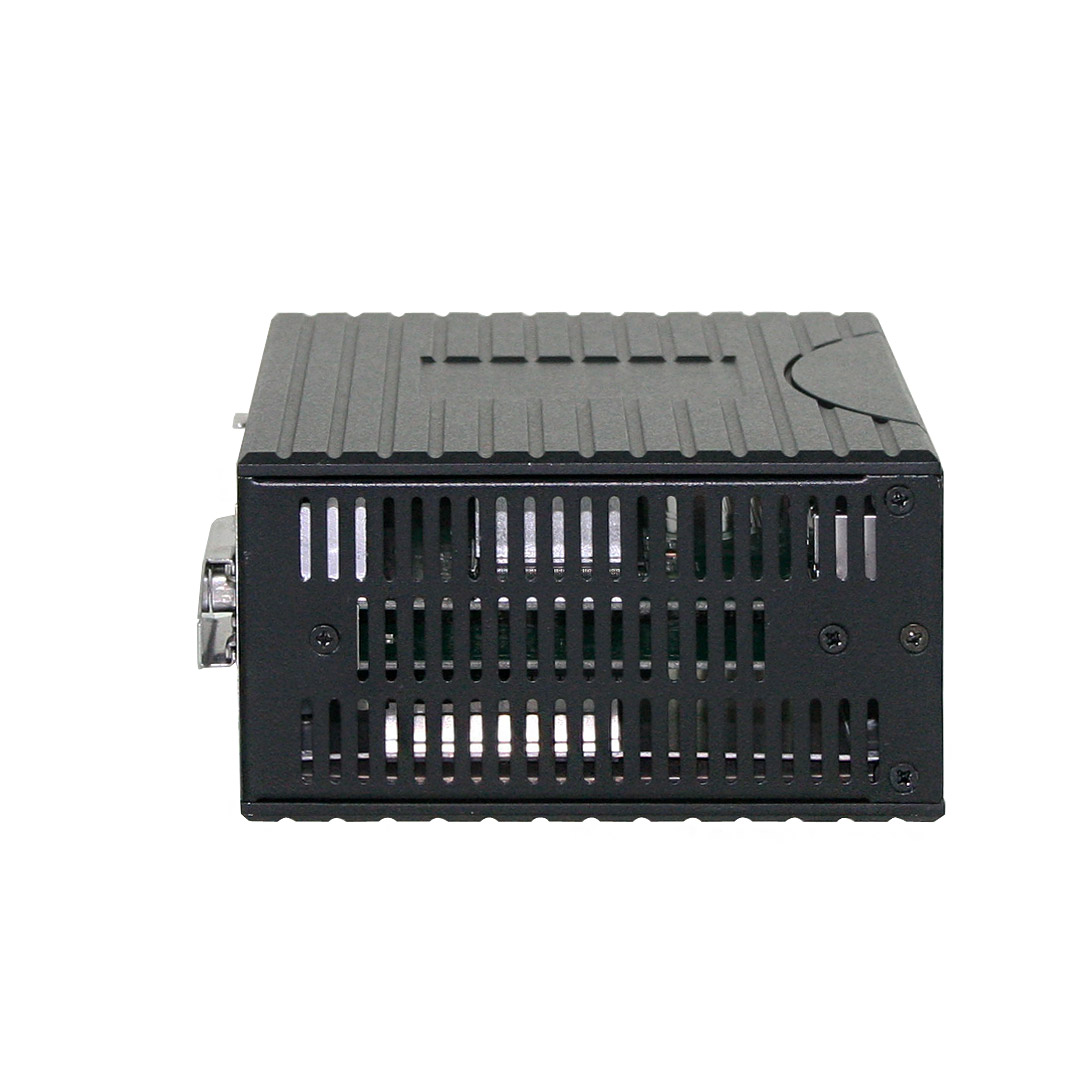

EX70900 Series

EtherWAN's EX70900 Series provides a Hardened Fully Managed 8-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.

Mountable on a DIN-Rail, the EX70900 Series is a full Gigabit hardened managed switch, featured with 6 ports of 10/100/1000BASE-TX, in combination with up to two SFP port options.

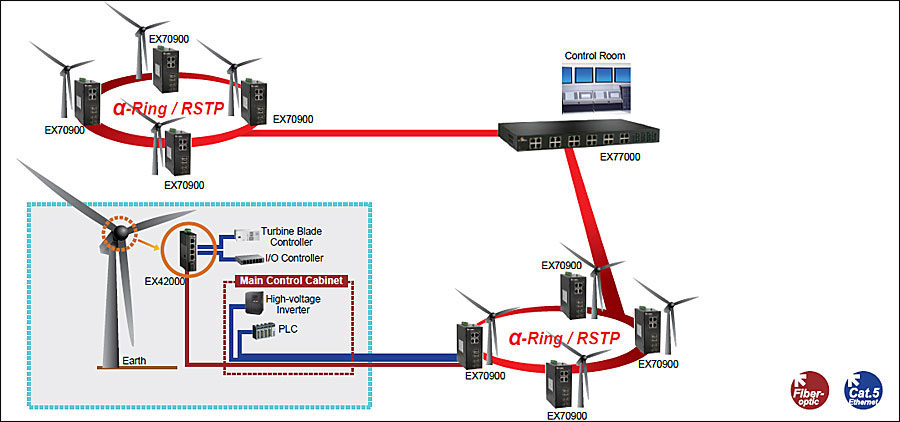

Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP to name a few, via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces. With its hardened-grade specifications and IEC 61850 certifications, the EX70900 Series is capable of operating under high EMI environments at the temperatures ranging from -40 to 75°C, making it an ideal choice for harsh applications.

EtherWAN — "When Connectivity is Crucial."

Full Gigabit Connectivity

» Managed Hardened 8-port Gigabit Ethernet switch with either copper, SC, ST or LC connectors available

Intelligent Data Management

» Optimize network performance with QoS, VLAN etc.

Compliance with IEC 61850-3/IEEE 1613

» For installations with high EMS requirements

Energy Efficient Ethernet (EEE)

» Supports IEEE 802.3az standard

Management

• » Interface
  •    • CLI, Telnet and Web Browser
  •    • SNMP v1/v2c/v3
• » Firmware and configuration upgrade and backup via TFTP
• » Supports DHCP Server/Client
• » RMON (Remote monitoring): group 1, 2, 3, 9
• » Port mirroring: TX/RX and both
• » SFP transceivers support Digital Diagnostics Monitoring (DDM)
• » NTP (Network Time Protocol) time synchronization
• » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

• » MAC address filtering
  •    • Enable/disable port
• » Storm control (broadcast and multicast types)
• » IEEE 802.1x LAN access control
• » Remote authentication through RADIUS
• » SSH for CLI and Telnet security
• » SSL for web security
• » Multi-level user account/password against unauthorized configuration
• » System log (remote/local)

Quality of Service (QoS)

• » Priority Queues: 4 queues per port
• » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
• » Rate Limiting (Ingress/Egress)

Layer 2 Features

• » Auto-negotiation for port speed and duplex mode
• » Flow Control
  •    • IEEE 802.3x full duplex mode
  •    • Back-Pressure half duplex mode
• » Redundant Protocol
  •    • IEEE 802.1D Spanning Tree Protocol (STP)
  •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• » VLANs
  •    • Port-based VLANs
  •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
  •    • GVRP (GARP VLAN Registration Protocol)
  •    • GMRP (GARP Multicast Registration Protocol)
• » Link Aggregation
  •    • Static Trunk (2 groups, support MAC base)
  •    • IEEE 802.3ad Link Aggregation Control Protocol
• » IGMP Snooping
  •    • IGMP snooping v1/v2/v3

Performance

• » Switching Capability: 16Gbps
• » Packet Buffer Size: 1.5M bits
• » MAC Address Table: 4K

Technology

Standards

• • IEEE 802.3 10BASE-T
• • IEEE 802.3u 100BASE-TX/100BASE-FX
• • IEEE 802.3ab 1000BASE-T
• • IEEE 802.3az EEE
• • IEEE 802.3z 1000BASE-SX/1000BASE-LX
• • IEEE 802.3x Full duplex and flow control
• • IEEE 802.1p QoS
• • IEEE 802.1Q Tag VLANs
• • IEEE 802.1w RSTP
• • IEEE 802.1x Port-based Network Access Control

• • 14,880pps for 10Mbps
• • 148,810pps for 100Mbps
• • 1,488,100pps for 1000Mbps

• • 1.5M bits

• • Store-and-Forward
• • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

• • 9720 bytes

• • 4096 MAC addresses

Power

Input

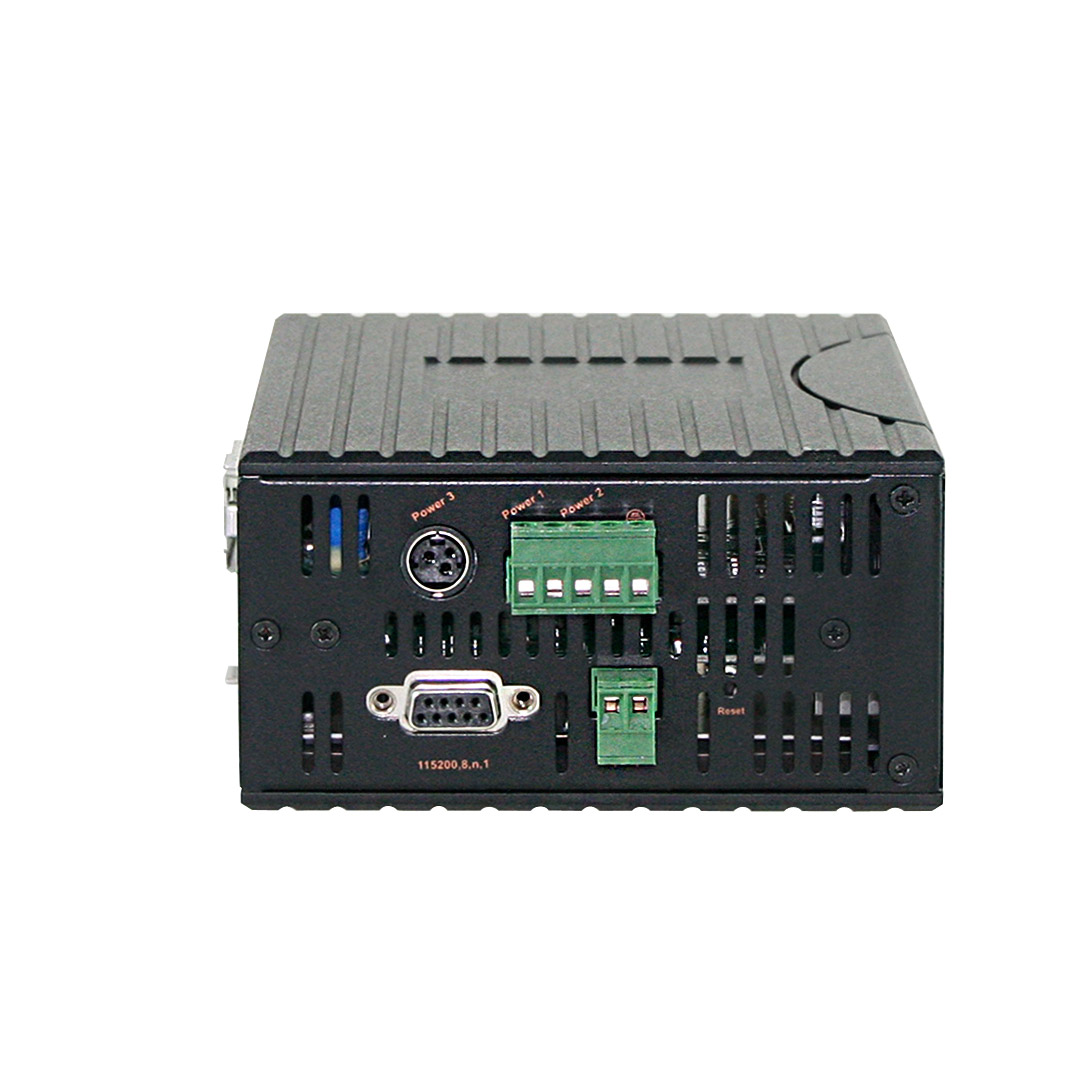

• • Redundant power inputs:
    12-48VDC (Terminal Block)
    12VDC (DC Jack)

• • 10.2W Max., [email protected]

• • Reverse polarity protection

Mechanical

Casing

• • Aluminum Case
• • IP30

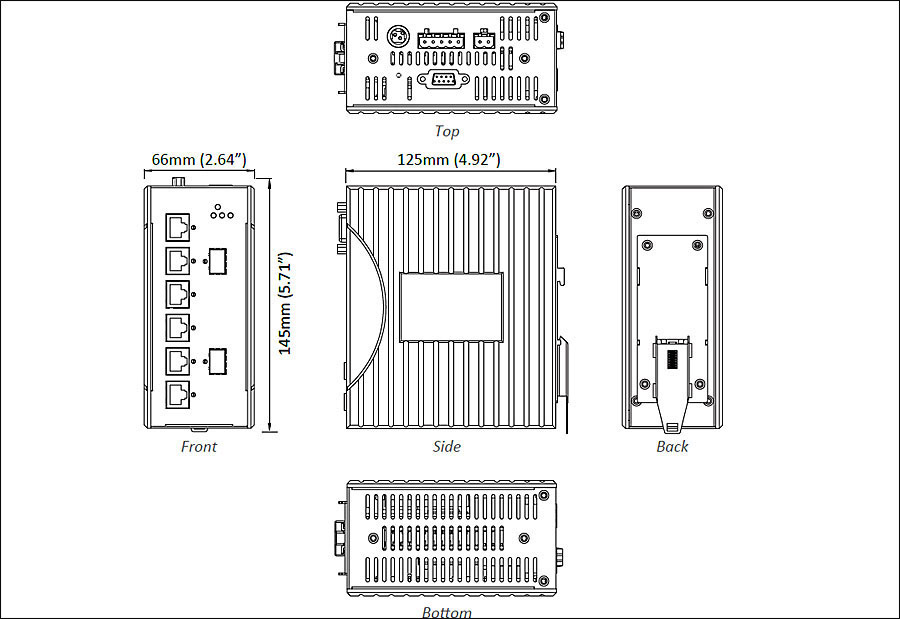

• • 66 x 125 x 145mm (W x D x H)
    (2.64" x 4.92" x 5.7")

• • 1.1Kg (2.42lbs.)

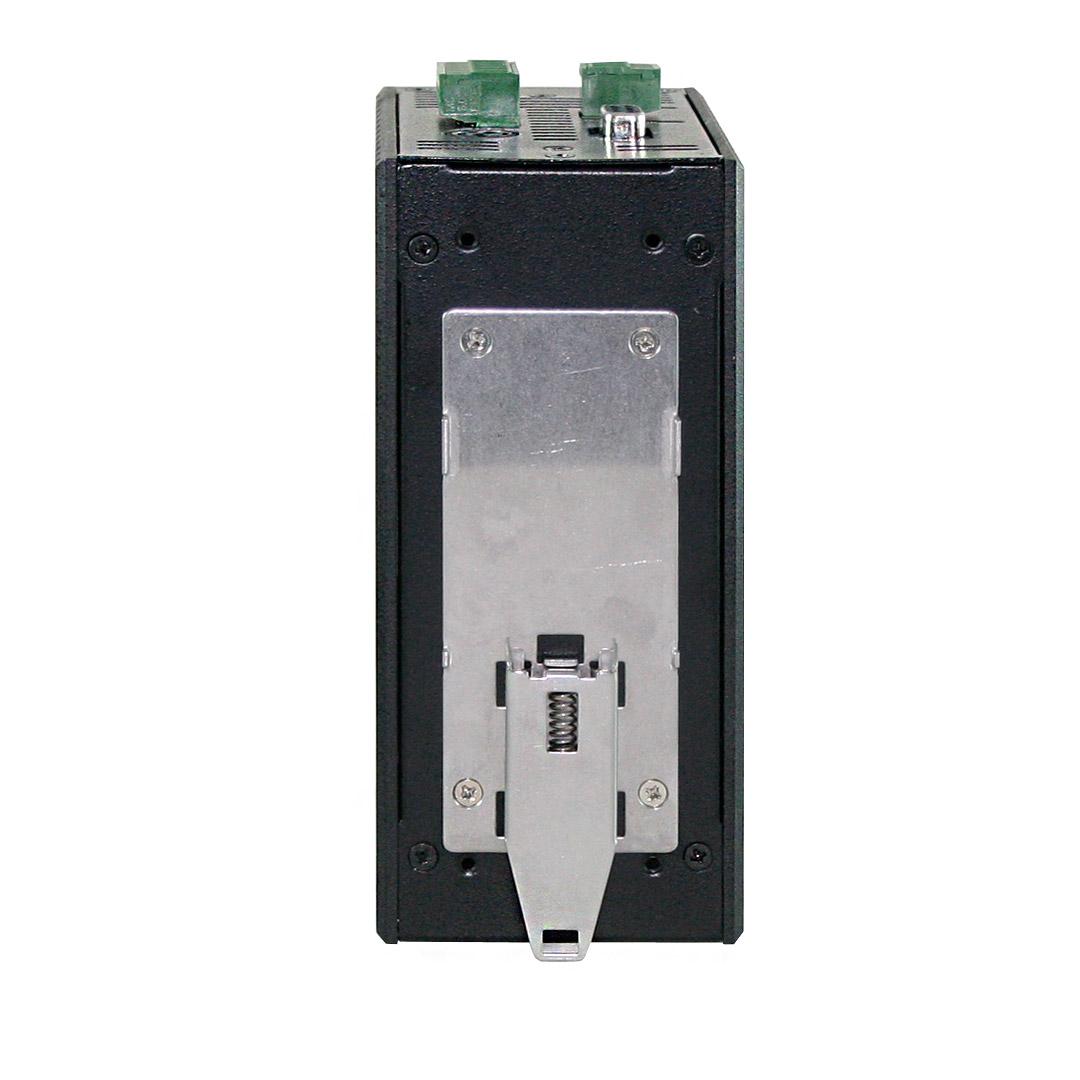

• • DIN-Rail (Top hat type35mm) or Wall mounting

Interface

Ethernet Port

• • 10/100/1000BASE-TX: 8, 7, or 6 ports
• • 1000BASE-SX/LX/SFP: 0, 1, or 2 ports

• • Port: One DB9 RS-232 port

• • Per Unit: Power Status (Power 1, Power 2, Power 3), Alarm
• • Per Port: Link/Activity

• • One relay output with current [email protected]

Environment

Operating Temperature

• • -40 to 75°C (14 to 167°F)
    Tested @ -40 to 85°C( -40 to 185°F)

• • -40 to 85°C (-40 to 185°F)

• • 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• • Manufactured in an ISO 9001 facility

• UL 508

• FCC Part 15B Class A
• EN 61000-6-4
• EN 61000-3-2
• EN 61000-3-3

• EN 61000-6-2
  • • EN 61000-4-2 (ESD Standards)
  • • EN 61000-4-3 (Radiated RFI Standards)
  • • EN 61000-4-4 (Burst Standards)
  • • EN 61000-4-5 (Surge Standards)
  • • EN 61000-4-6 (Induced RFI Standards)
  • • EN 61000-4-8 (Magnetic Field Standards)

• IEC 60068-2-6 Fc (Vibration Resistance)
• FED STD 101C Method 5007.1 (Free fall w/package)

• IEC 61850-3/IEEE 1613
• EN 50121-4

Model

* DIN-Rail mounting kit included.

Gigabit Port Options (X)

* More Gigabit options are also available upon request.

Optional Accessories
