EX26484 V2 Series

NEW

Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch

PoE 15W
PoE 30W
SFP
10G
UL

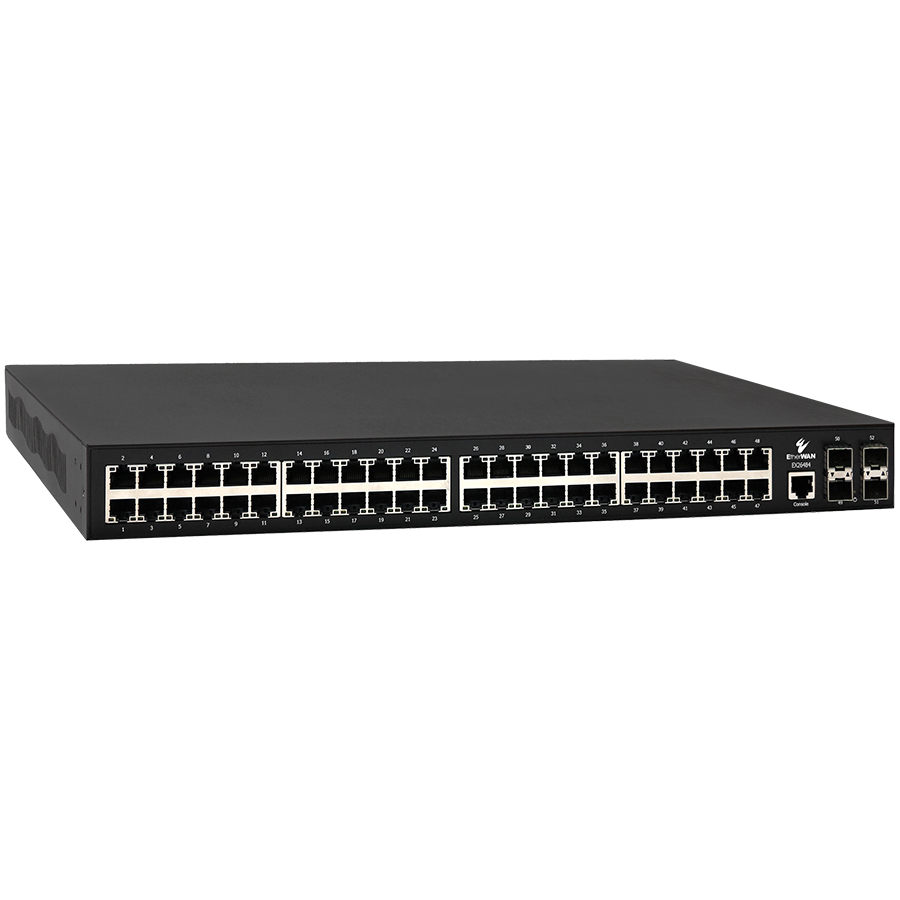

EX26484 Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch
EX26484 Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch
Available in North America only
High Port-Density Managed PoE Switch
860W PoE Power Budget
10GbE Connectivity (4 Ports)
EX26484 Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch
Overview
Highlights
Features
Specifications
Application
Dimensions
Ordering Info

EtherWAN’s EX26484 series is a managed 52-port PoE Ethernet switch platform. Equipped with 48 gigabit PoE ports along with a high total PoE power budget of 450W or 860W and 4 10-gigabit SFP+ ports, the EX26484 series provides flexibility, speed, and reliability for networks in urban infrastructure, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."



High Bandwidth and Versatility

  • 48 10/100/1000BASE-T(X) ports for high bandwidth connections
  • 4 10 Gigabit fiber connections
  • Full capacity switching running at full duplex

High Power PoE Power Budget

  • Maximum PoE power budget of up to 860W
  • Provides up to 30W per port for PTZ cameras and other high power devices

Management/Security Features

  • PoE watchdog monitors status of connected PoE devices
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Port control and security

Support

  • Complimentary technical support
  • Free firmware upgrades

Interface

  • CLI, Telnet and Web Browser SNMP v1/v2c/v3

Management

  • Firmware and configuration upgrade and backup via TFTP
  • Supports DHCP Server/Client
  • RMON (Remote Monitoring): group 1, 2, 3, 9
  • Port mirroring: TX/RX and both
  • NTP (Network Time Protocol) Time Synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • PoE Watchdog
  • Virtual Stacking

Security

  • MAC Address Filtering
  • Enable/Disable Port
  • Storm Control (Broadcast and Multicast Types)
  • IEEE802.1x LAN Access Control
  • Remote Authentication through RADIUS & TACACS+
  • SSH for CLI and Telnet Security
  • SSL for Web Security
  • System Log
  • ACL

Quality of Service (QoS)

  • Priority Queues: 8 Queues per Port
  • Traffic Classification Based on IEEE802.1p CoS, DSCP, WRR, and Strict Mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Flow Control
    • IEEE802.3x full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocol
    • IEEE802.1D Spanning Tree Protocol (STP)
    • IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
  • VLANs
    • Supports up to 4K VLANs simultaneously (128 groups, 4096 VID)
    • Port-based VLAN
    • IEEE 802.1Q tag-based VLAN (128 groups, 4096 VID)
    • Voice VLAN
  • Link Aggregation
    • Static trunk (13 groups, 4 ports per group)
    • IEEE802.3ad Link Aggregation Control Protocol
  • IGMP Snooping
    • IGMP snooping v1/v2/v3
    • Supports 1024 multicast groups

Layer 3 Features

  • IPv4 Unicast: Static routing
  • IPv6 Unicast: Static routing


Interface

  • Ethernet
    • 10/100/1000BASE-T(X): 48 ports
    • 1G/10G SFP+: 4 ports
  • Console
    • 1 x RJ45
  • LED Indicators
    • Per Unit: Power
    • Per Port: Link/Activity, PoE

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3e 10GBASE
    • IEEE 802.3ad LACP
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x Port-based Network Access Control
    • IEEE 802.1ab LLDP
    • G.0832 ERPS
  • Forward/Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10gbps
  • Packet Buffer Memory
    • 32M Bits
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 32K MAC Addresses
  • Switching Fabric
    • 176Gbps
  • Forwarding Rate
    • 130.94Mpps
  • Jumbo Framze Size
    • 9.6KB

Power

  • Input
    • 100-240VAC
  • Power Consumption
    • 37W Max (without PoE) w/ PoE power budget of 450/860W
    • up to 30W/port Poe power output

Physical

  • Casing Material
    • Aluminum
  • Dimensions
    • EX26484: 440 x 330 x 44mm (W x D x H)

      (17.3" x 12.99" x 1.73")
    • EX26484-920: 440 x 380 x 44mm

      (17.3" x 14.96" x 1.73")
  • Weight
    • 5.5kg (12.1lbs)
  • Installation Type
    • Rack Mounting

Environmental

  • Operating Temp.
    • 0 to 50°C (32 to 122°F)
  • Storage Temp.
    • -10 to 70°C (-10 to 158°F)
  • Relative Humidity
    • 10% to 90% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B
    • VCCI Class A
    • CE Mark Class A
  • Safety
    • UL 62368-1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Accessories
    • AC Power Cord
    • Rack Mounting Kit
  • Documentation
    • Quick install guide

Model

EX26484 48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch, 450W Power Budget
EX26484-920 48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch, 860W Power Budget

* Rack mounting kit included.


Overview

EtherWAN’s EX26484 series is a managed 52-port PoE Ethernet switch platform. Equipped with 48 gigabit PoE ports along with a high total PoE power budget of 450W or 860W and 4 10-gigabit SFP+ ports, the EX26484 series provides flexibility, speed, and reliability for networks in urban infrastructure, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."



Highlights

High Bandwidth and Versatility

  • 48 10/100/1000BASE-T(X) ports for high bandwidth connections
  • 4 10 Gigabit fiber connections
  • Full capacity switching running at full duplex

High Power PoE Power Budget

  • Maximum PoE power budget of up to 860W
  • Provides up to 30W per port for PTZ cameras and other high power devices

Management/Security Features

  • PoE watchdog monitors status of connected PoE devices
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Port control and security

Support

  • Complimentary technical support
  • Free firmware upgrades
Features

Interface

  • CLI, Telnet and Web Browser SNMP v1/v2c/v3

Management

  • Firmware and configuration upgrade and backup via TFTP
  • Supports DHCP Server/Client
  • RMON (Remote Monitoring): group 1, 2, 3, 9
  • Port mirroring: TX/RX and both
  • NTP (Network Time Protocol) Time Synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • PoE Watchdog
  • Virtual Stacking

Security

  • MAC Address Filtering
  • Enable/Disable Port
  • Storm Control (Broadcast and Multicast Types)
  • IEEE802.1x LAN Access Control
  • Remote Authentication through RADIUS & TACACS+
  • SSH for CLI and Telnet Security
  • SSL for Web Security
  • System Log
  • ACL

Quality of Service (QoS)

  • Priority Queues: 8 Queues per Port
  • Traffic Classification Based on IEEE802.1p CoS, DSCP, WRR, and Strict Mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Flow Control
    • IEEE802.3x full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocol
    • IEEE802.1D Spanning Tree Protocol (STP)
    • IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
  • VLANs
    • Supports up to 4K VLANs simultaneously (128 groups, 4096 VID)
    • Port-based VLAN
    • IEEE 802.1Q tag-based VLAN (128 groups, 4096 VID)
    • Voice VLAN
  • Link Aggregation
    • Static trunk (13 groups, 4 ports per group)
    • IEEE802.3ad Link Aggregation Control Protocol
  • IGMP Snooping
    • IGMP snooping v1/v2/v3
    • Supports 1024 multicast groups

Layer 3 Features

  • IPv4 Unicast: Static routing
  • IPv6 Unicast: Static routing
Specifications


Interface

  • Ethernet
    • 10/100/1000BASE-T(X): 48 ports
    • 1G/10G SFP+: 4 ports
  • Console
    • 1 x RJ45
  • LED Indicators
    • Per Unit: Power
    • Per Port: Link/Activity, PoE

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-T
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3e 10GBASE
    • IEEE 802.3ad LACP
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x Port-based Network Access Control
    • IEEE 802.1ab LLDP
    • G.0832 ERPS
  • Forward/Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10gbps
  • Packet Buffer Memory
    • 32M Bits
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 32K MAC Addresses
  • Switching Fabric
    • 176Gbps
  • Forwarding Rate
    • 130.94Mpps
  • Jumbo Framze Size
    • 9.6KB

Power

  • Input
    • 100-240VAC
  • Power Consumption
    • 37W Max (without PoE) w/ PoE power budget of 450/860W
    • up to 30W/port Poe power output

Physical

  • Casing Material
    • Aluminum
  • Dimensions
    • EX26484: 440 x 330 x 44mm (W x D x H)

      (17.3" x 12.99" x 1.73")
    • EX26484-920: 440 x 380 x 44mm

      (17.3" x 14.96" x 1.73")
  • Weight
    • 5.5kg (12.1lbs)
  • Installation Type
    • Rack Mounting

Environmental

  • Operating Temp.
    • 0 to 50°C (32 to 122°F)
  • Storage Temp.
    • -10 to 70°C (-10 to 158°F)
  • Relative Humidity
    • 10% to 90% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B
    • VCCI Class A
    • CE Mark Class A
  • Safety
    • UL 62368-1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Accessories
    • AC Power Cord
    • Rack Mounting Kit
  • Documentation
    • Quick install guide

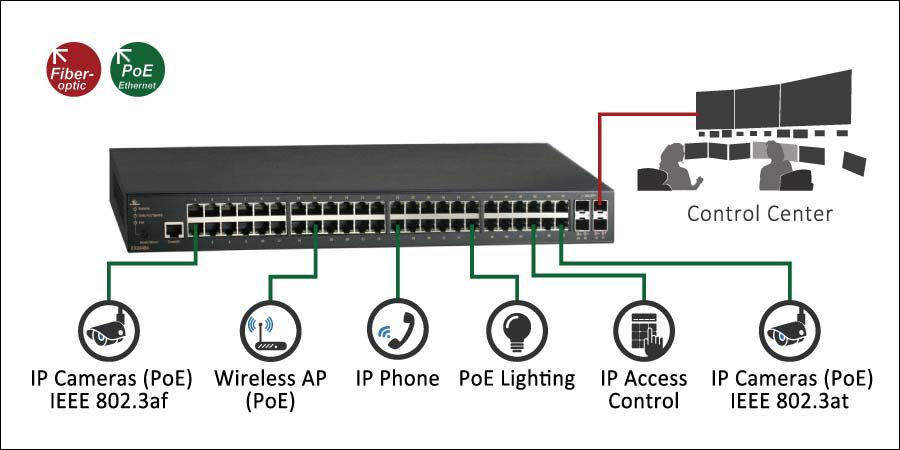

Application

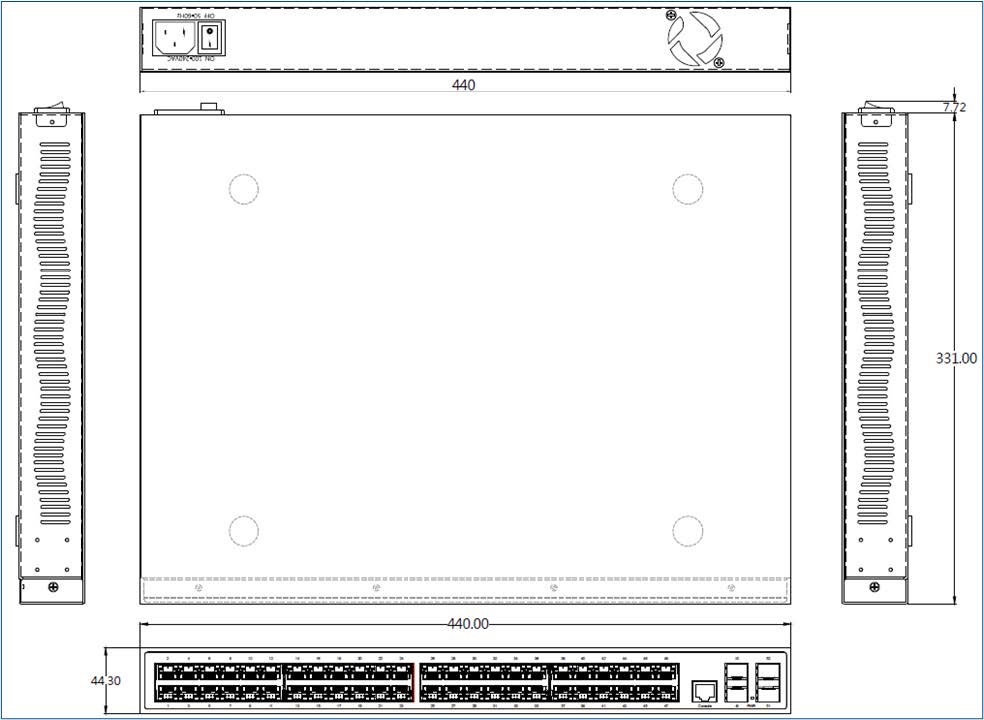

Dimensions

Ordering Info

Model

EX26484 48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch, 450W Power Budget
EX26484-920 48-Port 10/100/1000BASE PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch, 860W Power Budget

* Rack mounting kit included.
