EX19164

NEW

Smart Managed 16-Port Gigabit PoE Ethernet Switch

PoE 15W
PoE 30W
SFP

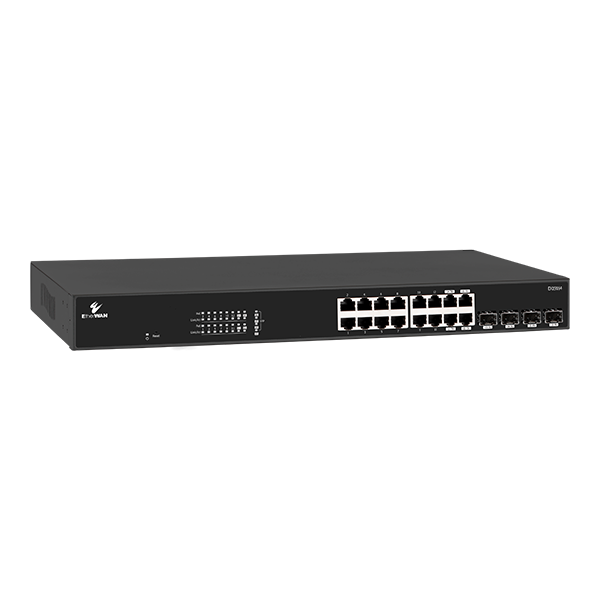

EX19164 Smart Managed 16-Port Gigabit PoE Ethernet Switch
EX19164 Smart Managed 16-Port Gigabit PoE Ethernet Switch
Available in North America only
EX19164 Smart Managed 16-Port Gigabit PoE Ethernet Switch
Highlights
Overview
Ordering Info
Software Features
Hardware Specifications
Dimensions

Smart Management Features

  • Easy to use web GUI
  • VLAN configuration
  • Comprehensive IP configuration and QoS

Power over Ethernet

  • Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

EtherWAN's EX19164 is a 16-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19164 is equipped with 16 10/100/1000BASET( X) PoE+ ports with 4 being combo ports with 100/1000BASE SFP for fiber. With features such as an easy-touse management GUI, QoS, VLANs and full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19164 is the perfect solution for security networks.

EtherWAN — "When Connectivity is Crucial."

Model

EX19164 16-port 10/100/1000BASE-T(X) PoE (4-port 100/1000 SFP combo)

* Rack mounting kit included.

Interface

Web GUI

Management

Firmware upgrade
Configuration backup and restore
DHCP Client
SNMP Trap
Port Mirroring
LLDP (Link Layer Discovery Protocol)

Security

MAC address filtering
Enable/Disable PoE per port
Storm control
TCP/UDP filter
Initial login complex password setup requirement

Quality of Service (QoS)

Priority Queues: 8 queues per port
Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR(Weighted Round Robin)

Layer 2 Features

Auto-negotiation for port speed and duplex mode Flow Control
IEEE 802.3x full duplex mode
Back-pressure half duplex mode
VLANs 16 Groups, 4096 VID
Tag-based
Port-based
Link Aggregation Static Trunk (2 groups)
IGMP Snooping IGMP Snooping v1/v2

Software Properties and Performance

Switching Fabric 20Gbps
Forwarding Rate 14.88Mpps
Jumbo Frame Size 9.6KB
MAC Table Size 8K
Packet Buffer Memory 4Mb

Interface

Ethernet 10/100/1000BASE-T(X): 16 ports
100/1000BASE SFP: 4 ports (combo with ports 13-16)
LED Indicators Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity
Reset Button Restore factory default settings

Technology

Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
IEEE 802.1p QoS
IEEE 802.1Q Tag VLANS
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.1AB LLDP (Link Layer Discovery Protocol)
IEEE 802.3az EEE (Energy Efficient
Ethernet)
Forward and Filtering Rate 14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex
flow control
Auto MDI/MDIX

Power

Input 100-240VAC, 50/60Hz
Power Consumption Device: 23W (without PoE)
PoE Power Budget: 250W

Physical

Casing Material Metal
Dimensions 266 x 161 x 44mm (W x D x H)
10.5" x 6.34" x 1.73"
Weight 4lbs (1.8kg)
Installation Type Rack mounting, Desktop

Environmental

Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -10 to 70°C (14 to 158°F)
Relative Humidity 10% to 90% (non-condensing)

Regulatory

ISO Manufactured in ISO-9001 facility
EMI FCC Part 15 Class B

Warranty

Length 3 Years
Details www.etherwan.com/support/warrantypolicy

What's Included

Device Ethernet Switch
Power AC power cord
Installation Mounting brackets, screws
Documentation Quick Install Guide
Highlights

Smart Management Features

  • Easy to use web GUI
  • VLAN configuration
  • Comprehensive IP configuration and QoS

Power over Ethernet

  • Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
Overview

EtherWAN's EX19164 is a 16-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19164 is equipped with 16 10/100/1000BASET( X) PoE+ ports with 4 being combo ports with 100/1000BASE SFP for fiber. With features such as an easy-touse management GUI, QoS, VLANs and full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19164 is the perfect solution for security networks.

EtherWAN — "When Connectivity is Crucial."

Ordering Info

Model

EX19164 16-port 10/100/1000BASE-T(X) PoE (4-port 100/1000 SFP combo)

* Rack mounting kit included.

Software Features

Interface

Web GUI

Management

Firmware upgrade
Configuration backup and restore
DHCP Client
SNMP Trap
Port Mirroring
LLDP (Link Layer Discovery Protocol)

Security

MAC address filtering
Enable/Disable PoE per port
Storm control
TCP/UDP filter
Initial login complex password setup requirement

Quality of Service (QoS)

Priority Queues: 8 queues per port
Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR(Weighted Round Robin)

Layer 2 Features

Auto-negotiation for port speed and duplex mode Flow Control
IEEE 802.3x full duplex mode
Back-pressure half duplex mode
VLANs 16 Groups, 4096 VID
Tag-based
Port-based
Link Aggregation Static Trunk (2 groups)
IGMP Snooping IGMP Snooping v1/v2

Software Properties and Performance

Switching Fabric 20Gbps
Forwarding Rate 14.88Mpps
Jumbo Frame Size 9.6KB
MAC Table Size 8K
Packet Buffer Memory 4Mb
Hardware Specifications

Interface

Ethernet 10/100/1000BASE-T(X): 16 ports
100/1000BASE SFP: 4 ports (combo with ports 13-16)
LED Indicators Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity
Reset Button Restore factory default settings

Technology

Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
IEEE 802.1p QoS
IEEE 802.1Q Tag VLANS
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.1AB LLDP (Link Layer Discovery Protocol)
IEEE 802.3az EEE (Energy Efficient
Ethernet)
Forward and Filtering Rate 14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex
flow control
Auto MDI/MDIX

Power

Input 100-240VAC, 50/60Hz
Power Consumption Device: 23W (without PoE)
PoE Power Budget: 250W

Physical

Casing Material Metal
Dimensions 266 x 161 x 44mm (W x D x H)
10.5" x 6.34" x 1.73"
Weight 4lbs (1.8kg)
Installation Type Rack mounting, Desktop

Environmental

Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -10 to 70°C (14 to 158°F)
Relative Humidity 10% to 90% (non-condensing)

Regulatory

ISO Manufactured in ISO-9001 facility
EMI FCC Part 15 Class B

Warranty

Length 3 Years
Details www.etherwan.com/support/warrantypolicy

What's Included

Device Ethernet Switch
Power AC power cord
Installation Mounting brackets, screws
Documentation Quick Install Guide

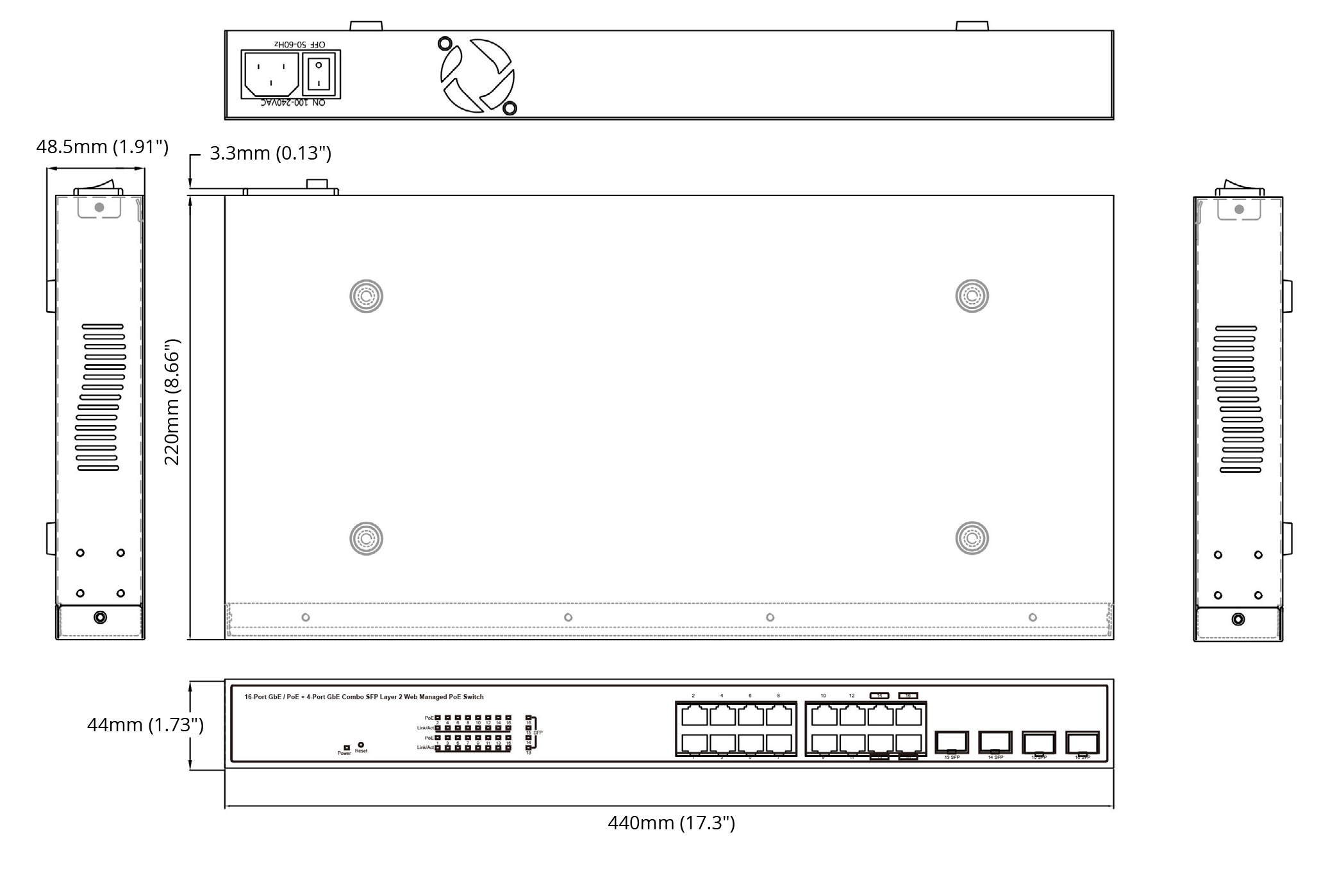

Dimensions
