EX19082A

NEW

Unmanaged 8-Port Gigabit PoE Ethernet Switch

PoE 15W
PoE 30W
SFP

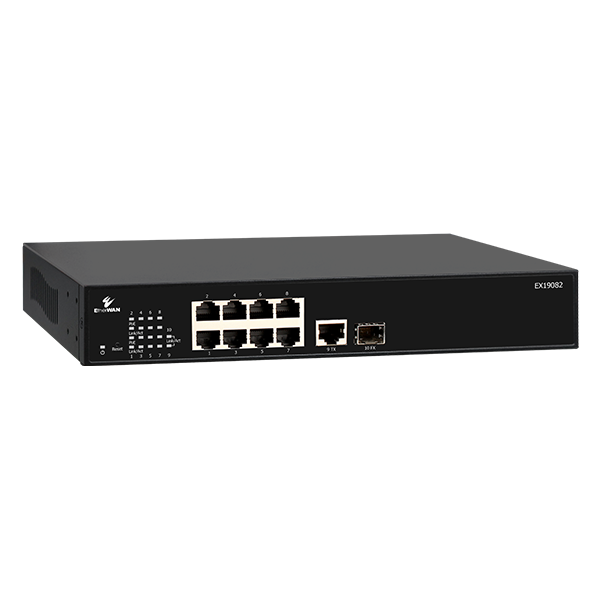

EX19082A Unmanaged 8-Port Gigabit PoE Ethernet Switch
EX19082A Unmanaged 8-Port Gigabit PoE Ethernet Switch
Available in North America only
EX19082A Unmanaged 8-Port Gigabit PoE Ethernet Switch
EX19082A Unmanaged 8-Port Gigabit PoE Ethernet Switch

Downloads

Highlights
Overview
Ordering Info
Hardware Specifications
Dimensions

Power over Ethernet

  • Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

EtherWAN's EX19082A is a 10-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19082A is equipped with 8 10/100/1000BASE-T(X) PoE+ ports and 2 Gigabit uplink ports (1 TX + 1 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19082A is the perfect solution for security networks.

EtherWAN — "When Connectivity is Crucial."

Model

EX19082A 8-port 10/100/1000BASE-T(X) PoE + 1-port 10/100/1000BASE-T(X) + 1-port 1000BASE SFP

Interface

Ethernet 10/100/1000BASE-T(X): 8 PoE+ ports + 1 TX port
1000BASE SFP: 1 port
LED Indicators Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity

Technology

Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
Forward and Filtering Rate 14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex
flow control
Auto MDI/MDIX
Switching Fabric 20Gbps
MAC Table Size 8K
Packet Buffer Memory 4Mb

Power

Input 100-240VAC, 50/60Hz
Power Consumption Device: 23W (without PoE)
PoE Power Budget: 250W

Physical

Casing Material Metal
Dimensions 266 x 161 x 44mm (W x D x H)
10.5" x 6.34" x 1.73"
Weight 4lbs (1.8kg)
Installation Type Rack mounting, Desktop

Environmental

Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -10 to 70°C (14 to 158°F)
Relative Humidity 10% to 90% (non-condensing)

Regulatory

ISO Manufactured in ISO-9001 facility
EMI FCC Part 15 Class B

Warranty

Length 3 Years
Details www.etherwan.com/support/warrantypolicy

What's Included

Device Ethernet Switch
Power AC power cord
Documentation Quick Install Guide
Highlights

Power over Ethernet

  • Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
Overview

EtherWAN's EX19082A is a 10-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19082A is equipped with 8 10/100/1000BASE-T(X) PoE+ ports and 2 Gigabit uplink ports (1 TX + 1 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19082A is the perfect solution for security networks.

EtherWAN — "When Connectivity is Crucial."

Ordering Info

Model

EX19082A 8-port 10/100/1000BASE-T(X) PoE + 1-port 10/100/1000BASE-T(X) + 1-port 1000BASE SFP
Hardware Specifications

Interface

Ethernet 10/100/1000BASE-T(X): 8 PoE+ ports + 1 TX port
1000BASE SFP: 1 port
LED Indicators Per Unit: Power
Per Port PoE: Status
Per Port Link: Link/Activity

Technology

Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/1000BASE-LX
IEEE 802.3x Full duplex and flow control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
Forward and Filtering Rate 14,880pps for 10Mbps
148,880pps for 100Mbps
1,488,000pps for 1000Mbps
Processing Type Store-and-Forward
Auto-Negotiation
Half-duplex back-pressure full-duplex
flow control
Auto MDI/MDIX
Switching Fabric 20Gbps
MAC Table Size 8K
Packet Buffer Memory 4Mb

Power

Input 100-240VAC, 50/60Hz
Power Consumption Device: 23W (without PoE)
PoE Power Budget: 250W

Physical

Casing Material Metal
Dimensions 266 x 161 x 44mm (W x D x H)
10.5" x 6.34" x 1.73"
Weight 4lbs (1.8kg)
Installation Type Rack mounting, Desktop

Environmental

Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -10 to 70°C (14 to 158°F)
Relative Humidity 10% to 90% (non-condensing)

Regulatory

ISO Manufactured in ISO-9001 facility
EMI FCC Part 15 Class B

Warranty

Length 3 Years
Details www.etherwan.com/support/warrantypolicy

What's Included

Device Ethernet Switch
Power AC power cord
Documentation Quick Install Guide

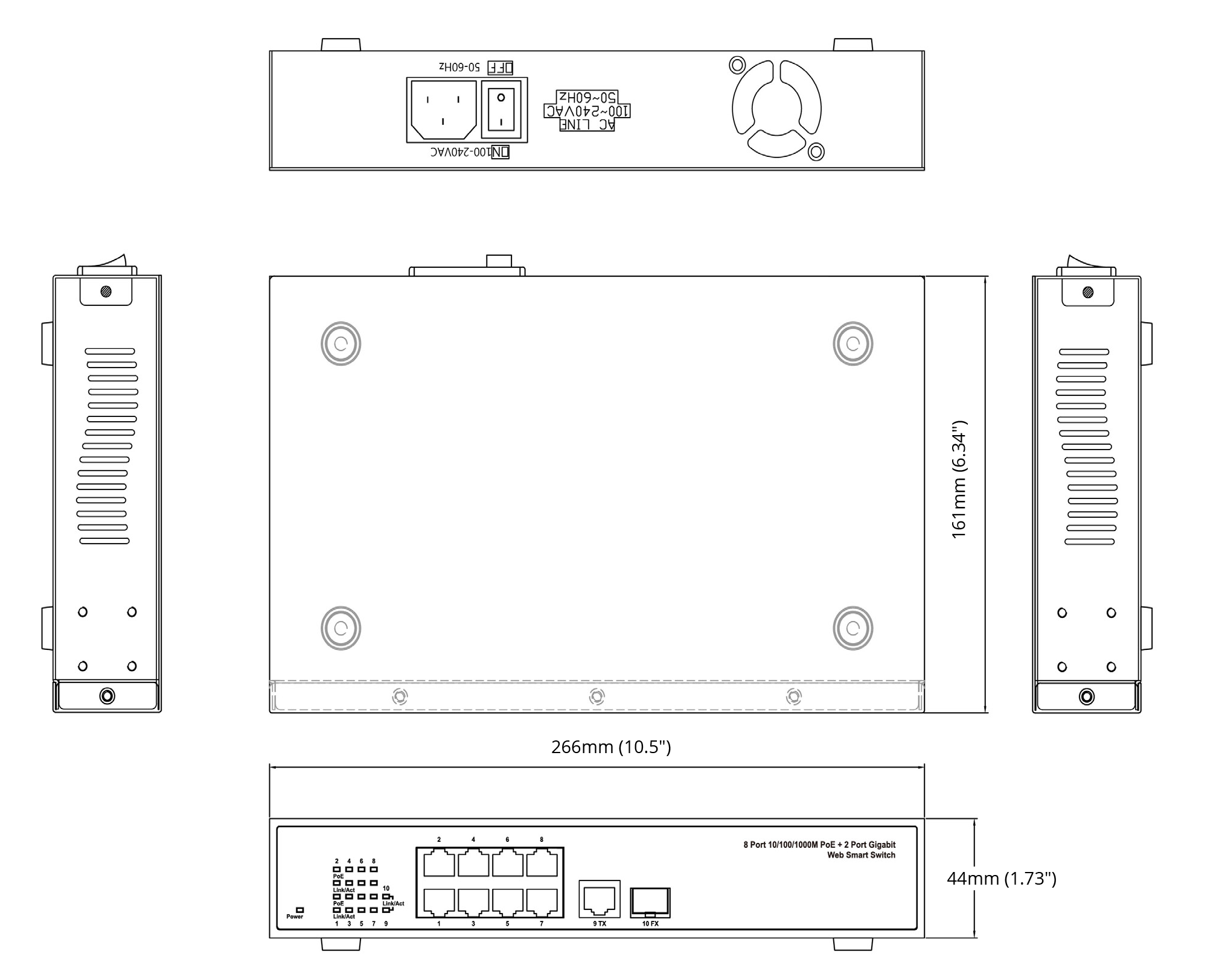

Dimensions
