EVB200

NEW

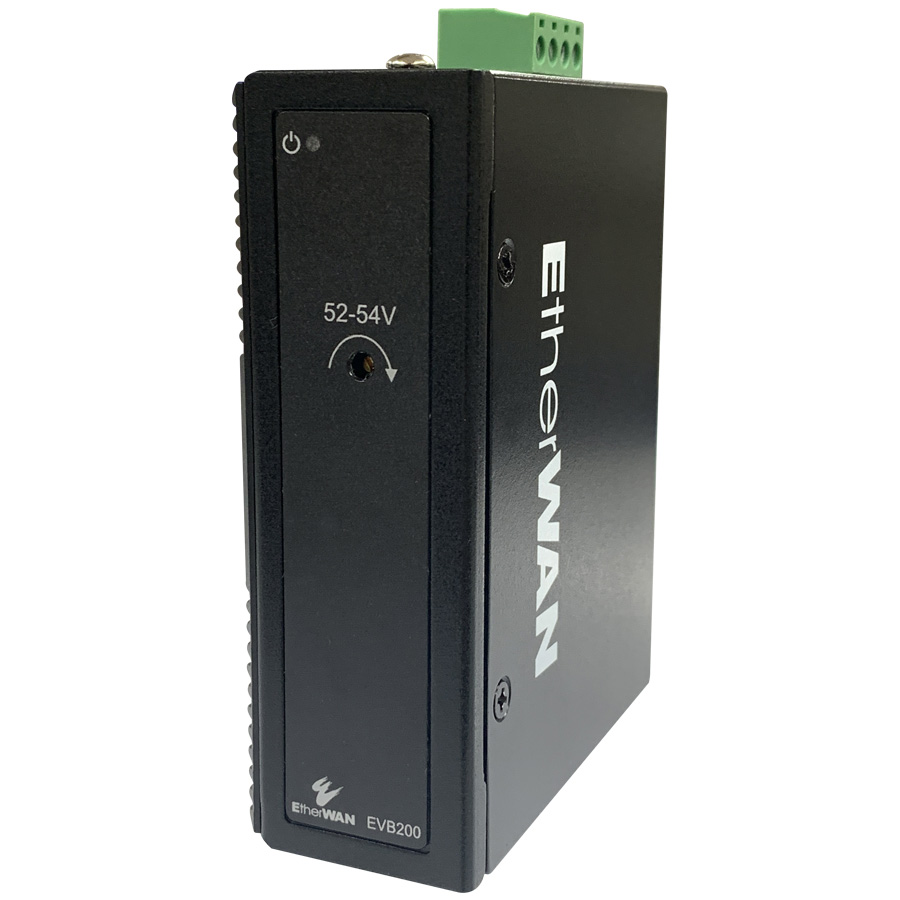

Hardened Voltage Booster for PoE Applications
Only Available in North America
Delivers 100W Max @ 12V-24VDC input range & 200W max @ 25-48VDC input range
Boosts 12-24VDC to 52-54VDC necessary for PoE+ & up (30W-90W)
Hardened-grade for non-ventilated and harsh environments

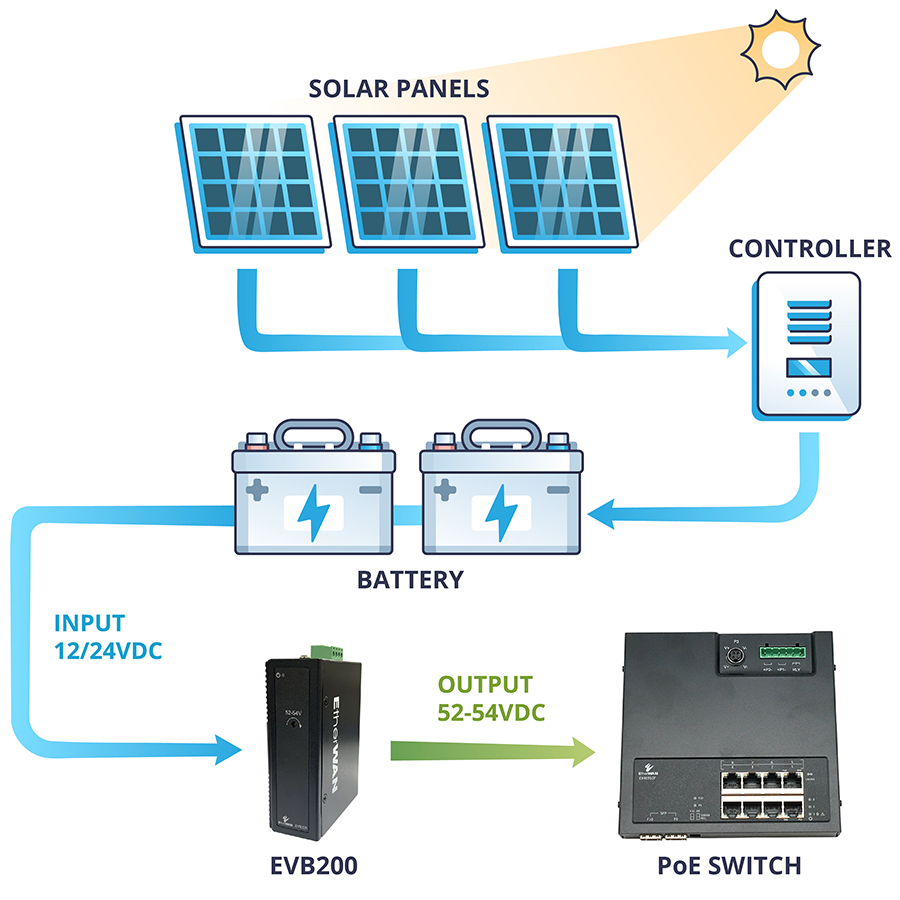

Perfect for solar and traffic cabinet applications where 12-24VDC is used
Downloads
Inquiry

Our robust voltage booster is designed to elevate input voltage and deliver a consistent power level ideal for Power over Ethernet (PoE) devices

It operates efficiently with an input range of 12-48VDC, providing up to up to 200W at 52-54VDC and an input range of 12-48VDC. The output voltage can be easily fine-tuned using the built-in voltage knob. Engineered for dependable operation in harsh environments, this power booster is perfect for solar applications where 12V or 24V inputs are common, but PoE is required.



Versatile Input Range & Reliable Power Delivery

  • Delivers max 100W at 12V-24V DC input range
  • Delivers max 200W at 24V-48V DC input range

Adjustable Voltage Output

  • Easily fine-tune the output voltage using the built-in voltage knob.

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Interface

  • LED Indicators
    • PWR (Amber)
    • ON - Power Ready
    • OFF - No Power Input
  • Adjustable Voltage Knob
    • Adjustable from 52-54VDC

Power

  • Power Connector
    • 4 pin terminal block
    • 2 pins for 12-48VDC input
    • 2 pins for 52-54VDC output
  • Terminal Block
    • Wire range: 0.34mm² to 2.5mm²
    • Solid wire (AWG): 12-24/14-22
    • Stranded wire (AWG): 12-24/14-22
    • Torque: 5lbs-in/0.5Nm/0.56Nm
    • Wire strip length: 7-8mm
  • Protection
    • Current overload protection

Physical

  • Casing Material
    • Rugged Metal
  • IP Rating
    • IP30
  • Dimensions
    • 32 x 81.5 x 103.5mm (W x D x H)
    • 1.26" x 3.21" x 4.07"
  • Weight
    • 0.75lbs (0.34kg)
  • Installation Type
    • DIN-rail or wall mount

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • >626,863 hours @ 50°C

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMC
    • FCC/CE
  • EMS
    • IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV
    • IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV
    • IEC 61000-4-5 Surge: Power: 4KV; Signal: 2KV
  • Safety
    • LVD (EN62368-1)
  • Vibration
    • EN 60068-2-6
  • Shock
    • EN 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Voltage Booster
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

MPN

  • EVB200
    • 1747155
evb200 dimensions
