EL2242-BT

NEW

Hardened Gigabit PoE Media Converter

SFP
PoE_90W
Fanless
Wide Temperature

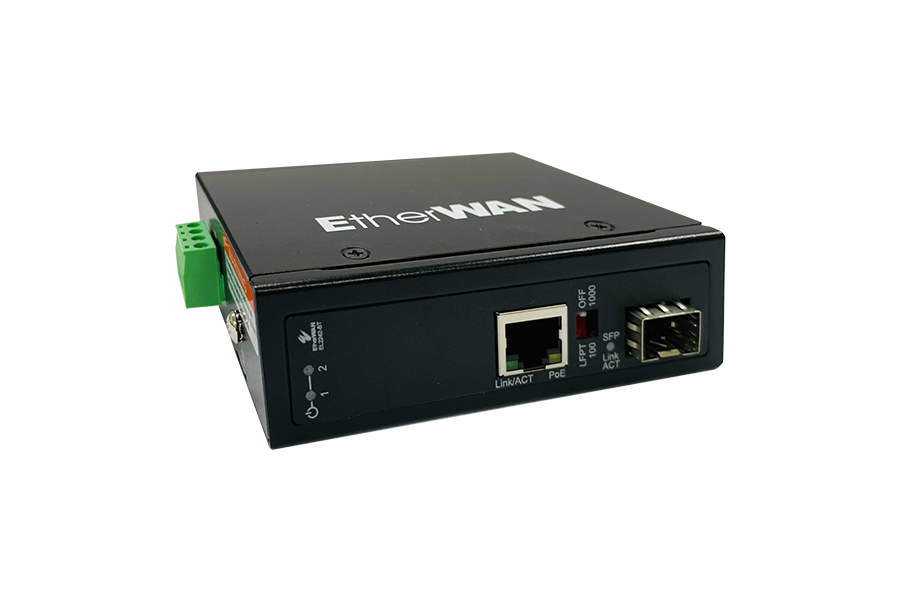

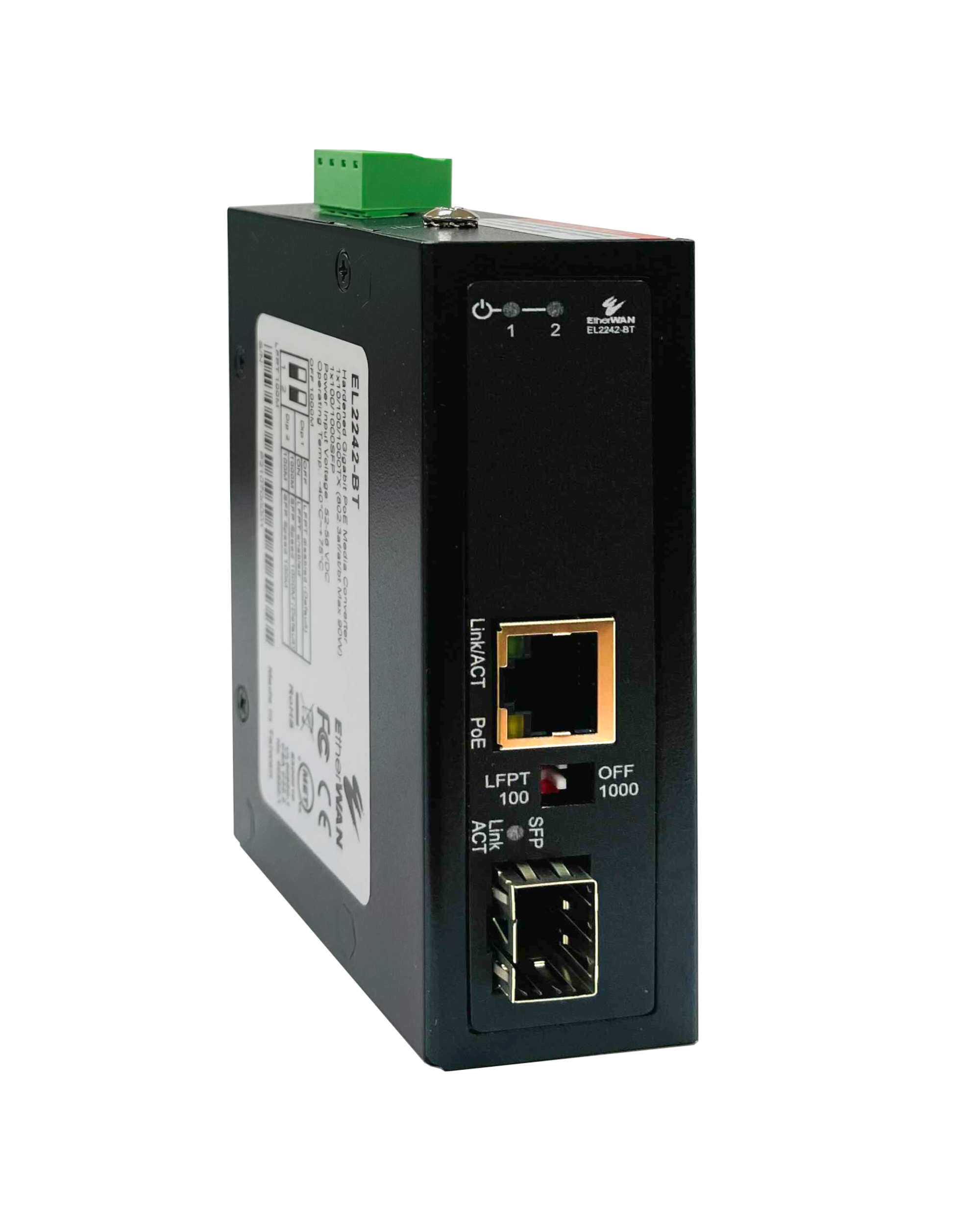

Front side of the EL2242-BT 90W Media Converter

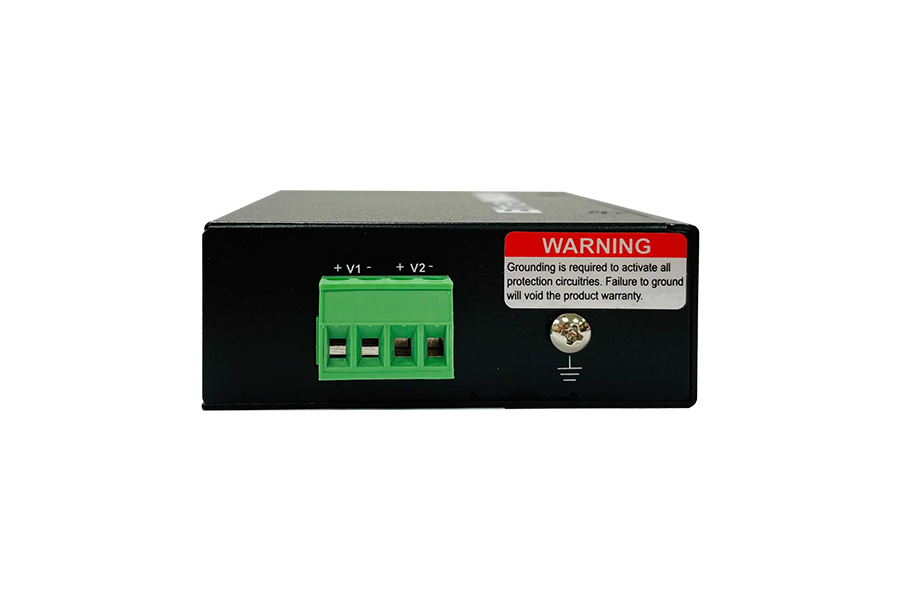

Left side of the EL2242-BT media converter

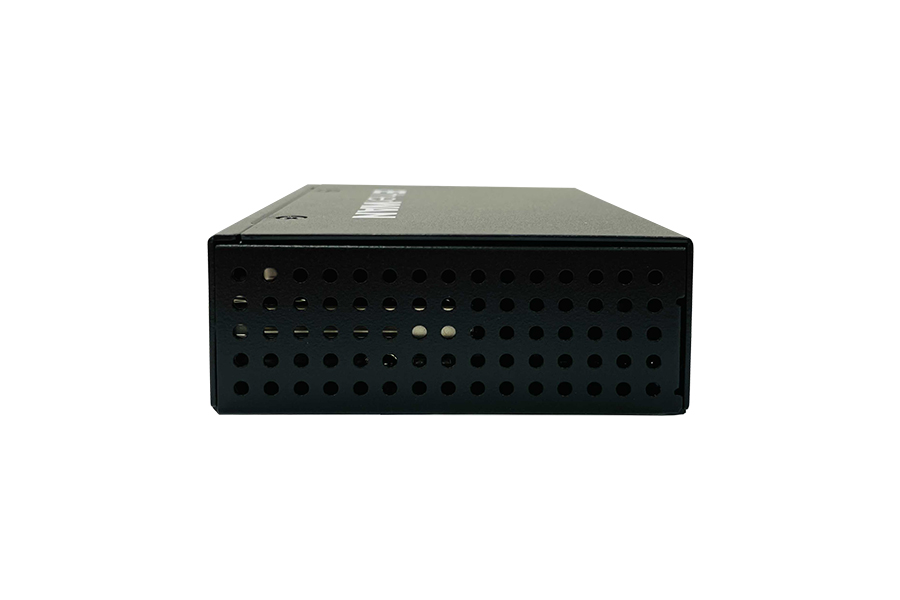

right side of the EL2242-BT media converter
Front side of the EL2242-BT 90W Media Converter
Left side of the EL2242-BT media converter
right side of the EL2242-BT media converter
PoE Power Budget of 90W
Link Fault Pass Through
Dual Rate SFP Slot
Front side of the EL2242-BT 90W Media Converter
Left side of the EL2242-BT media converter
right side of the EL2242-BT media converter
Overview
Spotlight
Specifications

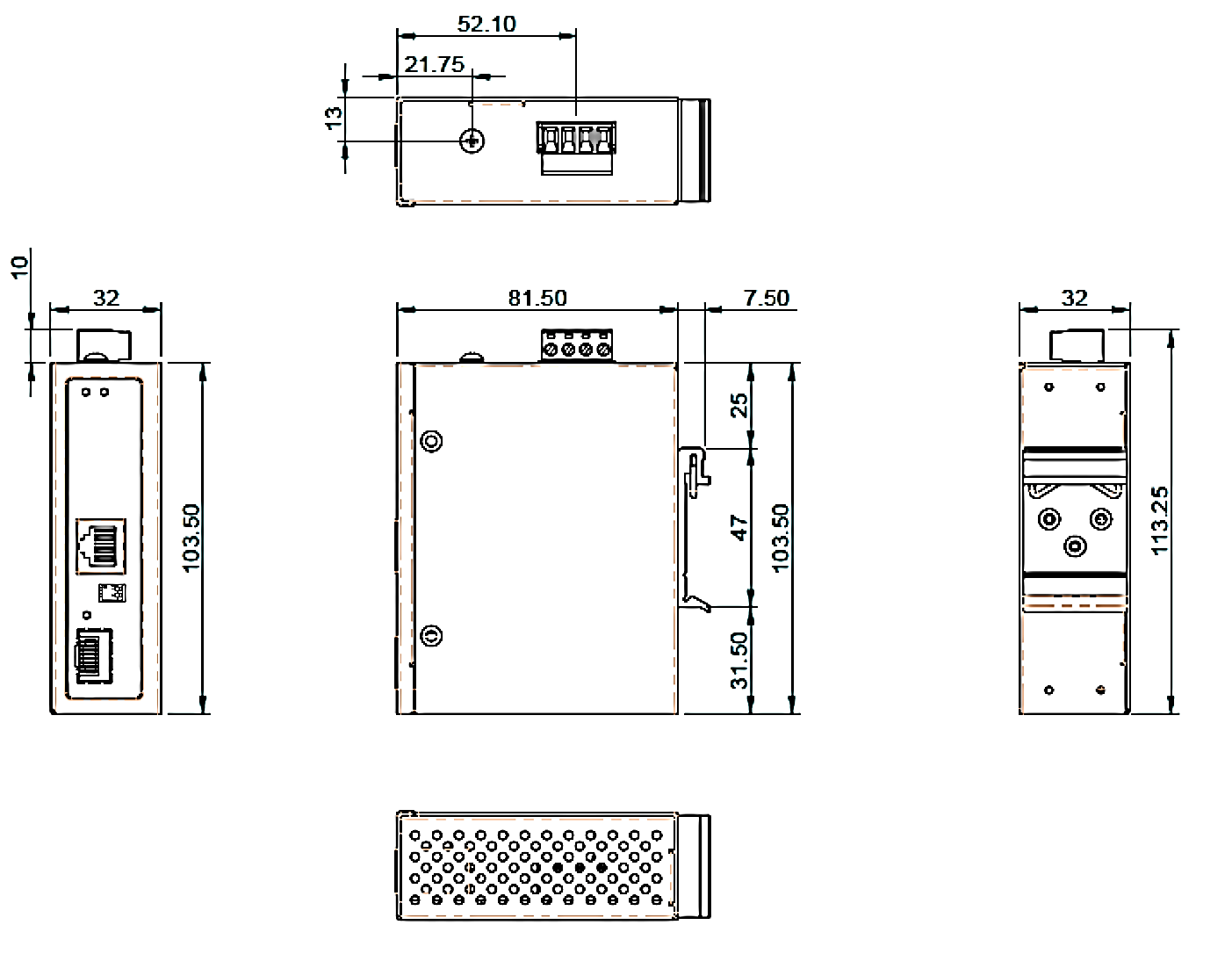

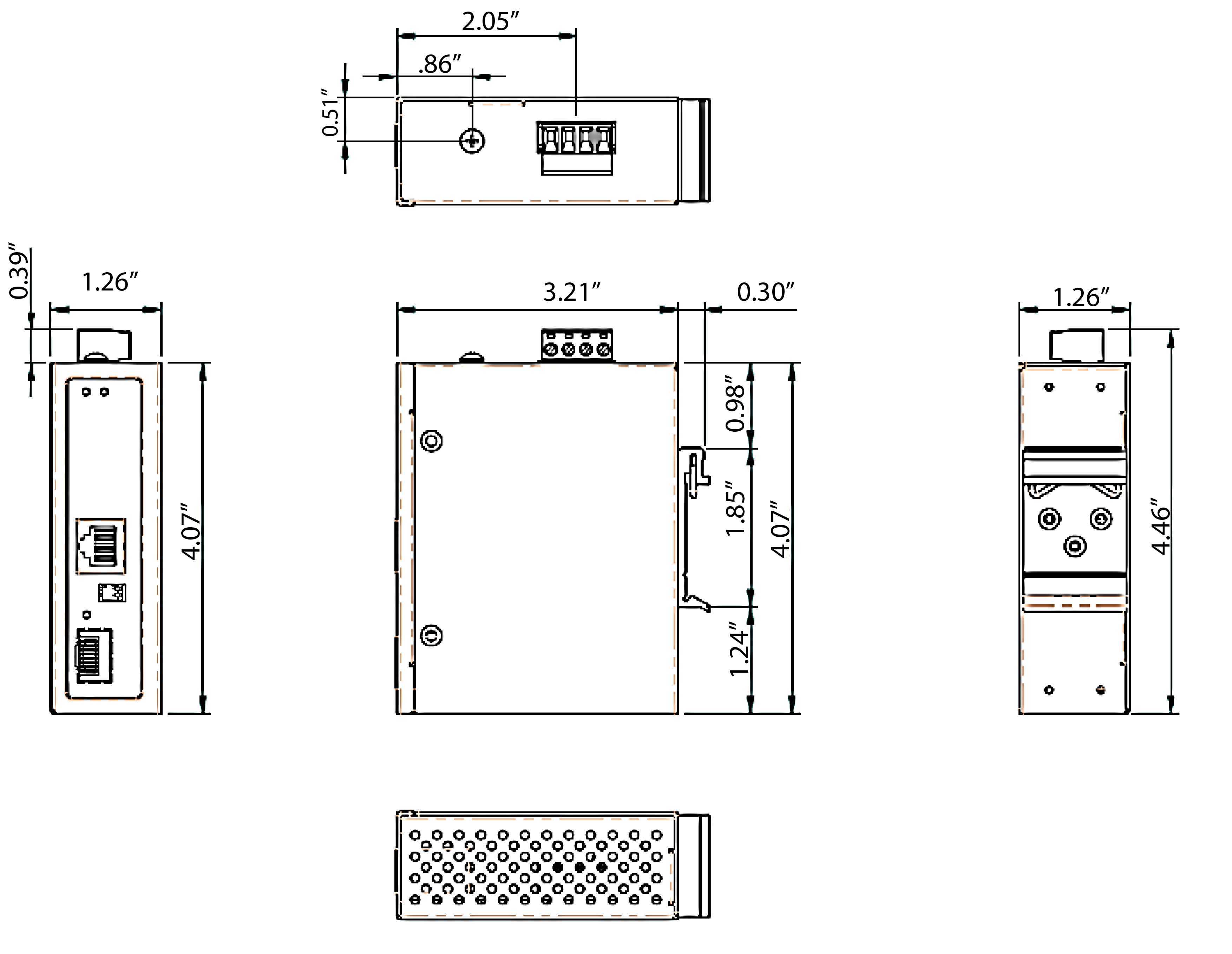

Dimensions
Ordering Info

EtherWAN’s EL2242-BT is a compact hardened DIN-rail mounted PoE Media Converter. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output and an 100/1000 SFP Slot, the EL2242-BT provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.
