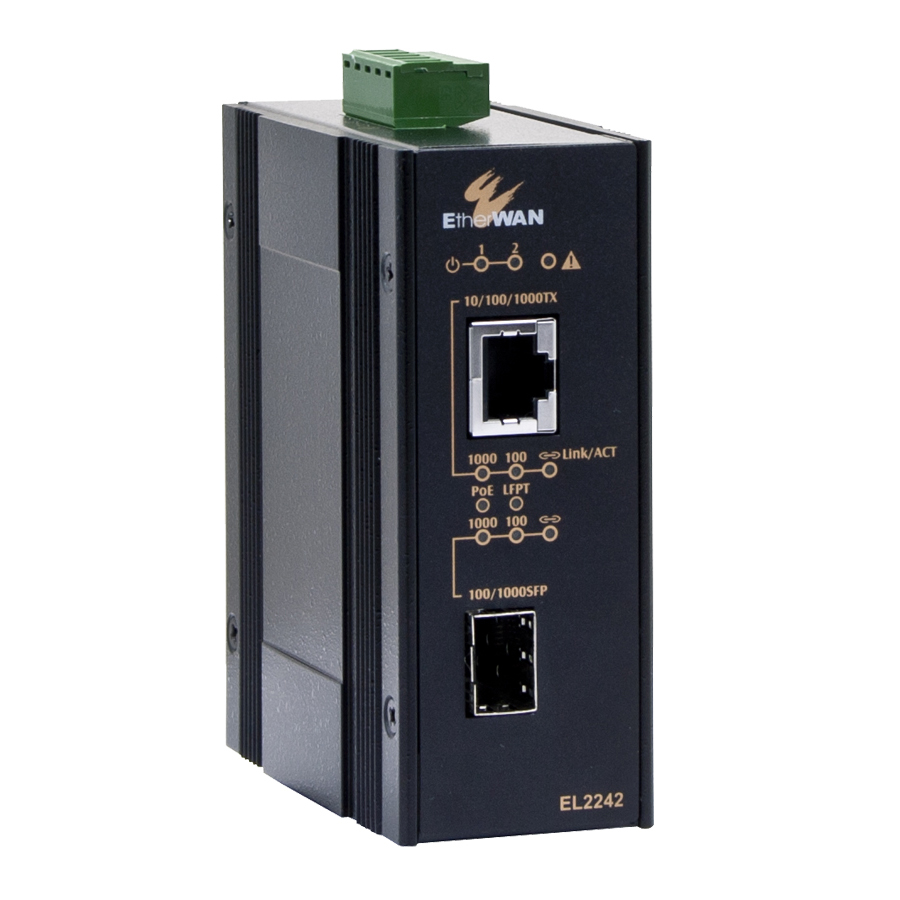

EL2242

Hardened PoE 10/100/1000BASE-T to 100/1000BASE Dual Rate Media Converter

SFP
PoE_30W
Fanless
UL 60950
Wide Temperature
PoE power budget of 30W
Link Fault Pass Through (LFPT)
Dual rate SFP slot
Overview
Spotlight
Specifications
Dimensions
Ordering Info

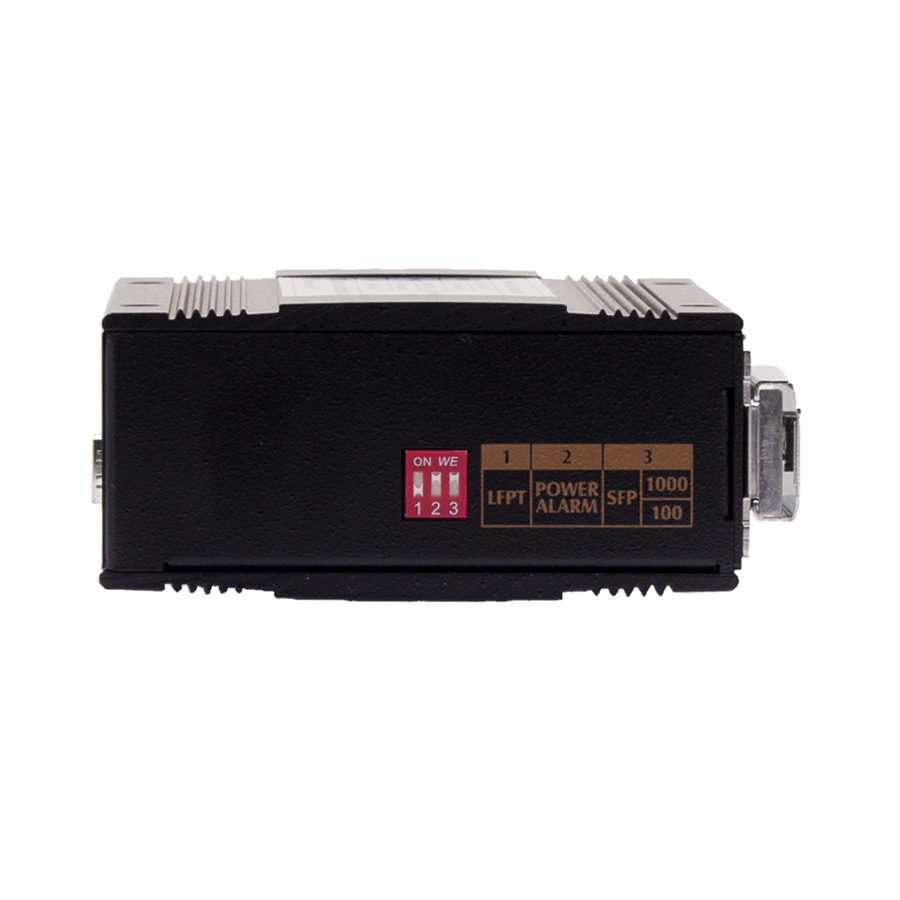

The EL2242 provides media conversion between 10/100/1000BASE-T(X) and 100/1000 BASE SFP fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be enabled or disabled. EL2242 supports IEEE802.3at PoE/PSE standard and can transmit power and data over one STP cable. The EL2242's hardened design features high shock and vibration, electrical noise immunity and a wide operating temperature range from -40°C to 75°C. EL2242 is the ideal media converter for harsh environments.

EtherWAN — "When Connectivity is Crucial."

Power over Ethernet

» Supports IEEE802.3at PoE/PSE standard

Hardened operating temperature range

» From -40°C to 75°C, wide operating temperature is suitable for outdoor cabinet installation

Dual Rate Optic Port

» SFP fiber optic port supports 100/1000BASE-X

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/FX
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3at PoE/PSE

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Processing Type
  • • Cut-through mode
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX




Power

Input Voltage

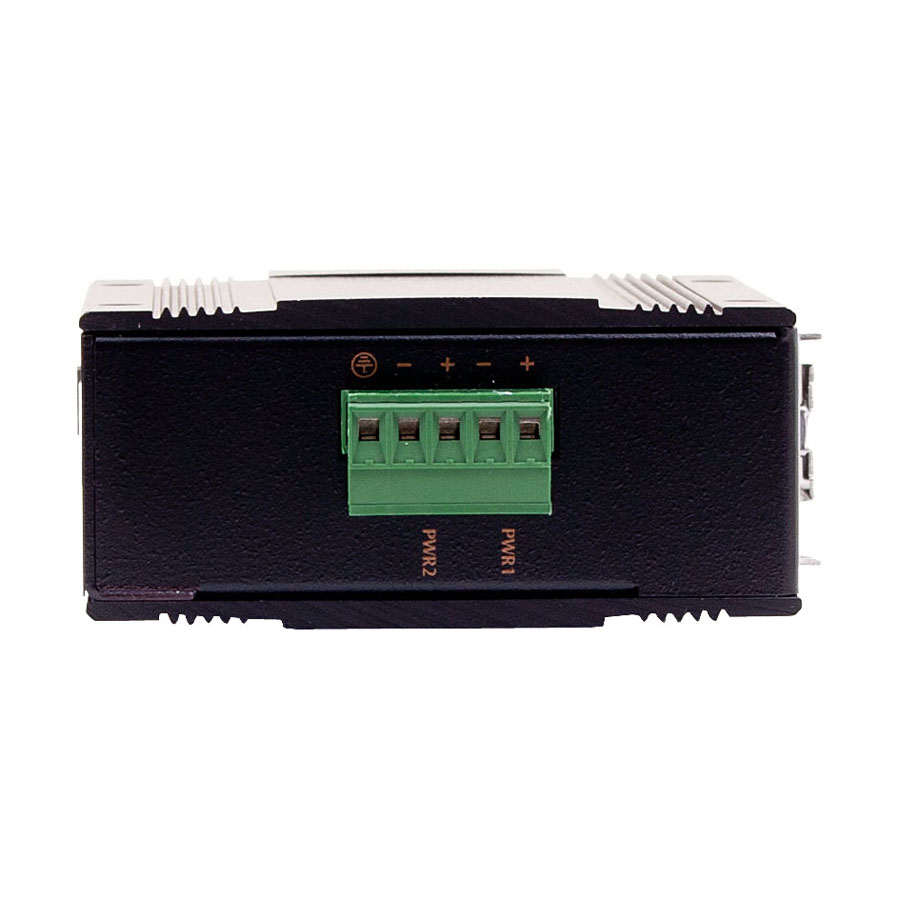

  • • 48–57VDC for unit and PoE system (50– 57VDC is recommend for PoE+ device)

Power Consumption
  • • Device: Max. 3.5W without PoE
  • • PoE power budget: 30W Max. (depends on power input)

Protection
  • • Overload current protection
  • • Reverse polarity protection




Mechanical

Casing

  • • Aluminum Case

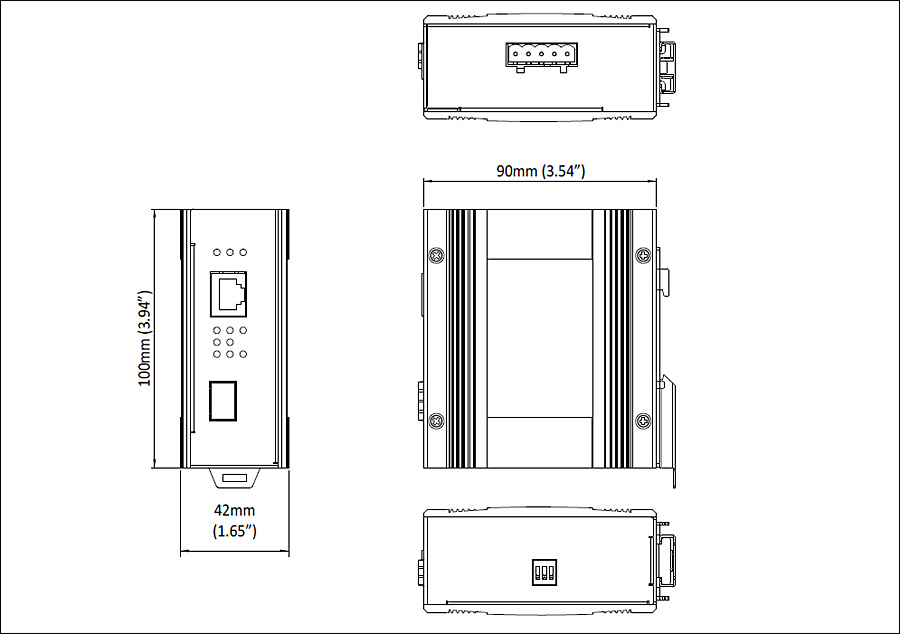

Dimensions
  • • 42mm (W) x 90mm (D) x 100mm (H)
      (1.65" (W) x 3.54" (D) x 3.94" (H))

Weight
  • • 380g (0.83 lbs)

  • Installation

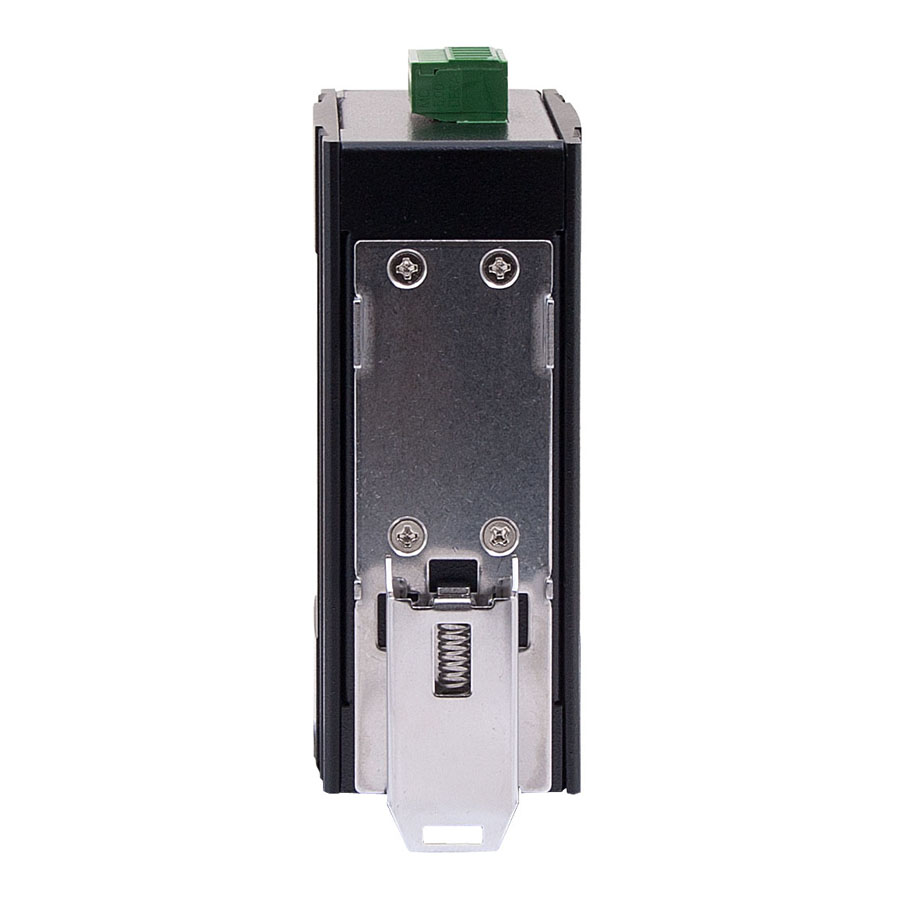

    • • DIN-Rail (top hat type 35mm)




    Interface

    Ethernet Port

    • • 10/100/1000BASE-TX: 1 port
    • • 100/1000BASE-SFP: 1 port

    • LED Indicators
      • • Per Unit: Power1, Power2 , Power Alarm
      • • Per 10/100/1000BASE-TX Port: 1000, 10/100, Link/Act
      • • Per 100/1000BASE-FX Port: 1000, 100, Link/Act
      • • PoE: On/Off
      • • LFPT: On/Off




      Environment

      Operating Temperature

      • • -40°C to 75°C (-40°F to 167°F)

      Storage Temperature
      • • -40°C to 85°C (-40°F to 185°F)

      Ambient Relative Humidity
      • • 5% to 95% (non-condensing)




      Regulatory Approvals

      ISO

      • • Manufactured in an ISO9001 facility

      Safety
      • UL 60950-1
      • IEC 60950-1
      • EN 60950-1

      EMI
      • FCC Part 15B Class A
      • VCCI Class A
      • EN61000-3-2
      • EN61000-3-3
      • EN61000-6-4

      EMS
      • EN61000-6-2
        • • EN61000-4-2 (ESD Standards)
        • • EN61000-4-3 (Radiated RFI Standards)
        • • EN61000-4-4 (Burst Standards)
        • • EN61000-4-5 (Surge Standards)
        • • EN61000-4-6 (Induced RFI Standards)
        • • EN61000-4-8 (Magnetic Field Standards)

      Environmental Test Compliance
      • IEC60068-2-6 Fc (Vibration Resistance)
      • IEC60068-2-27 Ea (Shock)
      • FED STD 101C Method5007.1 (Free fall w/ package)





Model

EL2242-V1B Hardened PoE 10/100/1000BASE-T to 100/1000BASE Dual Rate Media Converter

* DIN-Rail mounting kit included


1000BASE-X Fiber Options (X)

V 100/1000BASE-X SFP

Optional Accessories

DR-75-48 75W/1.6A DIN-Rail 48VDC Industrial Power Supply (for terminal block)
MDR-40-48 40W/0.83A 48VDC Industrial Power Supply (for terminal block)
DD-85-48 85W/1.78A 48VDC industrial Power Supply (for terminal block)
DD-85-55 85W/1.78A 55VDC Industrial Power Supply (for terminal block)
