ED20KEXT4PSW

NEW

Managed 10/100BASE-TX Ethernet Extender

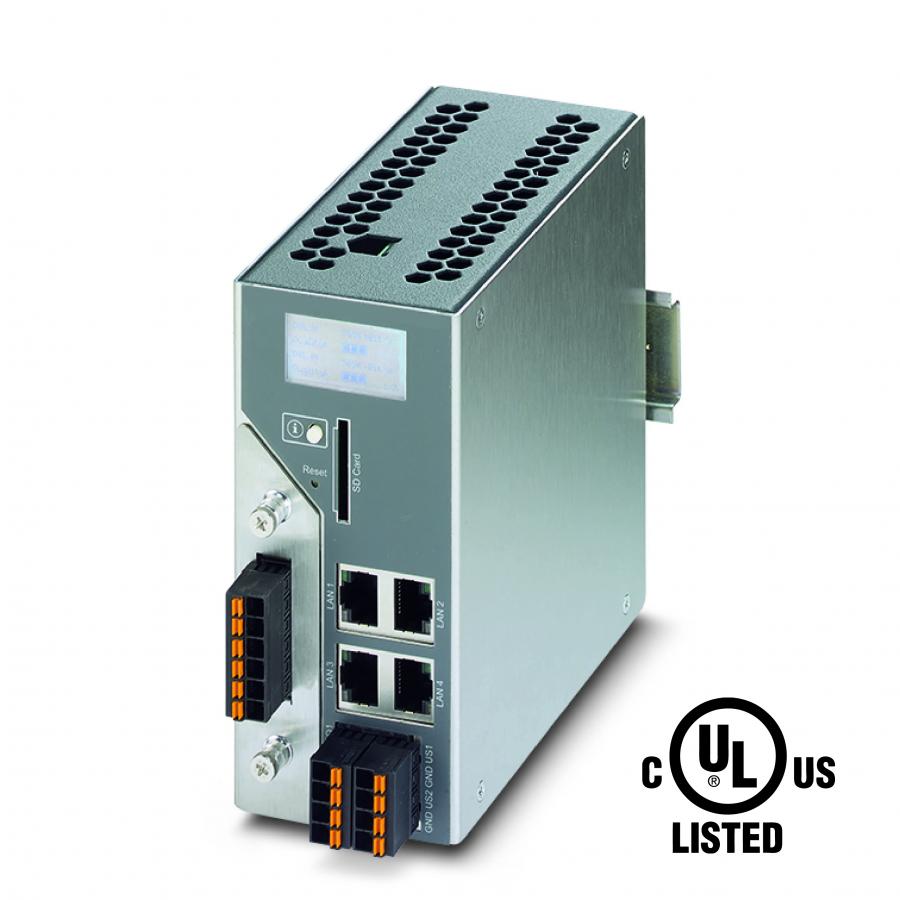

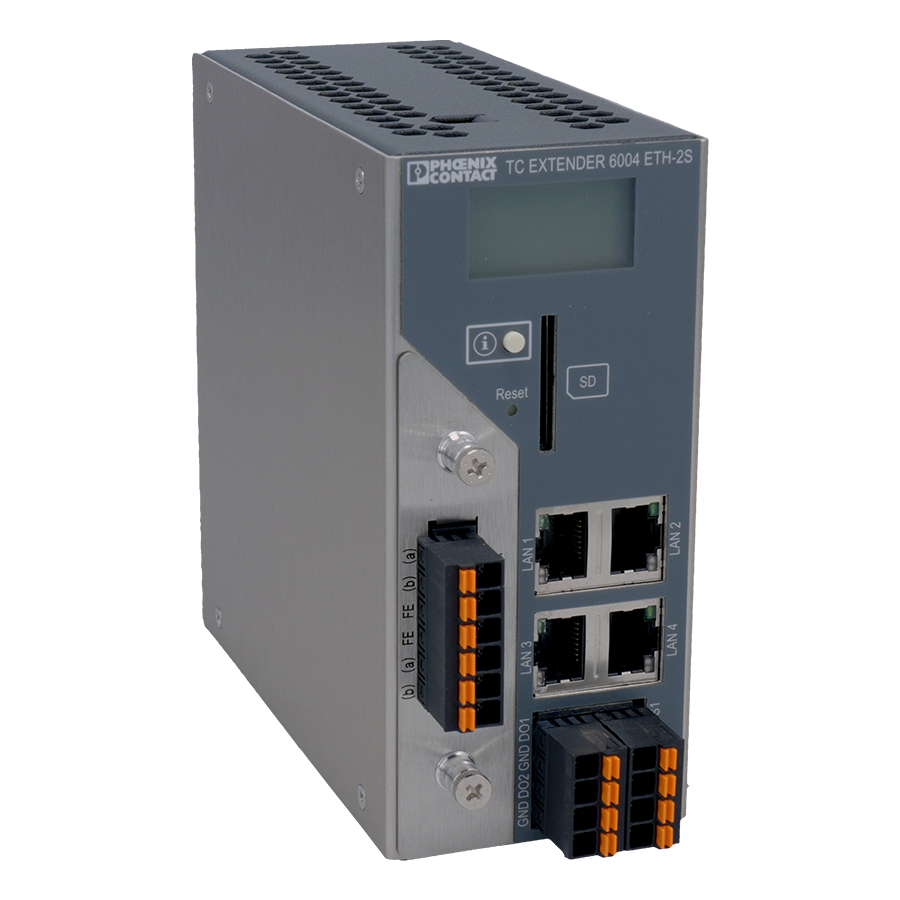

ED20KEXT4PSW Managed 10/100BASE-TX Ethernet Extender

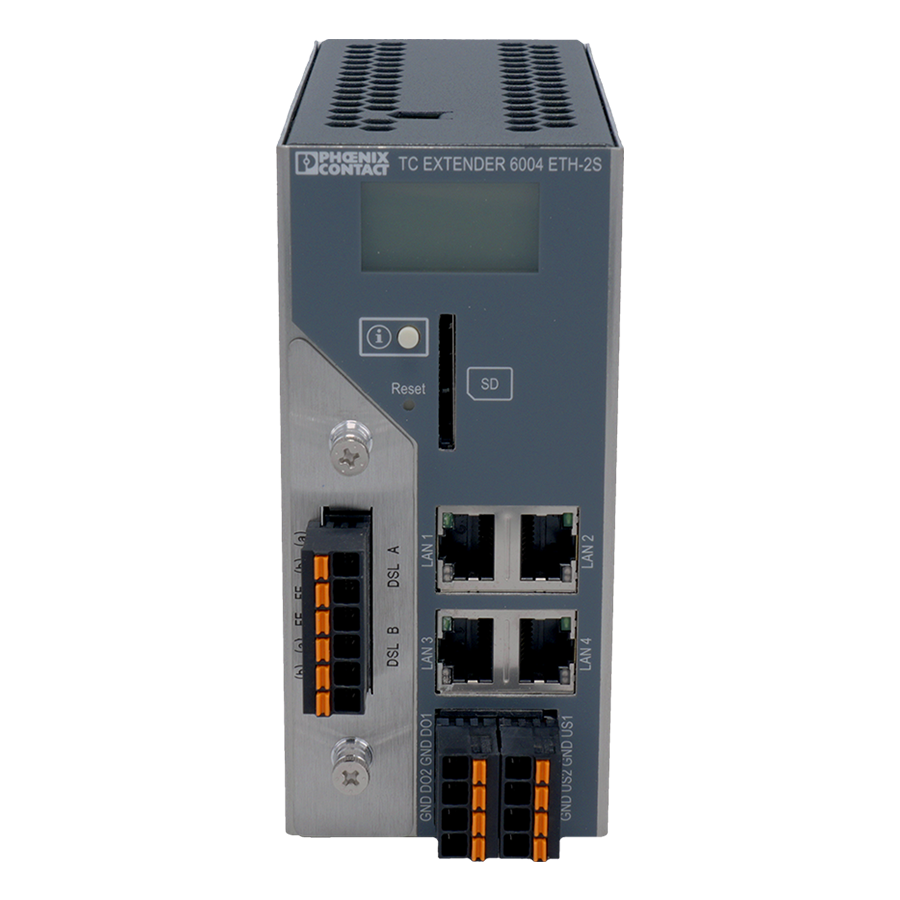

ED20KEXT4PSW Managed 10/100BASE-TX Ethernet Extender
Available in North America only

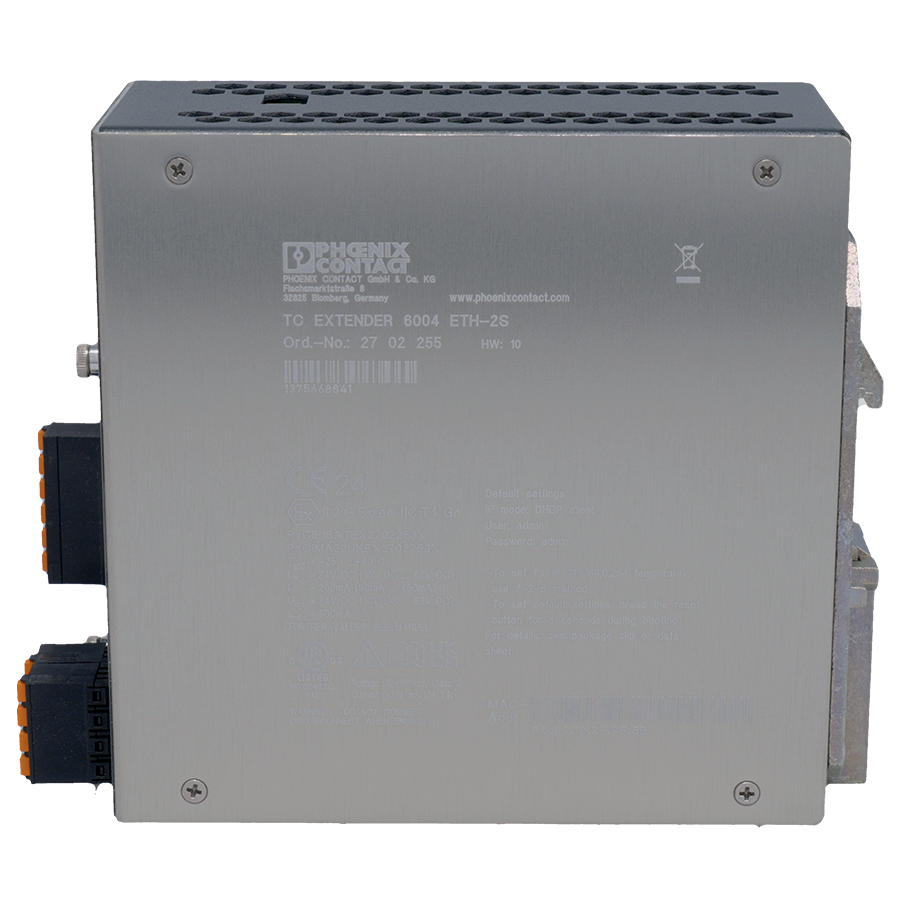

ED20KEXT4PSW Managed 10/100BASE-TX Ethernet Extender

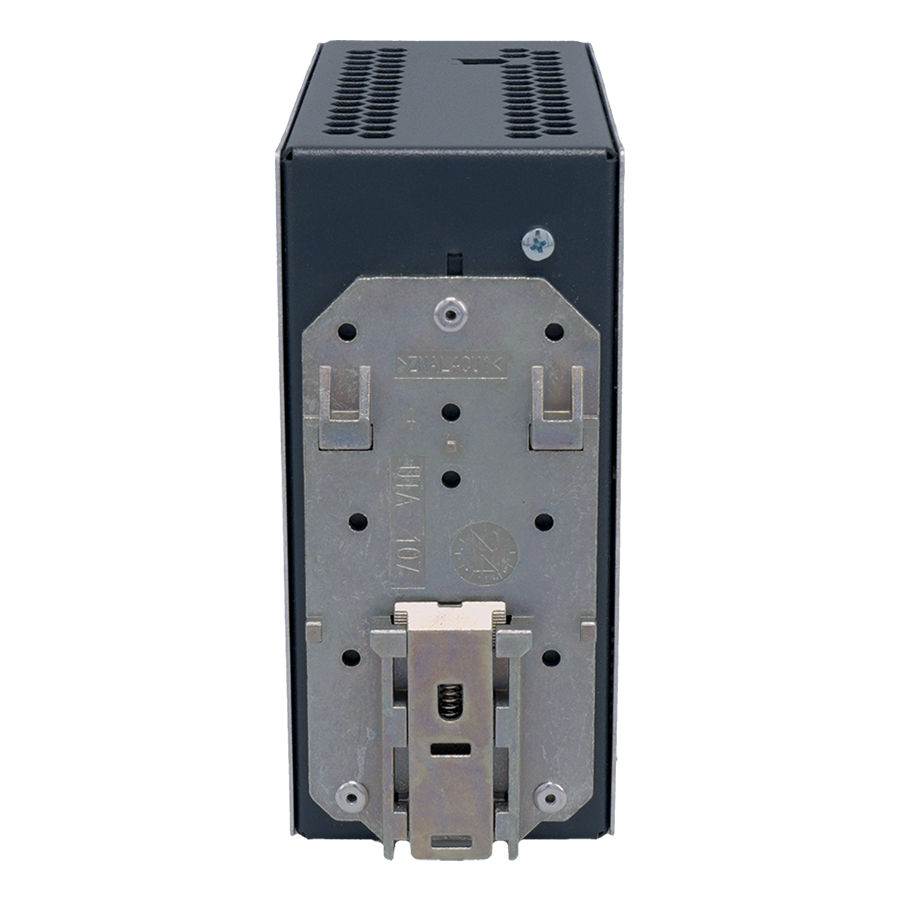

ED20KEXT4PSW Managed 10/100BASE-TX Ethernet Extender

Downloads

Highlights
Overview
Features
Specifications
Dimensions
Ordering Info

Your Advantages

  • Distances up to 12.4 miles (20km)
  • Up to 15.3Mbps in 2-wire operation
  • Up to 30Mbps in 4-wire operation
  • Robust modulation method (SHDSL)
  • Automatic SHDSL data rate detection
  • Network transparent (no IP configuration required)
  • Automatic detection of network cable type (auto MDI(X))
  • Automatic network data rate detection (10/100Mbps)
  • Easy startup, plug and play
  • Two digital outputs for alerting external controllers
  • Remote diagnostics via IP and automatic event messages via SNMP

EtherWAN's ED20EXT4PSW is a managed Ethernet extender with point-to-point connections, line and ring structures, data rates of up to 30Mbps, distances of up to 12.4 miles (20km) on in-house copper cables, replaceable surge protection, 2 SHDSL ports, 4-port switch, and diagnostics via display and Ethernet.

EtherWAN — "When Connectivity is Crucial."

Management

  • DHCP Client
  • IPv4, IPv6
  • SNMP
  • Remote diagnostics via IP
  • TCP/IP
  • ARP
  • Web management

Security

  • System logging
  • HTTP/HTTPS for web security


Performance

  • Max Distance
    • 12.4 miles (20km): Depending on data rate and cable cross section
  • Max Speed
    • 15.3Mbps in 2-wire operation
    • 30MBps in 4-wire operation
  • Cabling Limitations
    • Conductor cross section solid: Min: 0.2mm²; Max: 1.5mm²
    • Conductor cross section flexible: Min: 0.2mm²; Max: 2.5mm²
    • Conductor cross section AWG: Min: 24; Max: 16

Interface

  • Ethernet
    • 4 x 10/100Base-T(X)
  • Extender Ports
    • 1 x RJ45 socket
  • LED Indicators
    • Power, Device Information, Display Panel

Technology

  • Standards
    • IEEE 802.3
  • Processing Type
    • Auto-negotiation
    • SHDSL interface according to ITU-T G.991.2.bis

Power

  • Input
    • 10VDC to 60VDC
  • Typical Current Consumption
    • 90mA (60VDC)
    • 200mA (24VDC)
    • 450mA (10VDC)

Physical

  • Casing Material
    • Aluminum/steel sheet DC01
  • IP Rating
    • IP20
  • Dimensions
    • 60 x 130 x 160mm (W x D x H)
      2.4" x 5.1" x 6.3"
  • Weight
    • 1.7lbs (27.7oz/786g)
  • Installation Type
    • DIN Rail

Environmental

  • Operating Temp.
    • -13 to 140°F (-25 to 60°C)
    • -13 to 32°F (-25 to 0°C): Display inactivity can occur, image changes may take several seconds
    • 131 to 140°F (55 to 60°C): Display contrast can deteriorate
  • Storage Temp.
    • -40 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 10% to 95% (non-condensing)
  • Altitude
    • <8200ft (2500m) (For restrictions, see the manufacturer's declaration for altitude operation)
  • MTBF
    • 577 Years (SN 29500 standard, temperature 77°F/25°C, operating cycle 21%)
    • 300 Years (SN 29500 standard, temperature 104°F/40°C, operating cycle 34.25%)
    • 128 Years (SN 29500 standard, temperature 104°F/40°C, operating cycle 100%)

Regulatory

  • EMI
    • EN 50121-4
    • EN 55011
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
  • Safety
    • UL Listed, cUL Listed, cULus Listed
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Electromagnetic
    • EMC Directive 2014/30/EU

Warranty

What's Included

  • Device
    • Ethernet Extender
  • Cables
    • Preassembled data cable

Model

ED20KEXT4PSW 4-port Managed 10/100BASE-TX Ethernet Extender with 2 SHDSL ports
Highlights

Your Advantages

  • Distances up to 12.4 miles (20km)
  • Up to 15.3Mbps in 2-wire operation
  • Up to 30Mbps in 4-wire operation
  • Robust modulation method (SHDSL)
  • Automatic SHDSL data rate detection
  • Network transparent (no IP configuration required)
  • Automatic detection of network cable type (auto MDI(X))
  • Automatic network data rate detection (10/100Mbps)
  • Easy startup, plug and play
  • Two digital outputs for alerting external controllers
  • Remote diagnostics via IP and automatic event messages via SNMP
Overview

EtherWAN's ED20EXT4PSW is a managed Ethernet extender with point-to-point connections, line and ring structures, data rates of up to 30Mbps, distances of up to 12.4 miles (20km) on in-house copper cables, replaceable surge protection, 2 SHDSL ports, 4-port switch, and diagnostics via display and Ethernet.

EtherWAN — "When Connectivity is Crucial."

Features

Management

  • DHCP Client
  • IPv4, IPv6
  • SNMP
  • Remote diagnostics via IP
  • TCP/IP
  • ARP
  • Web management

Security

  • System logging
  • HTTP/HTTPS for web security
Specifications


Performance

  • Max Distance
    • 12.4 miles (20km): Depending on data rate and cable cross section
  • Max Speed
    • 15.3Mbps in 2-wire operation
    • 30MBps in 4-wire operation
  • Cabling Limitations
    • Conductor cross section solid: Min: 0.2mm²; Max: 1.5mm²
    • Conductor cross section flexible: Min: 0.2mm²; Max: 2.5mm²
    • Conductor cross section AWG: Min: 24; Max: 16

Interface

  • Ethernet
    • 4 x 10/100Base-T(X)
  • Extender Ports
    • 1 x RJ45 socket
  • LED Indicators
    • Power, Device Information, Display Panel

Technology

  • Standards
    • IEEE 802.3
  • Processing Type
    • Auto-negotiation
    • SHDSL interface according to ITU-T G.991.2.bis

Power

  • Input
    • 10VDC to 60VDC
  • Typical Current Consumption
    • 90mA (60VDC)
    • 200mA (24VDC)
    • 450mA (10VDC)

Physical

  • Casing Material
    • Aluminum/steel sheet DC01
  • IP Rating
    • IP20
  • Dimensions
    • 60 x 130 x 160mm (W x D x H)
      2.4" x 5.1" x 6.3"
  • Weight
    • 1.7lbs (27.7oz/786g)
  • Installation Type
    • DIN Rail

Environmental

  • Operating Temp.
    • -13 to 140°F (-25 to 60°C)
    • -13 to 32°F (-25 to 0°C): Display inactivity can occur, image changes may take several seconds
    • 131 to 140°F (55 to 60°C): Display contrast can deteriorate
  • Storage Temp.
    • -40 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 10% to 95% (non-condensing)
  • Altitude
    • <8200ft (2500m) (For restrictions, see the manufacturer's declaration for altitude operation)
  • MTBF
    • 577 Years (SN 29500 standard, temperature 77°F/25°C, operating cycle 21%)
    • 300 Years (SN 29500 standard, temperature 104°F/40°C, operating cycle 34.25%)
    • 128 Years (SN 29500 standard, temperature 104°F/40°C, operating cycle 100%)

Regulatory

  • EMI
    • EN 50121-4
    • EN 55011
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
  • Safety
    • UL Listed, cUL Listed, cULus Listed
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Electromagnetic
    • EMC Directive 2014/30/EU

Warranty

What's Included

  • Device
    • Ethernet Extender
  • Cables
    • Preassembled data cable

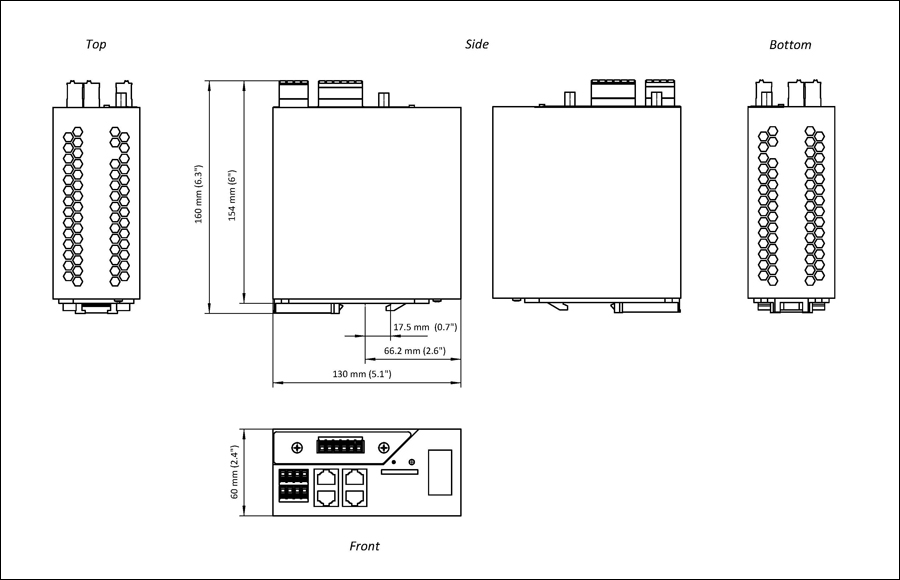

Dimensions
