EasyPoE® Pro Series

Interface

• CLI, Telnet, Web GUI, SSH

Management

• SFTP (Secure FTP) support
• Configuration backup
• DHCP Server/Client
• RMON (Remote Monitoring)
• Port Mirroring
• NTP (Network Time Protocol) synchronization
• PoE Watchdog
• LLDP (Link Layer Discovery Protocol)
• IPv4/IPv6
• SNMP v1/v2c/v3
• Modbus TCP

Security

• MAC Address filtering
• Enable/Disable port
• Storm Control and Detection
• System logging
• IEEE 802.1x LAN Access control
• Remote authentication through RADIUS and TACACS+
• Complex password support
• Multi-user login and privileged access management
• SSH for CLI and Telnet security
• TLS and HTTPS for web security
• ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

• Priority Queues: 8 queues per port
• Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
• Rate Limiting (Ingress/Egress)

Layer 2 Features

• Auto-negotiation for port speed and duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
  • EtherWAN's Alpha-Ring network fault recovery
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk (4 groups)
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Layer 3 Features

• IP Packet Routing
  • Maximum number of routes in hardware: 64 entries
  • Static Routing
  • RIP v1/v2
  • OSPF v2
• Routing Redundancy
  • VRRP

Software Properties and Performance

• Switching Fabric
  • 104Gbps
• Forwarding Rate
  • 75.29Mpps
• Max VLANs
  • 256 (4096 VID)
• Jumbo Frame Size
  • 9KB
• MAC Table Size
  • 16K
• Packet Buffer Memory
  • 12M bits

Interface

• Ethernet
  • 12 x 10/100/1000BASE-T(X)
  • 4 x 1/10G SFP+
• Console
  • 1 x RJ45
• Config Backup
  • 1 x USB (Type A Connector)
• Digital Input
  • 2 x Digital Input
  • Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
  • Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
• Alarm Contact
  • 2 x Relay output, current capacity; 0.5A/48VDC
• LED Indicators
  • Per Unit: Power 1, Power 2
  • Per Port: Link/Activity (Green)
  • Per PoE Port: PoE Status (Orange)

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
  • IEEE 802.3az EEE
  • IEEE 802.3af/at/bt Power over Ethernet
  • IEEE 1588v2 PTP
  •
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 2Gb DDR3 SDRAM
• Flash Storage
  • 1Gb

Power

• Input
  • 46-57VDC Redundant (Terminal block)**
    ** 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
        52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
        54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
• Power Consumption
  • 20W Max (without PoE)
• PoE Power Output
  • Ports 1-12: Up to 90W/port; Power Budget: 360W
• Protection
  • Reverse Polarity Protection

Physical

• Casing Material
  • Aluminum
• IP Rating
  • IP30
• Dimensions
  • 72 x 140 x 170mm (W x D x H)
    2.8" x 5.5" x 6.7"
• Weight
  • 1.5kg (3.3lbs)
• Installation Type
  • DIN-rail mounting

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 1,496,987 hours

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
• EMS
  • EN 61000-6-2
  • EN 61000-6-2
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • PoE Ports: line to earth 6kV Surge
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 61010
• Traffic
  • NEMA TS2
• Rail
  • EN 50121-4
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • FED STD 101C Method 5007.1

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet switch
• Cables
  • 1 Console cable
• Documentation
  • Quick install guide

PoE Power Supply

• Input
  • 100-240VAC
• Output
  • 54VDC
• IP Rating
  • IP67

Other Components

• Fiber Management
  • Fiber splice tray
• RJ45 Cable Management
  • Copper patch jacks (optional)
• Alarm
  • Door sensor
• Electrical
  • GFCI receptacle, Surge suppressor

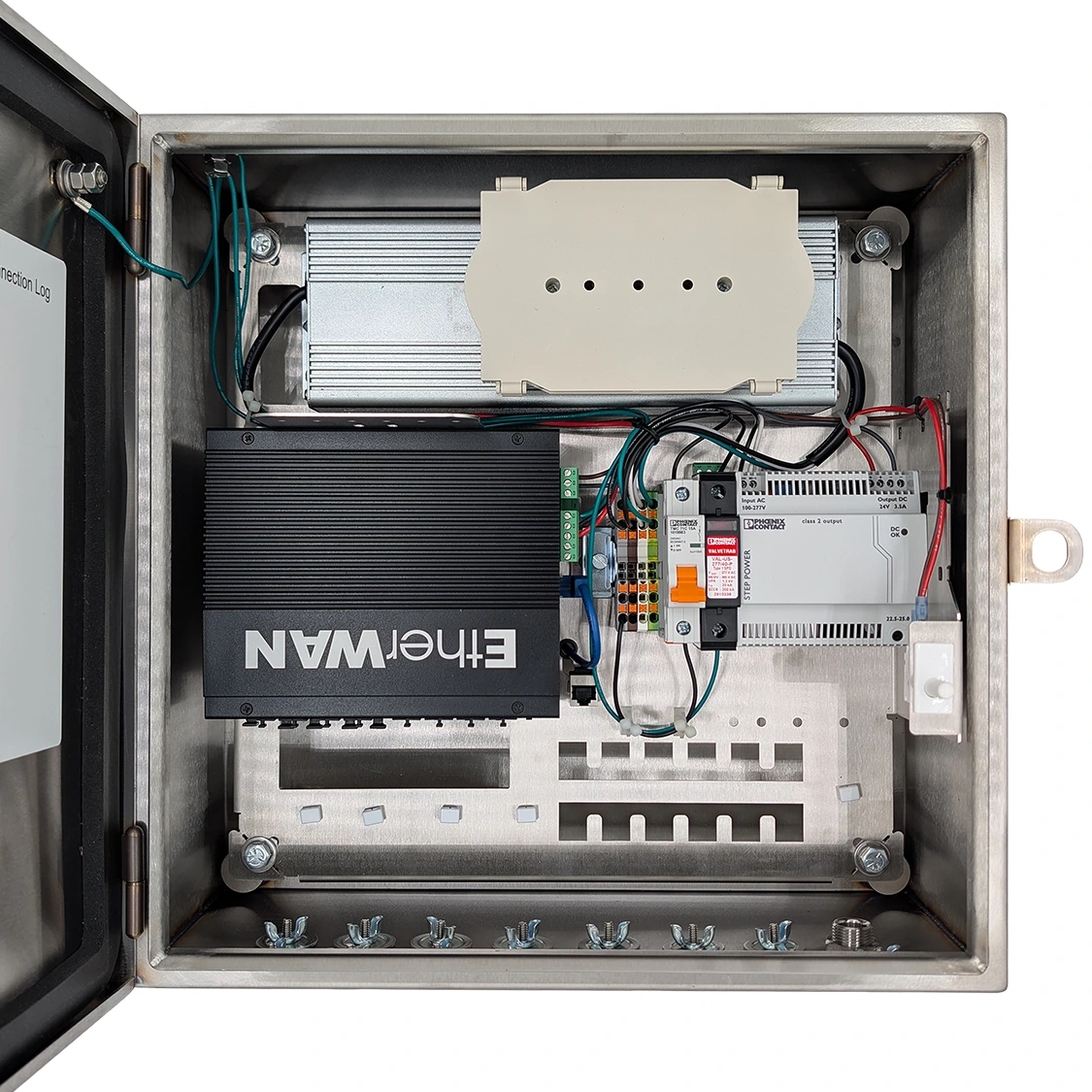

Stainless Steel Enclosure System

• Dimensions
  • 15.75" x 15.75" x 7.87" (WHD)
• Weight
  • 45lbs when fully populated
• Mounting Options
  • Wall/Panel (included), Pole (optional)
• Input Voltage
  • 100-240VAC

Optional LTE Cellular Router

• Casing Material
  • Aluminum
• SIM Support
  • Dual Sim
• Cellular
  • Verizon/AT&T Support, LTE CAT6
• Wireless
  • 802.11 a/b/g/n/ac Dual Band
• Ethernet
  • 4 x 10/100/1000BASE-T RJ45

LTE Router Antenna (for Stainless Only)

• Type
  • 2 x LTE, 2 x WiFi, 1 x GPS
• Gain
  • 5dBi GPS, 3dBix2 LTE, 3dBix2 WiFi
• Dimensions
  • 143.6mm x 65mm
• Weight
  • 3.3Lbs

Polycarbonate Enclosure System

• Dimensions
  • 15.25" x 15.25" x 7.25" (WHD)
• Weight
  • 27lbs when fully populated
• Mounting Options
  • Wall/Panel (included), Pole (optional)
• Input Voltage
  • 100-240VAC
