NEMA-Rated Indoor/Outdoor Enclosure w/ Integrated Hardened Managed PoE Switch
Wide Temperature
Fanless
PoE_90W
PoE_60W
PoE 15W
SFP
10G
Only Available in North America
NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
Futureproof with up to 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
10 Gigabit SFP options
Integrated splicing tray for safe fiber connection storage
Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
Optional 4G LTE Router and/or Patch Panels

EtherWAN's EasyPoE® Pro Series is an integrated outdoor enclosure solution that combines a managed PoE switch, fiber splice tray, power supply, and optional accessories such as a 4G LTE router and RJ45 patch panel, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 12 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and up to 4 SFP uplink ports, the EasyPoE® Pro series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

EtherWAN — "When Connectivity is Crucial."

NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments

  • Wide operating temperature -40 to 75°C (-40 to 167°F)
  • Fanless design
  • Weather-resistant, anti-corrosion, and vandal-resistant design

Time/Cost Saving Features

  • Integrated splicing tray for safe fiber connection storage
  • Wall and pole mounting options
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories

Smart PoE and Power

  • Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • PoE watchdog monitors status of connected PoE devices
  • Built-in power supply and surge protection

Support

  • Complimentary technical support
  • Free firmware upgrades and notifications

Interface

  • CLI, Telnet, Web GUI, SSH

Management

  • SFTP (Secure FTP) support
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • PoE Watchdog
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3
  • Modbus TCP

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm Control and Detection
  • System logging
  • IEEE 802.1x LAN Access control
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • TLS and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP

Software Properties and Performance

  • Switching Fabric
    • 104Gbps
  • Forwarding Rate
    • 75.29Mpps
  • Max VLANs
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 16K
  • Packet Buffer Memory
    • 12M bits


Interface

  • Ethernet
    • 12 x 10/100/1000BASE-T(X)
    • 4 x 1/10G SFP+
  • Console
    • 1 x RJ45
  • Config Backup
    • 1 x USB (Type A Connector)
  • Digital Input
    • 2 x Digital Input
    • Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
    • Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
  • Alarm Contact
    • 2 x Relay output, current capacity; 0.5A/48VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)
    • Per PoE Port: PoE Status (Orange)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
    • IEEE 802.3az EEE
    • IEEE 802.3af/at/bt Power over Ethernet
    • IEEE 1588v2 PTP
    •
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 2Gb DDR3 SDRAM
  • Flash Storage
    • 1Gb

Power

  • Input
    • 46-57VDC Redundant (Terminal block)**
      ** 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
          52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
          54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
  • Power Consumption
    • 20W Max (without PoE)
  • PoE Power Output
    • Ports 1-12: Up to 90W/port; Power Budget: 360W
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.5kg (3.3lbs)
  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • 1,496,987 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • PoE Ports: line to earth 6kV Surge
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet switch
  • Cables
    • 1 Console cable
  • Documentation
    • Quick install guide


PoE Power Supply

  • Input
    • 100-240VAC
  • Output
    • 54VDC
  • IP Rating
    • IP67

Other Components

  • Fiber Management
    • Fiber splice tray
  • RJ45 Cable Management
    • Copper patch jacks (optional)
  • Alarm
    • Door sensor
  • Electrical
    • GFCI receptacle, Surge suppressor

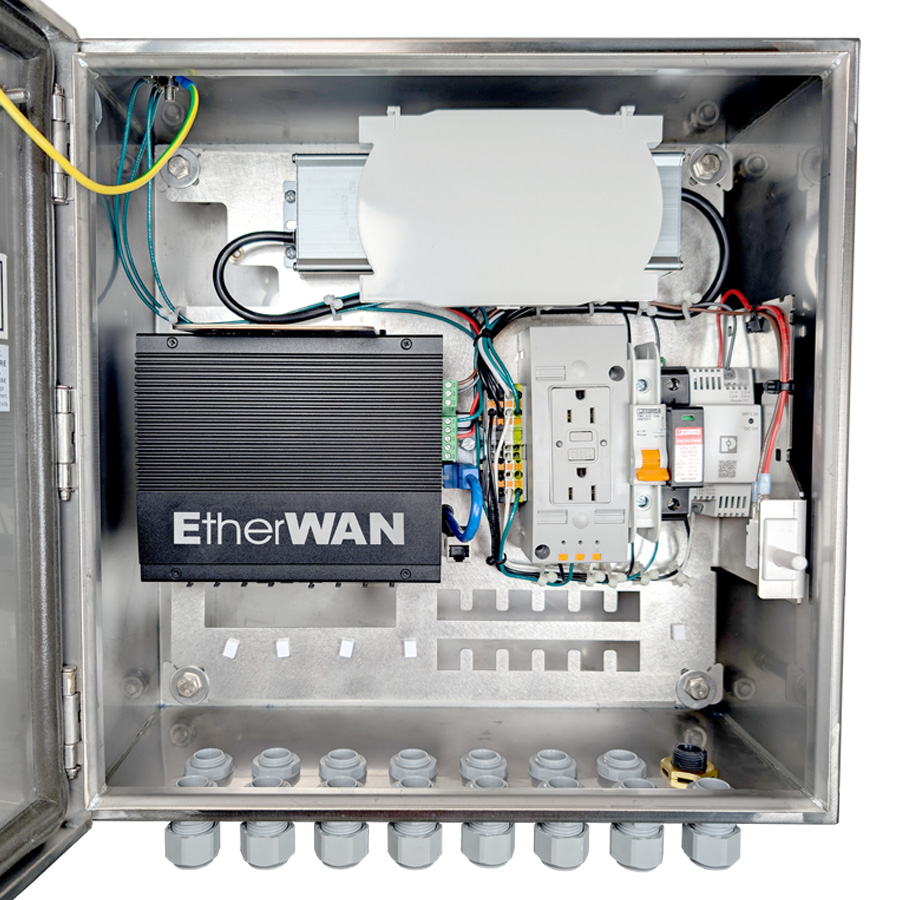

Stainless Steel Enclosure System

  • Dimensions
    • 15.75" x 15.75" x 7.87" (WHD)
  • Weight
    • 45lbs when fully populated
  • Mounting Options
    • Wall/Panel (included), Pole (optional)
  • Input Voltage
    • 100-240VAC

Optional LTE Cellular Router

  • Casing Material
    • Aluminum
  • SIM Support
    • Dual Sim
  • Cellular
    • Verizon/AT&T Support, LTE CAT6
  • Wireless
    • 802.11 a/b/g/n/ac Dual Band
  • Ethernet
    • 4 x 10/100/1000BASE-T RJ45

LTE Router Antenna (for Stainlesss Only)

  • Type
    • 2 x LTE, 2 x WiFi, 1 x GPS
  • Gain
    • 5dBi GPS, 3dBix2 LTE, 3dBix2 WiFi
  • Dimensions
    • 143.6mm x 65mm
  • Weight
    • 3.3Lbs

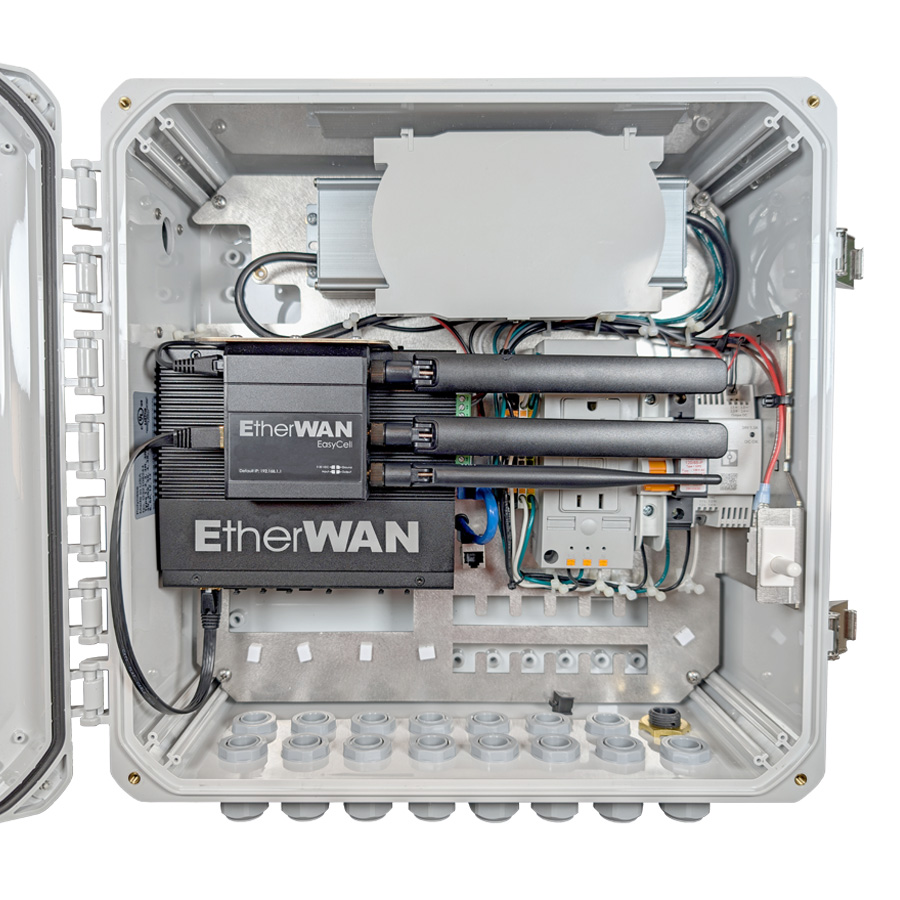

Polycarbonate Enclosure System

  • Dimensions
    • 15.25" x 15.25" x 7.25" (WHD)
  • Weight
    • 27lbs when fully populated
  • Mounting Options
    • Wall/Panel (included), Pole (optional)
  • Input Voltage
    • 100-240VAC

Available Models

EASYPOE34X-XYYNEMA-4X Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch
EASYPOE34E-XYYNEMA-4X Enclosure, 12-Port 10/100/1000BASE-T PoE (60W) + 4-Port 100/1000 SFP Managed Switch
EASYPOE24E-XYYNEMA-4X Enclosure, 8-Port 10/100/1000BASE-T PoE (60W) + 4-Port 100/1000 SFP Managed Switch
EASYPOE22E-XYYNEMA-4X Enclosure, 8-Port 10/100/1000BASE-T PoE (60W) + 2-Port 100/1000 SFP Managed Switch

Enclosure Material Options (X)

PPolycarbonate Enclosure
MStainless Steel Enclosure

Cellular Options (YY)

4G4G LTE Router with WiFi, Cloud Monitoring, Auto APN; Puck Antenna (Pre-installed with Metal Enclosure)
NCNo Cellular Option

Accessories

EASYPOEPMT2Pole Mounting Kit for EasyPoE Pro Polycarbonate Series
EASYPOEPMT2Pole Mounting Kit for EasyPoE Pro Polycarbonate Series
EASYPOEPATCHPatch Panel Kit with RJ45 to RJ45 Keystone Jacks, RJ45 to Wire Keystone Jacks, and Ethernet Patch Cables
