EasyPoE® Lite Series

NEW
NEMA-Rated Indoor/Outdoor Complete Security Cabinet Solution
SFP
Wide Temperature
Fanless
PoE 30W
PoE 15W
Only Available in North America
NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
Replaceable Hardened Components
Integrated components are ready out of the box

NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments

  • Wide operating temperature -40 to 75°C (-40 to 167°F)
  • Fanless, integrated design
  • Weather-resistant, anti-corrosion, and vandal-resistant design

Time/Cost Saving Features

  • Integrated components ready out of the box
  • Wall and pole mountable (pole mounting kit option available)
  • Preinstalled bulkheads for cable connections

Replaceable Hardened Components

  • The integrated PoE switch comes with 4 or 8-port options at full 30W PoE per port
  • Outdoor-rated, IP67 power supply
  • Optional surge suppressor

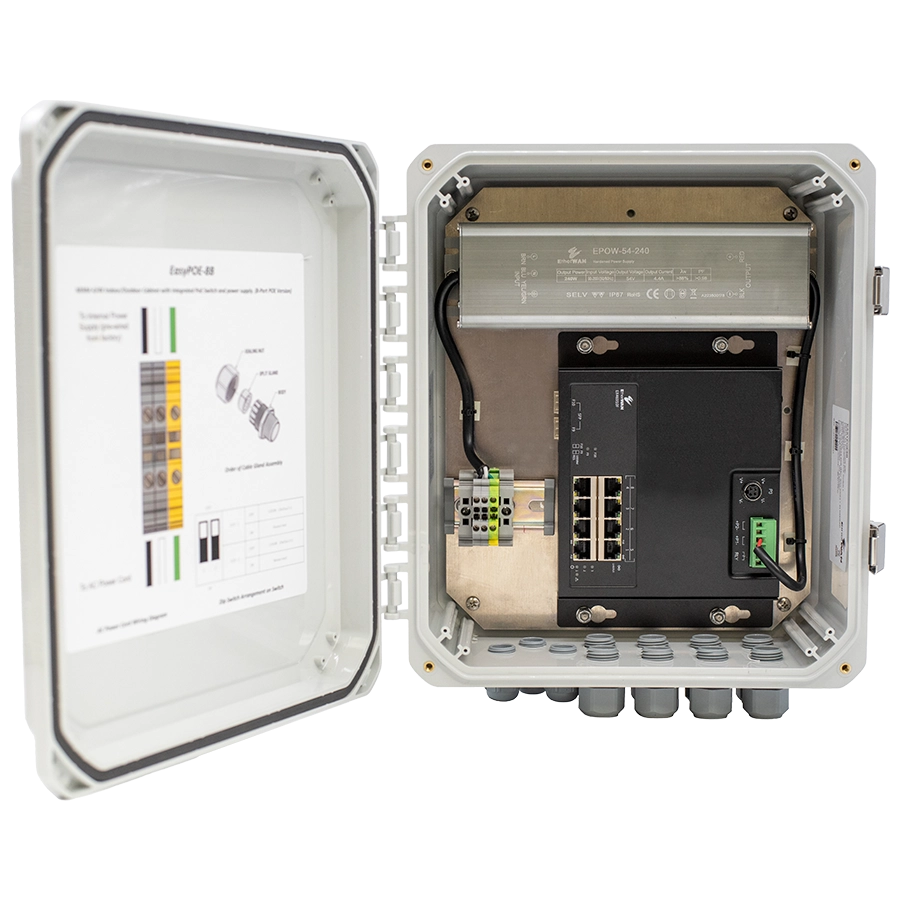

EtherWAN's EasyPoE® Lite series is an integrated solution that combines a PoE switch, power supply, and a surge suppressor, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with either 4 or 8 gigabit PoE ports that provide a full 30W max PoE output per port (with a power budget of 120W for 4-ports and 240W for 8-ports), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

EtherWAN — "When Connectivity is Crucial."



Interface

  • Ethernet Port
    • 10/100/1000BASE-T PoE: 5 or 8 ports
    • 1000BASE SFP: 2 ports (Only for the 8-port switch)
  • LED Indicators
    • Per Unit: Power 1, Power 2, Power 3, Relay
    • Per Port: Link/Activity, PoE
  • Alarm Contact
    • 1x Relay Output

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.3af/at/bt Power over Ethernet
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,880pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • Processing Type
    • Store-and-Forward
    • Auto-Negotiation
    • Half-duplex back-pressure full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 4-Port Switch: 2K
    • 8-Port Switch: 11K

Power

  • Input
    • 100-277VAC
  • PoE Power Budget
    • 4-Port Switch: 120W @ 75°C
    • 8-Port Switch: 240W @ 75°C

Physical

  • Casing Material
    • Polycarbonate (PC)
  • IP Rating
    • IP67
  • NEMA Rating
    • NEMA 4/4X
  • Impact Protection
    • IK10
  • Dimensions
    • 11.75" x 5.22" x 13.81"(W x D x H)
      298mm x 127 x 351mm (W x D x H)
  • Weight
    • 8.9lbs (4.3Kg)
  • Installation Type
    • Wall or Pole Mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 10% to 95% (non-condensing)
  • MTBF
    • 450,000 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55.32/35
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27

Warranty

What's Included

  • Device
    • EasyPoE® Lite
  • Installation
    • Wall Mounting Adapter
  • Documentation
    • Quick install guide
EasyPoE Lite Dimensions



Model

EASYPOE4B4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45
EASYPOE4P4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 + Surge Suppressor
EASYPOE8B8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP
EASYPOE8P8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor
EASYPOE4B-PMT4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 w/ Pole Mount Kit
EASYPOE4P-PMT4-Port 10/100/1000BASE-T PoE + 1-Port 10/100/1000BASE-T RJ45 + Surge Suppressor w/ Pole Mount Kit
EASYPOE8B-PMT8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP w/ Pole Mount Kit
EASYPOE8P-PMT8-Port 10/100/1000BASE-T PoE + 2-Port 1000BASE SFP + Surge Suppressor w/ Pole Mount Kit

Accessories

EASYPOEPMTPole Mounting Kit for EasyPoE Lite Series
Hardened Gigabit SFP Moduleswww.etherwan.com/us/products/sfp-fiber-transceiver
