EasyLink Rail
Hardened Rail Certified Wireless Bridge Kit
Only Available in North America
High Bandwidth Wireless Connectivity
Comprehensive and Advanced Software Features
Hardened Grade with IP65 Protection
Downloads

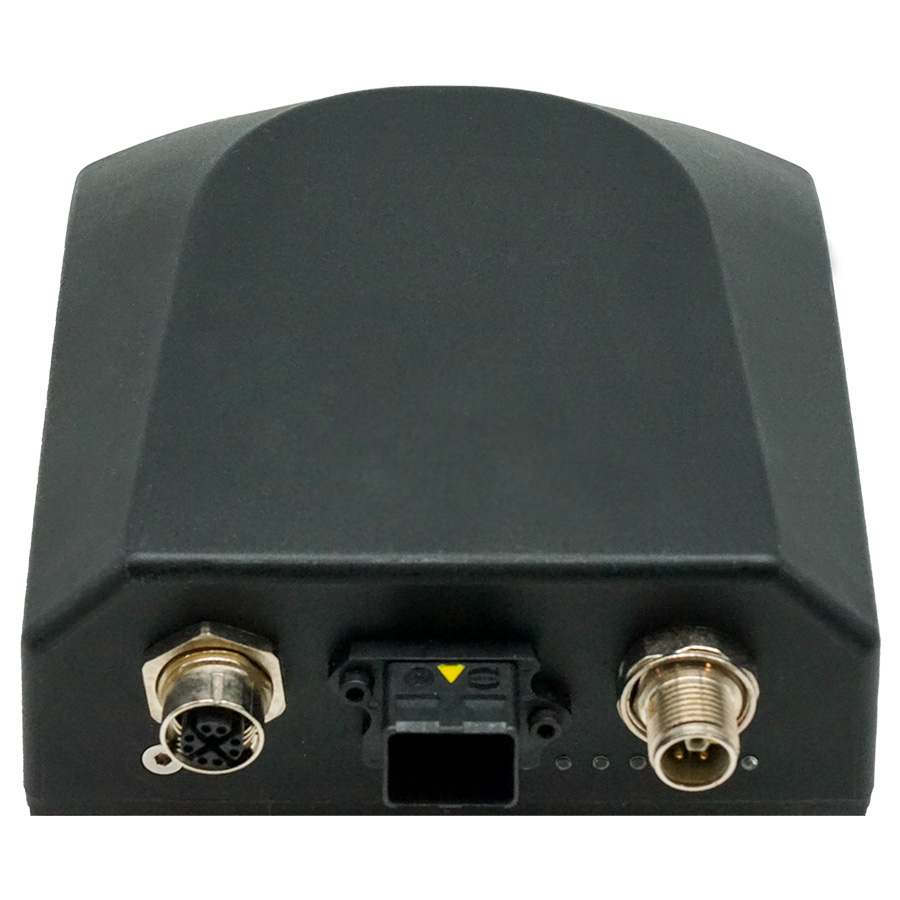

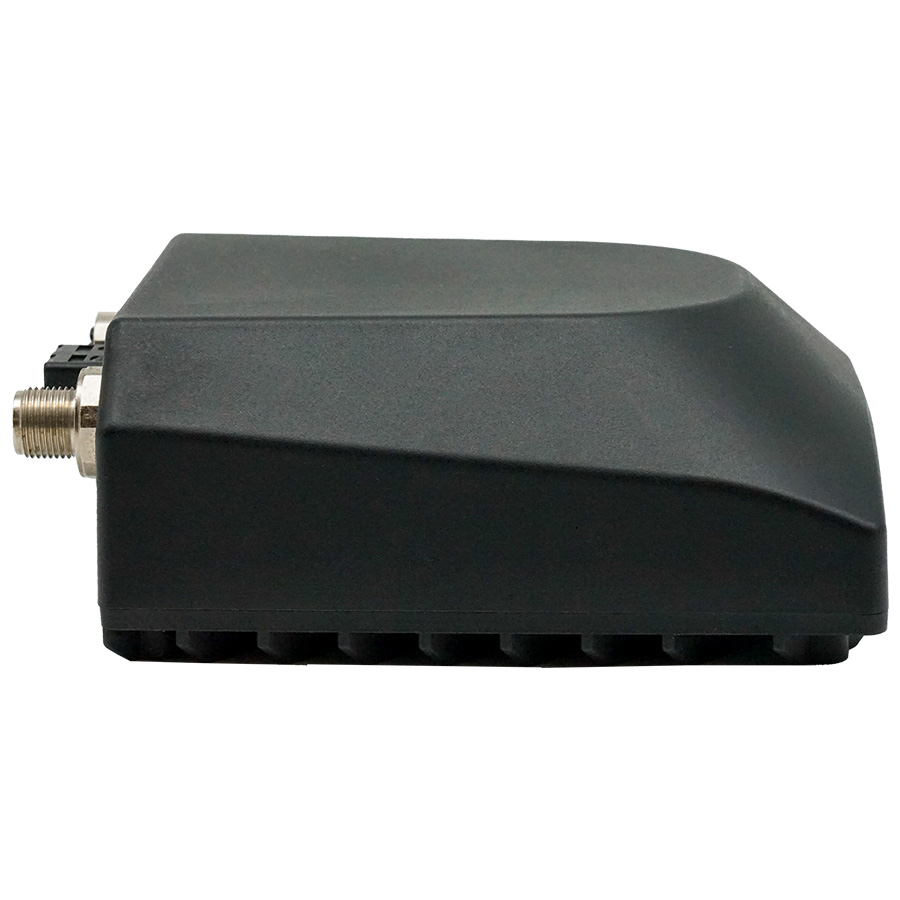

The EasyLink Rail is a hardened Indoor/Outdoor pre-configured wireless bridge kit containing 2 units that provide high-speed wireless connectivity. Comprised of an IEEE 802.11ac MIMO wireless radio with gigabit connectivity, the EasyLink Rail is hardened against dust, vibration, extreme temperatures, and limited water ingress for harsh and demanding environments. EasyLink Rail delivers reliable connectivity with Rail Certified M12 screw type and Harting push connectors for multiple connectivity options. Maximum transmission speeds are up to 867Mbps on the 5GHz band.
High Bandwidth Wireless Connectivity
- Designed for Point-to-Point wireless remote connectivity
- IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 867Mbps
- Just power and align using supplied PoE injectors and power supplies

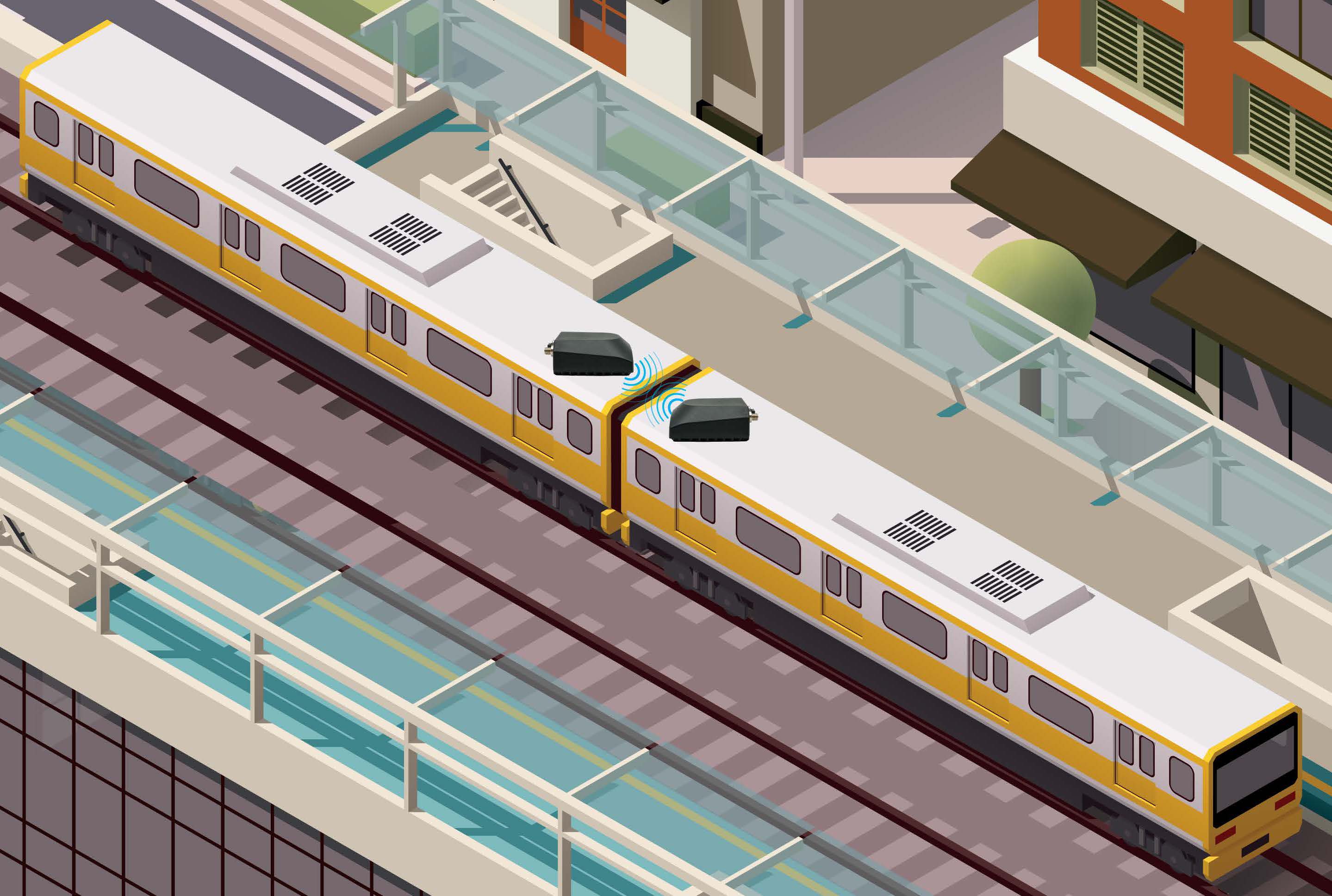

- 2 x 2 MIMO 7dBi, 45° antennas designed to maintain connection between moving Rail cars
Comprehensive and Advanced Software Features
- Static routing, RIPv1, RIPv2, and OSPFv2
- Built in Stateful Firewall and RADIUS for security control
- RF strength LEDs and Bandwidth Tester to ease installation effort
Hardened Grade with IP65 Protection
- Wide operating temperature range for extreme environments
- Fanless and ruggedized indoor/outdoor enclosure
- EN 50155 Rail Certified
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.11a/n/ac Wireless LAN
- IEEE 802.11i Wireless LAN
- Performance
- Wireless transmission rate 5GHz: 11a: 108Mbps, 11n: 300Mbps, 11ac: 867Mbps
- Ethernet data rate: Up to 540Mbps (LAN to wireless 11ac)
- Wireless
- RF channels: 2 Non-overlappingv Frequency range: 5GHz: 5150-5250MHz and 5725-5850MHz
- Channel width: 5GHz: 10MHz, 20MHz, 40MHz, 80MHz
- Data security: 256-bit AES-CCM
- Transmit Power (5GHz)
- 6MBit/s: 31
- 54MBit/s: 27
- MCS0: 30
- MCS7: 27
- MCS9: 22
- Receive Sensitivity (5GHz)
- 6MBit/s: -96
- 54MBit/s: -81
- MCS0: -96
- MCS7: -77
- MCS9: -72
Power
- Input
- 8-30 VDC
- *Note: Power can be provided via the M12 L-Coded connector, Harting Connector or Passive PoE
- Power Consumption
- 12W Max
Physical
- Casing Material
- Fire rated UV treated plastic (R22/HL3) with internal metal enclosure, IP 65

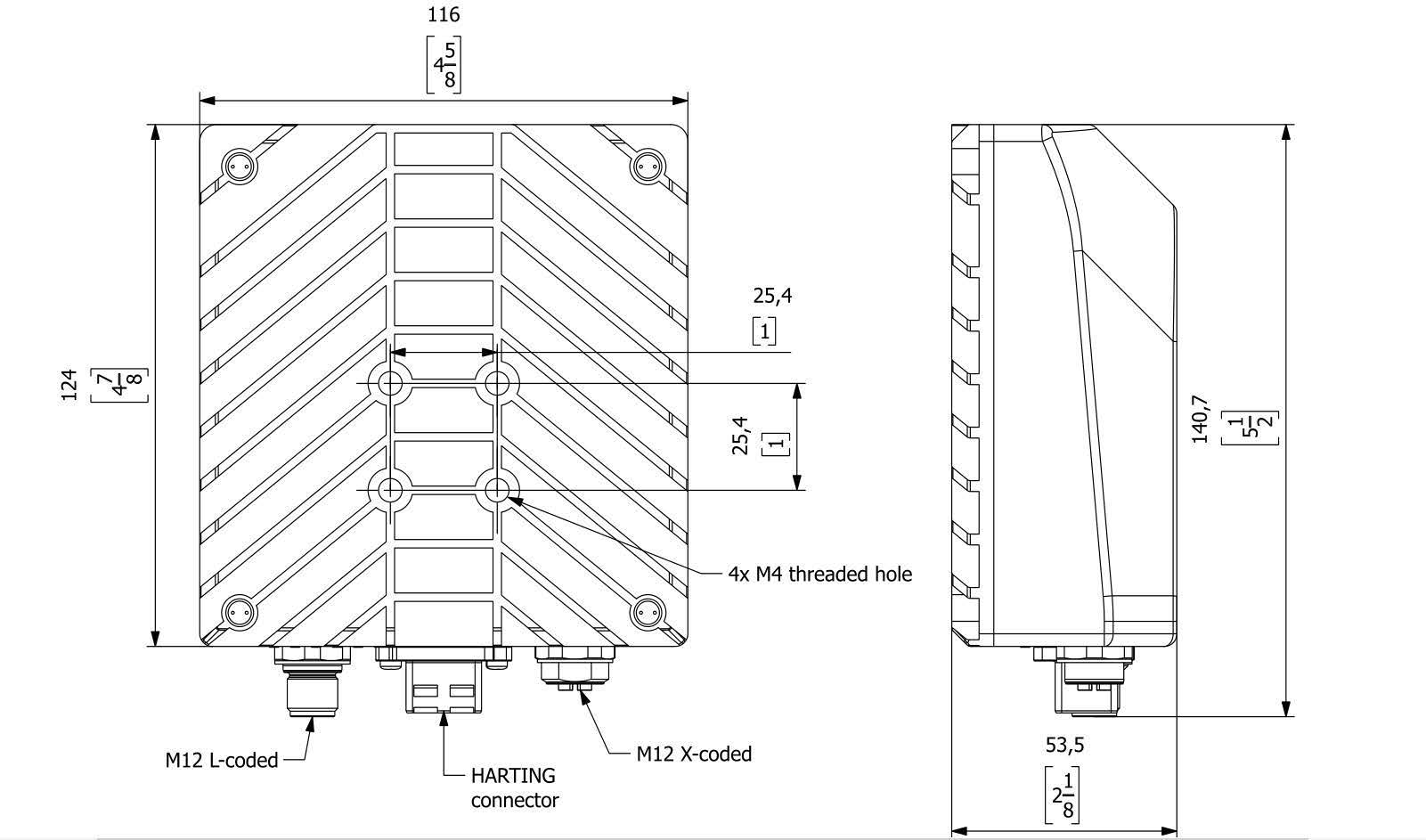

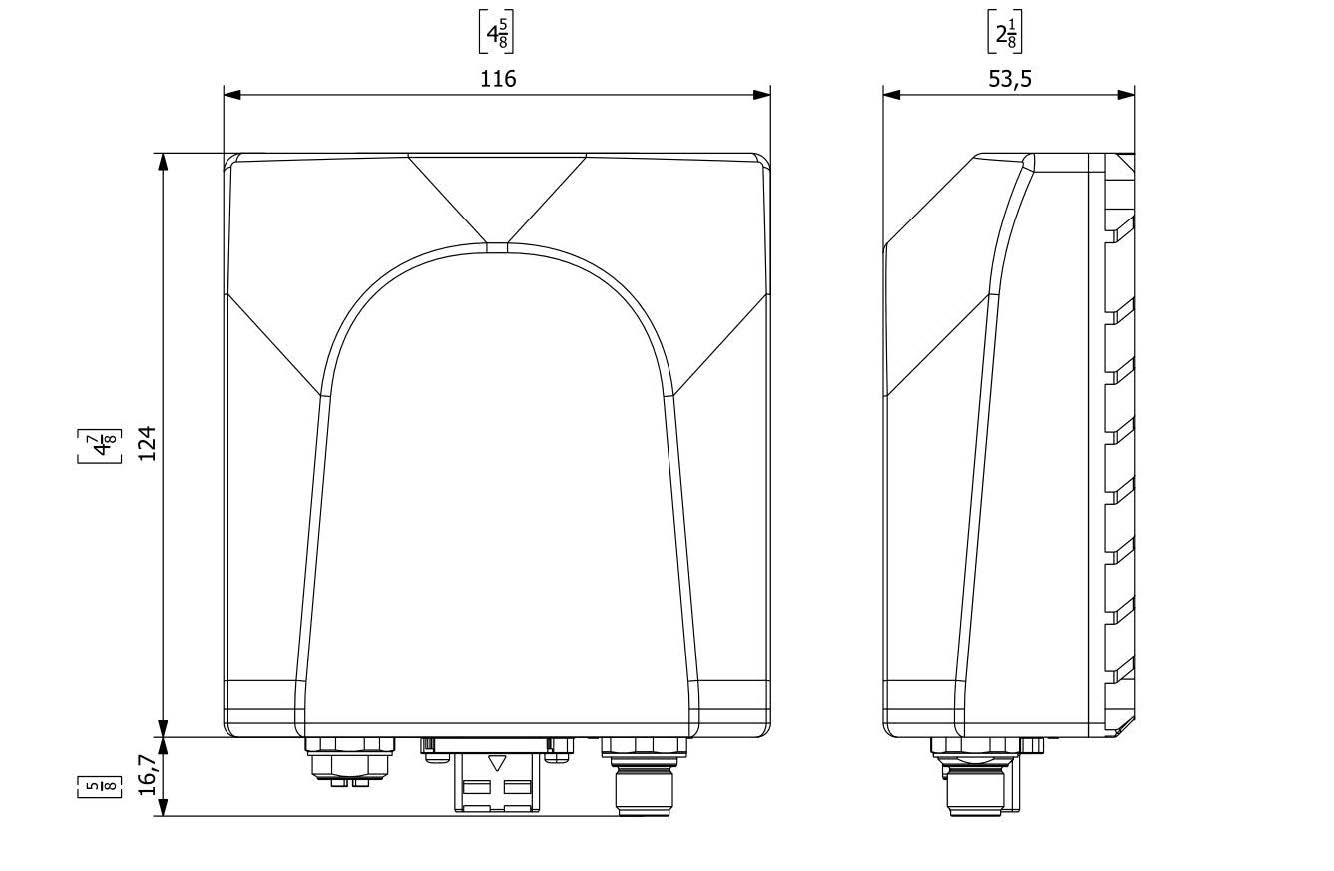

- Dimensions
- 124 x 116 x 53.5mm (W x D x H)
(4.88" x 4.57” x 2.11”)
- 124 x 116 x 53.5mm (W x D x H)
- Unit Weight
- 1.1Ibs
- Weight (shipping)
- 2Ibs 7oz
- Units per kit
- 2 Units
- Installation Type
- Bracket Mount: 1" x 1" square
Interface
- Ethernet
- 10/100/1000BASE-TX Harting or M12 X-Coded Connector
- Wireless
- 802.11a/n

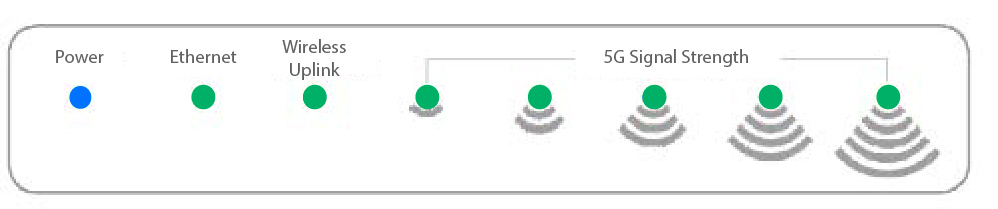

- LED Indicators

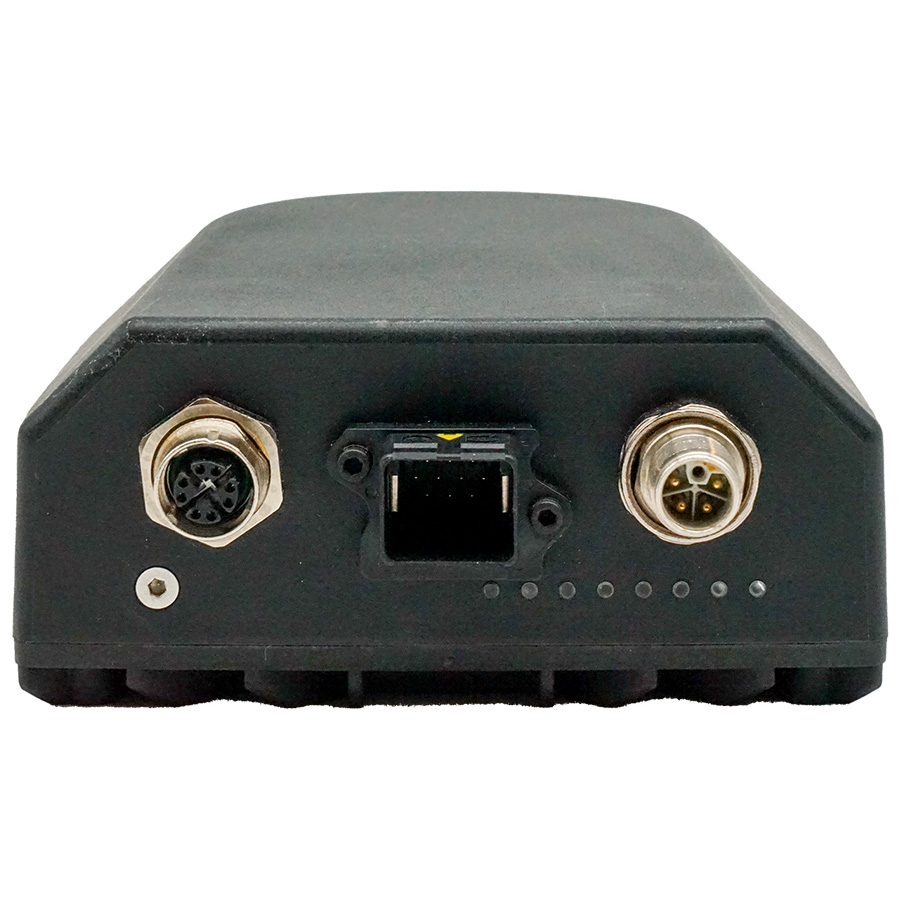

Connectors
- Ethernet (Pins 1-8) and Power (Pins 9-10)
- Harting Housing PP V4 2.0 Compact int seal/vrtcl jack, Harting connector HPP V4 SIGNAL THT 10-POLE STRAIGHT
- Ethernet with Passive PoE Support
- M12 X-Coded Female 8 pin
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
- Wind Load
- 132N @200km/h/h
- Wind Survivability
- 200km/h
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- PCC Part 15C
- EMC
- ETSI EN 301 489-1 V2.2.0
- ETSI EN 301 489-17 V3.2.0
- Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration Resistance)
- FED STD 101C Method 5007.1 (Free fall w/package)
- EN50155/EN50121-3-2 Railway Compliant
- Safety
- NEMA FR4 PCB Rated, Low Smoke Zero Halogen (LSZH
- EN 45545-2 Fire Safety
- EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013;
- EN60950-22:2017;
- EN 62311:2008
Pinouts
- Power - M12 L-Coded Male
- Please see datasheet for more information
- Ethernet plus Power - Harting Connector
- Please see datasheet for more information
- Ethernet - M12 X-Coded Female
- Please see datasheet for more information
Interface
- Web Browser
- SNMP v1/v2/v3
Management
- Firmware and configuration upgrade and backup via Web Browser
- Supports DHCP Server/Client/Relay
- DNS cache and Web Proxy
- System health monitoring including temperature and voltage
- Local system log, e-mail and remote log service
- SNTP client
- Useful tools such as Bandwidth Test, E-mail, Ping, Traceroute, Packet Sniffer and Traffic Generator
Wireless
- Encryption: WPA, WPA2, WEP, AES
- Dynamic Frequency selection
- Proprietary Nstreme and Nv2 protocols for long distance transmission
Security
- Radius Client
- Powerful Firewall: Stateful packet inspection, Layer-7 protocol detection, Peer-to-peer protocols filtering
- Standards
- Source MAC address
- IP addresses (network or list) and address types (broadcast, local, multicast, unicast
- Port or port range
- IP protocols
- Protocol options (ICMP type and code fields, TCP flags, IP options and MSS)
- Interface the packet arrived from or left through
- Internal flow and connection marks
- DSCP byte
- Packet content
- Rate at which packets arrive and sequence numbers
- Packet size
- Packet arrival time
Routing
- Static routing, RIPv1 & v2 and OSPFv2
- Bidirectional Forwarding Detection
- Prefix List to filter and control the routing table
