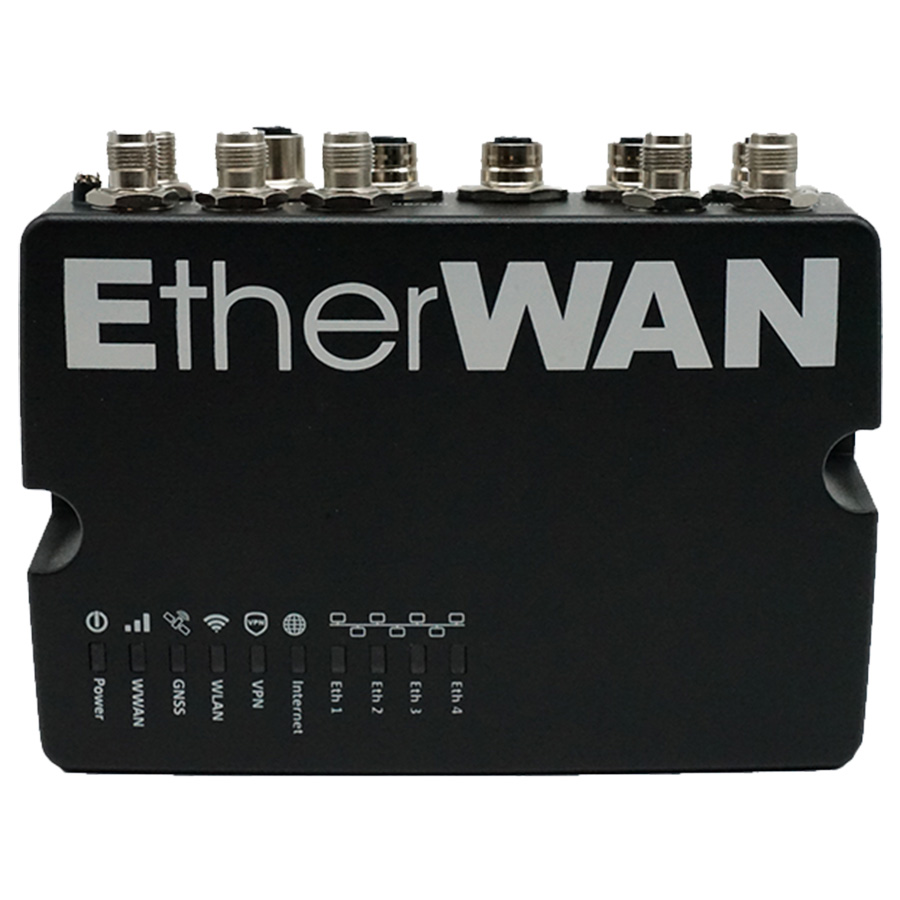

C4G Rail

Main Features

• Functionality
  • Bridging, Switching, Routing
• Routing
  • IPv4/IPv6, Static Routing, RIP/RIPNg, NAT, OSPFv3, BGP-4, IPv6 Encapsulations (GRE, 6in4), Port Routing, RAW Connections
• VRRP
  • Virtual Router Redundancy on Ethernet or Bridge Interface
• Docker
  • Open platform Developer Tool for developing and running applications
• IP Applications
  • DDNS, DNS Proxy/Spoofing, DHCP/DHCPv6 server, relay, client, Opt. 82, NTP, SNTP

• VPN & VLAN
  • IPSec, OpenVPN, VPN Failover, VLAN Access
• I/O
  • PPP/SLIP & PPPoE
• Diversity
  • Dual-SIM, Static Routing with Primary/ Backup route, VPN Failover
• Firewall & Security
  • ACL (list & ranges & time); Filter based MAC, IP, Port, Protocol, User; Secure HTTP/HTTPS/FTP/Telnet Authentication Proxy; AAA, Radius, TACACS+, LDAP, 802.1x, Certificate Support (X.509), Port Forwarding, BGP Communities, Zone Firewall, 2 Factor Authentication

Main Features Cont.

• Logging, Reporting & Alerts
  • Sys Log, Event Type, Report Type, Alerts & Monitoring, Triggers Status Screen Report, Data Usage, Diagnostic
• Management
  • SNMPv1/v2/v3, SMS Control, Load Balancing, CLI, LDAP, Login Banner, Email, Ping, Telnet, FTP, RESTful API

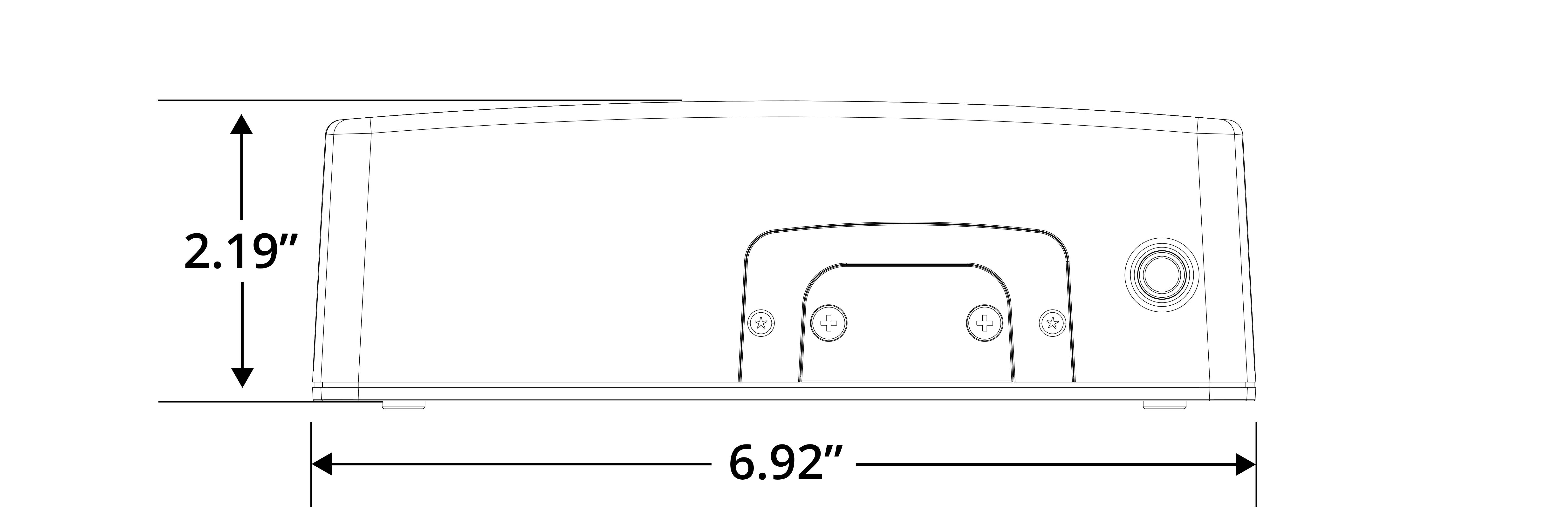

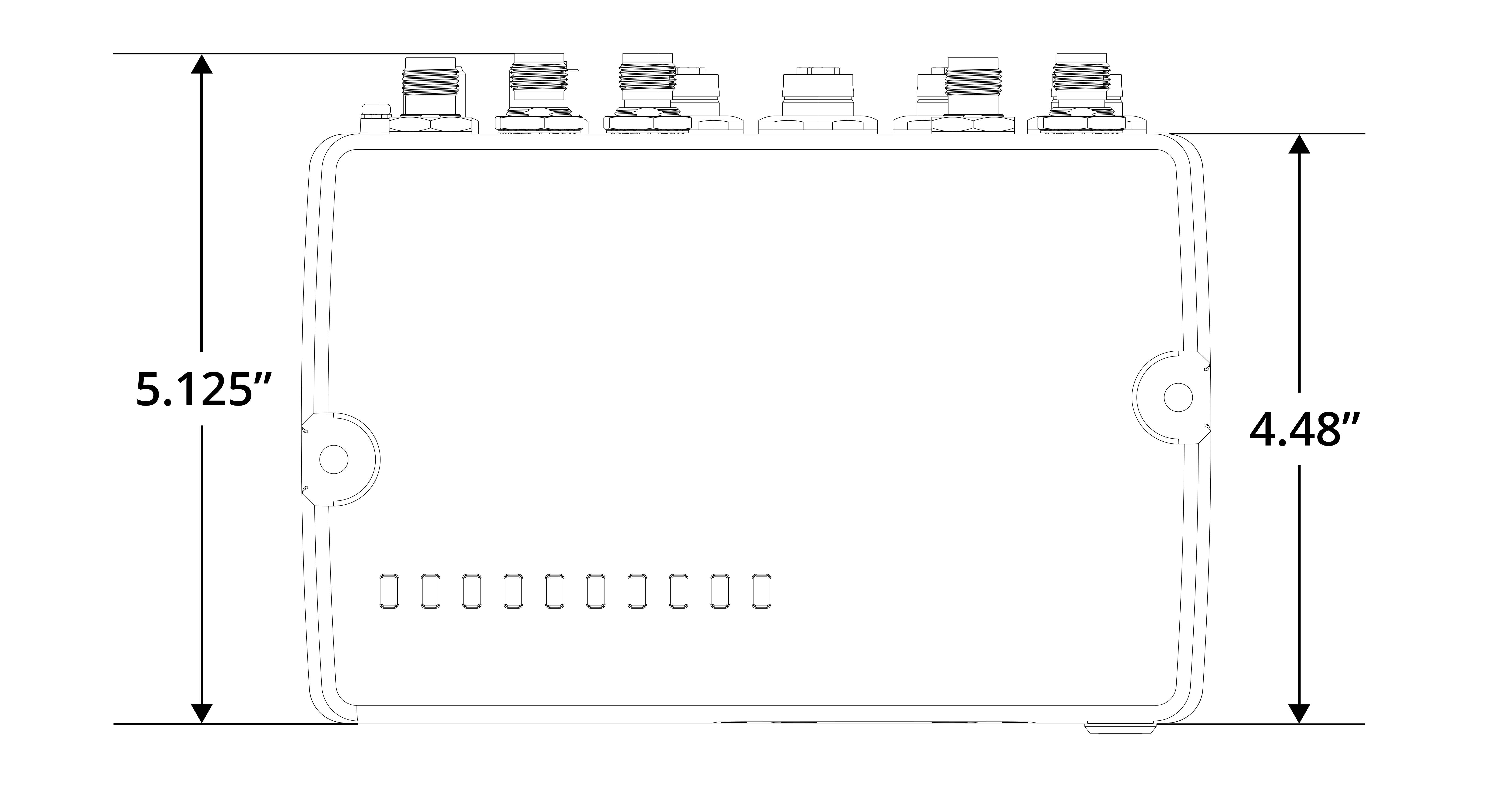

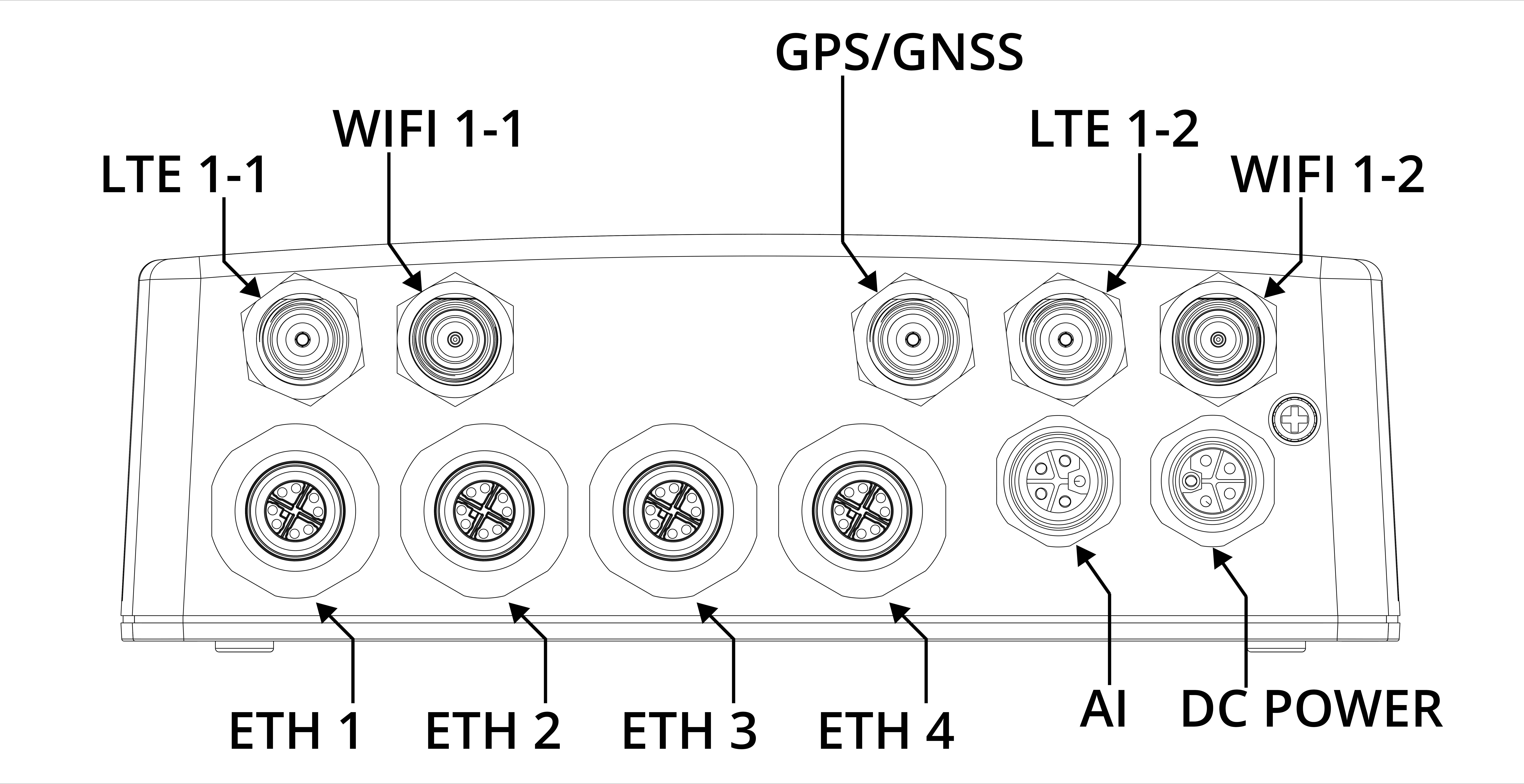

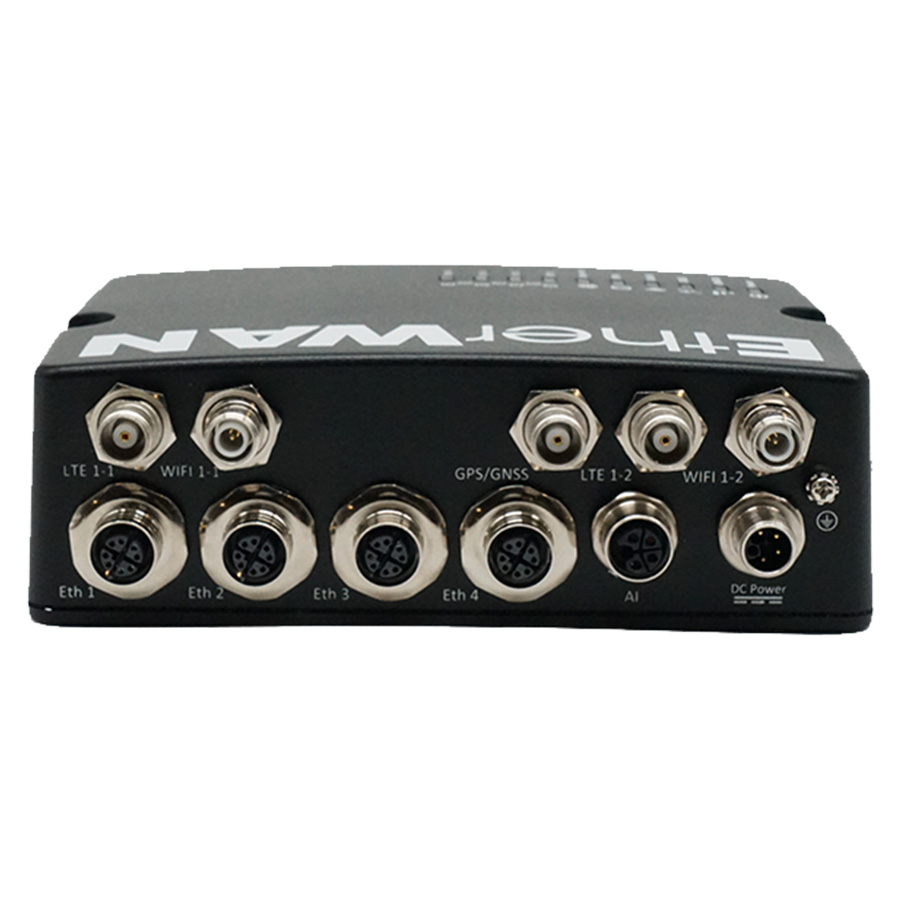

• Antenna Connectors
  • Wifi: TNC Male (2), LTE: TNC RP Male (2), GPS: TNC RP Male (1)
• Ports
  • 4x M12 X-Coded Female Gigabit Ethernet, 1x M12 L-Coded Female GPIO Analog, Input Monitoring
• Wireless LAN
  • 802.11 a/b/g/n/ac Dual Band 2.4/5GHz with speeds up to 867Mbps
• Cellular Options
  • Worldwide LTE-A (up to CAT12/600Mbps) cellular card options
• Location & Timing Service
  • GPS

Environmental

• Operating Temp
  • -40 to 70°C/-40 to 158°F (MIL-STD-810G)
• Operating Humidity
  • 0% to 95% non-condensing
• Operating Altitude
  • <3000m/10,000ft
• MTBF (Hours)
  • >20 years (Calculation model based on MIL-HDBK-217-FN2@30°C)
• Ingress Protection Rating
  • IP54 for the die cast aluminium enclosure

Power

• Power Input
  • 12/24/48 VDC Nominal (9.6 to 60 VDC) Power connector
• Power Line Protection
  • Surge: 8KV (EN61000-4-5 common mode), 2KV (EN61000-4-5 differential and common modes)
• Power Consumption
  • Typical Use (Connected/with Activity) 4.67W-5.09W

Miscellaneous

• Vibration, Mechanical, & Thermal Shock
  • SAE J1455 & MIL-STD-810G

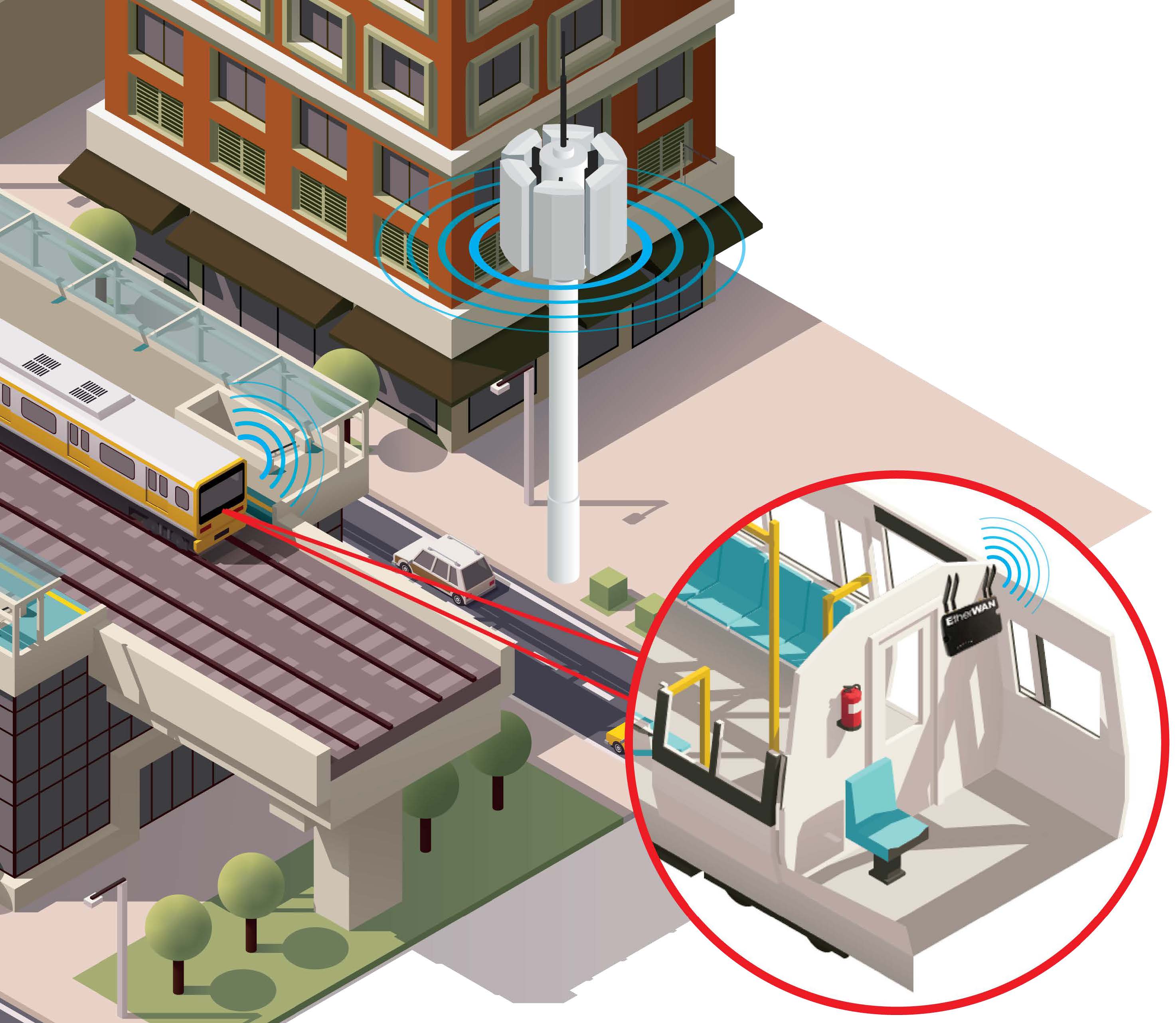

• Railways
  • Euro: EN 50155/ EN 50121-1/ EN 50121-3-2/ EN 50121-4 &
• Vibration, Mechanical & Thermal Shock
  • SAE J1455 & MIL-STD-810G

Pinouts

• Ethernet M12 X-Coded Female
  • Please refer to datasheet for diagrams
• Power M12 L-Coded Male
  • Please refer to datasheet for diagrams
• Load Shed Connector M12 L-Coded Female
  • Please refer to datasheet for diagrams

Regulatory Approvals

• Hazloc
  • ATEX Class 1 Zone 2
  • ANSI/ISA 12.12.01, Class 1 Division 2
  • Groups A-D
• Emissions
  • FCC 47 Part 15 Class B
  • ICES-003 Issue 6 Class B (Canada)
  • EN61000-6-4 (Emissions for industrial environments)
  • CISPR 32:2015/EN 55032:2015 (Class B)
  • EN61000-3-2 Limits for Harmonic
  • Current Emissions
  • EN61000-3-3 Limits of Voltage
  • Fluctuations and Flicker
• Immunity
  • EN55025, EN55035, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF), EN 61000-4-11, EN 61000-4-16, EN 61000-6-4, IEC/EN 61000-6-2 (General Immunity for Industrial Environments)
• Electrical Safety
  • UL 61010-1 & UL 61010-2-201 & UL/ULC/EN 62368-1 (including CB/CE)
  • CAN/CSA C22.2 No. 62368-1-14
• Environmental
  • Reach, RoHS and WEEE Compliant

Cellular

• Cellular/Telecom Regulatory Approvals
  • FCC/ICES, RED, PTCRB/CTIA, CE
• Carrier Certifications
  • Verizon, AT&T, T-Mobile
• Cellular/WWAN Radio Standards
  • EN 300 328, EN 301 893, EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 511, EN 62311, EN61000-3-2, EN61000-3-3
• Cellular/WWAN Radio Approvals
  • FCC 47 Part 15 Subpart B, Class B / ICES-003 Issue 6 Class B / FCC Part 15.247 Subpart C (2.4 Ghz) / FCC Part 15.407 Subpart E (5 Ghz) / ANSI C63.4
