EL2315 Series

10/100/1000BASE-TX to 100/1000BASE-X Dual Rate SFP Media Converter
UL 60950
Link Fault Pass Through (LFPT)
Dual rate SFP slot
Wall mounting or EtherWAN's EMC1600 chassis for easy group installation with power redundancy

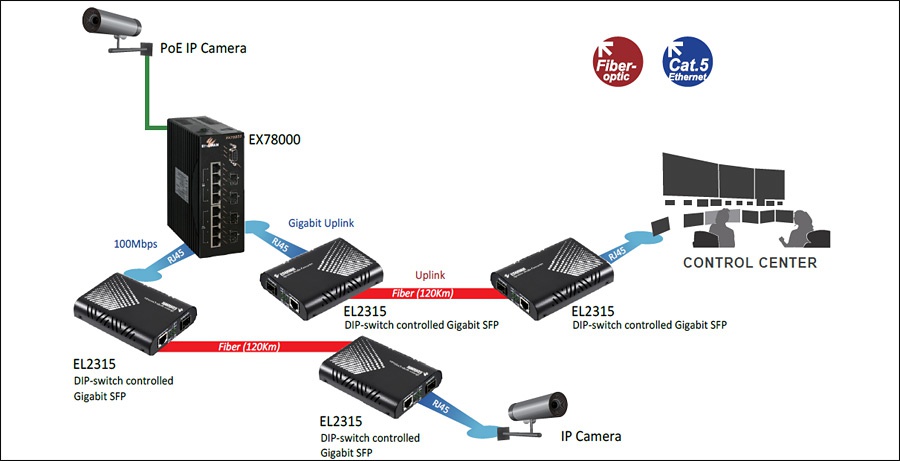

The EL2315 Series provides media conversion between 10/100/1000BASE-T(X) and 100/1000BASE SFP Fiber. The EL2315’s fiber design is compatible to 100BASE fiber or 1000BASE fiber transceiver. Through DIP switch selection, the EL2315’s SFP port can support 100BASE SFP fiber or 1000BASE-X SFP fiber port. Also, through DIP switch selection, the Link-Fault-Pass-Through (LFPT) function can be active or disabled.

With Gigabit transmission rate, EL2315 supports Jumbo Frame up to 9K bytes, the EL2315 is the ideal media converter for environments where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Gigabit Connectivity

    • Auto 10/100/1000BASE-T(X) and 1000BASE-SX/LX/BX Ethernet transmission conversion
    • 1000Mbps Full duplex, 10/100MBps Full/Half duplex
    • Fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission

Link-Fault-Pass-Through (LFPT)

    • Provides constant monitoring of the links connected to the media converters
    • If a copper links fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

100/1000BASE-FX Dual Rate SFP Support

    • DIP switch controlled 100BASE or 1000BASE SFP options

DIP Switch Configurable

    • Store-and-forward mode or converter mode selectable (default: store-and-forward mode)


    • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • Forward and Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half duplex back-pressure and IEEE 802.3x full-duplex flow control
    • Auto-MDI/MDIX


    • Ethernet Port
    • 10/100/1000BASE-TX: 1 port
    • 100/1000BASE SFP Slot: 1 port

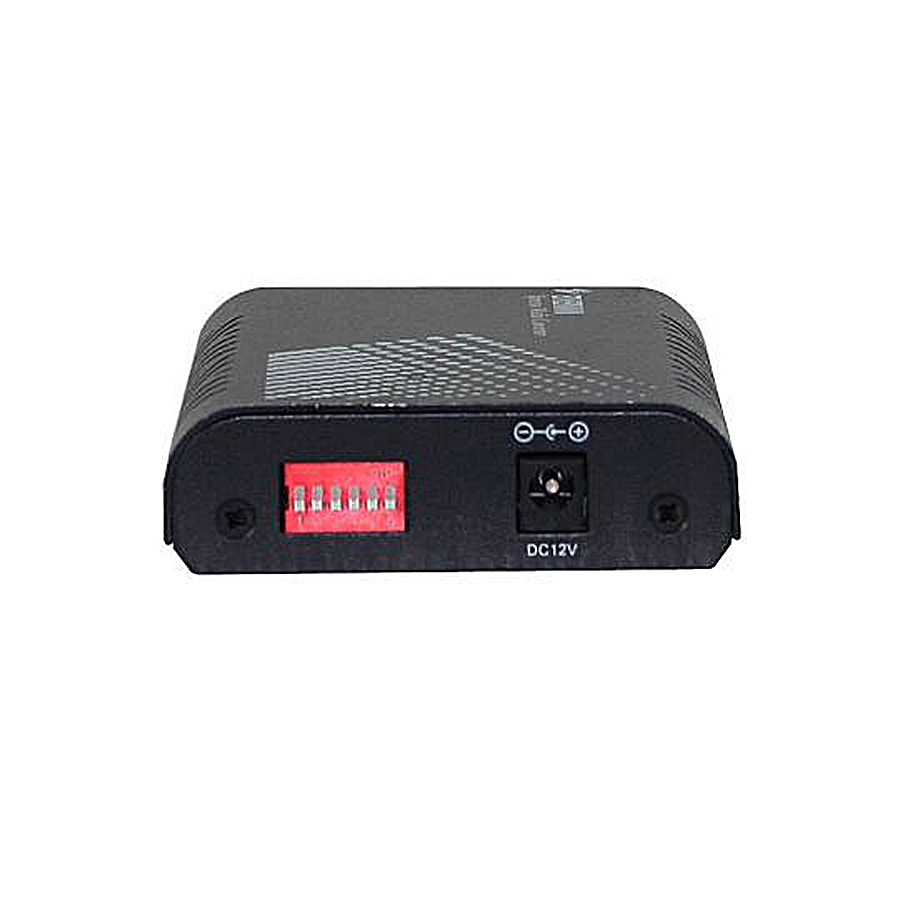

    • DIP Switch
    • No.1: LFPT On/Off
    • No.2: Auto-Negotiation/Force Mode for TX port
    • No.3: Full-duplex/Half-duplex for TX port
    • No.4: 100Mbps/10Mbps Force Mode for TX port
    • No.5: 100Mbps/1000Mbps for SFP
    • No.6: Function Reserved

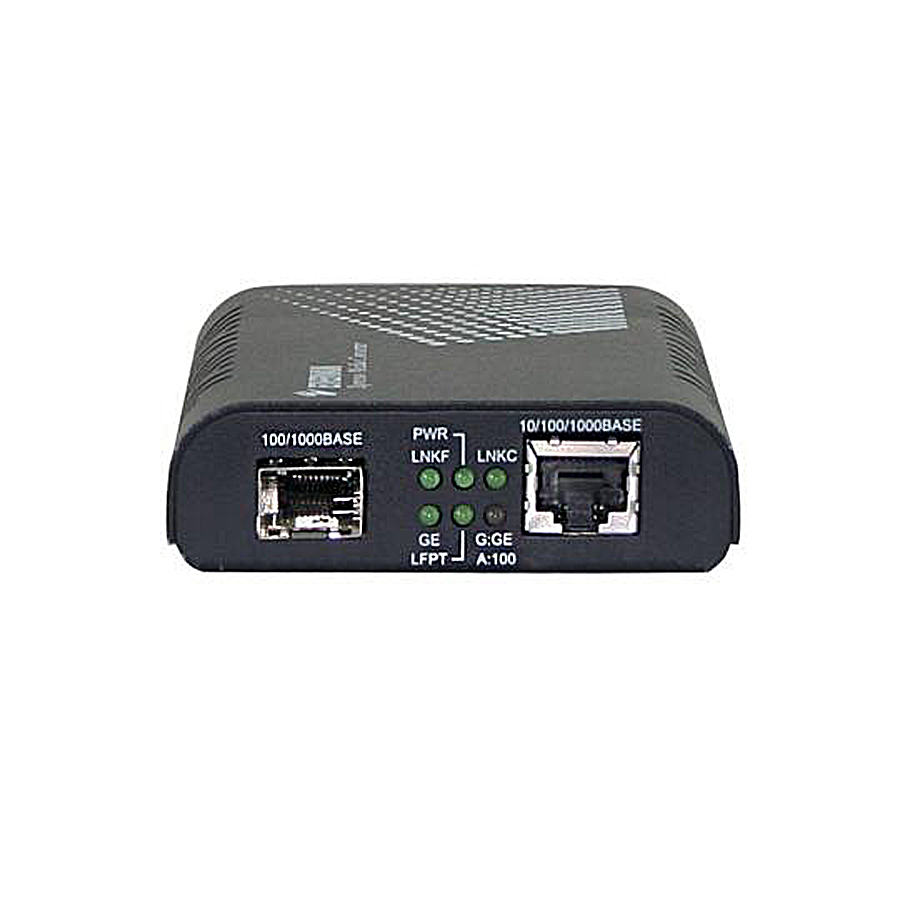

    • LED Indicators
    • Per Unit: Power, LFPT
    • Per Port: FX/TX Speed, Link/Activity


    • Input
    • 12VDC
    • Power Consumption
    • 2.76W Max. 0.23A@12VDC


    • Casing
    • Aluminum Case

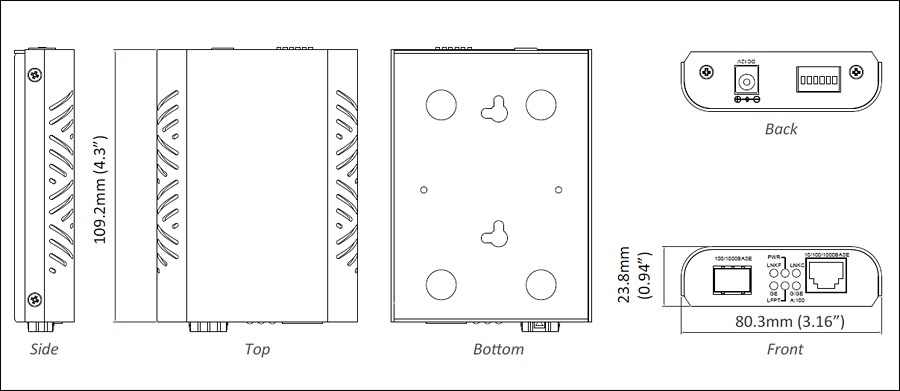

    • Dimensions
    • 80.3 x 109.2 x 23.8mm (W x D x H)
        (3.16" x 4.3" x 0.94")
    • Weight
    • 150g (0.336lbs.)
    • Installation
    • Wall mounting


    • Operating Temperature
    • 0 to 50°C (32 to 121°F)
    • Storage Temperature
    • -10 to 70°C (-14 to 158°F)
    • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory Approvals

    • Safety
    • UL 62368-1
    • ISO
    • Manufactured in an ISO 9001 facility
    • Emission Compliances
    • CE Mark Class A
    • FCC Part 15B Class A
    • VCCI Class A


EL231510/100/1000BASE-TX to 100BASE/1000BASE-X Dual Rate SFP Media Converter

Gigabit Fiber Transceivers*

Optional SFP Non-Hardened Type (Operating Temperature: 0 to 70°C/32 to 158°F)

Model NameDistanceCable TypeConnector TypeWavelengthLink Budget**Optical Output PowerSensitivity
EX-1250NSP-SB1L S275m/550m62.5/125μm/50/125μm, MMDuplex LC850nm7.5dBm-9.5 to -4dBm-17dBm
EX-1250TBP-MB1L S550m62.5/125μm/50/125μm, MMSingle LCTX: 1310nm
RX: 1550nm
7dBm-10 to -4dBm-17dBm
EX-1250TBP-LB1L S550m62.5/125μm/50/125μm, MMSingle LCTX: 1550nm
RX: 1310nm
7dBm-10 to -4dBm-17dBm
EX-1250TSP-MB4L S10Km9/125μm, SMDuplex LC1310nm11.5dBm-9.5 to -3dBm-21dBm
EX-1250TBP-MB4L S10Km9/125μm, SMSingle LCTX: 1310nm
RX: 1550nm
12dBm-9 to -3dBm-21dBm
EX-1250TBP-KB4L S10Km9/125μm, SMSingle LCTX: 1550nm
RX: 1310nm
12dBm-9 to -3dBm-21dBm
EX-1250TBP-MB5L S20Km9/125μm, SMSingle LCTX: 1310nm
RX: 1550nm
15dBm-8 to -3dBm-23dBm
EX-1250TBP-KB5L S20Km9/125μm, SMSingle LCTX: 1550nm
RX: 1310nm
15dBm-8 to -3dBm-23dBm
EX-LS38-C3L-TC-N-EB (DDM)40Km9/125μm, SMDuplex LC1310nm20dBm-3 to +2dBm-23dBm
EX-LS38-C3L-TC-N-CE (DDM)40Km9/125μm, SMSingle LCTX: 1310nm
RX: 1550nm
20dBm-3 to +2dBm-23dBm
EX-LS48-C3L-TC-N-CE (DDM)40Km9/125μm, SMSingle LCTX: 1550nm
RX: 1310nm
20dBm-3 to +2dBm-23dBm

* More SFP options upon request.
** Link Budget data is based on pair of the same modules.
