TG100H Series

NEW

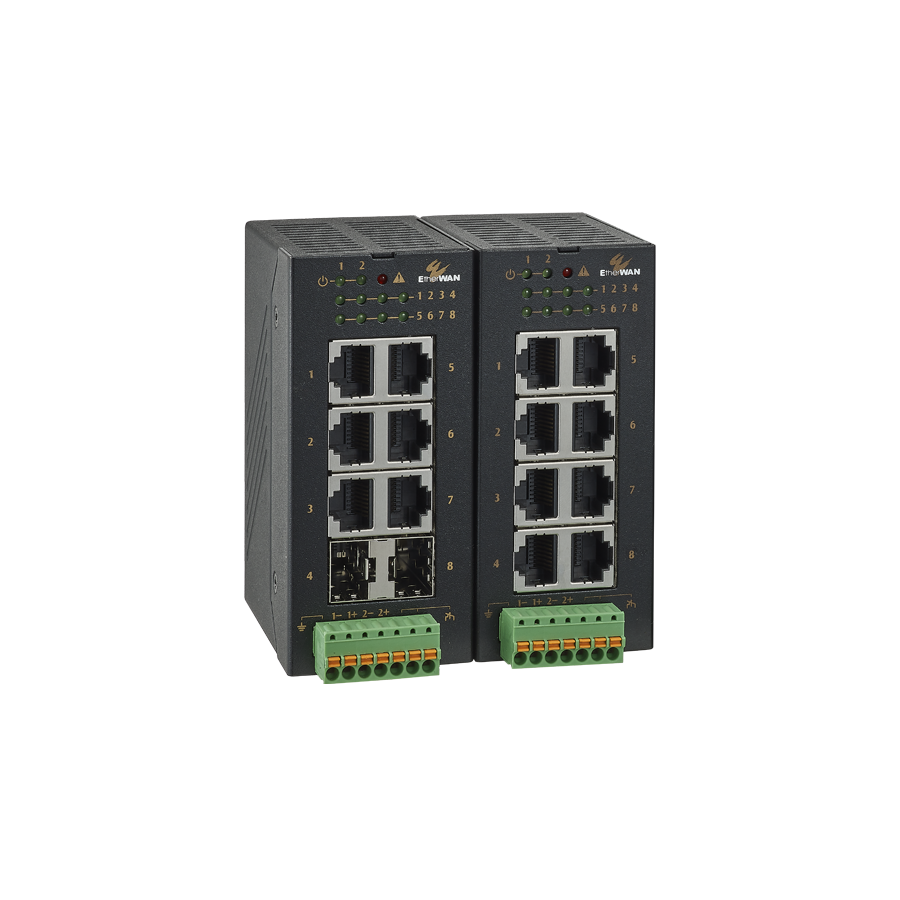

Hardened Unmanaged 8-Port Gigabit Ethernet Switch
NEMA-TS2
EN 50121-4
UL 61010
Fanless
UL
Hardened Grade
Gigabit Ethernet Ports w/ Up to Two 100/1000BASE SFP Slots
Quality of Service
High Reliability
Related Products
8 Port Gigabit Switches
Gigabit Switches
(18)
EN 50121-4 Ethernet Switches
(14)
UL 61010 Switches
(8)
Downloads
QIGVisio Stencil
Inquiry

EtherWAN's OttoE Series is a hardened unmanaged Gigabit Ethernet switching platform, designed for easy deployment in harsh environments with limited space. The OttoE Series is an economic easy-to-use device, which provides essential industrial Ethernet networking functionality.

It supports 9 to 55VDC redundant power input, and also provides relay alarm for power failure. The OttoE is equipped with eight Fast/Gigabit Ethernet ports, or a combination of Fast/Gigabit Ethernet copper ports and two 100 or 100/1000 Mbps dual rate SFP ports for long distance connectivity.

This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of a variety of network devices. QoS (Quality of Service) support allows for traffic prioritization and effective management of resources. A rugged, DIN rail mountable metal housing provides security and easy installation (mounting kit is included).

Range of Operating Temperatures

    • Supports Hardened Grades

SFP Connectivity

    • Up to two 100/1000BASE SFP option

High Reliability

    • Fanless design

Quality of Service

    • PROFINET (TG100H), EtherNet/IP

Interface

  • Ethernet
    • 10/100/1000BASE-TX: 8 or 6 ports
    • 100/1000BASE-SFP: 0 or 2 ports
  • Alarm Contact
    • One relay output with current 0.5A@30V
  • LED Indicators
    • Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
    • Per Port: Link/Activity (Green)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/FX
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.1p Quality of Service (QoS)
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 1.5M bits (TG100H)
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure
    • Auto MDI/MDIX
  • Address Table Size
    • 4K MAC (TG100H)

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP30
  • Dimensions
    • 45 x 75 x 100mm (W x D x H) (1.77" x 2.95" x 3.94")
  • Weight
    • 336g (0.74lbs)
  • Installation Type
    • DIN-Rail (Top hat type 35mm) mounting

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15 Class A
    • VCCI Class A
    • EN 61000-6-4
    • ICES-003
    • EN 55032
  • EMS
    • EN 61000-6-2
      • - EN 61000-4-2 (ESD)
      • - EN 61000-4-3 (Radiated RFI)
      • - EN 61000-4-4 (Burst)
      • - EN 61000-4-5 (Surge)
      • - EN 61000-4-6 (Induced RFI)
      • - EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)
  • Industrial
    • EN 50121-4
  • Traffic
    • NEMA TS2

Power

  • Input
    • 9-55VDC (Terminal Block)
  • Power Consumption
    • 5.55W max. (TG100H)
  • Protection
    • Reverse Polarity Protection

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Warranty

What's Included

  • Device
    • Ethernet switch
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide

Hardened grade unmanaged 8 ports Etherenet switch



Model

Gigabit Ethernet Models

TG100H-08008-port 10/100/1000BASE-TX Hardened Unmanaged Ethernet Switch
TG100H-06026-port 10/100/1000BASE-TX+2-port 100/1000BASE SFP Hardened Unmanaged Ethernet Switch

Accessories

SFP Modules

Hardened SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver

Power Supplies

EPOW-24-60Power Supply, Hardened ( -40°C - +75°C) External 100-277 VAC Input; NEMA-TS2 rated; 60W, 24VDC, 0-11.1A with Open Wire (US Plug) - No Deration at High Temps
EPHX-24-6060W/2.5A DIN-Rail 24VDC Industrial Power Supply - No Deration at High Temps
EPHX-48-240240W/5A DIN-Rail 48VDC (42-56VDC Adjustable) Industrial Power Supply - No Deration at High Temps
EPHX-48-480480W/10A DIN-Rail 48VDC (36-55VDC Adjustable) Industrial Power Supply - No Deration at High Temps
