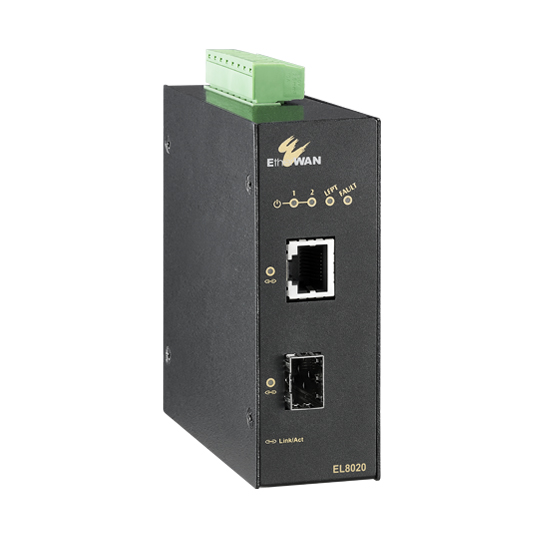

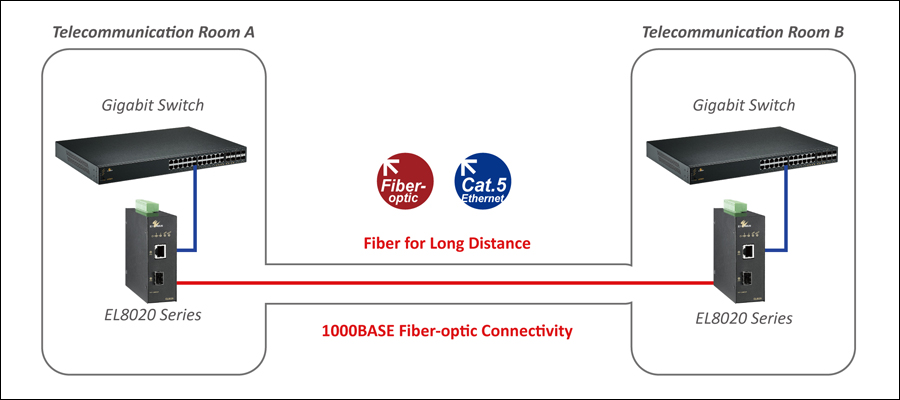

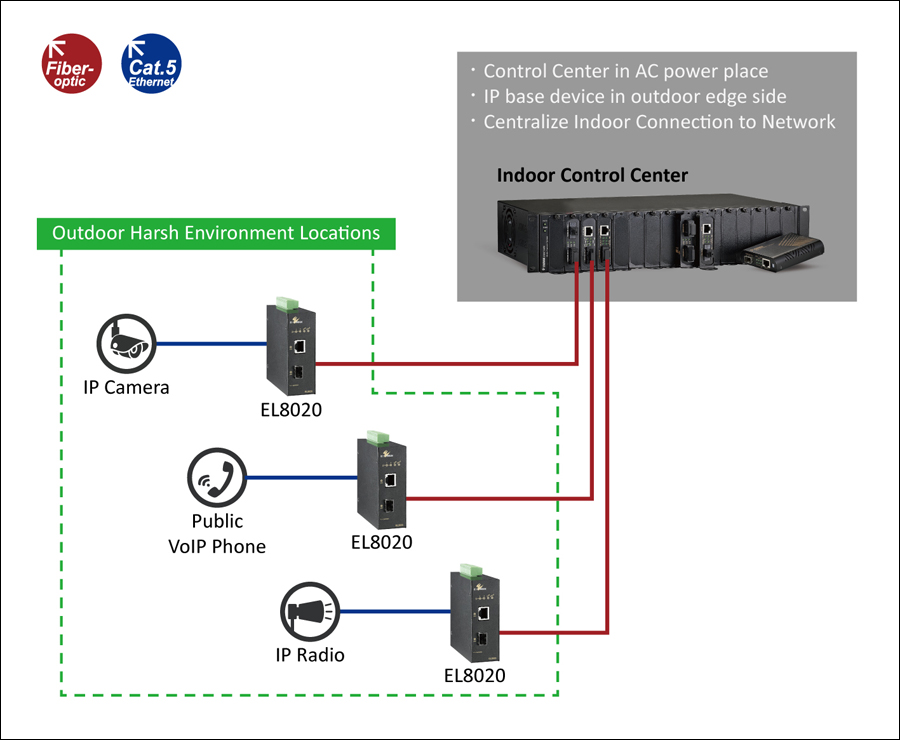

The EL8020 Series provides media conversion between 10/100/1000BASE-TX and 100/1000 SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8020's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C (-40 to 167°F), and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8020 is the ideal media converter for environments where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Full Gigabit bandwidth and Jumbo frames

» 10/100/1000BASE-TX and 100/1000 SFP Ethernet transmission conversion
» 1000Mbps Full duplex and full wire-speed forwarding rate
» Jumbo frames up to 10K bytes to increase throughput and transmission efficiency

Port Failure Alarm

» Relay alarm configured by DIP switch to notify users when power fails or link is down

Hardened Grade

» Supports -40 to 75°C (-40 to 167°F) operating temperature
» Redundant power inputs on terminal block connector
» Supports DIN-Rail mounting

Link-Fault-Pass-Through (LFPT)

» Provides constant monitoring of the links connected to the media converters
» If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Technology

  • Standards
  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3ab 1000BASE-T
  •
  • Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 1000Mbps
  • • 1,488,100pps for 1000Mbps
  •
  • Processing Type
  • • Auto Negotiation
  • • Auto MDI/MDIX

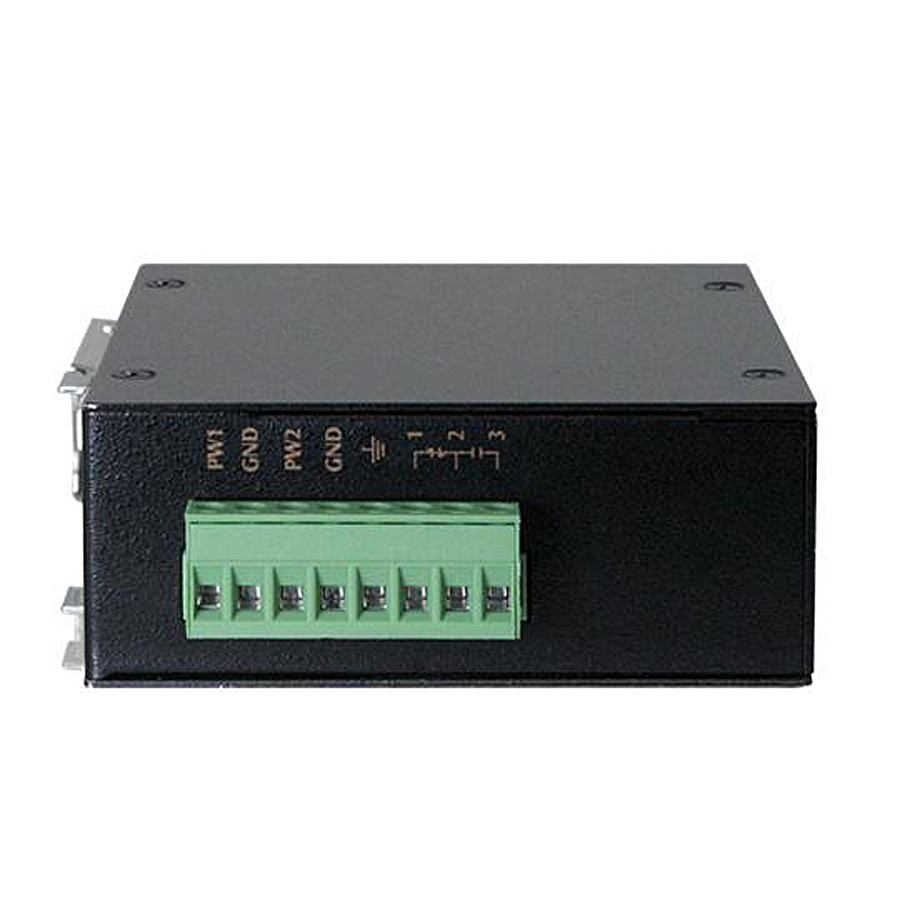

Power

  • Input
  • • 12-48VDC
  •
  • Protection
  • • Overload Current Protection
  • • Reverse Polarity Protection

Mechanical

  • Casing
  • • Aluminum Case
  • • IP30
  •
  • Dimensions
  • • 35.8 x 90 x 100mm (W x D x H)
      (1.41" x 3.54" x 3.94")
  •
  • Weight
  • • 0.23Kg (0.51lbs.)
  •
  • Installation
  • • DIN-Rail

Interface

  • Ethernet Port
  • • 10/100/1000BASE-TX: 1 port
  • • 100/1000 SFP: 1 port
  •
  • LED Indicators
  • • Per Unit: Power 1, Power 2, Fault, LFPT
  • • Per Port: Link/Activity
  •

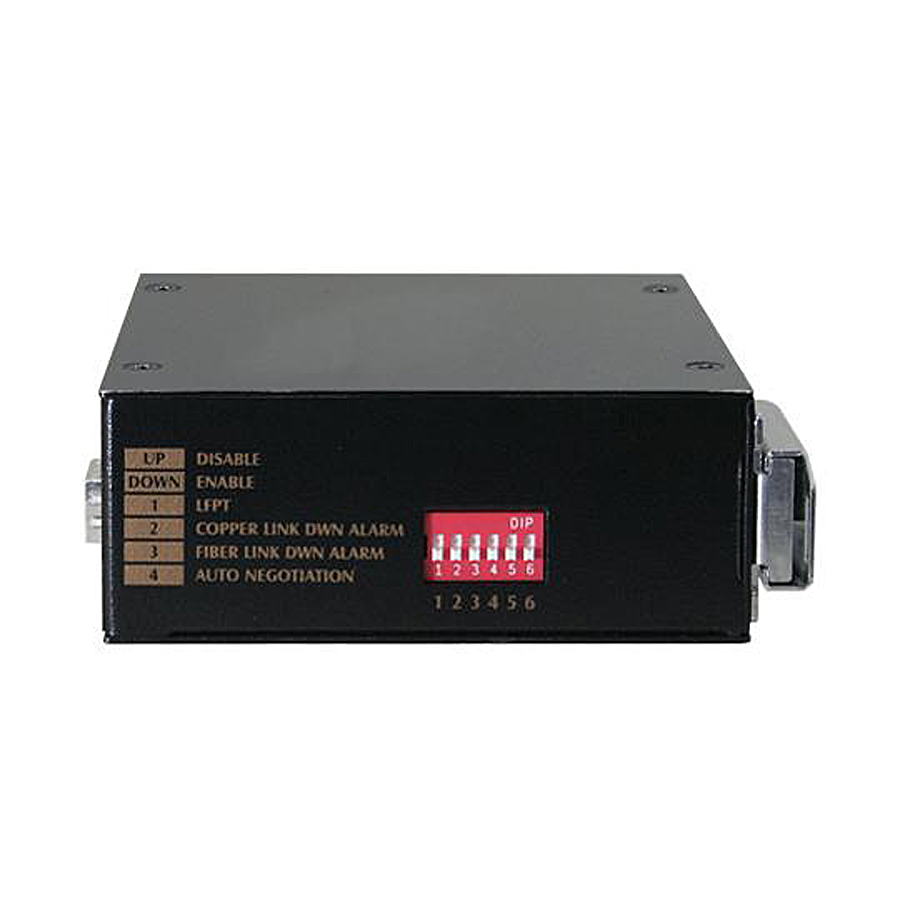

  • DIP Switch
  • • No.1: LFPT On/Off
  • • No.2: Alarm for copper port On/Off
  • • No.3: Alarm for fiber port On/Off
  • • No.4: Auto-negotiation for fiber port On/Off
  •
  • Alarm Contact
  • • Relay contact rating with current 0.6A/30VDC

Environment

  • Operating Temperature
  • • -40 to 75°C (-40 to 167°F)
  •
  • Storage Temperature
  • • -40 to 85°C (-40 to 185°F)
  •
  • Ambient Relative Humidity
  • • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
  • • Manufactured in an ISO 9001 facility
  •
  • Safety
  • UL 61010
  •
  • Industrial Compliance
  • EN 50121-4
  •
  • EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55032
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-3
  •
  • EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
  •
  • Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

Model

EL8020-V1E 10/100/1000BASE-TX to 100/1000 SFP Hardened Media Converter
