EDGE 2

Industrial LTE-M/NB-IoT Edge Node
MQTT
Azure
AWS
Modbus
IP67
Smart Alert
LTE-M
NB-IoT
Converter A/D
Not available in North America
MQTT Protocol for Cloud Connectivity
Ready to Cloud for AWS and Azure
Multiple I/O to connect to a Wide Variety of Field Equipment
Over thousands data storage (16MB Log storage); Scheduled Uplink
Integrated 10 bit A/D Converter to convert Analog Signal to Digital Data
Serial port supports Modbus RTU Interoperability

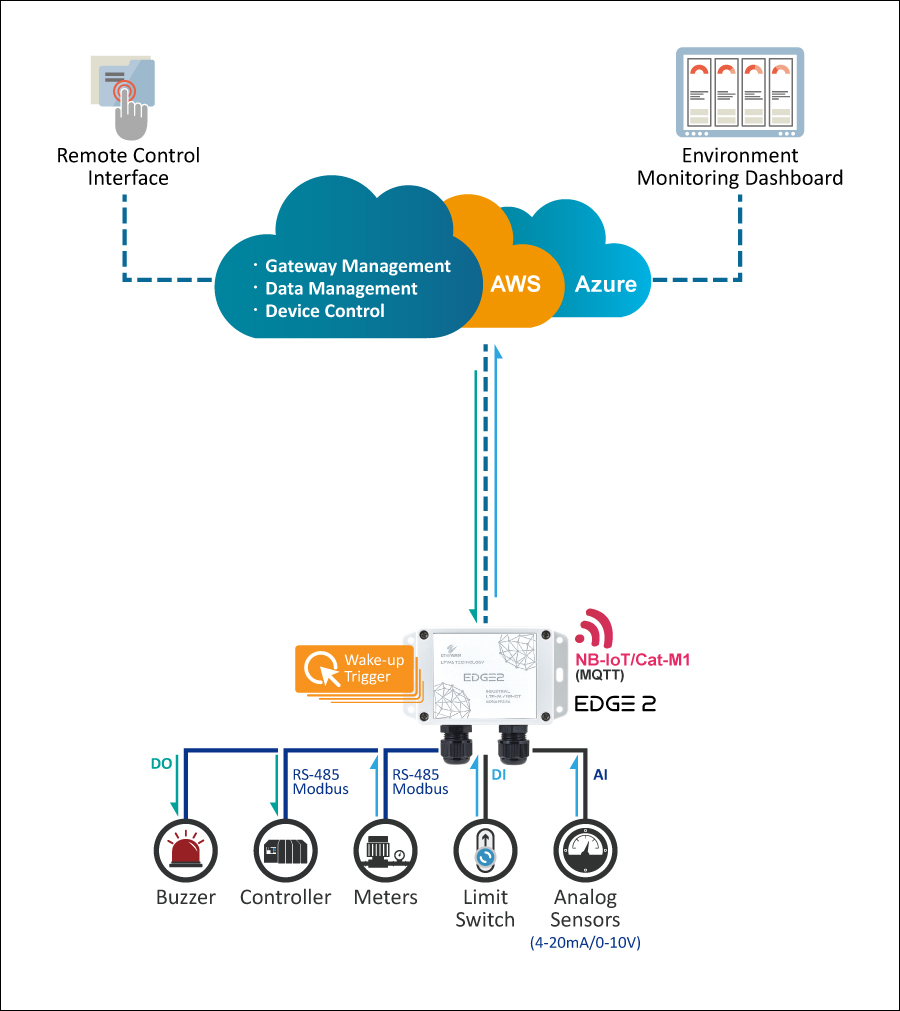

EDGE series products are Internet of Things devices which speed up IoT project deployment on field sites in an easy and scalable way. The major advance wireless LPWA solution: LTE NB-IoT/Cat-M1 is deployed on the Edge node product respectively, fulfilling wireless monitoring and controlling needs under an IoT framework.

The EDGE 2 conveniently and transparently connects the existing field site sensors/serial devices with only basic configuration to NBIoT/Cat-M1 Internet network.

EtherWAN — "When Connectivity is Crucial."



Flexible Connectivity for Critical Applications

    • Multiple I/O to connect to a Wide Variety of Field Equipment
    • Over thousands data storage (16MB Log storage); Scheduled Uplink
    • Integrated 10 bit A/D Converter to convert Analog Signal to Digital Data

Reliable and Uninterrupted Connection

    • Serial port supports Modbus RTU Interoperability
    • Remote Control when VDC powered (DO output and Modbus Control)
    • Wake up trigger with sensor data continuing uplink
    • Smart alert with over threshold trigger DO and MQTT event activate

Rugged Industrial Design

    • IP67 Enclosure Design
    • -30 to 70°C Temperature Range
    • Battery or DC Power Input

IoT Cloud Connectivity

    • MQTT Protocol for Cloud Connectivity
    • Ready to Cloud for AWS and Azure

LTE Cat. NB2/M1 Frequency Band

ModelBand/ChannelRegions
EDGE 2FDD:B1/B2/B3/B4/B5/B8/B12/ B13/B17/B18/B19/B20/B25 /B27/B28/B66/B71/B85
GSM:B5/B8/B3/B2
All Regions (*Worldwide)


WAN & Uplink

  • EDGE 2
    •  • Protocol: TCP, UDP, MQTT
    •  • Cloud: AWS, Azure and MQTT based cloud
    •  • Data Security: SSL TLS 1.2
    •  • Connection: By schedule plan
      (per Yearly/Monthly/Weekly/Daily/Hourly or per designated Minutes)
    •  • Data Upload: Multiple servers supported for redundancy,
      re-trial plan for interrupted connection

Field Communication

  • Modbus
    •  • Master for accessing attached Modbus RTU Slaves
      (Up to 8 Modbus devices supported)
  • Data Logging
    •  • By schedule plan
      (per Yearly/Monthly/Weekly/Daily/Hourly or per designated Minutes)

Administration

  • Configuration
    •  • Windows Utility, Console CLI, USB-to-Serial console cable
  • System
    •  • Backup & Restore, Reboot & Reset, Syslog, Upgrade


Wireless Interfaces

  • EDGE 2
    • • 1 x LTE Cat. M1/NB2 Module
      • 3GPP, Cat. M1/NB2 with PSM (*Power save mode) supported
  • Data Transmission
    • • Cat. M1: Max. 375Kbps (DL); Max. 375Kbps (UL)
      • Cat. NB2: Max. 32Kbps (DL); Max. 70Kbps (UL)
  • Specification
    • • Max. Output Power: 23dBm
      • Sensitivity:
        -107dBm@Cat M1, 1.4MHz Bandwidth, CE Mode A
        -113dBm@Cat NB2, CE Level 0

I/O Interfaces

  • Analog Input
    • • 3 x AI ports (supports 0-10V/4-20mA)
      • Conversion: 10bit ADC
      • Input Range: 0-10V, or 4-20mA (Dual mode)
      • Resolution: 10mV, or 20uA (with 2-bit hard-wired divider involved)
  • Digital Input
    • • 2 x DI ports (Isolated, supports Pulse Counter, Dry Contact)
  • Digital Output
    • • 1 x DO port (Isolated, Non-Relayed Output, Maximum 24V/300mA)
  • Wake-up Port
    • • 1 x Internal Reed Switch (EDGE 2) and dedicated wake-up port reserved for device wake-up triggering
  • RS-485
    • • Support 8 sets Modbus RTU devices
      • Modbus/RTU read command FC 1,2,3,4 and write command FC 5,6 from MQTT or LoRaWAN

I/O Connectors

  • 2 x M16 waterproof connectors with 2-hole cable gland for wiring the required ports to external sensors/meters

Embedded Antennas

  • EDGE 2 Series
    • • 1 x Internal 2dBi Antenna

Log Storage

  • Data logging (EDGE 2)
    • • 16MB Internal Storage

Power

  • 4000mAh 3.6V Li-SOCL2 battery (Optional), or external 5-12VDC Power Input predefined by Jumper
    • Power Consumption:
    • Fully Operation: 1000 mW (3.6Volts)
    • Sleepn: 0.4mW (3.6 Volts)
    • Sending: 11.25mW (tx 45 seconds/hour, 3.6 volts)

Mechanical

  • Casing
    • • Plastic (PC, UL-94V2)
      • IP67

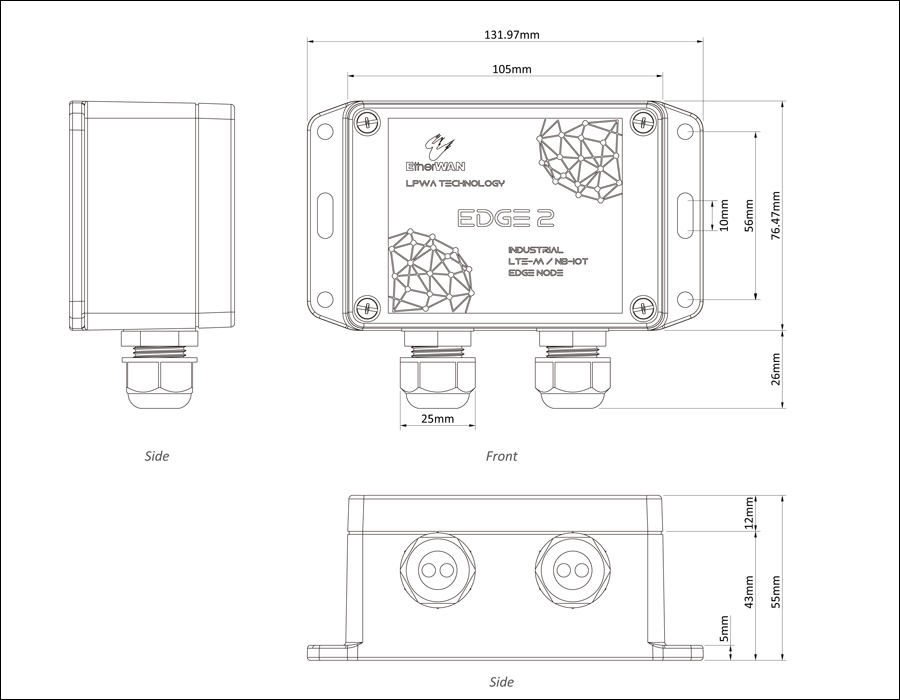

  • Dimension
    • • 105 x 55 x 76.47mm (W x D x H); Enclosure only
      • 131.97 x 81 x 76.47mm (W x D x H); Including Cable Gland, Brackets
  • Weight
    • • 0.3Kg (0.66lbs)
  • Installation
    • • Bracket mounting

Environment Limits

  • Operating Temperature
    • • -30 to 70°C (-22 to 158°F)
  • Storage Temperature
    • • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity
    • • 5% to 95% (non-condensing)

Regulatory Approvals

  • Safety
    • • EN 60950-1
  • Emissions/Immunity
    • • CE/NCC/EAC









ModelBand/ChannelRegions
EDGE 2FDD:B1/B2/B3/B4/B5/B8/B12/ B13/B17/B18/B19/B20/B25 /B27/B28/B66/B71/B85
GSM:B5/B8/B3/B2
All Regions (*Worldwide)

Included Accessories

  • • Device x 1
  • • Cable Tie for fixing battery x 2
  • • Jumper for AI current mode setting x 3
  • • Water & Dust-proof stopper x 3

Optional Accessory

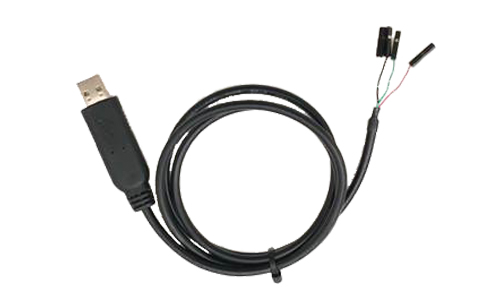

USB-to-Serial Console CableNoteNote
W96G-1140Y1126USB-to-Serial console cable is an optional accessory purchased separately for utility configuration for EDGE 2 setting and configuration.
W96G-11330Y100ER18505-3.6V-4000mAh battery for EDGE 2 series.
