EX78900G Series
90W Power, 2.5X Speed, and Uninterrupted ERPS Performance — All In One Compact Solution
Tri-Speed Switching and ERPS Protection in One Industrial Solution
Up to 2.5G Uplink with Tri-Speed Flexibility
Boost network speed seamlessly without modifying your existing infrastructure. Featuring tri-speed ports (100M/1G/2.5G), this solution supports a wide range of devices operating at different speeds. It’s a cost-effective alternative to 10G uplinks—perfect for bandwidth-intensive applications and future scalability.
ERPS: Fast Failover for Resilient Ring Networks
ERPS ensures sub-50ms failover in ring topologies, rerouting traffic instantly during link or node failure. It delivers high availability for critical applications without complex infrastructure changes.
2.5G Industrial Managed PoE Switch with High Power and Smart Design
The EX78900G is a 2.5G industrial managed PoE switch with advanced Layer 2/3 features. It supports 8 Gigabit PoE ports, each delivering up to 90W, with a total power budget of 480W. Fully compliant with IEEE 802.3.bt and backward compatible with IEEE 802.3af/at, it offers flexible PoE options from 15W to 90W. The front-facing port layout and cable-friendly design simplify wiring, save cabinet space, and make maintenance easier—perfect for industrial environments requiring performance and practicality.
EX78924G
| 8-port GbE |
| 8-port supports PoE++ |
| 90W PoE per port |
| 4-port 100/1G/2.5G SFP |
| 480W |
EX78922G
| 8-port GbE |
| 8-port supports PoE++ |
| 90W PoE per port |
| 2-port 100/1G/2.5G SFP |
| 480W |
EX78912G
| 8-port GbE |
| 4-port supports PoE++ |
| 90W PoE per port |
| 2-port 100/1G/2.5G SFP |
| 240W |
| Contact Sales |
Note: The maximum power budget depends on the maximum operating temperature.
Rev Up IIoT With 90W PoE + 480W Power Budget
Your power-intensive PDs for bus stations, digital signage, PTZ cameras, and LED lighting applications can now be connected all at the same time without thinking about power constraints.
- Reduced installation and wiring costs over a single Ethernet cable
- Supports a broader range of high-powered PDs
- More efficient and versatile power delivery
- Plug your multiple high-powered PDs simultaneously
- Easy deployment with flexible control over PoE power allocation and management
Top Industrial Managed PoE Switches – Reliable, Scalable, and Easy to Deploy

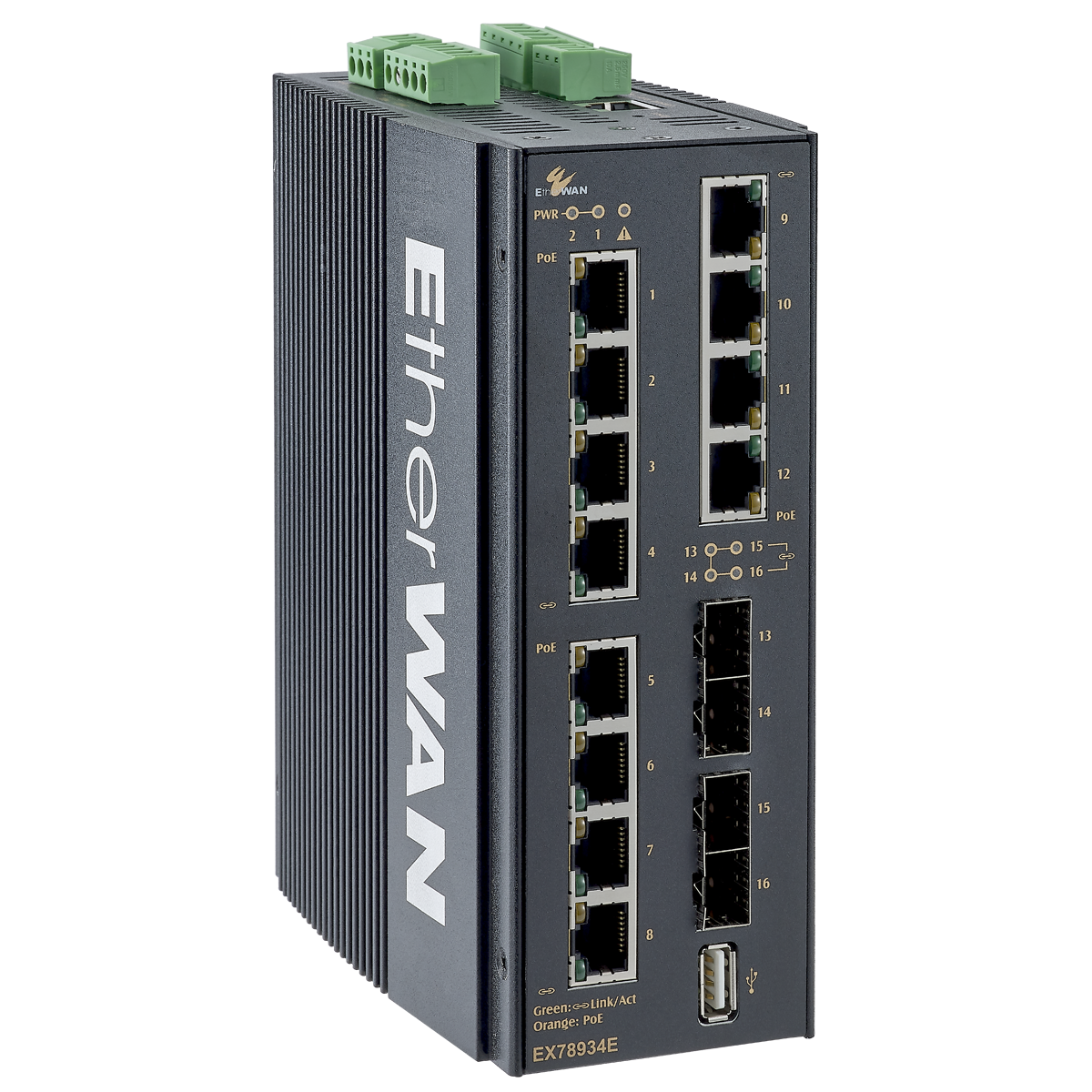

EX78900E
| 12-port GbE |
| 4-port supports PoE++ |
| 30W/60W PoE per port |
| 4-port 100/1G SFP |
| 240W |
EX78900X
| 12-port GbE |
| 12-port supports PoE++ |
| 90W PoE per port |
| 4-port 1G/10G SFP+ |
| 360W |

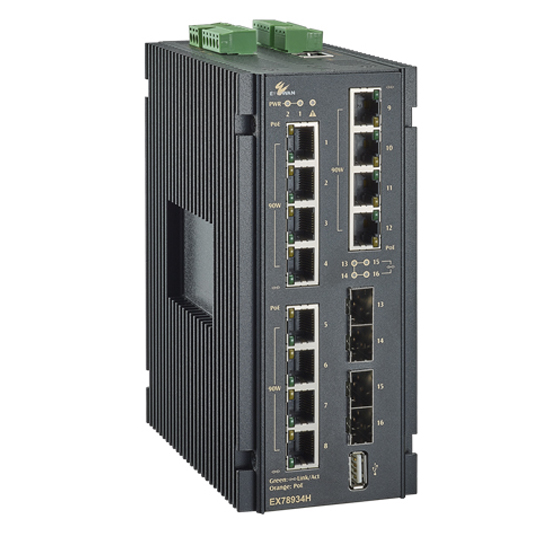

EX78900H
| 12-port GbE |
| 12-port supports PoE++ |
| 90W PoE per port |
| 4-port 100/1G SFP |
| 360W |
| Contact Sales |
Industrial Unmanaged PoE Switches – Rugged, Reliable, and Cost-Effective
OttoE PoE 08(H) GE
| 8-port GbE |
| 8-port supports PoE++ |
| 90W PoE per port |
| - |
| 270W |
OttoE PoE 10(H) GE
| 8-port GbE |
| 4/8-port supports PoE++ |
| 90W PoE per port |
| 2-port 100/1000 BASE-SFP |
| 270W |
EX46900A
| 8-port GbE |
| 8-port supports PoE++ |
| 30W PoE per port |
| 2-port 1000 BASE-SFP |
| 120W |
| Contact Sales |
Note: The maximum power budget depends on the maximum operating temperature.
