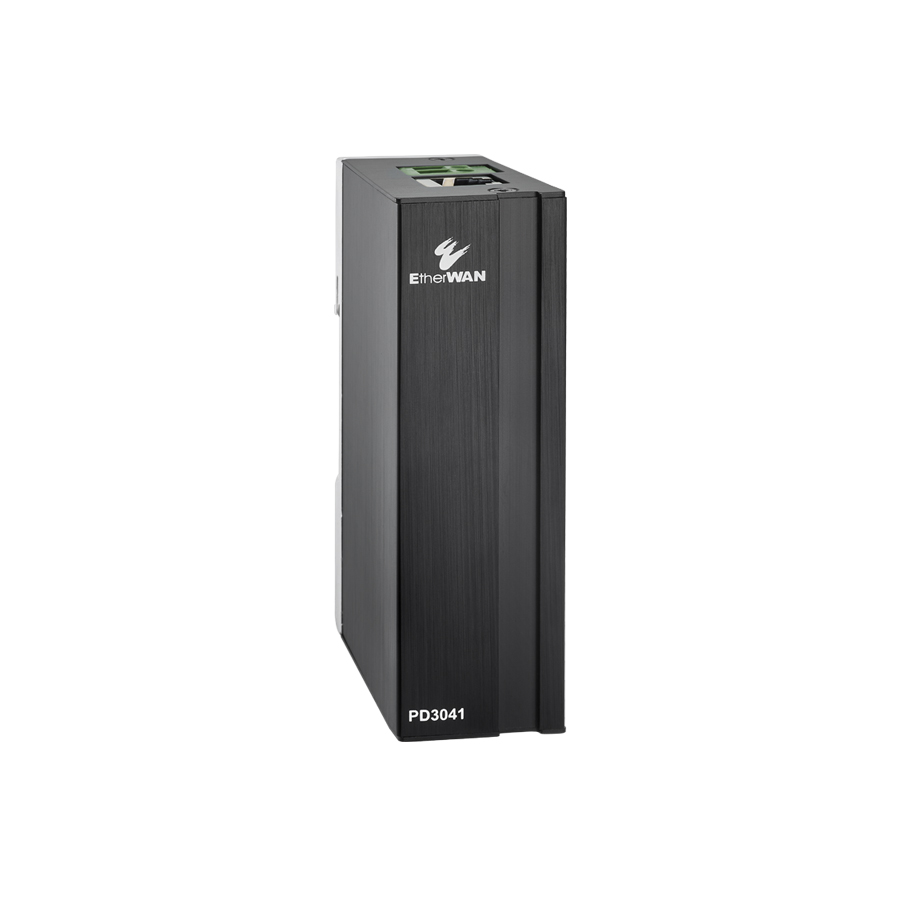

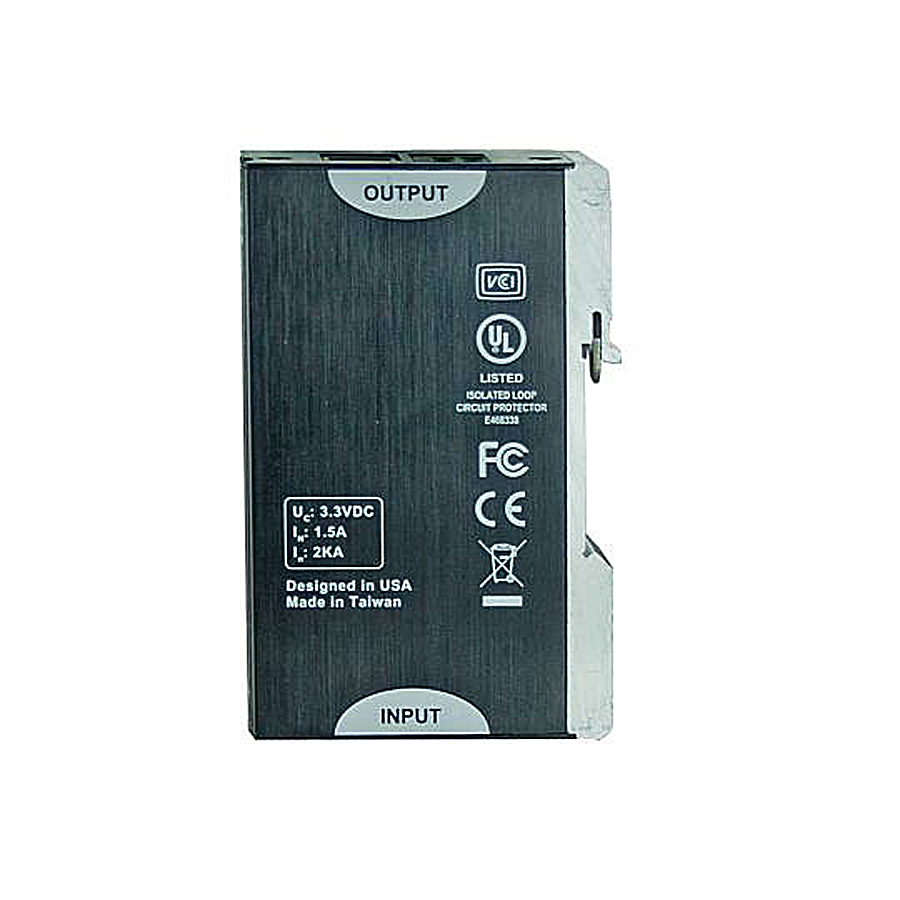

PD3041

Hardened Surge Protection Device – RJ11 & Two Wire Terminal Block

Wide Temperature
Provides pair-to-pair protection through RJ11 connector & terminal block
Can be installed in control cabinet
Overview
Spotlight
Specifications
Dimensions
Ordering Info
Video

EtherWAN’s PD3041 Hardened Surge Protection Device shields DSL equipment from dangerous power surges, ground loops, and electrical discharges caused by faulty wiring or lightning. With full wire-to-wire and wire-to-earth surge protection, the PD3041 is ideal for use in areas that have unstable supplies of electricity, and on sites that have excessive amounts of electromagnetic interference. Applications include outdoor IP cameras and access points, as well as rooftop networking cabinets.

EtherWAN — "When Connectivity is Crucial."

Protection Solution Against Voltage Surge

» Provides pair-to-pair protection through RJ11 connector & terminal block

Flexible Installation

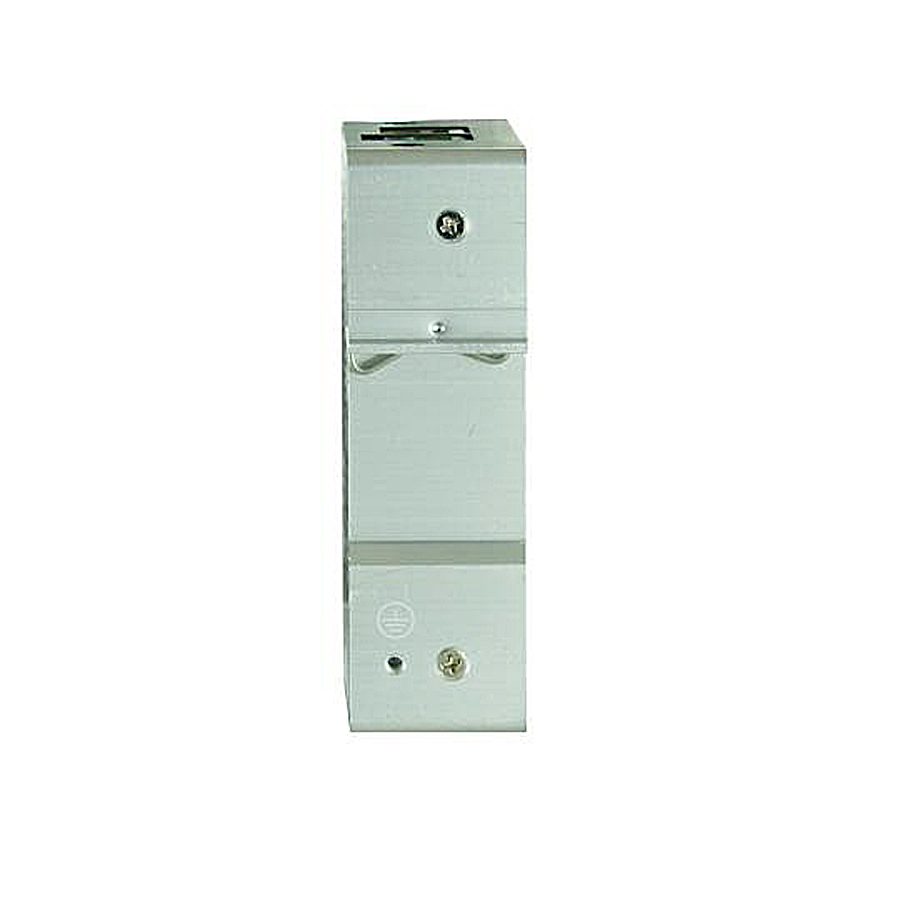

» Supports DIN-rail or desktop installation

Wide Temperature

» Provides -40°C to 75°C operating temperature range for extreme environments

Electrical

Maximum continuous operating voltage UC

  • • ≤ 185VDC

Maximum continuous voltage UC (wire-wire)
  • • ≤ 185VDC

Maximum continuous voltage UC (wire-ground)
  • • ≤ 185VDC

Nominal current IN
  • • ≤ 380mA (25 °C)

Operating effective current IC at UC
  • • ≤ 6 μA

Residual current IPE
  • • ≤ 4 μA

Nominal discharge surge current In (8/20) μs
  • (Core-Core)

  • • ≤ 5 kA

Nominal discharge surge current In (8/20) μs
  • (Core-Earth)

  • • ≤ 5 kA

Total surge current (8/20) μs
  • • 10 kA

Nominal pulse current Ian (10/1000) μs
  • (Core-Core)

  • • ≤ 100A

Nominal pulse current Ian (10/1000) μs
  • (Core-Earth)

  • • ≤ 100A

Nominal pulse current Ian (10/700) μs
  • (Core-Core)

  • • ≤ 150A

Nominal pulse current Ian (10/700) μs
  • (Core-Earth)

  • • ≤ 150A

Output voltage limitation at 1 kV/μs (Core-Core) spike
  • • ≤ 250 V

Output voltage limitation at 1 kV/μs (Core-Earth) spike
  • • ≤ 250 V

Residual voltage at In, (conductor-conductor)
  • • ≤ 120 V

Residual voltage at In, (conductor-ground)
  • • ≤ 120 V

Voltage protection level UP (Core-Core)
  • • ≤ 300 V (B2 – 100A)
  • • ≤ 300 V (C1 – 500A)
  • • ≤ 300 V (C2 – 5kA)

Voltage protection level UP (Core-Earth)
  • • ≤ 300 V (B2 – 100A)
  • • ≤ 300 V (C1 – 500A)
  • • ≤ 300 V (C2 – 5kA)

Response time tA (Core-Core)
  • • ≤ 100 ns

Response time tA
  • (Core-Earth)

  • • ≤ 100 ns

Input attenuation aE, sym.
  • • Typ. 0.5 dB (≤ 5 MHz)
  • • Typ. 0.3 dB (≤ 8 MHz / 150Ω)
  • • Typ. 0.3 dB (≤ 2.5 MHz / 600Ω)

Near-end crosstalk attenuation
  • • ≤ 35 dB (At 250 MHz / 100 Ω)

Cut-off frequency fg (3 dB), sym. in 100 Ohm system
  • • Typ. 50 MHz

Resistance in series
  • • 3.3 Ω ±10%

Surge carrying capacity in acc. with IEC 61643-21
  • (Core-Core)

  • • B2 (4kV / 100A)
  • • C1 (1kV / 500A)
  • • C2 (10kV / 5kA) (Terminal block)
  • • C2 (6kV / 3kA) (RJ11)

Surge carrying capacity in acc. with IEC 61643-21
  • (Core-Earth)

  • • B2 (4kV / 100A)
  • • C1 (1kV / 500A)
  • • C2 (10kV / 5 kA) (Terminal block)
  • • C2 (6kV / 3kA) (RJ11)
  • • D1 (1 kA)

Mechanical

Casing

  • • Aluminum case
  • • IP30

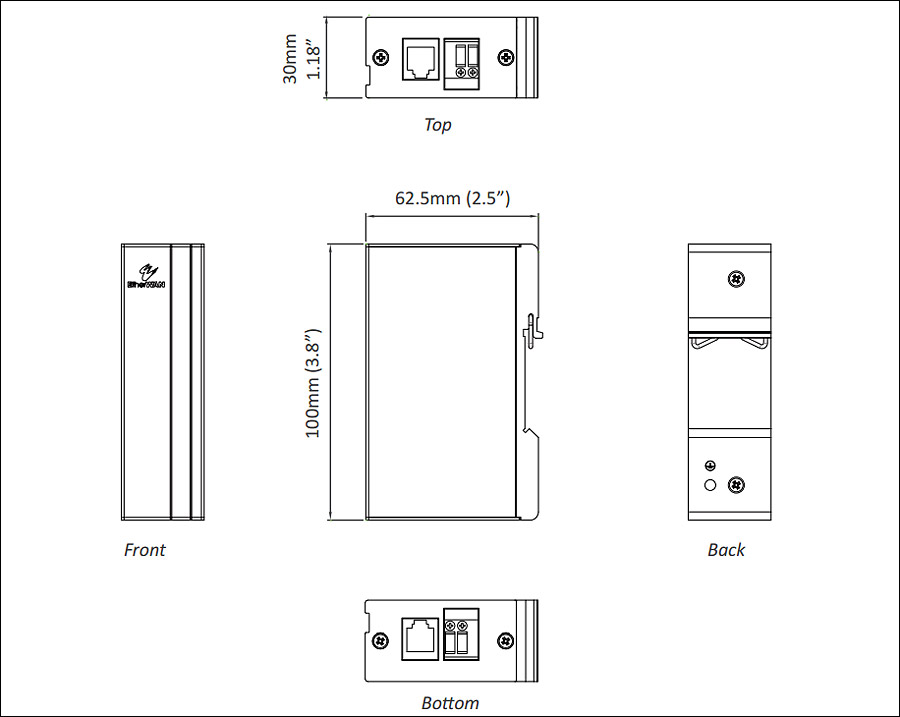

Dimensions
  • • 62.5mm (W) x 100mm (H) x 30mm (D)
      (2.5”(W) x 3.8”(H) x 1.18”(D))

Weight
  • • 184g ± 10%

Installation

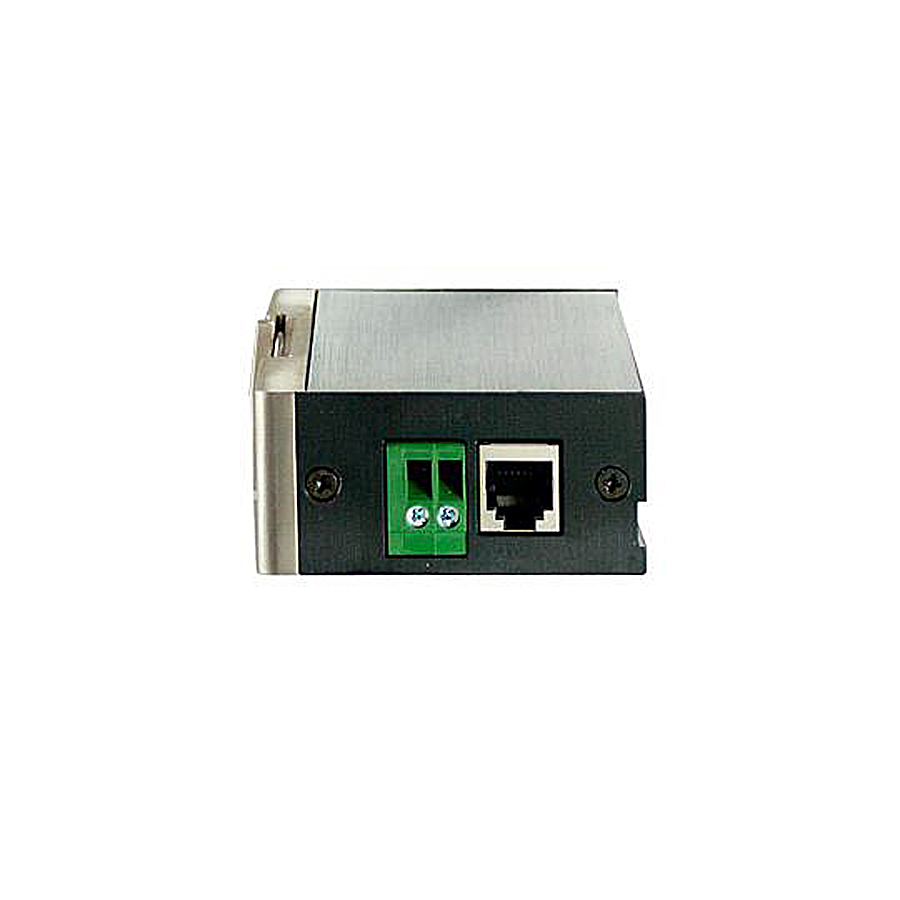

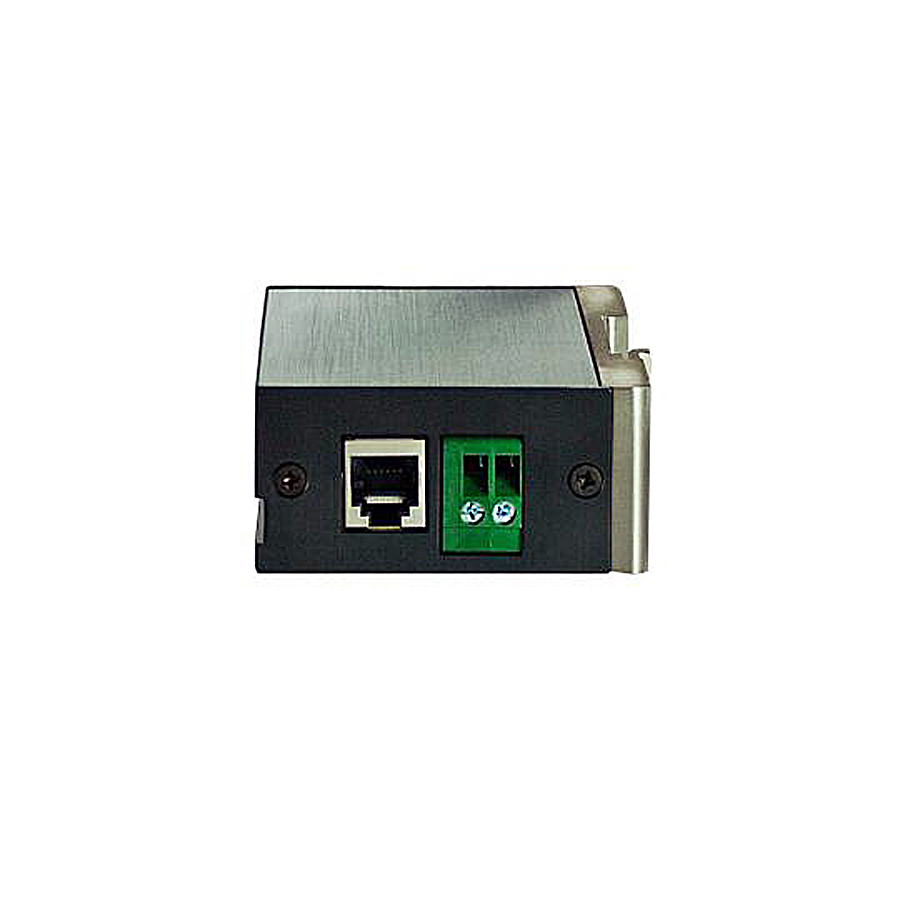

  • • RJ11 connector/ Terminal Block




Environment

Operating Temperature

  • • -40°C to 75°C (-40°F to 167°F)

Storage Temperature
  • • -40°C to 85°C (-40°F to 185°F)

Humidity
  • • 5% to 95%, non-condensation




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

EMI
  • • CE
  • • FCC Part 15 Class B
  • • VCCI

TUV
  • • IEC61643-21

UL
  • • UL497B



Model

PD3041 Hardened Surge Protection Device – RJ11 & Two Wire Terminal Block Type

Overview

EtherWAN’s PD3041 Hardened Surge Protection Device shields DSL equipment from dangerous power surges, ground loops, and electrical discharges caused by faulty wiring or lightning. With full wire-to-wire and wire-to-earth surge protection, the PD3041 is ideal for use in areas that have unstable supplies of electricity, and on sites that have excessive amounts of electromagnetic interference. Applications include outdoor IP cameras and access points, as well as rooftop networking cabinets.

EtherWAN — "When Connectivity is Crucial."

Spotlight

Protection Solution Against Voltage Surge

» Provides pair-to-pair protection through RJ11 connector & terminal block

Flexible Installation

» Supports DIN-rail or desktop installation

Wide Temperature

» Provides -40°C to 75°C operating temperature range for extreme environments

Specifications

Electrical

Maximum continuous operating voltage UC

  • • ≤ 185VDC

Maximum continuous voltage UC (wire-wire)
  • • ≤ 185VDC

Maximum continuous voltage UC (wire-ground)
  • • ≤ 185VDC

Nominal current IN
  • • ≤ 380mA (25 °C)

Operating effective current IC at UC
  • • ≤ 6 μA

Residual current IPE
  • • ≤ 4 μA

Nominal discharge surge current In (8/20) μs
  • (Core-Core)

  • • ≤ 5 kA

Nominal discharge surge current In (8/20) μs
  • (Core-Earth)

  • • ≤ 5 kA

Total surge current (8/20) μs
  • • 10 kA

Nominal pulse current Ian (10/1000) μs
  • (Core-Core)

  • • ≤ 100A

Nominal pulse current Ian (10/1000) μs
  • (Core-Earth)

  • • ≤ 100A

Nominal pulse current Ian (10/700) μs
  • (Core-Core)

  • • ≤ 150A

Nominal pulse current Ian (10/700) μs
  • (Core-Earth)

  • • ≤ 150A

Output voltage limitation at 1 kV/μs (Core-Core) spike
  • • ≤ 250 V

Output voltage limitation at 1 kV/μs (Core-Earth) spike
  • • ≤ 250 V

Residual voltage at In, (conductor-conductor)
  • • ≤ 120 V

Residual voltage at In, (conductor-ground)
  • • ≤ 120 V

Voltage protection level UP (Core-Core)
  • • ≤ 300 V (B2 – 100A)
  • • ≤ 300 V (C1 – 500A)
  • • ≤ 300 V (C2 – 5kA)

Voltage protection level UP (Core-Earth)
  • • ≤ 300 V (B2 – 100A)
  • • ≤ 300 V (C1 – 500A)
  • • ≤ 300 V (C2 – 5kA)

Response time tA (Core-Core)
  • • ≤ 100 ns

Response time tA
  • (Core-Earth)

  • • ≤ 100 ns

Input attenuation aE, sym.
  • • Typ. 0.5 dB (≤ 5 MHz)
  • • Typ. 0.3 dB (≤ 8 MHz / 150Ω)
  • • Typ. 0.3 dB (≤ 2.5 MHz / 600Ω)

Near-end crosstalk attenuation
  • • ≤ 35 dB (At 250 MHz / 100 Ω)

Cut-off frequency fg (3 dB), sym. in 100 Ohm system
  • • Typ. 50 MHz

Resistance in series
  • • 3.3 Ω ±10%

Surge carrying capacity in acc. with IEC 61643-21
  • (Core-Core)

  • • B2 (4kV / 100A)
  • • C1 (1kV / 500A)
  • • C2 (10kV / 5kA) (Terminal block)
  • • C2 (6kV / 3kA) (RJ11)

Surge carrying capacity in acc. with IEC 61643-21
  • (Core-Earth)

  • • B2 (4kV / 100A)
  • • C1 (1kV / 500A)
  • • C2 (10kV / 5 kA) (Terminal block)
  • • C2 (6kV / 3kA) (RJ11)
  • • D1 (1 kA)

Mechanical

Casing

  • • Aluminum case
  • • IP30

Dimensions
  • • 62.5mm (W) x 100mm (H) x 30mm (D)
      (2.5”(W) x 3.8”(H) x 1.18”(D))

Weight
  • • 184g ± 10%

Installation
  • • RJ11 connector/ Terminal Block




Environment

Operating Temperature

  • • -40°C to 75°C (-40°F to 167°F)

Storage Temperature
  • • -40°C to 85°C (-40°F to 185°F)

Humidity
  • • 5% to 95%, non-condensation




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

EMI
  • • CE
  • • FCC Part 15 Class B
  • • VCCI

TUV
  • • IEC61643-21

UL
  • • UL497B



Dimensions

Ordering Info

Model

PD3041 Hardened Surge Protection Device – RJ11 & Two Wire Terminal Block Type
