EXGS-120A-48

Power Supply 120W 48VDC with Latch

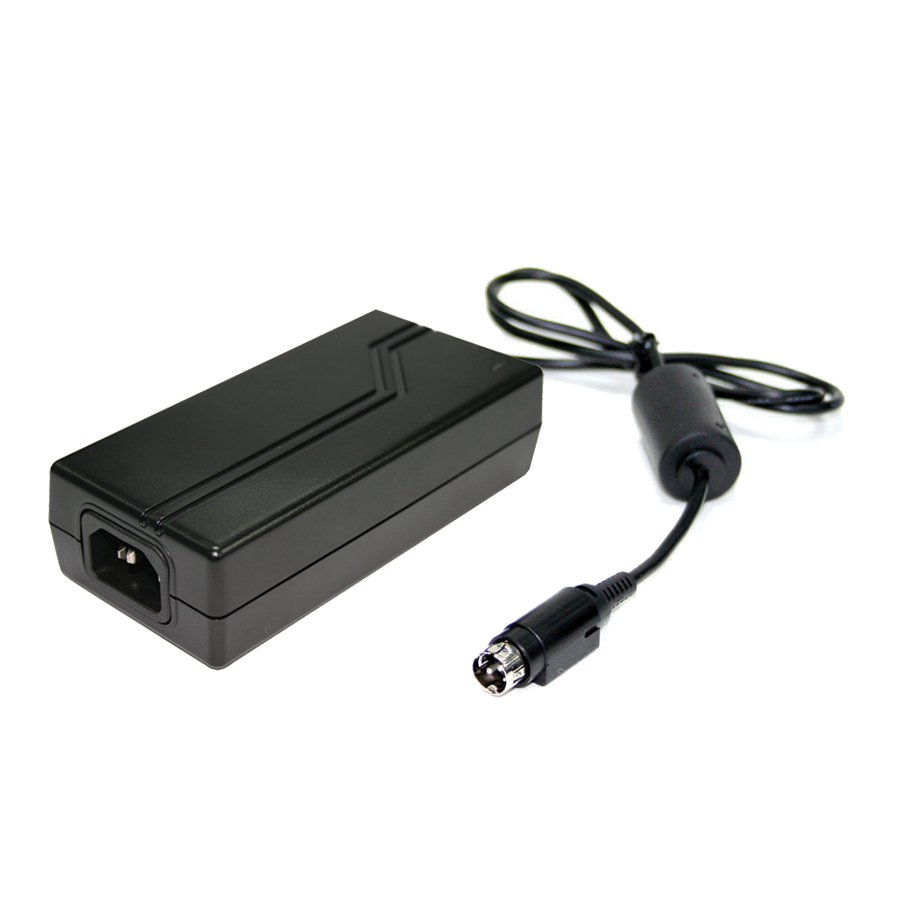

EXGS-120A-48 Power Supply 120W 48VDC with Latch
EXGS-120A-48 Power Supply 120W 48VDC with Latch

Downloads

Specifications
Dimensions
Ordering Info

Power

  • Input Rating
  • • 85-264VAC (47-63Hz)/120-370VDC
  •
  • Output Rating
  • • 120W, 48VDC, 0-2.5A

Mechanical

  • Casing
  • • Plastic Case
  •
  • Operating Temperature
  • • -30 to 70°C (32 to 158°F)
  •
  • Output Connector
  • • DC Jack with latch
  •

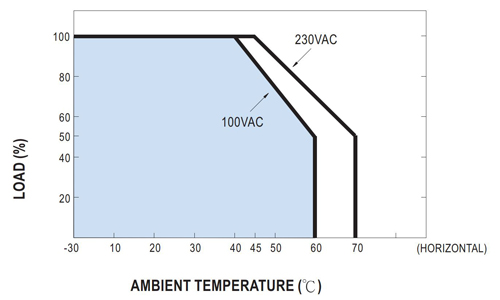

  • Derating Curve

Model

EXGS120A-48-X Power Supply 120W 48VDC with Latch

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP

Specifications

Power

  • Input Rating
  • • 85-264VAC (47-63Hz)/120-370VDC
  •
  • Output Rating
  • • 120W, 48VDC, 0-2.5A

Mechanical

  • Casing
  • • Plastic Case
  •
  • Operating Temperature
  • • -30 to 70°C (32 to 158°F)
  •
  • Output Connector
  • • DC Jack with latch
  •
  • Derating Curve

Dimensions

Ordering Info

Model

EXGS120A-48-X Power Supply 120W 48VDC with Latch

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP
